ZRE120L-GEMDKC (2007)

Toyota Corolla (China)

Production May 2007 - Feb 2017
Engine 1ZRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

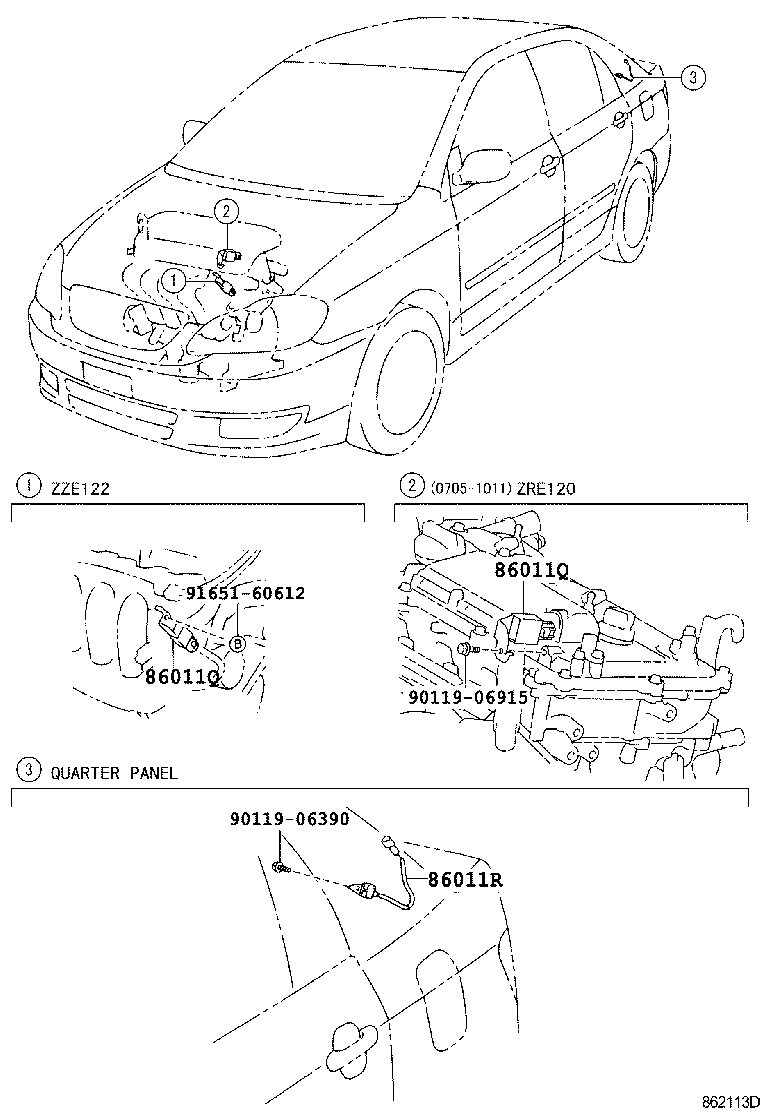

ILLUST NO. 3 OF 3(0402-1210) ; (1210- )

Click highlighted areas on diagram

CONDENSER

diagram 86011Q 86011Q 86011R 9011906390 9011906915 9165160612
Part # Description Qty Price
86011Q - CONDENSER, RADIO SETTING
90980-04194

ZRE120

ENGINE

 1
86011Q - CONDENSER, RADIO SETTING
90980-04194

ZRE120

ENGINE

 1
86011R - CONDENSER, RADIO SETTING
90980-04134

ZRE120

 1
90980-04134

ZRE120

 1
Common parts
90119-06390
90119-06915
91651-60612

ILLUST NO. 2 OF 3(0402- )

Click highlighted areas on diagram

diagram 86120
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-0D280

ZRE120

FUJITSU TEN,ID=12829,TYPE A:REFER ILLUST.

 1
86120-YY150

ZRE120

PANASONIC,TYPE C:REFER ILLUST.

 1
86120-0D281

ZRE120

FUJITSU TEN,ID=12829,TYPE A:REFER ILLUST.

 1
86120-YY220

ZRE120

PANASONIC,TYPE B:REFER ILLUST.

 1

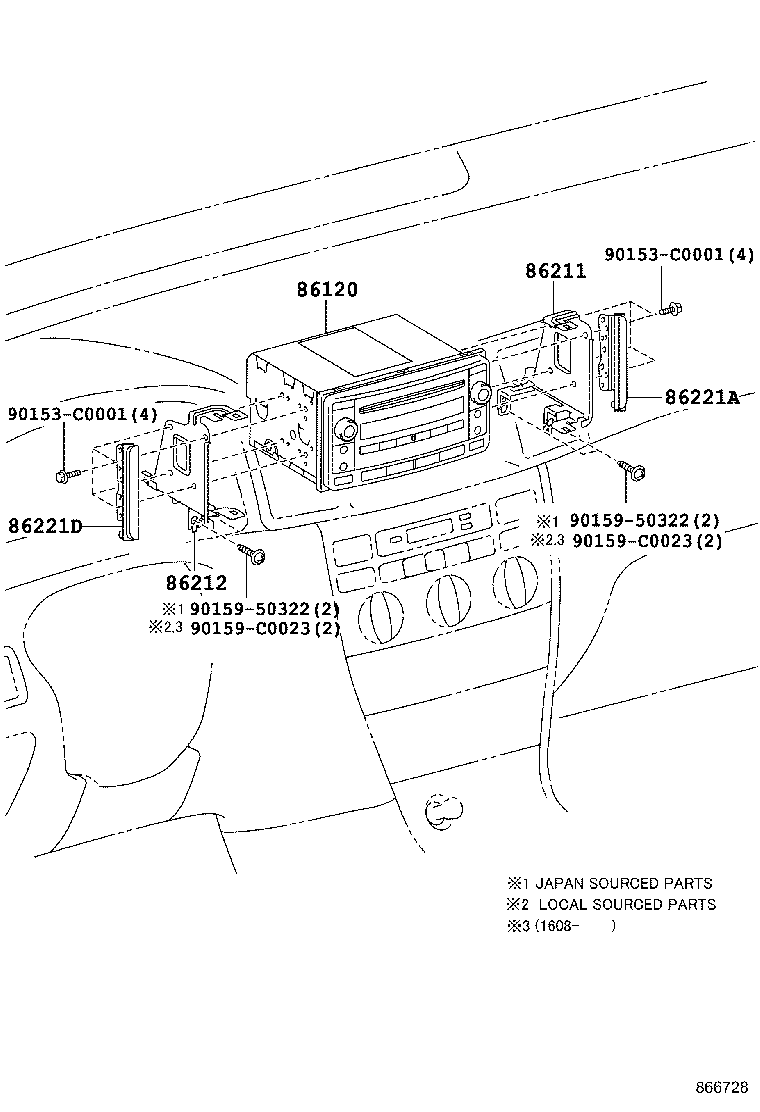

ILLUST NO. 1 OF 3(0402-1210) ; (1210- )

Click highlighted areas on diagram

diagram 86120 86211 86212 86221A 86221D 90153C0001 90153C0001 9015950322 9015950322 90159C0023 90159C0023
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-0D280

ZRE120

FUJITSU TEN,ID=12829,TYPE A:REFER ILLUST.

 1
86120-YY150

ZRE120

PANASONIC,TYPE C:REFER ILLUST.

 1
86120-0D281

ZRE120

FUJITSU TEN,ID=12829,TYPE A:REFER ILLUST.

 1
86120-YY220

ZRE120

PANASONIC,TYPE B:REFER ILLUST.

 1
86211 - BRACKET, RADIO, NO.1
86211-12370

ZRE120

 1
86211-12370

ZRE120

 1
86212 - BRACKET, RADIO, NO.2
86212-12350

ZRE120

 1
86212-12350

ZRE120

 1
86221A - PANEL, RADIO RECEIVER
86221-52060

ZRE120..5F

 1
86221-52060

ZRE120..5F

 1
86221D - PANEL, RADIO RECEIVER
86221-52050

ZRE120..5F

 1
86221-52050

ZRE120..5F

 1
Common parts
90153-C0001
90159-50322
90159-C0023
