Toyota Corolla (china) ZRE120 AIR BAG - JDM Part Detective

Home Blog About Contact Search

ZRE120L-GEMDKC (2007)

Toyota Corolla (China)

Production May 2007 - Feb 2017

Engine 1ZRFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(0402-1210) ; (1210- )

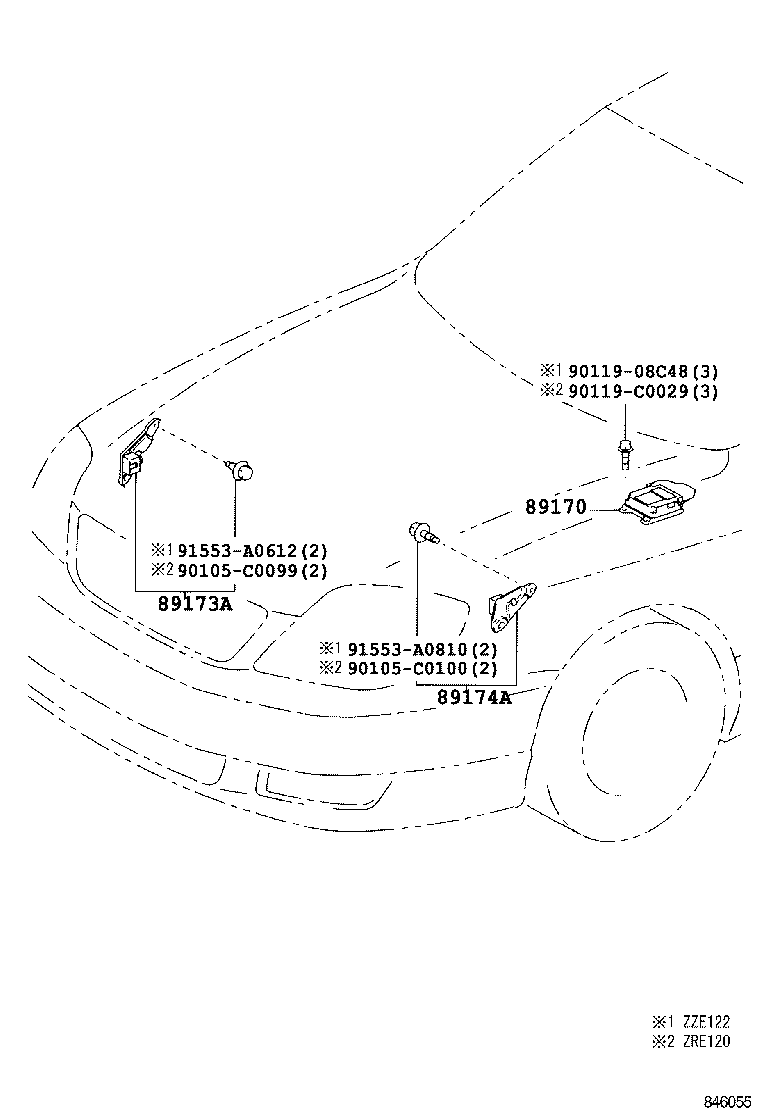

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
89170 - SENSOR ASSY, AIR BAG
89170-02A80	ZRE120	10/2012 - 12/2999	1
89170-02A80	ZRE120	05/2010 - 10/2012	1
89170-02430	ZRE120	05/2007 - 05/2010	1
89173A - SENSOR, AIR BAG, FRONT RH
89173-19245	ZRE120	05/2007 - 10/2012	1
89173-19245	ZRE120	10/2012 - 12/2999	1
89174A - SENSOR, AIR BAG, FRONT LH
89174-19055	ZRE120	10/2012 - 12/2999	1
89174-19055	ZRE120	05/2007 - 10/2012	1
Common parts
90105-C0099
90105-C0100
90119-08C48
90119-C0029
91553-A0612
91553-A0810
