Toyota Corolla (china) ZRE120 WIRING & CLAMP

ZRE120L-GEMDKC (2007)

Toyota Corolla (China)

Production May 2007 - Feb 2017

Engine 1ZRFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 4 OF 8(0402- )

Click highlighted areas on diagram

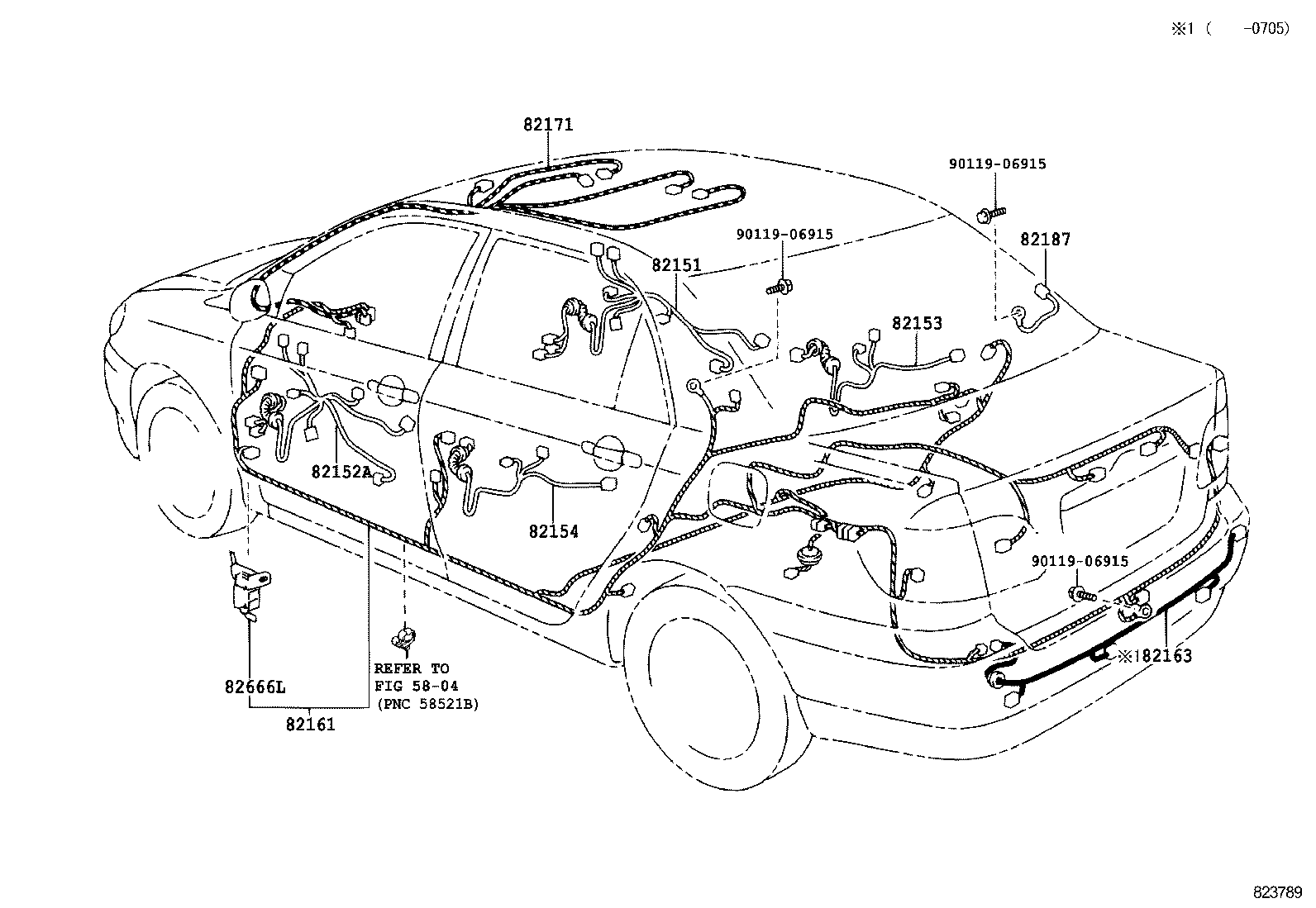

DOOR,ROOF & FLOOR

Part #	Description	Period	Qty
82151 - WIRE, FRONT DOOR, RH
82151-02L30	ZRE120	05/2007 - 10/2012	1
82151-YK010	ZRE120	10/2012 - 12/2999	1
82152A - WIRE, FRONT DOOR, NO.2, LH
82152-02K50	ZRE120	05/2007 - 10/2012	1
82152-YK010	ZRE120	10/2012 - 12/2999	1
82153 - WIRE, REAR DOOR, NO.1
82153-YK010	ZRE120	10/2012 - 12/2999	1
82153-02170	ZRE120	05/2007 - 10/2012	1
82154 - WIRE, REAR DOOR, NO.2
82153-YK010	ZRE120	10/2012 - 12/2999	1
82153-02170	ZRE120	05/2007 - 10/2012	1
82161 - WIRE, FLOOR
82161-02S31	ZRE120	05/2007 - 10/2012	1
82161-YK010	ZRE120	10/2012 - 12/2999	1
82171 - WIRE, ROOF, NO.1
82171-02230	ZRE120	05/2007 - 10/2012	1
82171-02T00	ZRE120 SUN ROOF PACKAGE	10/2009 - 10/2012	1
82171-YK010	ZRE120 W(SUNROOF)	10/2012 - 12/2999	1
82171-YK020	ZRE120	02/2015 - 12/2999	1
82171-02230	ZRE120	10/2012 - 01/2015	1
82187 - WIRE, REAR WINDOW, NO.2
82187-02090	ZRE120	05/2007 - 10/2012	1
82187-02090	ZRE120	10/2012 - 12/2999	1
82666L - HOLDER, CONNECTOR NO.9
82666-02120	ZRE120	10/2012 - 12/2999	1
82666-02120	ZRE120	05/2007 - 10/2012	1
Common parts
90119-06915
Linked diagrams
5804

ILLUST NO. 7 OF 8(0402- )

Click highlighted areas on diagram

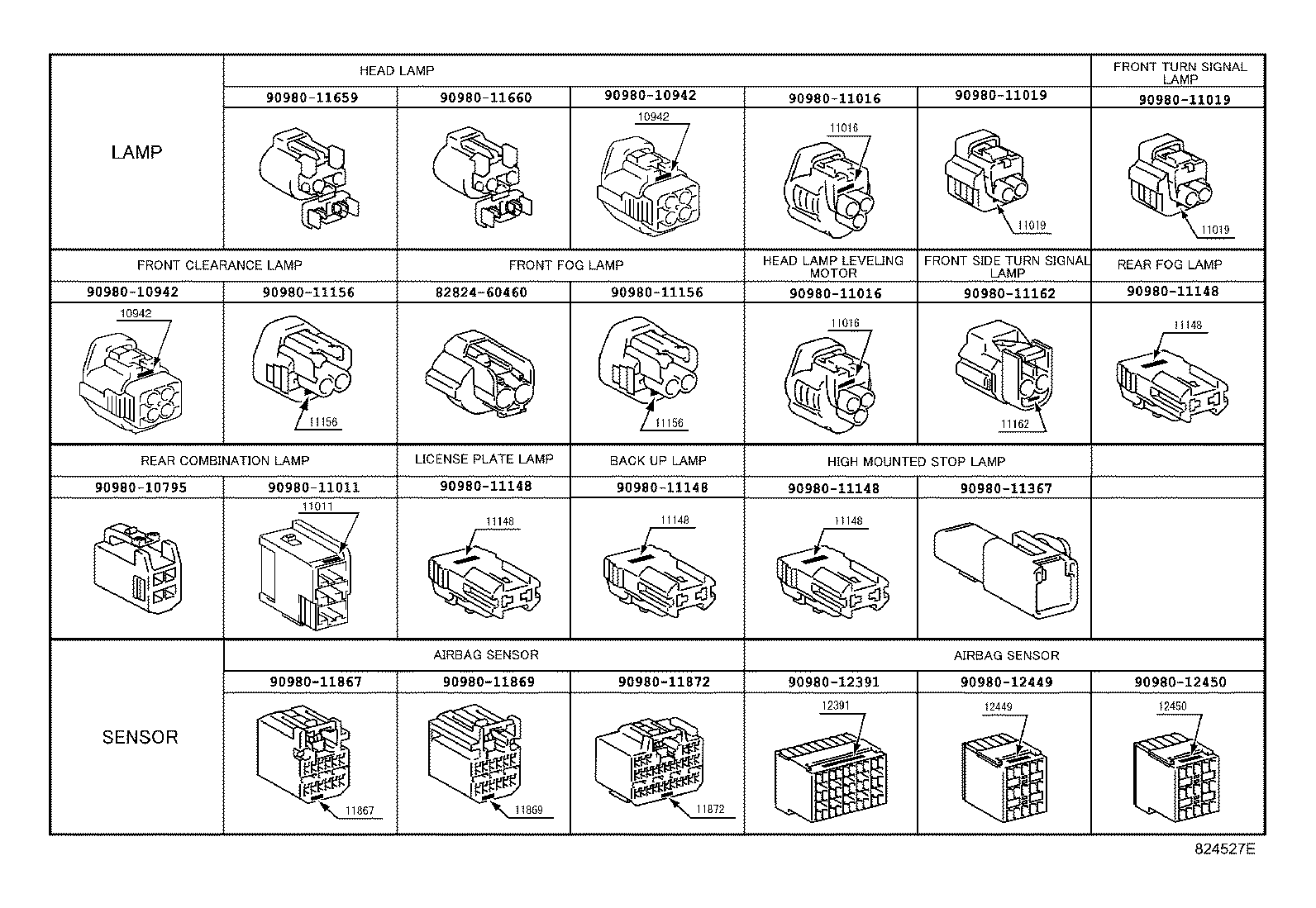

CONNECTOR 1/2

Part #	Description	Period	Qty	Price
Common parts
82824-60460
90980-10795
90980-10942
90980-11011
90980-11016
90980-11019
90980-11148
90980-11156
90980-11162
90980-11367
90980-11659
90980-11660
90980-11867
90980-11869
90980-11872
90980-12391
90980-12449
90980-12450

ILLUST NO. 1 OF 8(0705- )

Click highlighted areas on diagram

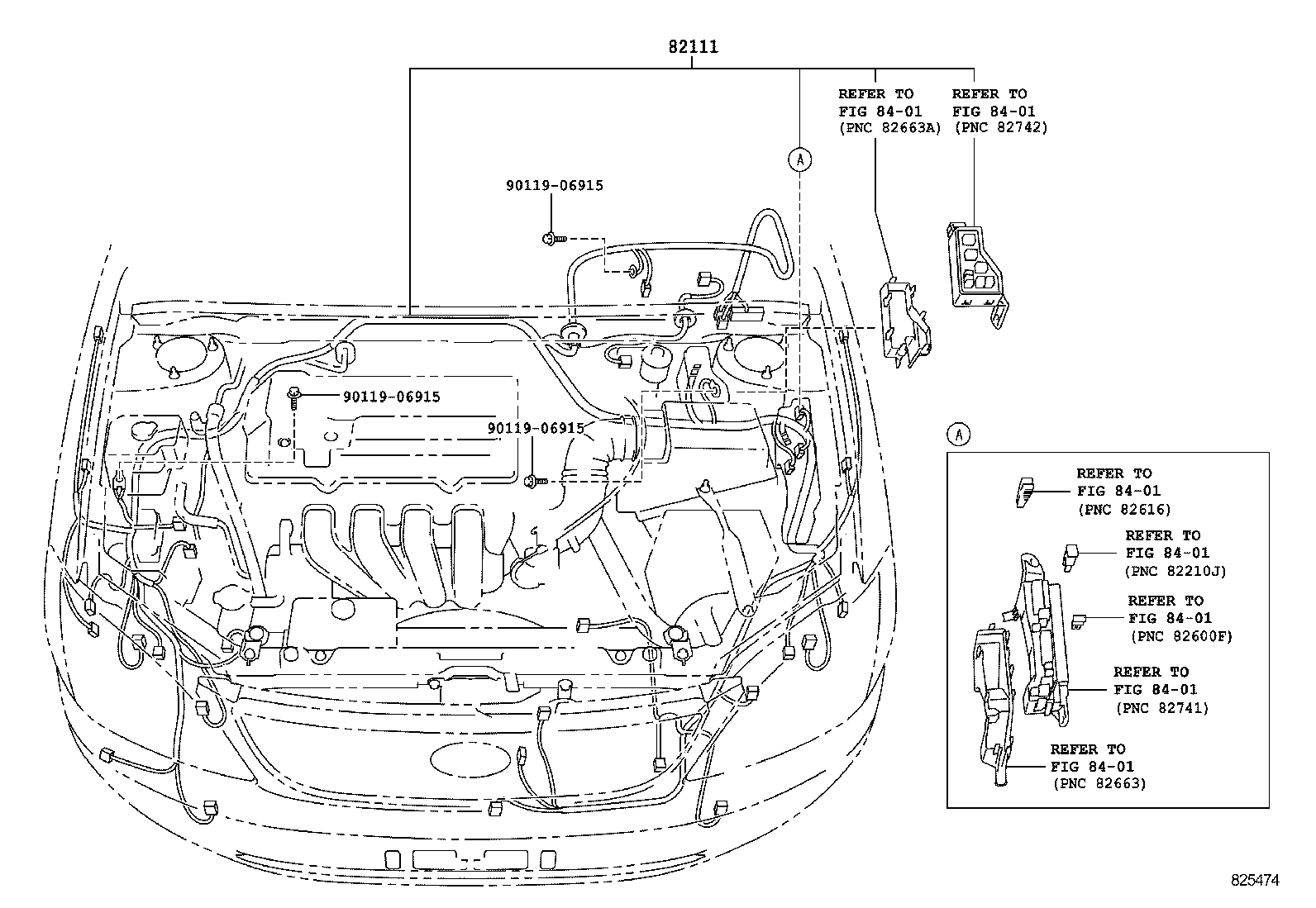

ENGINE ROOM

Part #	Description	Period	Qty
82111 - WIRE, ENGINE ROOM MAIN
82111-0Z340	ZRE120	05/2007 - 05/2010	1
82111-YK020	ZRE120..5F	10/2012 - 06/2015	1
82116-02K60	ZRE120..5F	11/2010 - 10/2012	1
82116-02M00	ZRE120	05/2010 - 11/2010	1
82111-YK040	ZRE120..5F	06/2015 - 12/2999	1
82111-YK020	ZRE120..5F COLD SPEC	06/2015 - 12/2999	1
Common parts
90119-06915
Linked diagrams
8401

ILLUST NO. 2 OF 8(0705- )

Click highlighted areas on diagram

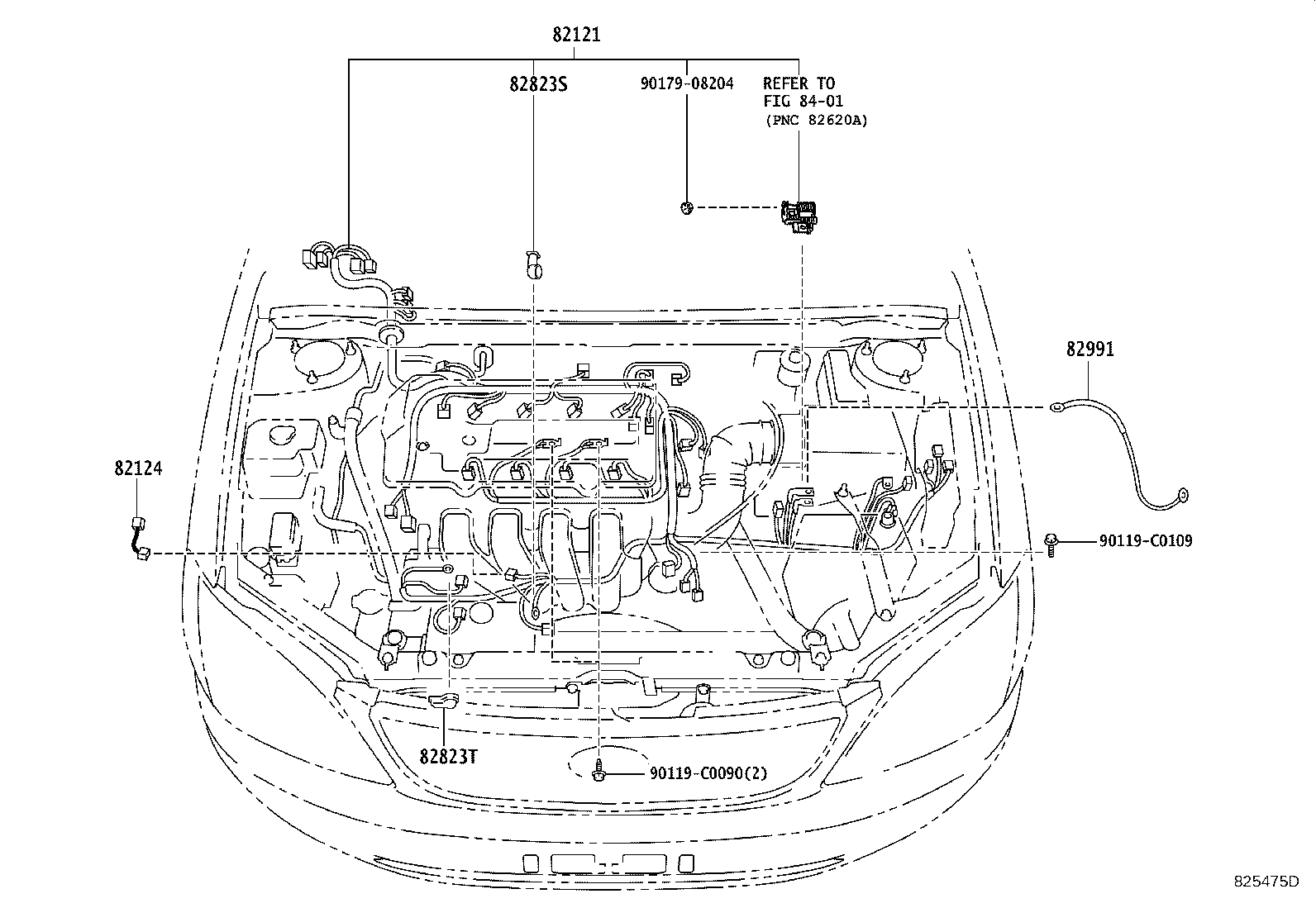

ENGINE

Part #	Description	Period	Qty
82121 - WIRE, ENGINE
82121-02M90	ZRE120..5F	05/2007 - 11/2010	1
82121-02X20	ZRE120..5F	11/2010 - 10/2012	1
82121-02X20	ZRE120..5F	10/2012 - 12/2999	1
82124 - WIRE, ENGINE, NO.4
82124-02100	ZRE120	10/2012 - 12/2999	1
82124-02100	ZRE120	05/2007 - 10/2012	1
82823S - CAP, STARTER TERMINAL
82823-12110	ZRE120	05/2010 - 10/2012	1
82823-12090	ZRE120	05/2007 - 05/2010	1
82823-12110	ZRE120	10/2012 - 02/2017	1
82823T - CAP, ALTERNATOR TERMINAL
82823-22050	ZRE120	05/2007 - 10/2012	1
82823-22050	ZRE120	10/2012 - 02/2017	1
82991 - WIRE, FUSIBLE LINK REPAIR
82991-12070	ZRE120	10/2012 - 12/2999	1
82991-12070	ZRE120	05/2007 - 10/2012	1
Common parts
90119-C0090
90119-C0109
90179-08204
Linked diagrams
8401

ILLUST NO. 3 OF 8(0705- )

Click highlighted areas on diagram

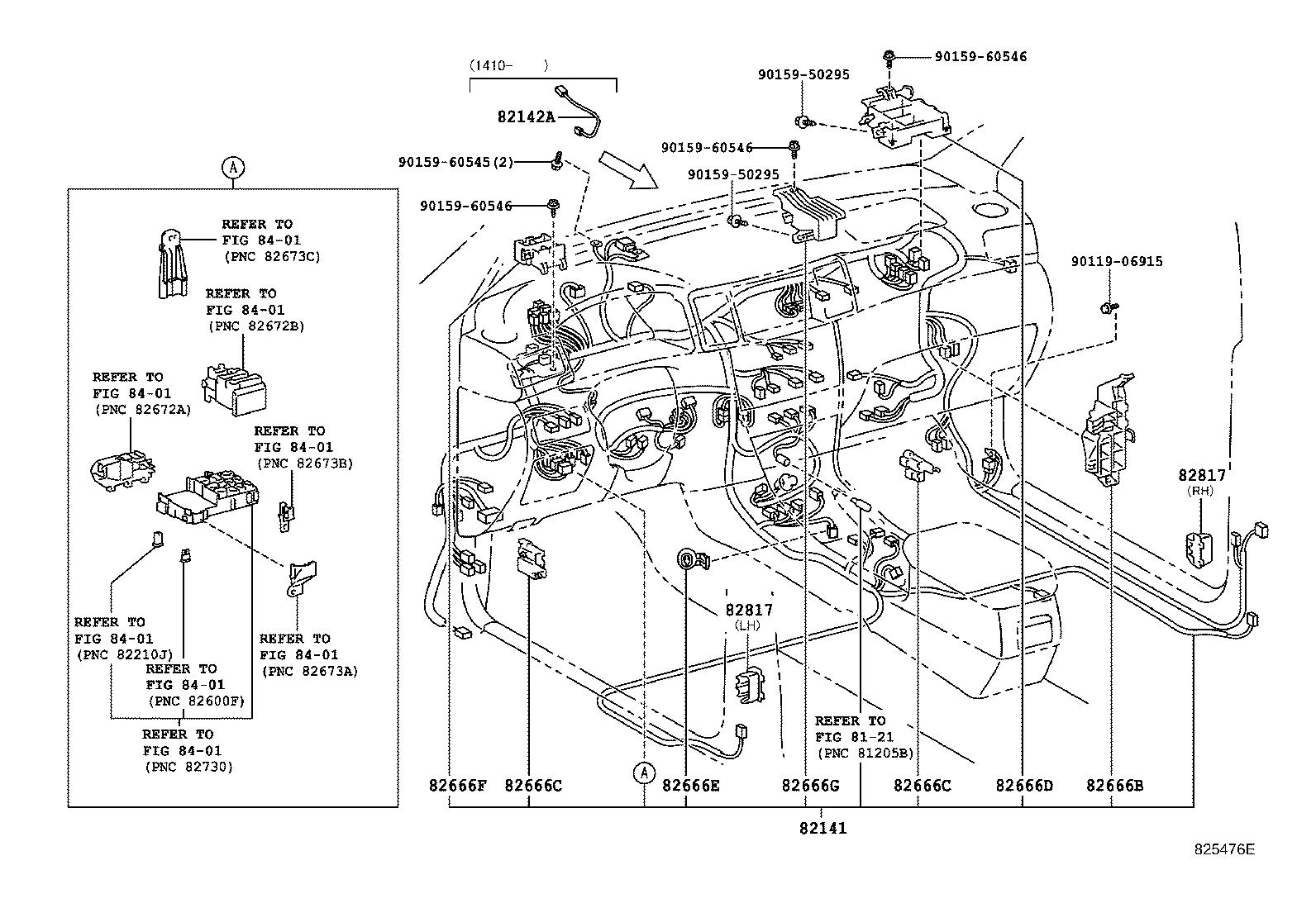

INSTRUMENT PANEL

Part #	Description	Period	Qty
82141 - WIRE, INSTRUMENT PANEL
82117-02W80	ZRE120..5F DLX PACKAGE	05/2007 - 10/2007	1
82117-02W70	ZRE120..5F	05/2007 - 09/2007	1
82146-0Z060	ZRE120..5F DLX PACKAGE	05/2010 - 11/2010	1
82146-0Z170	ZRE120..5F	11/2010 - 09/2011	1
82117-02W82	ZRE120..5F DLX PACKAGE	08/2009 - 05/2010	1
82146-0Z050	ZRE120..5F	05/2010 - 11/2010	1
82117-02W81	ZRE120..5F DLX PACKAGE	10/2007 - 08/2009	1
82146-0Z180	ZRE120..5F DLX PACKAGE	11/2010 - 10/2012	1
82141-YK100	ZRE120..5F COLD SPEC & DX PACAGE	06/2015 - 12/2999	1
82141-YK030	ZRE120..5F W/O(AUDIO)	10/2012 - 06/2015	1
82117-02W72	ZRE120..5F	08/2009 - 05/2010	1
82146-0Z171	ZRE120..5F	09/2011 - 10/2012	1
82117-02W71	ZRE120..5F	10/2007 - 08/2009	1
82141-YK020	ZRE120..5F	10/2012 - 06/2015	1
82141-YK130	ZRE120..5F DLX PACKAGE	06/2015 - 12/2999	1
82141-YK120	ZRE120..5F	06/2015 - 12/2999	1
82141-YK090	ZRE120..5F COLD SPEC	06/2015 - 12/2999	1
82142A - WIRE, INSTRUMENT PANEL, NO.2
82140-YK010	ZRE120	10/2014 - 12/2999	1
82666B - HOLDER, CONNECTOR NO.3
82666-02090	ZRE120	05/2007 - 10/2012	1
82666-02090	ZRE120	10/2012 - 12/2999	1
82666C - HOLDER, CONNECTOR NO.4
82666-02070	ZRE120	05/2007 - 10/2012	2
82666-02070	ZRE120	10/2012 - 12/2999	2
82666C - HOLDER, CONNECTOR NO.4
82666-02070	ZRE120	05/2007 - 10/2012	2
82666-02070	ZRE120	10/2012 - 12/2999	2
82666D - HOLDER, CONNECTOR NO.5
82666-02100	ZRE120	05/2007 - 10/2012	1
82666-02100	ZRE120	10/2012 - 12/2999	1
82666E - HOLDER, CONNECTOR NO.6
82666-02110	ZRE120	10/2012 - 12/2999	1
82666F - HOLDER, CONNECTOR NO.7
82666-02080	ZRE120	10/2012 - 12/2999	1
82666-02080	ZRE120	05/2007 - 10/2012	1
82666G - HOLDER, CONNECTOR NO.8
82666-12320	ZRE120	05/2007 - 10/2012	1
82666-12320	ZRE120	10/2012 - 12/2999	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-1A761	ZRE120 RH	05/2007 - 10/2012	1
82817-1A761	ZRE120 RH	10/2012 - 12/2999	1
82817-1A830	ZRE120 LH	10/2012 - 12/2999	1
82817-1A830	ZRE120 LH	05/2007 - 10/2012	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-1A761	ZRE120 RH	05/2007 - 10/2012	1
82817-1A761	ZRE120 RH	10/2012 - 12/2999	1
82817-1A830	ZRE120 LH	10/2012 - 12/2999	1
82817-1A830	ZRE120 LH	05/2007 - 10/2012	1
Common parts
90119-06915
90159-50295
90159-60545
90159-60546
Linked diagrams
8121
8401

ILLUST NO. 5 OF 8(0705- )

Click highlighted areas on diagram

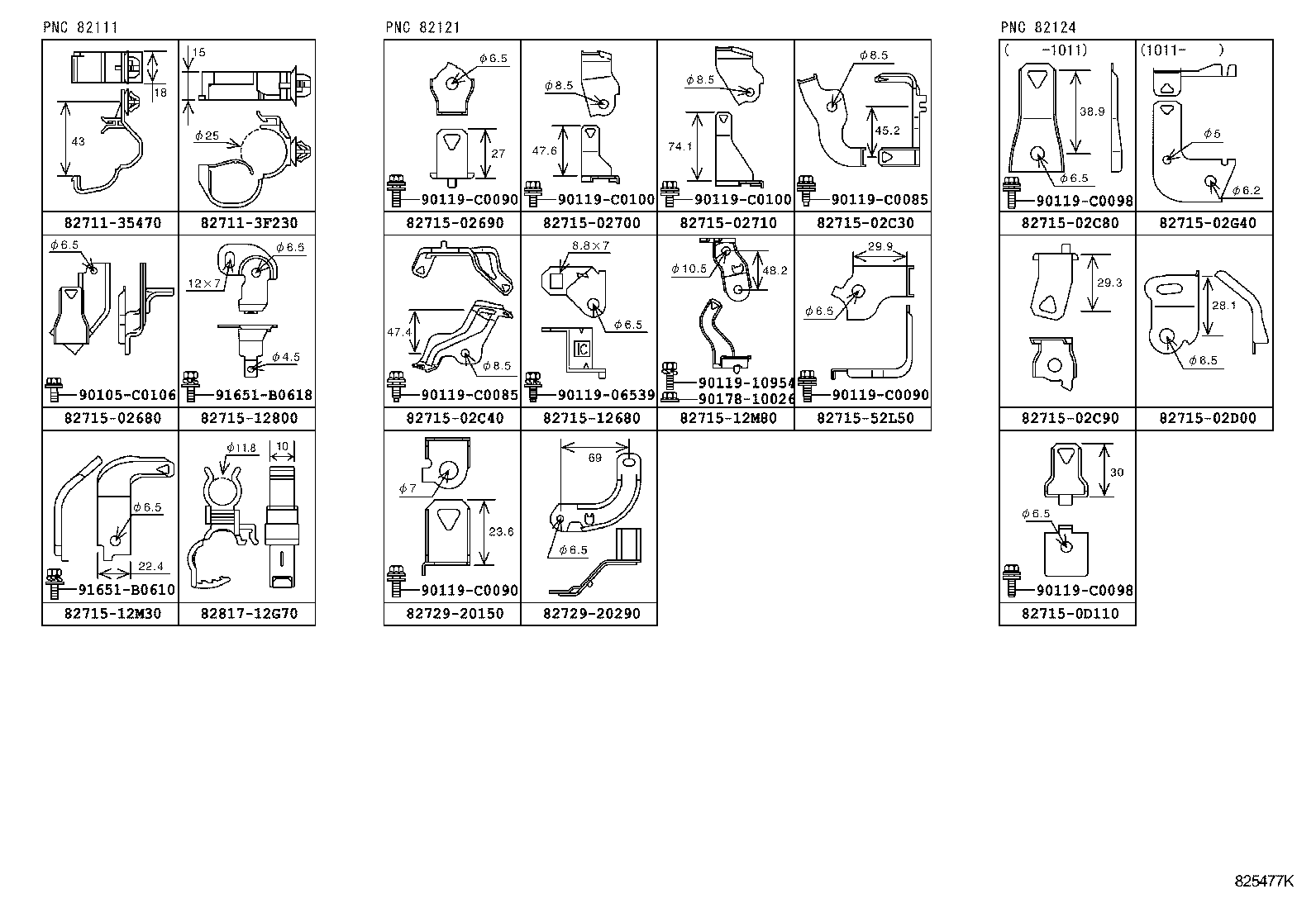

CLAMP & BRACKET

Part #	Description	Period	Qty	Price
Common parts
82711-35470
82711-3F230
82715-02680
82715-02690
82715-02700
82715-02710
82715-02C30
82715-02C40
82715-02C80
82715-02C90
82715-02D00
82715-02G40
82715-0D110
82715-12680
82715-12800
82715-12M30
82715-12M80
82715-52L50
82729-20150
82729-20290
82817-12G70
90105-C0106
90119-06539
90119-10954
90119-C0085
90119-C0090
90119-C0098
90119-C0100
90178-10026
91651-B0610
91651-B0618

ILLUST NO. 8 OF 8(0402- )

Click highlighted areas on diagram

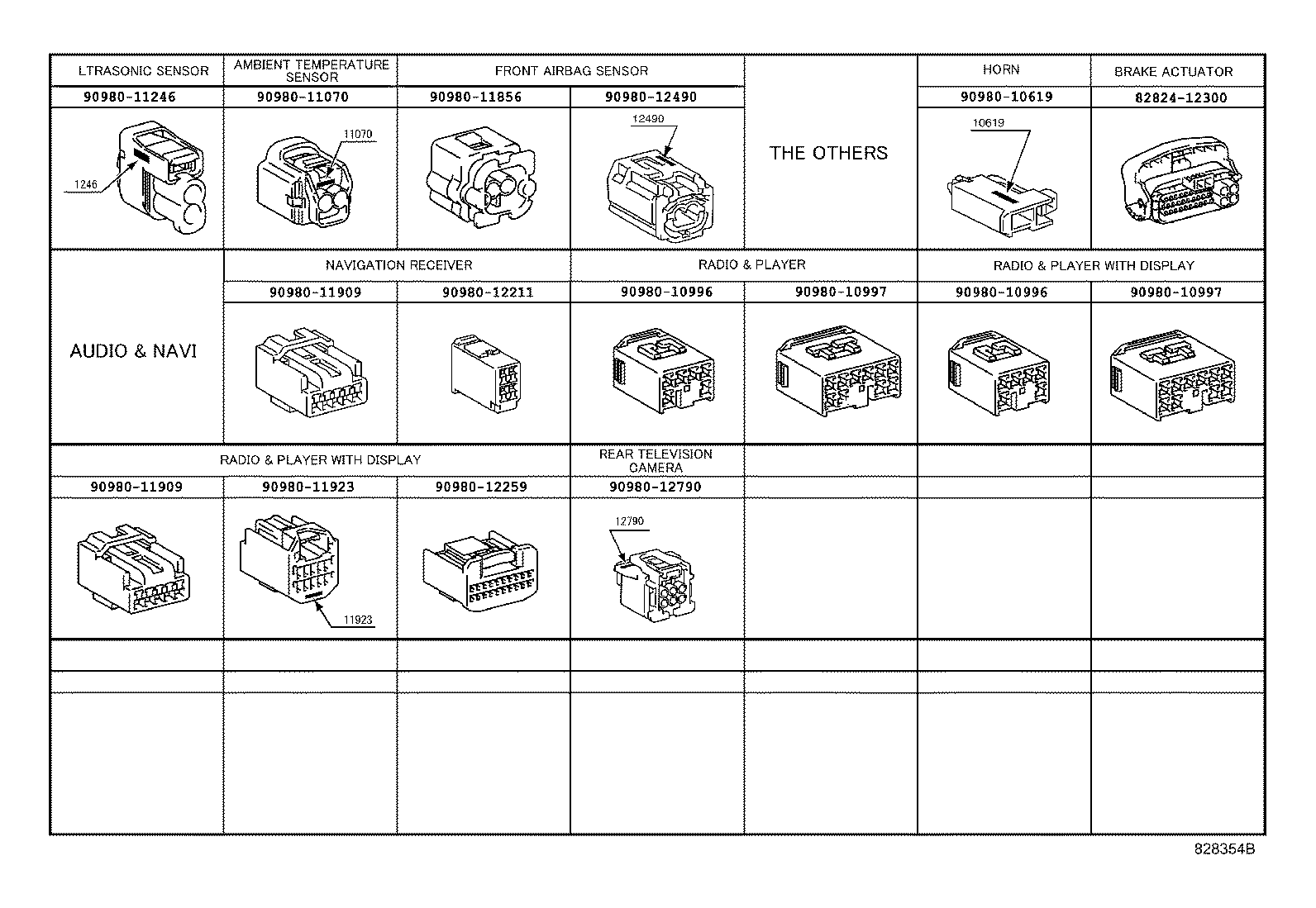

CONNECTOR 2/2

Part #	Description	Period	Qty	Price
Common parts
82824-12300
90980-10619
90980-10996
90980-10997
90980-11070
90980-11246
90980-11856
90980-11909
90980-11923
90980-12211
90980-12259
90980-12490
90980-12790
