ZRE120L-GEMDKC (2007)

Toyota Corolla (China)

Production May 2007 - Feb 2017
Engine 1ZRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0402- )

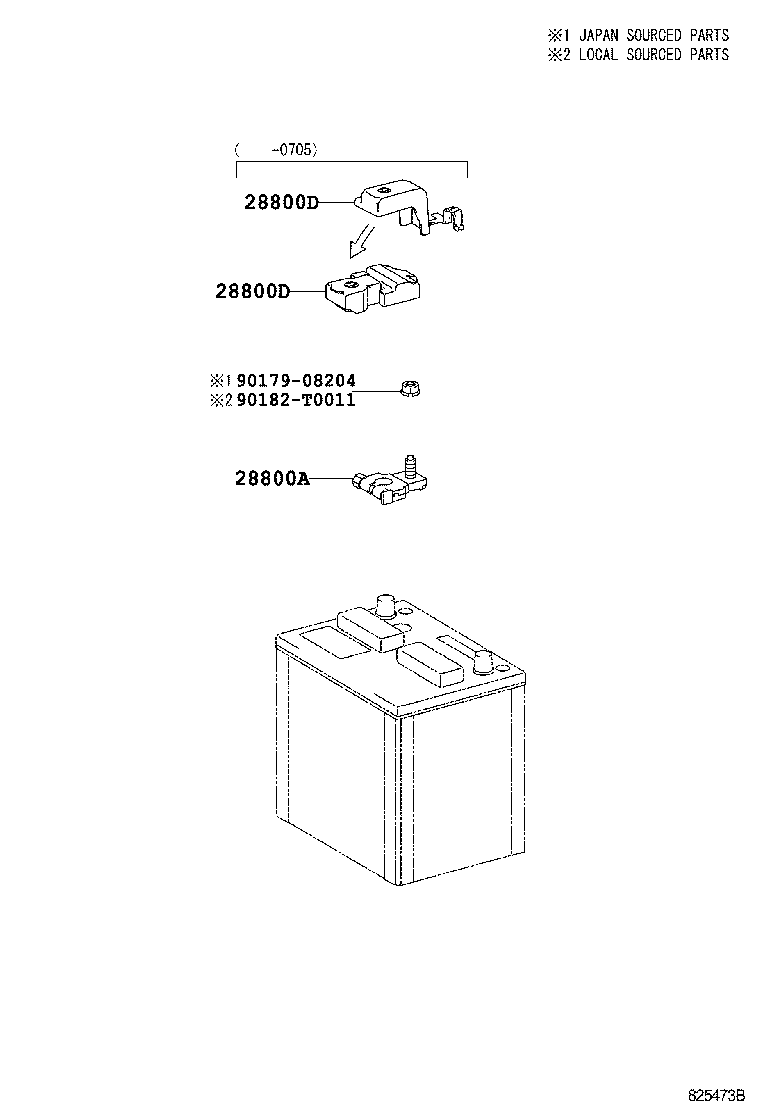

Click highlighted areas on diagram

diagram 28800A 28800D 28800D 9017908204 90182T0011
Part # Description Qty Price
28800A - TERMINAL, BATTERY POSITIVE
90982-05056

1ZRFE..ZRE120

 1
90982-05056

1ZRFE..ZRE120

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82621-12010

1ZRFE..ZRE120

 1
82621-12010

1ZRFE..ZRE120

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82621-12010

1ZRFE..ZRE120

 1
82621-12010

1ZRFE..ZRE120

 1
Common parts
90179-08204
90182-T0011
