ZRE120L-GEMDKC (2007)
Toyota Corolla (China)
Production
May 2007
-
Feb 2017
Engine
1ZRFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0402- )

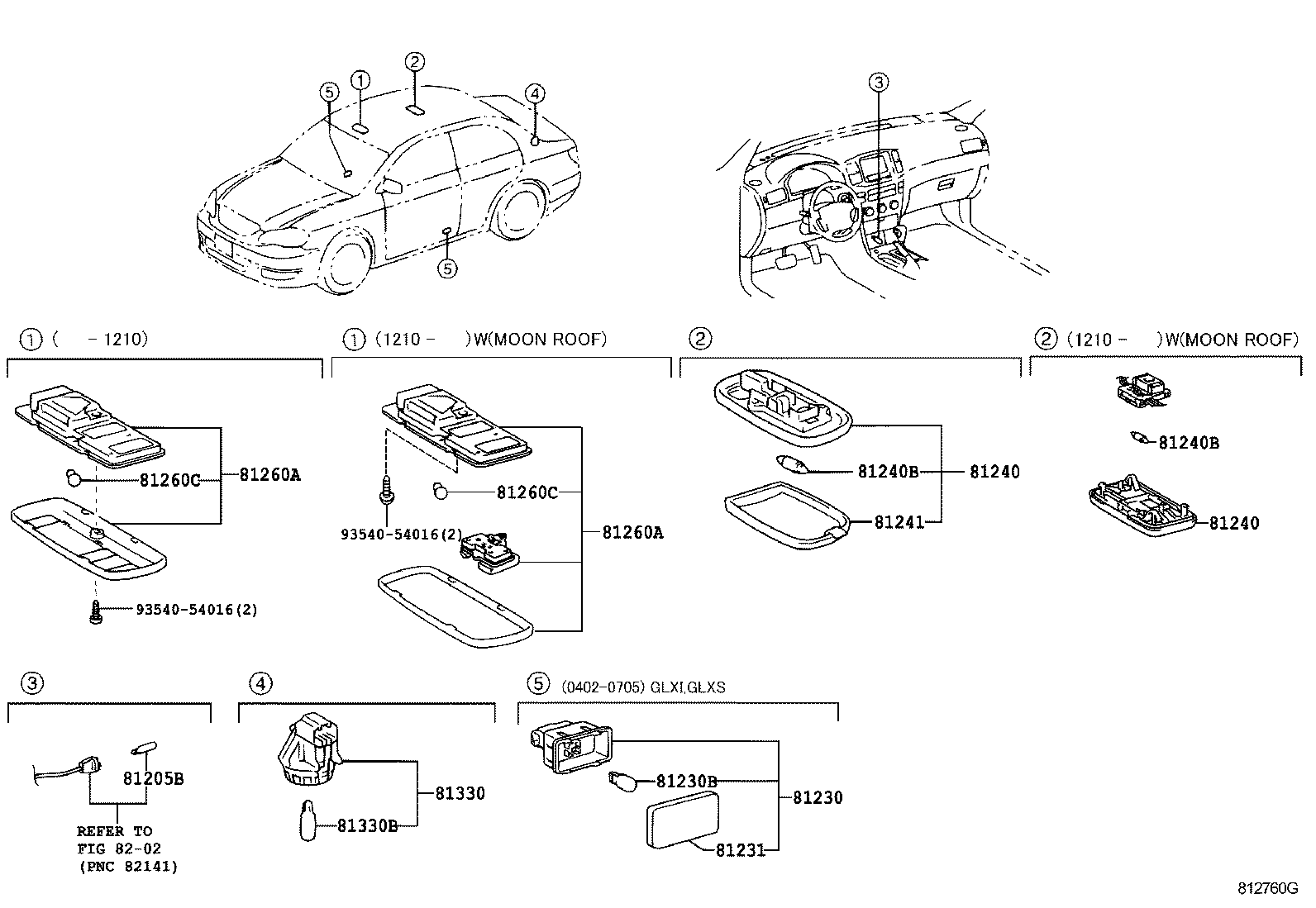

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81205B - BULB, ASH RECEPTACLE LAMP | ||||
| 90981-11018 |
ZRE120 12V 1.2W W/O SOCKET |
1 | ||
| 90981-11018 |
ZRE120 12V 1.2W W/O SOCKET |
1 | ||
| 81240 - LAMP ASSY, ROOM, NO.1 | ||||
| 81240-02100A0 |
ZRE120 IVORY,TRIM0# |
1 | ||
| 81240-35020A1 |
ZRE120 W(MOONROOF),IVORY,TRIM0# |
1 | ||
| 81240-02100A0 |
ZRE120 IVORY,TRIM0# |
1 | ||
| 81240 - LAMP ASSY, ROOM, NO.1 | ||||
| 81240-02100A0 |
ZRE120 IVORY,TRIM0# |
1 | ||
| 81240-35020A1 |
ZRE120 W(MOONROOF),IVORY,TRIM0# |
1 | ||
| 81240-02100A0 |
ZRE120 IVORY,TRIM0# |
1 | ||
| 81240B - BULB, ROOM LAMP, NO.1 | ||||
| 90981-14011 |
ZRE120 12V 8W |
1 | ||
| 90981-14011 |
ZRE120 12V 8W |
1 | ||
| 81240B - BULB, ROOM LAMP, NO.1 | ||||
| 90981-14011 |
ZRE120 12V 8W |
1 | ||
| 90981-14011 |
ZRE120 12V 8W |
1 | ||
| 81260A - LAMP ASSY, MAP | ||||
| 81260-63010A0 |
ZRE120 IVORY,TRIM0# |
1 | ||
| 81260-12120A1 |
ZRE120 IVORY,TRIM0# |
1 | ||
| 81260A - LAMP ASSY, MAP | ||||
| 81260-63010A0 |
ZRE120 IVORY,TRIM0# |
1 | ||
| 81260-12120A1 |
ZRE120 IVORY,TRIM0# |
1 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90981-12014 |
ZRE120 12V 10W |
1 | ||
| 90981-12014 |
ZRE120 12V 10W |
1 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90981-12014 |
ZRE120 12V 10W |
1 | ||
| 90981-12014 |
ZRE120 12V 10W |
1 | ||
| 81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1 | ||||
| 81330-0D010 |
ZRE120 |
1 | ||
| 81330-0D010 |
ZRE120 |
1 | ||
| 81330B - BULB, LUGGAGE COMPARTMENT LAMP | ||||
| 90981-11020 |
ZRE120 12V 3.8W |
1 | ||
| 90981-11020 |
ZRE120 12V 3.8W |
1 | ||
| Common parts | ||||
| 93540-54016 | ||||
| Linked diagrams | ||||
| 8202 | ||||
