ZRE120L-GEMDKC (2007)
Toyota Corolla (China)
Production
May 2007
-
Feb 2017
Engine
1ZRFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

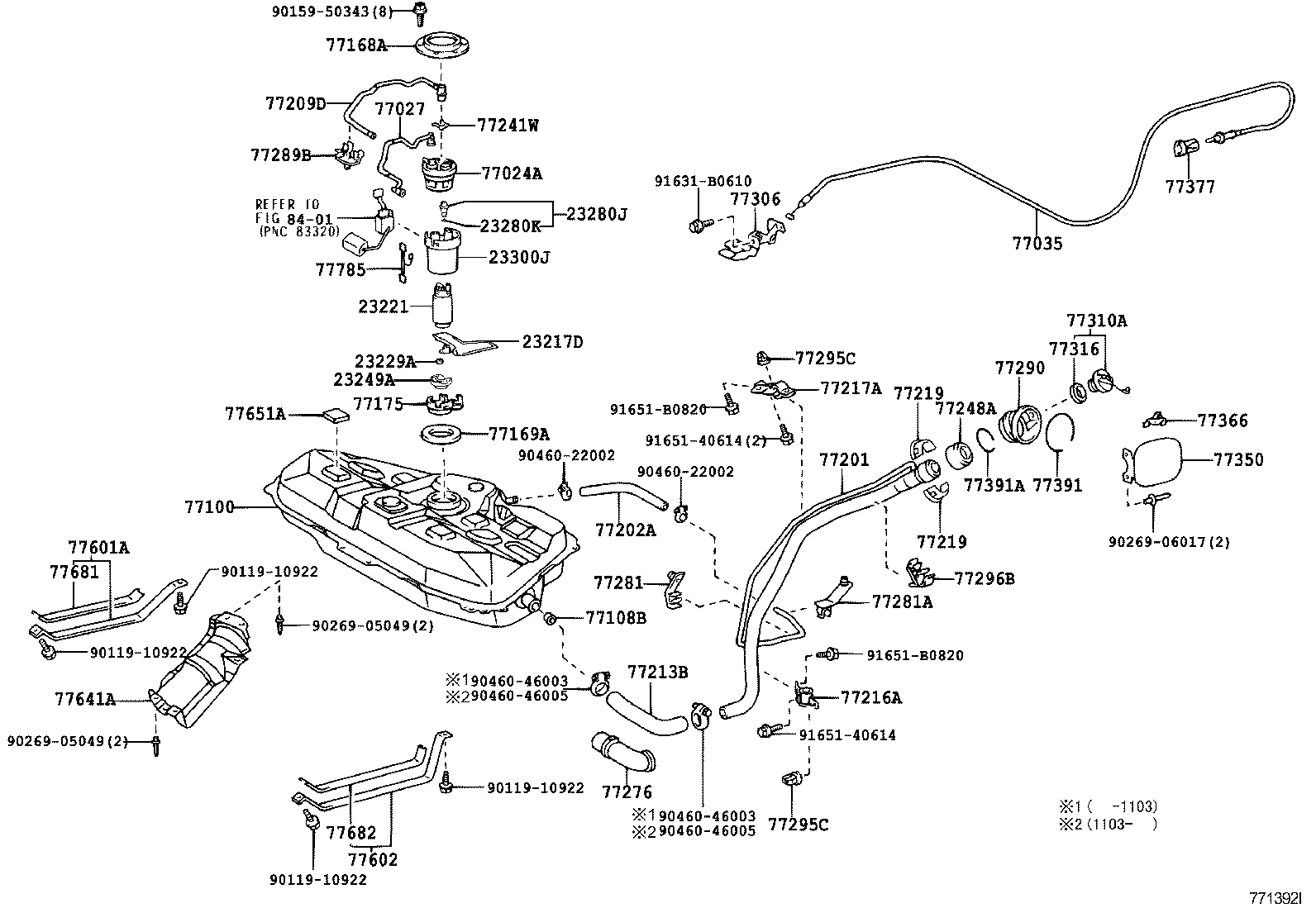

ILLUST NO. 1 OF 2(0402- )
Click highlighted areas on diagram
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23217D - FILTER, FUEL PUMP | ||||
| 23217-21030 |
1ZRFE..ZRE120 |
1 | ||
| 23217-21030 |
1ZRFE..ZRE120 |
1 | ||
| 23221 - PUMP, FUEL | ||||
| 23221-0D110 |
1ZRFE..ZRE120 |
1 | ||
| 23221-0D110 |
1ZRFE..ZRE120 |
1 | ||
| 23229A - CLIP(FOR FUEL PUMP FILTER) | ||||
| 23229-16010 |
1ZRFE..ZRE120 |
1 | ||
| 23229-16010 |
1ZRFE..ZRE120 |
1 | ||
| 23249A - RUBBER, CUSHION(FOR FUEL PUMP) | ||||
| 23249-46180 |
1ZRFE..ZRE120 |
1 | ||
| 23249-46180 |
1ZRFE..ZRE120 |
1 | ||
| 23280J - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-22010 |
1ZRFE..ZRE120 |
1 | ||
| 23280-22010 |
1ZRFE..ZRE120 |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-07020 |
1ZRFE..ZRE120 |
1 | ||
| 90301-07020 |
1ZRFE..ZRE120 |
1 | ||
| 23300J - FILTER ASSY, FUEL | ||||
| 23300-0D060 |
1ZRFE..ZRE120 |
1 | ||
| 23300-0D060 |
1ZRFE..ZRE120 |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-02060 |
ZRE120 |
1 | ||
| 77024-02060 |
ZRE120 |
1 | ||
| 77027 - TUBE SUB-ASSY, FUEL EVAPORATION, NO.2 | ||||
| 77027-12020 |
ZRE120 |
1 | ||
| 77027-12020 |
ZRE120 |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-02183 |
ZRE120 |
1 | ||
| 77035-02182 |
ZRE120 |
1 | ||
| 77035-02183 |
ZRE120 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-02480 |
ZRE120 |
1 | ||
| 77001-02481 |
ZRE120 |
1 | ||
| 77001-02480 |
ZRE120 |
1 | ||
| 77108B - VALVE SUB-ASSY, FUEL TANK FILLER CHECK | ||||
| 77108-12040 |
ZRE120 |
1 | ||
| 77108-12040 |
ZRE120 |
1 | ||
| 77168A - PLATE, FUEL TANK VENT TUBE SET | ||||
| 77168-52010 |
ZRE120 |
1 | ||
| 77168-52010 |
ZRE120 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-33020 |
ZRE120 |
1 | ||
| 77169-33020 |
ZRE120 |
1 | ||
| 77175 - SUPPORT, FUEL SUCTION, NO.2 | ||||
| 77175-47010 |
ZRE120 |
1 | ||
| 77175-47010 |
ZRE120 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-02110 |
ZRE120 |
1 | ||
| 77201-02110 |
ZRE120 |
1 | ||
| 77202A - HOSE, FUEL, NO.1 (FOR BREATHER TUBE) | ||||
| 95313-13034 |
ZRE120 L=340 |
1 | ||
| 95313-13034 |
ZRE120 L=340 |
1 | ||
| 77209D - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-12160 |
ZRE120 |
1 | ||
| 77209-12160 |
ZRE120 |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-32070 |
ZRE120 |
1 | ||
| 77213-32070 |
ZRE120 |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-32060 |
ZRE120 |
1 | ||
| 77216-32060 |
ZRE120 |
1 | ||
| 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-32050 |
ZRE120 |
1 | ||
| 77217-32050 |
ZRE120 |
1 | ||
| 77219 - COVER, FUEL TANK FILLER PIPE | ||||
| 77219-20070 |
ZRE120 |
2 | ||
| 77219-20070 |
ZRE120 |
2 | ||
| 77219 - COVER, FUEL TANK FILLER PIPE | ||||
| 77219-20070 |
ZRE120 |
2 | ||
| 77219-20070 |
ZRE120 |
2 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
ZRE120 |
1 | ||
| 77241-33011 |
ZRE120 |
1 | ||
| 77248A - HOLDER, FUEL TANK FILLER PIPE COVER | ||||
| 77248-20030 |
ZRE120 |
1 | ||
| 77248-20030 |
ZRE120 |
1 | ||
| 77276 - PROTECTOR, FUEL HOSE | ||||
| 77276-12120 |
ZRE120 |
1 | ||
| 77276-02030 |
ZRE120 |
1 | ||
| 77276-12120 |
ZRE120 |
1 | ||
| 77281 - BRACKET, FUEL MAIN TUBE, NO.1 | ||||
| 77281-32040 |
ZRE120 |
1 | ||
| 77281-32040 |
ZRE120 |
1 | ||
| 77281A - CLAMP, FUEL FILLER PIPE | ||||
| 77281-12070 |
ZRE120 |
1 | ||
| 77281-12070 |
ZRE120 |
1 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 77289-12030 |
ZRE120 |
1 | ||
| 77289-12030 |
ZRE120 |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77291-02150 |
ZRE120 |
1 | ||
| 77291-02150 |
ZRE120 |
1 | ||
| 77295C - GROMMET, FUEL TUBE | ||||
| 77295-12070 |
ZRE120 |
2 | ||
| 77295-12070 |
ZRE120 |
2 | ||
| 77295C - GROMMET, FUEL TUBE | ||||
| 77295-12070 |
ZRE120 |
2 | ||
| 77295-12070 |
ZRE120 |
2 | ||
| 77296B - SUPPORT, FUEL TUBE PROTECTOR, NO.1 | ||||
| 77296-12030 |
ZRE120 |
1 | ||
| 77296-12030 |
ZRE120 |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 64606-02090 |
ZRE120 |
1 | ||
| 64606-02090 |
ZRE120 |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-0F010 |
ZRE120 |
1 | ||
| 77300-52030 |
ZRE120 |
1 | ||
| 77300-0F010 |
ZRE120 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-0F020 |
ZRE120 |
1 | ||
| 77316-52040 |
ZRE120 |
1 | ||
| 77316-0F020 |
ZRE120 |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-02180 |
ZRE120 |
1 | ||
| 77350-12450 |
ZRE120 |
1 | ||
| 77350-02180 |
ZRE120 |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-30080 |
ZRE120 |
1 | ||
| 77360-30080 |
ZRE120 |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-12050 |
ZRE120 |
1 | ||
| 77377-12050 |
ZRE120 |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-12040 |
ZRE120 |
1 | ||
| 77391-12040 |
ZRE120 |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-12020 |
ZRE120 |
1 | ||
| 77391-12020 |
ZRE120 |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-12230 |
ZRE120 |
1 | ||
| 77601-12230 |
ZRE120 |
1 | ||
| 77602 - CASE SUB-ASSY, FUEL TANK, UPPER | ||||
| 77602-12180 |
ZRE120 |
1 | ||
| 77602-12180 |
ZRE120 |
1 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-12160 |
ZRE120 |
1 | ||
| 77641-12160 |
ZRE120 |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-20090 |
ZRE120 |
7 | ||
| 77651-0R030 |
ZRE120 |
7 | ||
| 77651-0R030 |
ZRE120 |
7 | ||
| 77681 - SEAT, FUEL TANK BAND, RH | ||||
| 77681-34030 |
ZRE120 |
1 | ||
| 77681-34030 |
ZRE120 |
1 | ||
| 77682 - SEAT, FUEL TANK BAND, LH | ||||
| 77681-32060 |
ZRE120 |
1 | ||
| 77681-32060 |
ZRE120 |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-06030 |
ZRE120 |
1 | ||
| 77785-06030 |
ZRE120 |
1 | ||
| Common parts | ||||
| 90119-10922 | ||||
| 90159-50343 | ||||
| 90269-05049 | ||||
| 90269-06017 | ||||
| 90460-22002 | ||||
| 90460-46003 | ||||
| 90460-46005 | ||||
| 91631-B0610 | ||||
| 91651-40614 | ||||
| 91651-B0820 | ||||
| Linked diagrams | ||||
| 8401 | ||||

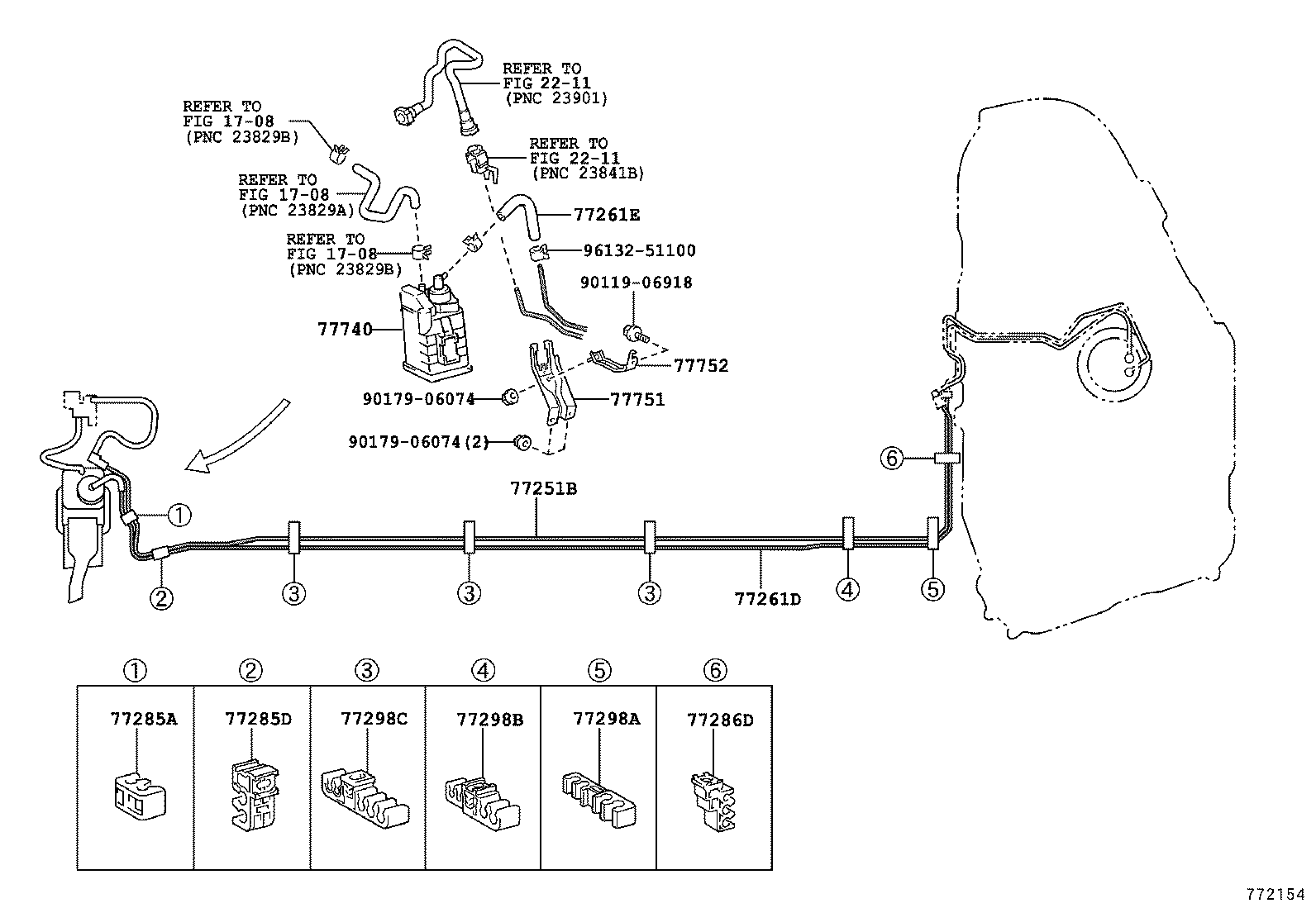

ILLUST NO. 2 OF 2(0705- )
Click highlighted areas on diagram
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-02360 |
ZRE120 |
1 | ||
| 77251-02360 |
ZRE120 |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-02300 |
ZRE120 |
1 | ||
| 77261-02300 |
ZRE120 |
1 | ||
| 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 95337-06013 |
ZRE120 L=130 |
1 | ||
| 95337-06013 |
ZRE120 L=130 |
1 | ||
| 77285A - SUPPORT, FUEL RETURN AND MAIN TUBE | ||||
| 77285-42110 |
ZRE120 |
1 | ||
| 77285-42110 |
ZRE120 |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-50040 |
ZRE120 |
1 | ||
| 77285-50040 |
ZRE120 |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-12060 |
ZRE120 |
1 | ||
| 77286-12060 |
ZRE120 |
1 | ||
| 77298A - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-12120 |
ZRE120 |
1 | ||
| 77298-12120 |
ZRE120 |
1 | ||
| 77298B - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-52070 |
ZRE120 |
1 | ||
| 77298-52070 |
ZRE120 |
1 | ||
| 77298C - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-68010 |
ZRE120 |
3 | ||
| 77298-68010 |
ZRE120 |
3 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-02200 |
ZRE120 |
1 | ||
| 77740-02200 |
ZRE120 |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-02140 |
ZRE120 |
1 | ||
| 77751-02140 |
ZRE120 |
1 | ||
| 77752 - BRACKET, CHARCOAL CANISTER SUPPORT | ||||
| 77752-02120 |
ZRE120 |
1 | ||
| 77752-02120 |
ZRE120 |
1 | ||
| Common parts | ||||
| 90119-06918 | ||||
| 90179-06074 | ||||
| 96132-51100 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
