ZRE120L-GEMDKC (2007)
Toyota Corolla (China)
Production
May 2007
-
Feb 2017
Engine
1ZRFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

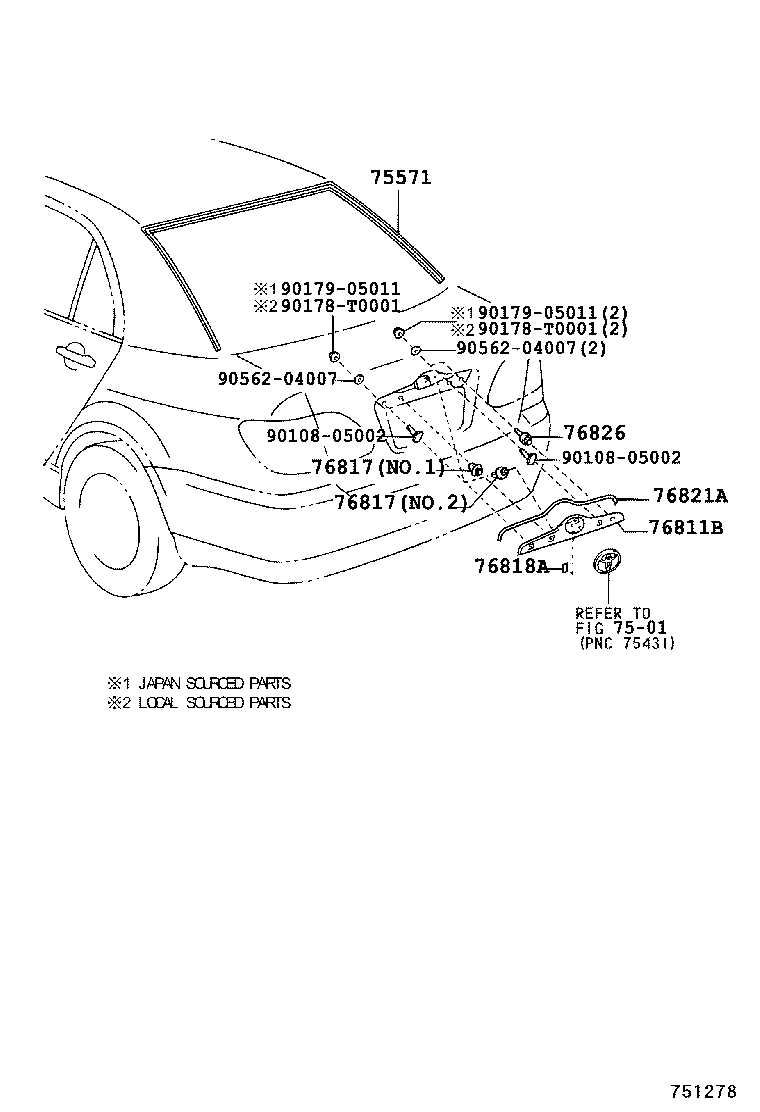

(0402-1005)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75571 - MOULDING, BACK WINDOW, OUTSIDE UPPER | ||||
| 75571-02230 |
ZRE120 |
1 | ||
| 75571-02230 |
ZRE120 |
1 | ||
| 76811B - GARNISH, LUGGAGE COMPARTMENT DOOR, OUTSIDE | ||||
| 76811-12A10 |
ZRE120 PLATED |
1 | ||
| 76811-12661 |
ZRE120 PLATED |
1 | ||
| 76817 - CLIP, BACK DOOR OUTSIDE GARNISH | ||||
| 76817-12060 |
ZRE120 NO.2 |
1 | ||
| 76817-50010 |
ZRE120 NO.1 |
2 | ||
| 76817-12050 |
ZRE120 NO.1 |
1 | ||
| 76817 - CLIP, BACK DOOR OUTSIDE GARNISH | ||||
| 76817-12060 |
ZRE120 NO.2 |
1 | ||
| 76817-50010 |
ZRE120 NO.1 |
2 | ||
| 76817-12050 |
ZRE120 NO.1 |
1 | ||
| 76818A - PAD, LUGGAGE GARNISH, NO.1 | ||||
| 76818-12160 |
ZRE120 |
1 | ||
| 76821A - PROTECTOR, LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH | ||||
| 76821-YK020 |
ZRE120 NO.2 |
2 | ||
| 76821-YK010 |
ZRE120 NO.1 |
1 | ||
| 76821-12160 |
ZRE120 |
1 | ||
| 76826 - RETAINER, BACK DOOR GARNISH, NO.1 | ||||
| 76826-12030 |
ZRE120 |
1 | ||
| Common parts | ||||
| 90108-05002 | ||||
| 90178-T0001 | ||||
| 90179-05011 | ||||
| 90562-04007 | ||||
| Linked diagrams | ||||
| 7501 | ||||

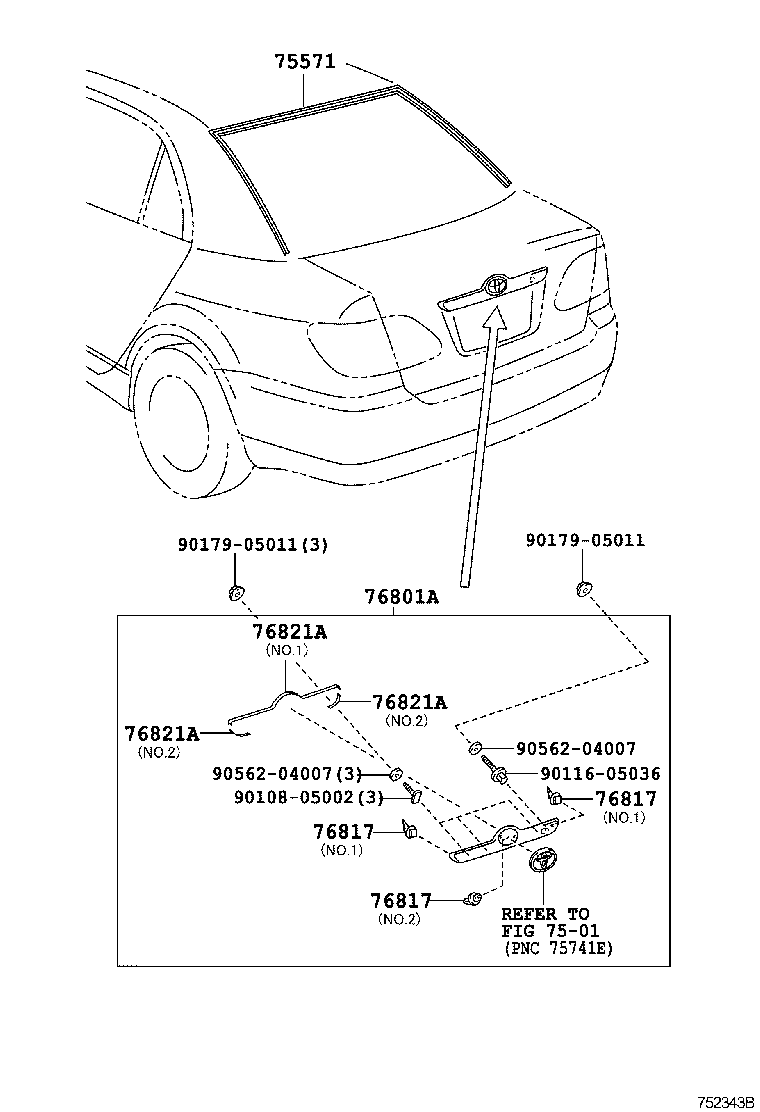

(1005-1210)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75571 - MOULDING, BACK WINDOW, OUTSIDE UPPER | ||||
| 75571-02230 |
ZRE120 |
1 | ||
| 75571-02230 |
ZRE120 |
1 | ||
| 76801A - GARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE | ||||
| 76801-YK010 |
ZRE120 PLATED |
1 | ||
| 76801-YK020 |
ZRE120 PLATED |
1 | ||
| 76817 - CLIP, BACK DOOR OUTSIDE GARNISH | ||||
| 76817-12060 |
ZRE120 NO.2 |
1 | ||
| 76817-50010 |
ZRE120 NO.1 |
2 | ||
| 76817-12050 |
ZRE120 NO.1 |
1 | ||
| 76817 - CLIP, BACK DOOR OUTSIDE GARNISH | ||||
| 76817-12060 |
ZRE120 NO.2 |
1 | ||
| 76817-50010 |
ZRE120 NO.1 |
2 | ||
| 76817-12050 |
ZRE120 NO.1 |
1 | ||
| 76817 - CLIP, BACK DOOR OUTSIDE GARNISH | ||||
| 76817-12060 |
ZRE120 NO.2 |
1 | ||
| 76817-50010 |
ZRE120 NO.1 |
2 | ||
| 76817-12050 |
ZRE120 NO.1 |
1 | ||
| 76821A - PROTECTOR, LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH | ||||
| 76821-YK020 |
ZRE120 NO.2 |
2 | ||
| 76821-YK010 |
ZRE120 NO.1 |
1 | ||
| 76821-12160 |
ZRE120 |
1 | ||
| 76821A - PROTECTOR, LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH | ||||
| 76821-YK020 |
ZRE120 NO.2 |
2 | ||
| 76821-YK010 |
ZRE120 NO.1 |
1 | ||
| 76821-12160 |
ZRE120 |
1 | ||
| 76821A - PROTECTOR, LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH | ||||
| 76821-YK020 |
ZRE120 NO.2 |
2 | ||
| 76821-YK010 |
ZRE120 NO.1 |
1 | ||
| 76821-12160 |
ZRE120 |
1 | ||
| Common parts | ||||
| 90108-05002 | ||||
| 90116-05036 | ||||
| 90179-05011 | ||||
| 90562-04007 | ||||
| Linked diagrams | ||||
| 7501 | ||||

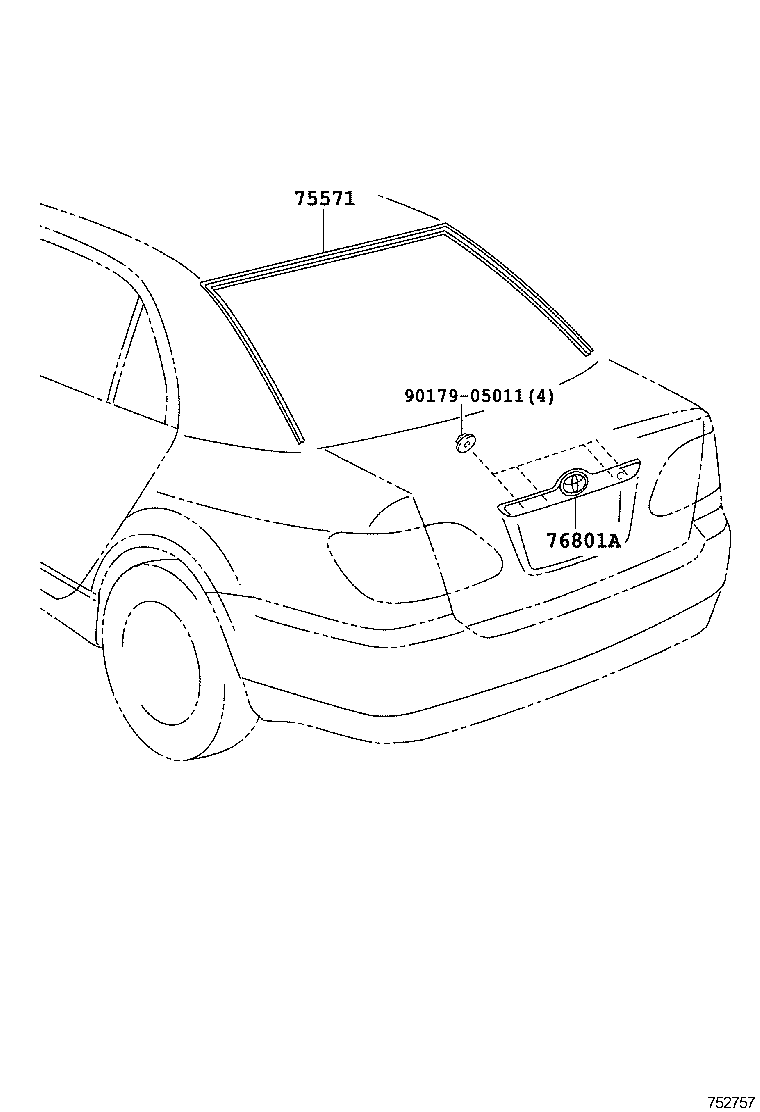

(1210- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75571 - MOULDING, BACK WINDOW, OUTSIDE UPPER | ||||
| 75571-02230 |
ZRE120 |
1 | ||
| 75571-02230 |
ZRE120 |
1 | ||
| 76801A - GARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE | ||||
| 76801-YK010 |
ZRE120 PLATED |
1 | ||
| 76801-YK020 |
ZRE120 PLATED |
1 | ||
| Common parts | ||||
| 90179-05011 | ||||
