ZRE120L-GEMDKC (2007)
Toyota Corolla (China)

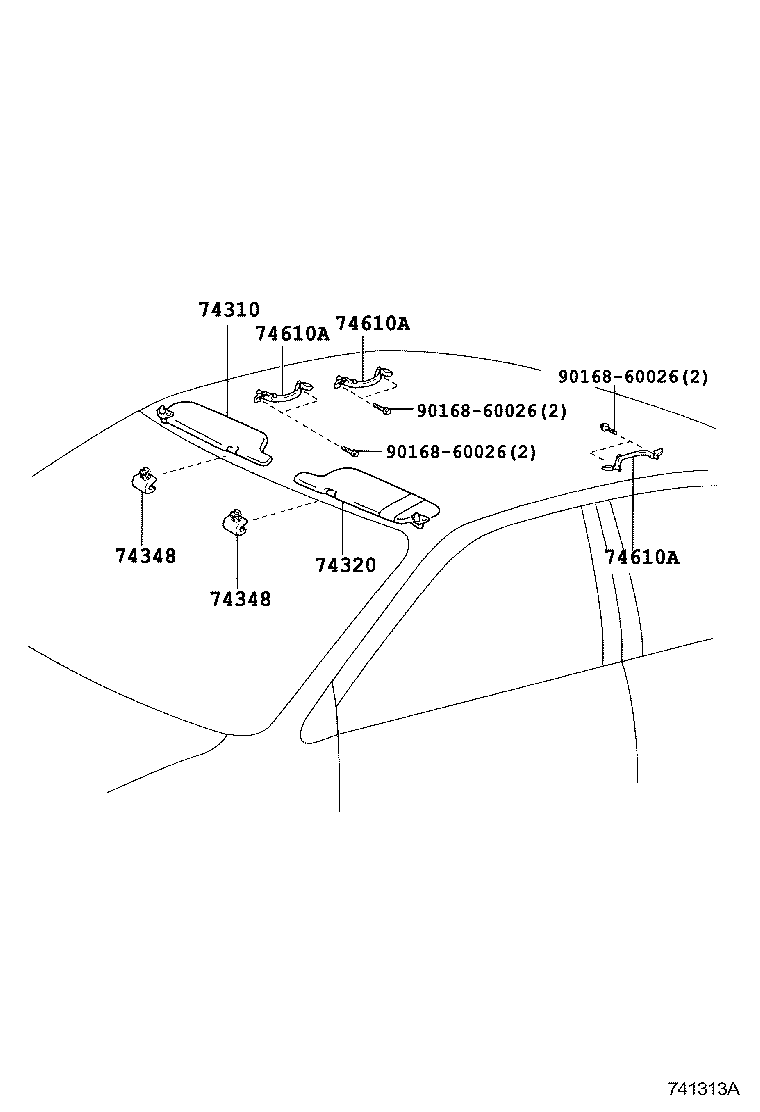

ILLUST NO. 2 OF 2(0402- )
VISOR & ASSIST GRIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74310 - VISOR ASSY, RH | ||||
| 74310-YK010A0 |
ZRE120 W(MIRROR),IVORY,TRIM0# |
1 | ||
| 74310-YK021A0 |
ZRE120..5F IVORY,TRIM0# |
1 | ||
| 74310-YK030A0 |
ZRE120 W(MIRROR),IVORY,TRIM0# |
1 | ||
| 74310-02D40A0 |
ZRE120 IVORY,TRIM0# |
1 | ||
| 74310-YK031A0 |
ZRE120 W(MIRROR),IVORY,TRIM0# |
1 | ||
| 74310-02F90A2 |
ZRE120 IVORY,TRIM0# |
1 | ||
| 74310-02F90A2 |
ZRE120..5F IVORY,TRIM0# |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-02B00A2 |
ZRE120 IVORY,TRIM0# |
1 | ||
| 74320-YK010A0 |
ZRE120 W(MIRROR),IVORY,TRIM0# |
1 | ||
| 74320-02730A0 |
ZRE120 IVORY,TRIM0# |
1 | ||
| 74320-YK030A0 |
ZRE120 W(MIRROR),IVORY,TRIM0# |
1 | ||
| 74320-02B00A2 |
ZRE120..5F IVORY,TRIM0# |
1 | ||
| 74320-YK040A0 |
ZRE120..5F IVORY,TRIM0# |
1 | ||
| 74348 - HOLDER, VISOR | ||||
| 74348-06030A0 |
ZRE120 IVORY,TRIM0# |
2 | ||
| 74348-06030A0 |
ZRE120 IVORY,TRIM0# |
2 | ||
| 74348 - HOLDER, VISOR | ||||
| 74348-06030A0 |
ZRE120 IVORY,TRIM0# |
2 | ||
| 74348-06030A0 |
ZRE120 IVORY,TRIM0# |
2 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74611-12020A0 |
ZRE120 IVORY,TRIM0# |
3 | ||
| 74611-YK010A0 |
ZRE120 IVORY,TRIM0# |
3 | ||
| 74611-12020A0 |
ZRE120 IVORY,TRIM0# |
3 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74611-12020A0 |
ZRE120 IVORY,TRIM0# |
3 | ||
| 74611-YK010A0 |
ZRE120 IVORY,TRIM0# |
3 | ||
| 74611-12020A0 |
ZRE120 IVORY,TRIM0# |
3 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74611-12020A0 |
ZRE120 IVORY,TRIM0# |
3 | ||
| 74611-YK010A0 |
ZRE120 IVORY,TRIM0# |
3 | ||
| 74611-12020A0 |
ZRE120 IVORY,TRIM0# |
3 | ||
| Common parts | ||||
| 90168-60026 | ||||

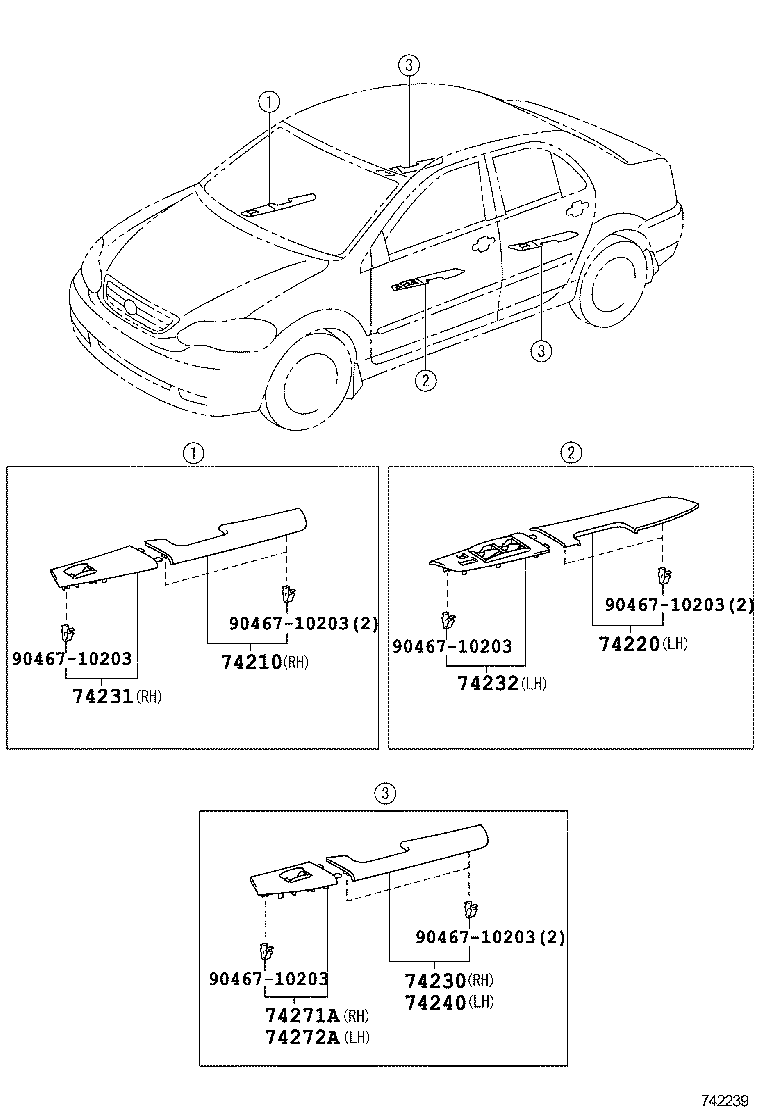

ILLUST NO. 1 OF 2(0705- )
ARMREST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74210 - ARMREST ASSY, FRONT, RH | ||||
| 74210-YK010A0 |
ZRE120 IVORY,TRIM0# |
1 | ||
| 74210-12251A0 |
ZRE120 IVORY,TRIM0# |
1 | ||
| 74220 - ARMREST ASSY, FRONT, LH | ||||
| 74220-12191A0 |
ZRE120 IVORY,TRIM0# |
1 | ||
| 74220-YK010A0 |
ZRE120 IVORY,TRIM0# |
1 | ||
| 74230 - ARMREST ASSY, REAR, RH | ||||
| 74210-12251A0 |
ZRE120 IVORY,TRIM0# |
1 | ||
| 74210-YK010A0 |
ZRE120 IVORY,TRIM0# |
1 | ||
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-02E00B0 |
ZRE120 21SV26,TRIM0# |
1 | ||
| 74231-12C30B1 |
ZRE120 SILVER,TRIM0# |
1 | ||
| 74231-02D90A0 |
ZRE120..5F IVORY,TRIM0# |
1 | ||
| 74231-12460A1 |
ZRE120..5F IVORY,TRIM0# |
1 | ||
| 74231-02E00B0 |
ZRE120 21SV26,TRIM0# |
1 | ||
| 74231-02D90A0 |
ZRE120..5F IVORY,TRIM0# |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74232-12370A1 |
ZRE120..5F IVORY,TRIM0# |
1 | ||
| 74232-12A20B1 |
ZRE120 SILVER,TRIM0# |
1 | ||
| 74232-02E50A0 |
ZRE120..5F IVORY,TRIM0# |
1 | ||
| 74232-02E50A0 |
ZRE120..5F IVORY,TRIM0# |
1 | ||
| 74232-02E60B0 |
ZRE120 21SV26,TRIM0# |
1 | ||
| 74232-02E60B0 |
ZRE120 21SV26,TRIM0# |
1 | ||
| 74240 - ARMREST ASSY, REAR, LH | ||||
| 74220-12191A0 |
ZRE120 IVORY,TRIM0# |
1 | ||
| 74220-YK010A0 |
ZRE120 IVORY,TRIM0# |
1 | ||
| 74271A - PANEL, REAR DOOR ARMREST BASE, UPPER RH | ||||
| 74271-12440B1 |
ZRE120 SILVER,TRIM0# |
1 | ||
| 74271-02640A0 |
ZRE120..5F IVORY,TRIM0# |
1 | ||
| 74271-12020A1 |
ZRE120..5F IVORY,TRIM0# |
1 | ||
| 74271-02650B0 |
ZRE120 21SV26,TRIM0# |
1 | ||
| 74271-02640A0 |
ZRE120..5F IVORY,TRIM0# |
1 | ||
| 74271-02650B0 |
ZRE120 21SV26,TRIM0# |
1 | ||
| 74272A - PANEL, REAR DOOR ARMREST BASE, UPPER LH | ||||
| 74272-12450B1 |
ZRE120 SILVER,TRIM0# |
1 | ||
| 74272-12020A1 |
ZRE120..5F IVORY,TRIM0# |
1 | ||
| 74272-02650B0 |
ZRE120 21SV26,TRIM0# |
1 | ||
| 74272-02640A0 |
ZRE120..5F IVORY,TRIM0# |
1 | ||
| 74272-02650B0 |
ZRE120 21SV26,TRIM0# |
1 | ||
| 74272-02640A0 |
ZRE120..5F IVORY,TRIM0# |
1 | ||
| Common parts | ||||
| 90467-10203 | ||||
