ZRE120L-GEMDKC (2007)
Toyota Corolla (China)

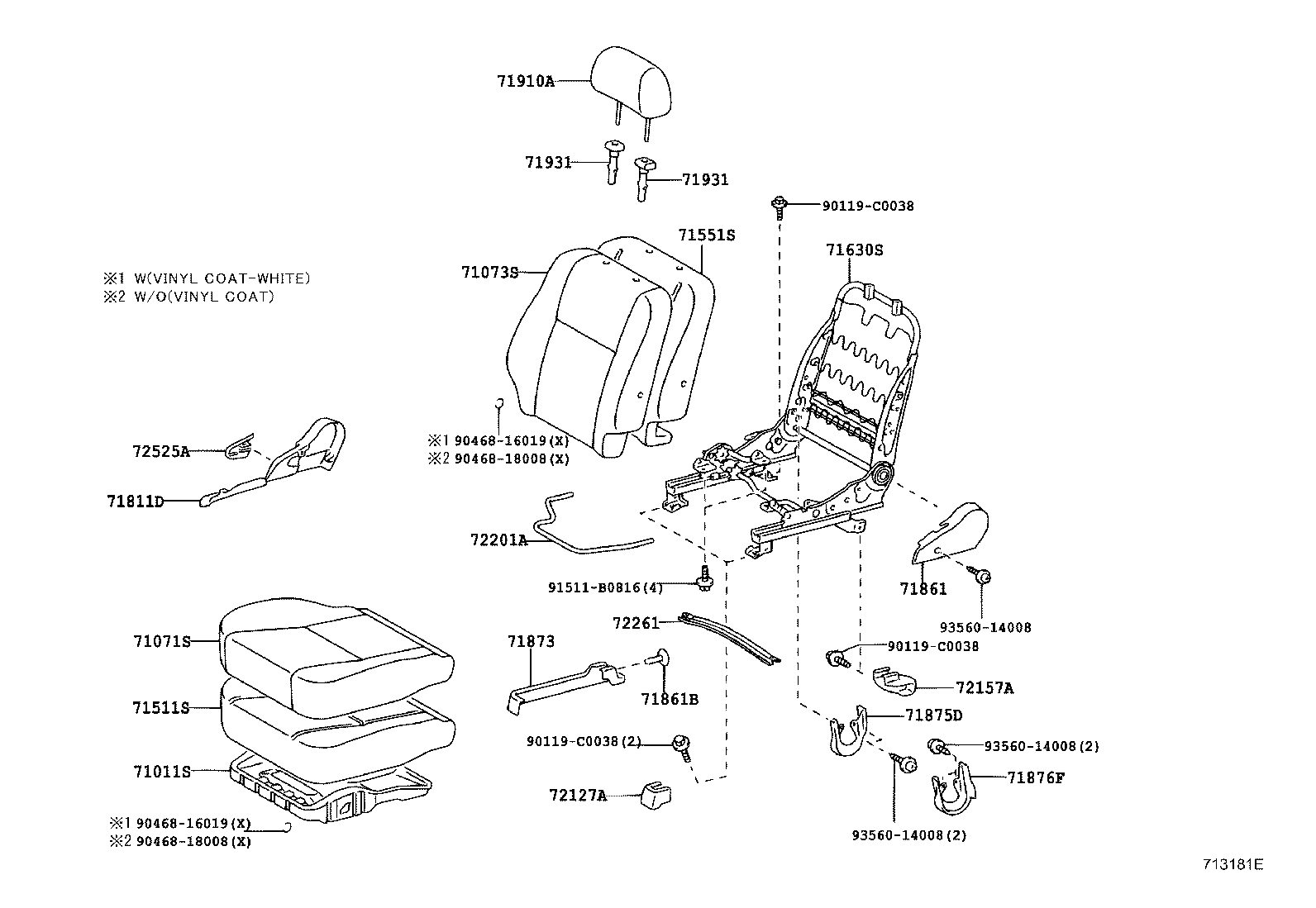

ILLUST NO. 1 OF 2(0402- )
RH SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-0D010 |
ZRE120 |
1 | ||
| 71011-0D010 |
ZRE120 |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-0Z410A1 |
ZRE120 SEAT = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71071-02D60A0 |
ZRE120 SEAT = TYPE C-*104,IVORY,TRIM0# |
1 | ||
| 71071-YK010A0 |
ZRE120 IVORY,TRIM0# |
1 | ||
| 71071-0Z411A1 |
ZRE120 SEAT = TYPE A OR TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71071-YK020A0 |
ZRE120 LEATHER SEAT,IVORY,TRIM0# |
1 | ||
| 71071-02Q20A3 |
ZRE120 SEAT = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71071-YK030A0 |
ZRE120 LEATHER SEAT,IVORY,TRIM0# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-02Q70A2 |
ZRE120 SEAT = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71073-YK030A0 |
ZRE120 LEATHER SEAT,IVORY,TRIM0# |
1 | ||
| 71073-0Z360A1 |
ZRE120 SEAT = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71073-YK010A0 |
ZRE120 IVORY,TRIM0# |
1 | ||
| 71073-YK020A0 |
ZRE120 LEATHER SEAT,IVORY,TRIM0# |
1 | ||
| 71073-0Z361A1 |
ZRE120 SEAT = TYPE A OR TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71073-02E40A2 |
ZRE120 SEAT = TYPE C-*104,IVORY,TRIM0# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-YK030 |
ZRE120 LEATHER SEAT |
1 | ||
| 71511-YK010 |
ZRE120 |
1 | ||
| 71511-02270 |
ZRE120 |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-YK020 |
ZRE120 LEATHER SEAT |
1 | ||
| 71551-YK010 |
ZRE120 |
1 | ||
| 71551-02391 |
ZRE120 |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-02131 |
ZRE120 |
1 | ||
| 71630-02131 |
ZRE120 |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-0D030A0 |
ZRE120 IVORY,TRIM0# |
1 | ||
| 71811-0D030A0 |
ZRE120 IVORY,TRIM0# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-0D010A0 |
ZRE120 IVORY,TRIM0# |
1 | ||
| 71861-0D010A0 |
ZRE120 IVORY,TRIM0# |
1 | ||
| 71861B - CLIP(FOR FRONT SEAT SHIELD, RH) | ||||
| 90467-07161A0 |
ZRE120 IVORY,TRIM0# |
1 | ||
| 90467-07161A0 |
ZRE120 IVORY,TRIM0# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-02010A0 |
ZRE120 IVORY,TRIM0# |
1 | ||
| 71873-YK010A0 |
ZRE120 IVORY,TRIM0# |
1 | ||
| 71873-02010A0 |
ZRE120 IVORY,TRIM0# |
1 | ||
| 71875D - COVER, RECLINING ADJUSTER OUTSIDE, RH | ||||
| 71875-0D010A0 |
ZRE120 IVORY,TRIM0# |
1 | ||
| 71875-0D010A0 |
ZRE120 IVORY,TRIM0# |
1 | ||
| 71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT) | ||||
| 71876-0D010A0 |
ZRE120 IVORY,TRIM0# |
2 | ||
| 71876-0D010A0 |
ZRE120 IVORY,TRIM0# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-02E81A0 |
ZRE120 SEAT = TYPE A OR TYPE B-*104,IVORY,TRIM0# |
2 | ||
| 71910-02B60A2 |
ZRE120 SEAT = TYPE A-*104,IVORY,TRIM0# |
2 | ||
| 71910-YK021A0 |
ZRE120 IVORY,TRIM0#,TRIM = L*** |
2 | ||
| 71910-02E80A0 |
ZRE120 SEAT = TYPE A-*104,IVORY,TRIM0# |
2 | ||
| 71910-02F10A0 |
ZRE120 SEAT = TYPE C-*104,IVORY,TRIM0# |
2 | ||
| 71910-YK010A0 |
ZRE120 IVORY,TRIM0# |
2 | ||
| 71910-YK011A0 |
ZRE120 IVORY,TRIM0#,TRIM = F*** |
2 | ||
| 71910-YK020A0 |
ZRE120 IVORY,TRIM0#,TRIM = L*** |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-0D090A0 |
ZRE120 W(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-0D110 |
ZRE120 W(LOCK) |
1 | ||
| 71931-0D110A0 |
ZRE120 W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-0D110A0 |
ZRE120 W(LOCK),IVORY,TRIM0# |
1 | ||
| 71931-0D110A0 |
ZRE120 W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-02340 |
ZRE120 W(LOCK) |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-0D090A0 |
ZRE120 W(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-0D110 |
ZRE120 W(LOCK) |
1 | ||
| 71931-0D110A0 |
ZRE120 W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-0D110A0 |
ZRE120 W(LOCK),IVORY,TRIM0# |
1 | ||
| 71931-0D110A0 |
ZRE120 W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-02340 |
ZRE120 W(LOCK) |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-YK010A0 |
ZRE120 IVORY,TRIM0# |
1 | ||
| 72127-02020A0 |
ZRE120 IVORY,TRIM0# |
1 | ||
| 72127-02020A0 |
ZRE120 IVORY,TRIM0# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-YK010A0 |
ZRE120 IVORY,TRIM0# |
1 | ||
| 72157-02030A0 |
ZRE120 IVORY,TRIM0# |
1 | ||
| 72157-02030A0 |
ZRE120 IVORY,TRIM0# |
1 | ||
| 72201A - HANDLE SUB-ASSY, SEAT TRACK RH | ||||
| 72211-0D030 |
ZRE120 |
1 | ||
| 72211-0D030 |
ZRE120 |
1 | ||
| 72261 - REINFORCEMENT, SEAT TRACK, RH | ||||
| 72261-0D010 |
ZRE120 |
1 | ||
| 72261-0D010 |
ZRE120 |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-0D030A0 |
ZRE120 IVORY,TRIM0# |
1 | ||
| 72525-0D030A0 |
ZRE120 IVORY,TRIM0# |
1 | ||
| Common parts | ||||
| 90119-C0038 | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
| 91511-B0816 | ||||
| 93560-14008 | ||||

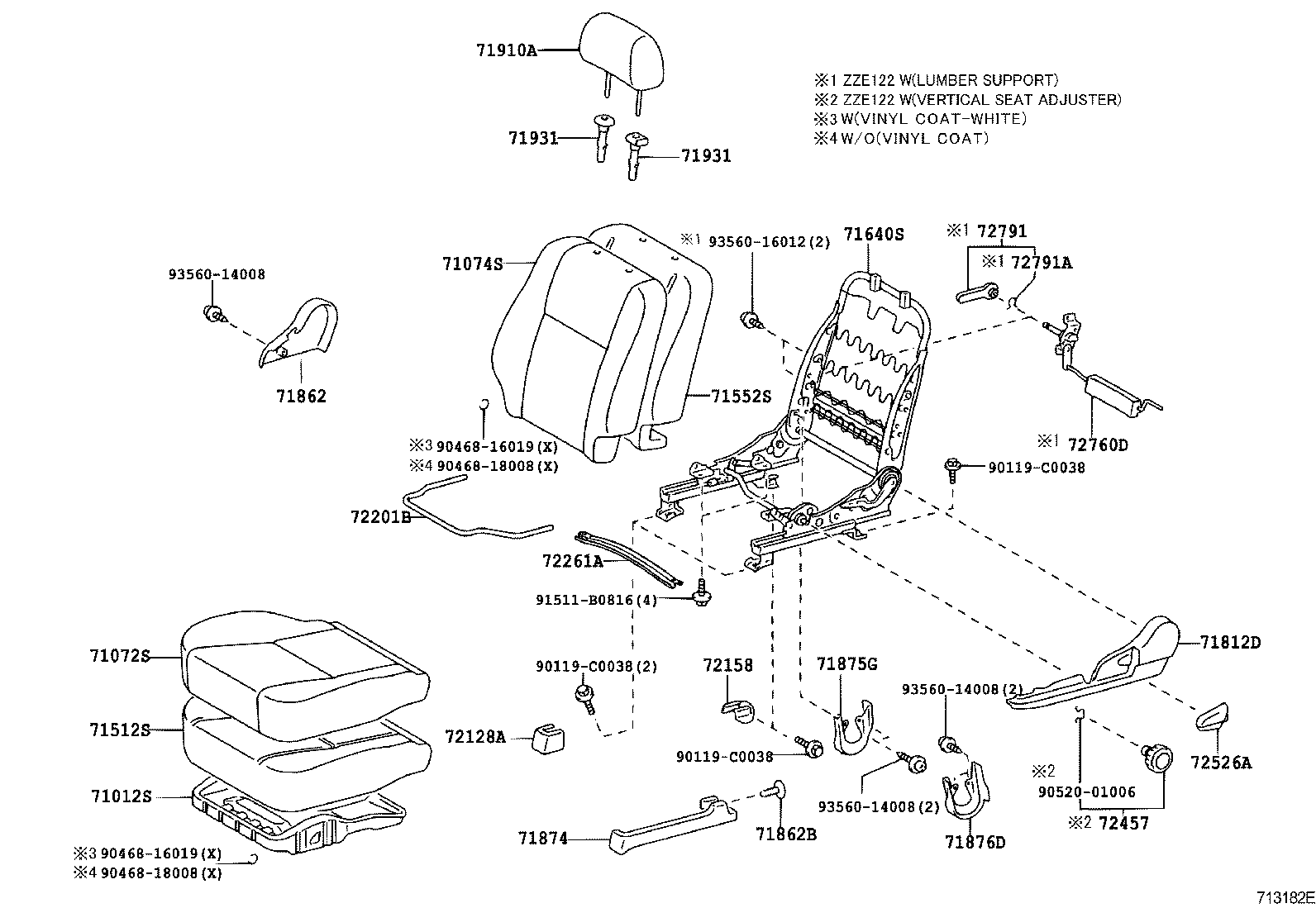

ILLUST NO. 2 OF 2(0402- )
LH SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71011-0D010 |
ZRE120 |
1 | ||
| 71011-02070 |
ZRE120 |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-02V70A1 |
ZRE120 SEAT = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71072-02P00A1 |
ZRE120 SEAT = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71072-02V71A1 |
ZRE120 SEAT = TYPE A OR TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71072-YK030A0 |
ZRE120 LEATHER SEAT,IVORY,TRIM0# |
1 | ||
| 71072-02Z80A0 |
ZRE120 SEAT = TYPE C-*104,IVORY,TRIM0# |
1 | ||
| 71072-YK010A0 |
ZRE120 IVORY,TRIM0# |
1 | ||
| 71072-YK020A0 |
ZRE120 LEATHER SEAT,IVORY,TRIM0# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-0Z670A0 |
ZRE120 SEAT = TYPE C-*104,IVORY,TRIM0# |
1 | ||
| 71074-02W00A0 |
ZRE120 SEAT = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71074-0Z310A1 |
ZRE120 SEAT = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71074-0Z311A1 |
ZRE120 SEAT = TYPE A OR TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71074-YK010A0 |
ZRE120 IVORY,TRIM0# |
1 | ||
| 71074-YK030A0 |
ZRE120 LEATHER SEAT,IVORY,TRIM0# |
1 | ||
| 71074-YK020A0 |
ZRE120 LEATHER SEAT,IVORY,TRIM0# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-YK040 |
ZRE120 LEATHER SEAT |
1 | ||
| 71511-YK020 |
ZRE120 |
1 | ||
| 71511-02270 |
ZRE120 |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-02201 |
ZRE120 |
1 | ||
| 71552-YK010 |
ZRE120 |
1 | ||
| 71552-YK020 |
ZRE120 LEATHER SEAT |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-02321 |
ZRE120 |
1 | ||
| 71640-02071 |
ZRE120 |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-0D030A0 |
ZRE120 IVORY,TRIM0# |
1 | ||
| 71812-0D030A0 |
ZRE120 IVORY,TRIM0# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-0D010A0 |
ZRE120 IVORY,TRIM0# |
1 | ||
| 71862-0D010A0 |
ZRE120 IVORY,TRIM0# |
1 | ||
| 71862B - CLIP(FOR FRONT SEAT SHIELD, LH) | ||||
| 90467-07161A0 |
ZRE120 IVORY,TRIM0# |
1 | ||
| 90467-07161A0 |
ZRE120 IVORY,TRIM0# |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-02010A0 |
ZRE120 IVORY,TRIM0# |
1 | ||
| 71874-YK010A0 |
ZRE120 IVORY,TRIM0# |
1 | ||
| 71874-02010A0 |
ZRE120 IVORY,TRIM0# |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-0D010A0 |
ZRE120 IVORY,TRIM0# |
1 | ||
| 71875-0D010A0 |
ZRE120 IVORY,TRIM0# |
1 | ||
| 71876D - COVER, RECLINING ADJUSTER OUTSIDE, LH | ||||
| 71876-0D010A0 |
ZRE120 IVORY,TRIM0# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-02E81A0 |
ZRE120 SEAT = TYPE A OR TYPE B-*104,IVORY,TRIM0# |
2 | ||
| 71910-02B60A2 |
ZRE120 SEAT = TYPE A-*104,IVORY,TRIM0# |
2 | ||
| 71910-YK021A0 |
ZRE120 IVORY,TRIM0#,TRIM = L*** |
2 | ||
| 71910-02E80A0 |
ZRE120 SEAT = TYPE A-*104,IVORY,TRIM0# |
2 | ||
| 71910-02F10A0 |
ZRE120 SEAT = TYPE C-*104,IVORY,TRIM0# |
2 | ||
| 71910-YK010A0 |
ZRE120 IVORY,TRIM0# |
2 | ||
| 71910-YK011A0 |
ZRE120 IVORY,TRIM0#,TRIM = F*** |
2 | ||
| 71910-YK020A0 |
ZRE120 IVORY,TRIM0#,TRIM = L*** |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-0D090A0 |
ZRE120 W(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-0D110 |
ZRE120 W(LOCK) |
1 | ||
| 71931-0D110A0 |
ZRE120 W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-0D110A0 |
ZRE120 W(LOCK),IVORY,TRIM0# |
1 | ||
| 71931-0D110A0 |
ZRE120 W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-02340 |
ZRE120 W(LOCK) |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-0D090A0 |
ZRE120 W(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-0D110 |
ZRE120 W(LOCK) |
1 | ||
| 71931-0D110A0 |
ZRE120 W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-0D110A0 |
ZRE120 W(LOCK),IVORY,TRIM0# |
1 | ||
| 71931-0D110A0 |
ZRE120 W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-02340 |
ZRE120 W(LOCK) |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72127-02020A0 |
ZRE120 IVORY,TRIM0# |
1 | ||
| 72127-YK010A0 |
ZRE120 IVORY,TRIM0# |
1 | ||
| 72127-02020A0 |
ZRE120 IVORY,TRIM0# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-02030A0 |
ZRE120 IVORY,TRIM0# |
1 | ||
| 72158-02030A0 |
ZRE120 IVORY,TRIM0# |
1 | ||
| 72158-YK010A0 |
ZRE120 IVORY,TRIM0# |
1 | ||
| 72201B - HANDLE SUB-ASSY, SEAT TRACK LH | ||||
| 72211-0D030 |
ZRE120 |
1 | ||
| 72211-0D030 |
ZRE120 |
1 | ||
| 72261A - REINFORCEMENT, SEAT TRACK, LH | ||||
| 72261-0D010 |
ZRE120 |
1 | ||
| 72261-0D010 |
ZRE120 |
1 | ||
| 72457 - KNOB, VERTICAL SEAT ADJUSTER | ||||
| 72457-18010A1 |
ZRE120 IVORY,TRIM0# |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-0D040A0 |
ZRE120 IVORY,TRIM0# |
1 | ||
| 72526-0D040A0 |
ZRE120 IVORY,TRIM0# |
1 | ||
| Common parts | ||||
| 90119-C0038 | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
| 90520-01006 | ||||
| 91511-B0816 | ||||
| 93560-14008 | ||||
| 93560-16012 | ||||
(0709-1005)5F

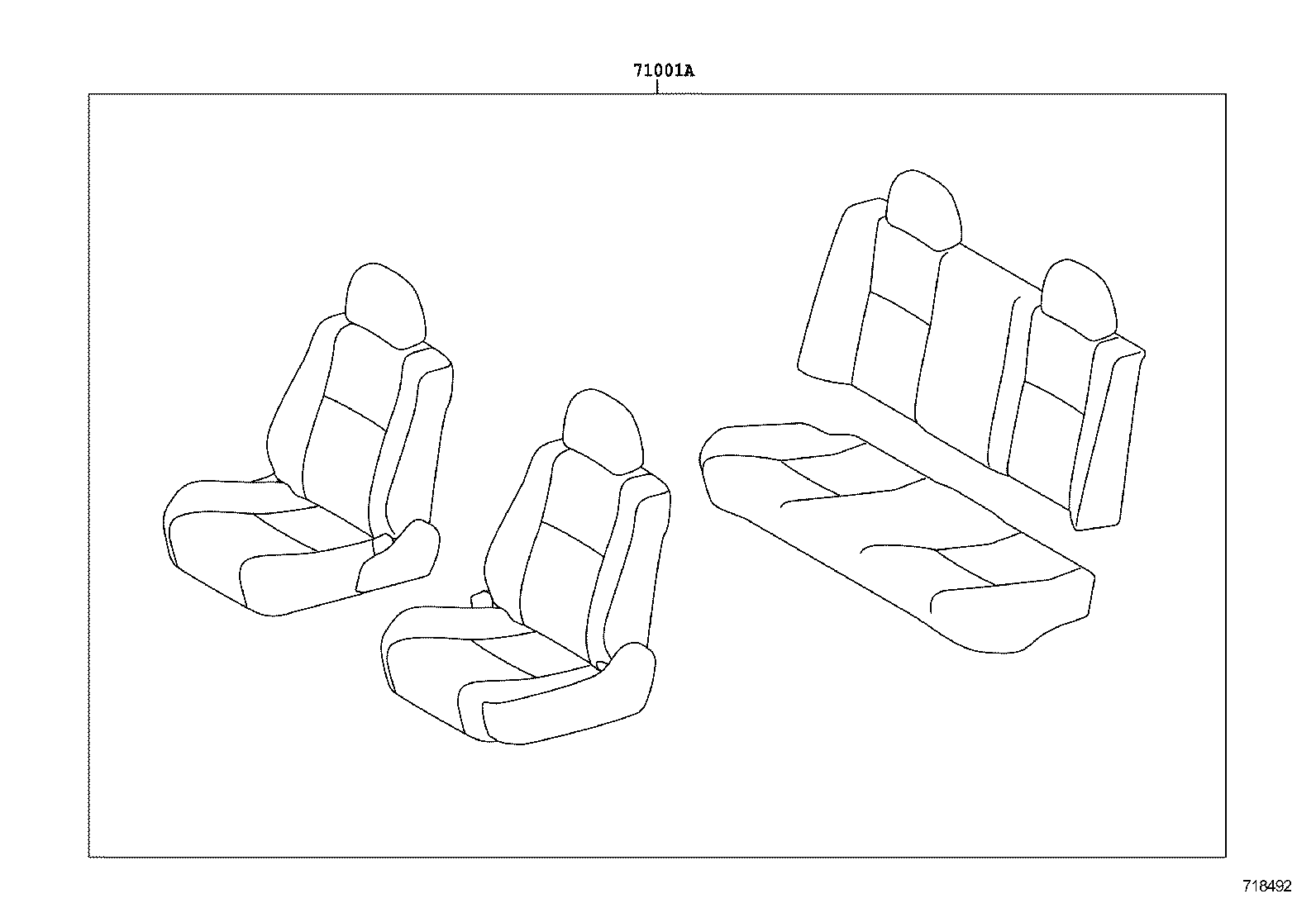

SEAT SET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71001A - SEAT SET | ||||
| 71001-YY050A0 |
ZRE120..5F IVORY,TRIM05 |
1 | ||
