ZRE120L-GEMDKC (2007)

Toyota Corolla (China)

Production May 2007 - Feb 2017
Engine 1ZRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0402- )

Click highlighted areas on diagram

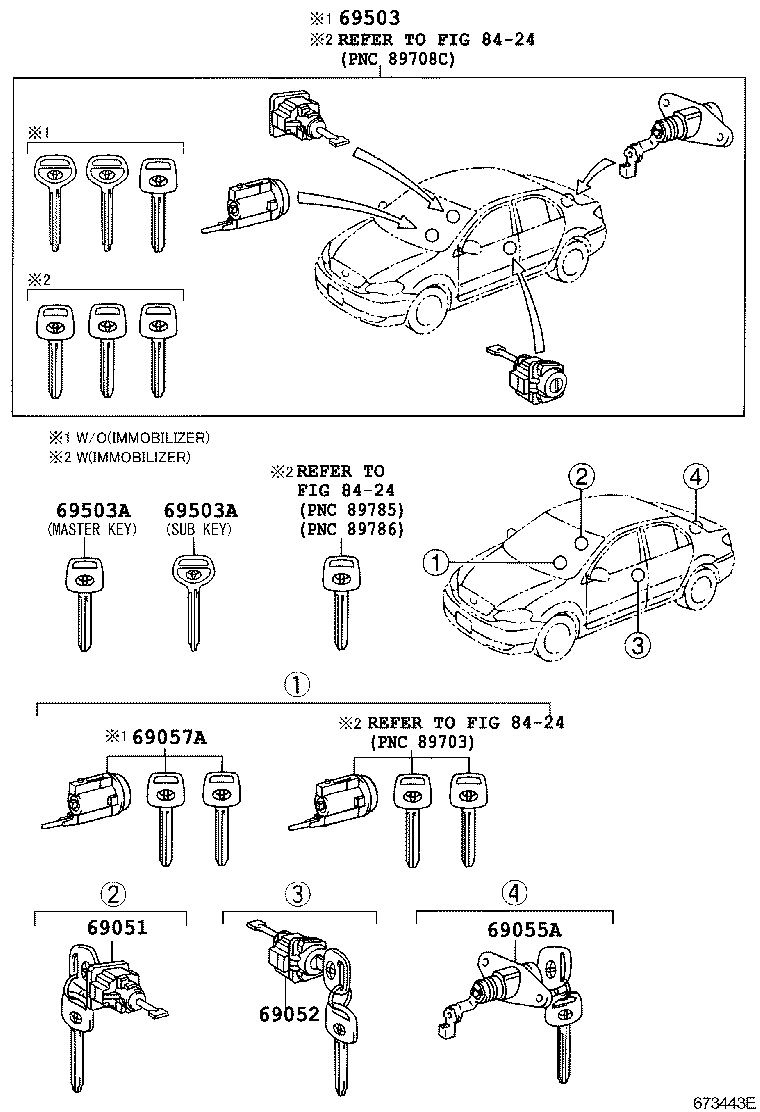

diagram 69051 69052 69055A 69057A 69503 69503A 69503A 8424 8424 8424
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-02030

ZRE120

W/O(IMMOBILIZER)

 1
69051-02140

ZRE120..5F

W(IMMOBILIZER)

 1
69051-02030

ZRE120

W/O(IMMOBILIZER)

 1
69051-02140

ZRE120..5F

W(IMMOBILIZER)

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-02110

ZRE120

W(IMMOBILIZER)

 1
69052-02140

ZRE120..5F

W/O(IMMOBILIZER)

 1
69052-02140

ZRE120..5F

W/O(IMMOBILIZER)

 1
69052-02110

ZRE120

W(IMMOBILIZER)

 1
69055A - CYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK
69055-02140

ZRE120..5F

W/O(IMMOBILIZER)

 1
69055-02130

ZRE120

W(IMMOBILIZER)

 1
69055-02140

ZRE120..5F

W/O(IMMOBILIZER)

 1
69055-02130

ZRE120

W(IMMOBILIZER)

 1
69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-02250

ZRE120..5F

W/O(IMMOBILIZER)

 1
69057-02250

ZRE120..5F

W/O(IMMOBILIZER)

 1
69503 - CYLINDER SET, LOCK
69005-02360

ZRE120..5F

W/O(IMMOBILIZER)

 1
69005-02360

ZRE120..5F

W/O(IMMOBILIZER)

 1
69503A - KEY, BLANK
90999-00199

ZRE120..5F

MASTER KEY,W(*68),W/O(IMMOBILIZER)

 1
90999-00188

ZRE120..5F

SUB KEY,W/O(IMMOBILIZER)

 1
90999-00186

ZRE120..5F

MASTER KEY,W/O(IMMOBILIZER)

 1
90999-00186

ZRE120..5F

MASTER KEY,W/O(IMMOBILIZER)

 1
90999-00199

ZRE120..5F

MASTER KEY,W(*68),W/O(IMMOBILIZER)

 1
90999-00188

ZRE120..5F

SUB KEY,W/O(IMMOBILIZER)

 1
69503A - KEY, BLANK
90999-00199

ZRE120..5F

MASTER KEY,W(*68),W/O(IMMOBILIZER)

 1
90999-00188

ZRE120..5F

SUB KEY,W/O(IMMOBILIZER)

 1
90999-00186

ZRE120..5F

MASTER KEY,W/O(IMMOBILIZER)

 1
90999-00186

ZRE120..5F

MASTER KEY,W/O(IMMOBILIZER)

 1
90999-00199

ZRE120..5F

MASTER KEY,W(*68),W/O(IMMOBILIZER)

 1
90999-00188

ZRE120..5F

SUB KEY,W/O(IMMOBILIZER)

 1
Linked diagrams
8424
