ZRE120L-GEMDKC (2007)
Toyota Corolla (China)
Production
May 2007
-
Feb 2017
Engine
1ZRFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0402- )

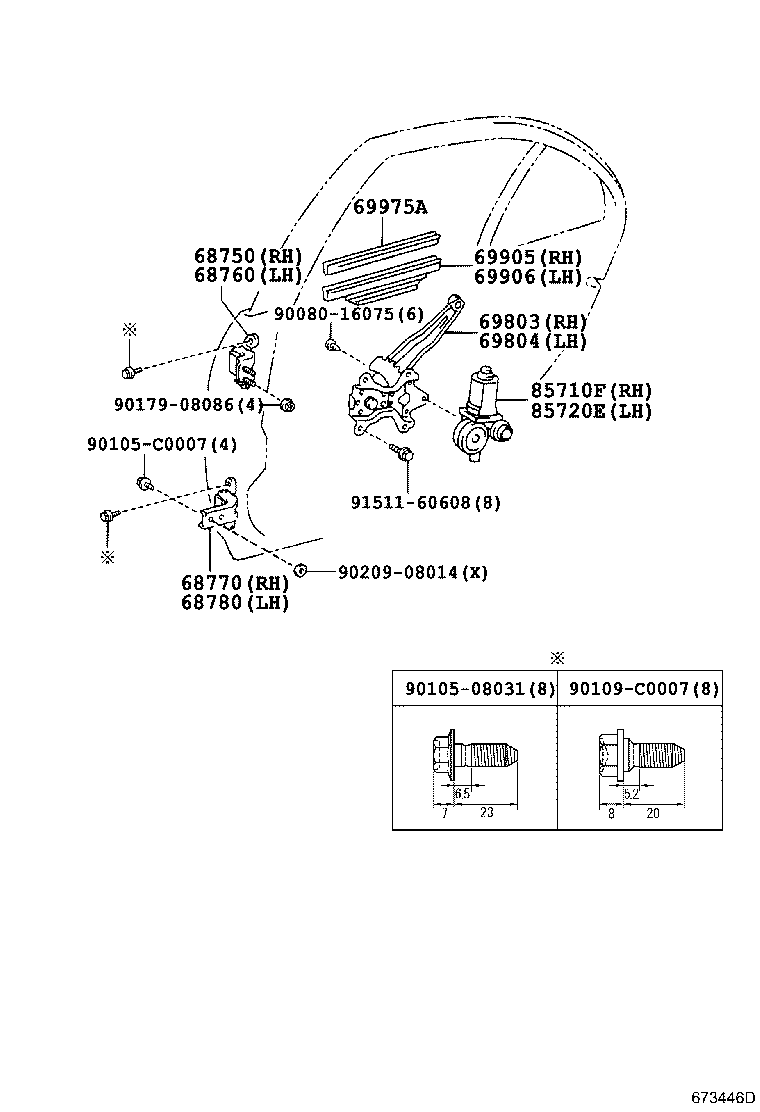

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68750 - HINGE ASSY, REAR DOOR, UPPER RH | ||||
| 68750-0D021 |
ZRE120 |
1 | ||
| 68750-0D021 |
ZRE120 |
1 | ||
| 68760 - HINGE ASSY, REAR DOOR, UPPER LH | ||||
| 68760-0D021 |
ZRE120 |
1 | ||
| 68760-0D021 |
ZRE120 |
1 | ||
| 68770 - HINGE ASSY, REAR DOOR, LOWER RH | ||||
| 68770-0D021 |
ZRE120 |
1 | ||
| 68770-0D021 |
ZRE120 |
1 | ||
| 68780 - HINGE ASSY, REAR DOOR, LOWER LH | ||||
| 68780-0D021 |
ZRE120 |
1 | ||
| 68780-0D021 |
ZRE120 |
1 | ||
| 69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH | ||||
| 69803-02140 |
ZRE120 |
1 | ||
| 69803-02140 |
ZRE120 |
1 | ||
| 69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH | ||||
| 69804-02140 |
ZRE120 |
1 | ||
| 69804-02140 |
ZRE120 |
1 | ||
| 69905 - BRACKET SUB-ASSY, REAR DOOR GLASS, RH | ||||
| 69905-0D020 |
ZRE120 |
1 | ||
| 69905-02120 |
ZRE120 |
1 | ||
| 69905-02120 |
ZRE120 |
1 | ||
| 69906 - BRACKET SUB-ASSY, REAR DOOR GLASS, LH | ||||
| 69906-02120 |
ZRE120 |
1 | ||
| 69906-02120 |
ZRE120 |
1 | ||
| 69906-0D020 |
ZRE120 |
1 | ||
| 69975A - FILLER, REAR DOOR GLASS CHANNEL | ||||
| 69975-52010 |
ZRE120 |
2 | ||
| 69975-52010 |
ZRE120 |
2 | ||
| 69975-52010 |
ZRE120 |
2 | ||
| 85710F - MOTOR ASSY, POWER WINDOW REGULATOR, RH | ||||
| 85720-12300 |
ZRE120 |
1 | ||
| 85720-12300 |
ZRE120 |
1 | ||
| 85720E - MOTOR ASSY, POWER WINDOW REGULATOR, LH | ||||
| 85710-12310 |
ZRE120 |
1 | ||
| 85710-12310 |
ZRE120 |
1 | ||
| Common parts | ||||
| 90080-16075 | ||||
| 90105-08031 | ||||
| 90105-C0007 | ||||
| 90109-C0007 | ||||
| 90179-08086 | ||||
| 90209-08014 | ||||
| 91511-60608 | ||||
