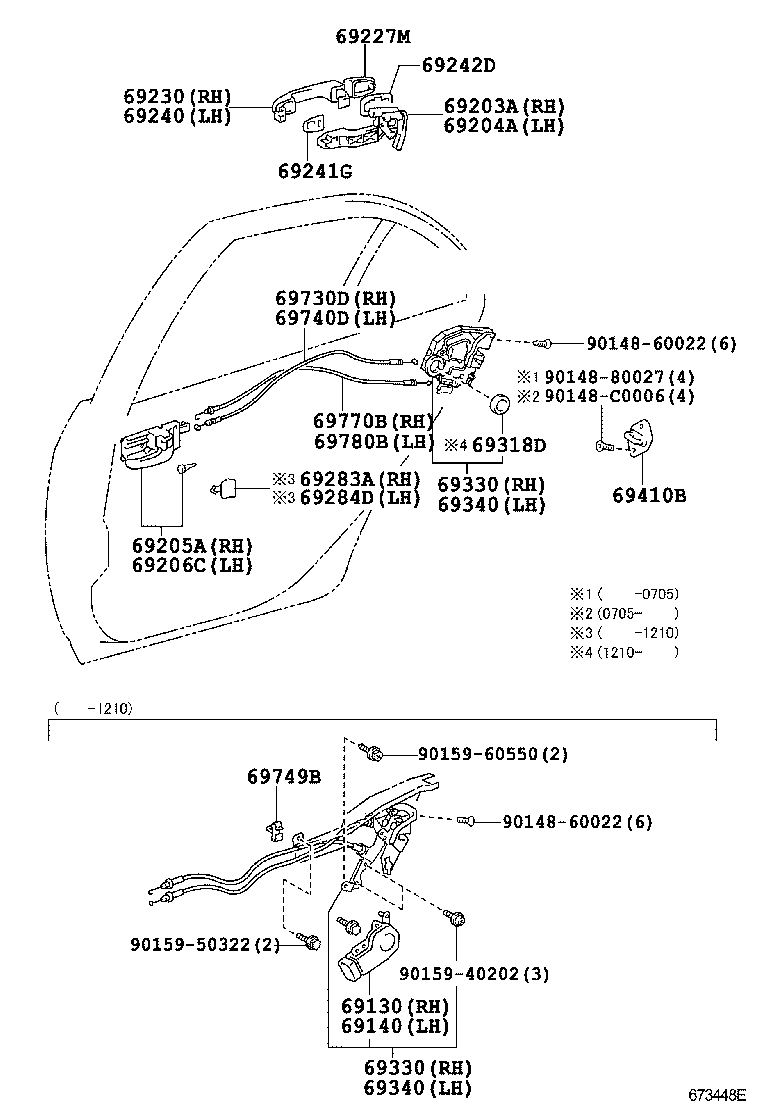

Toyota Corolla (china) ZRE120 REAR DOOR LOCK & HANDLE

Part #	Description	Period	Qty
69130 - ACTUATOR ASSY, REAR DOOR LOCK, RH
69130-12040	ZRE120	07/2012 - 10/2012	1
69130-12070	ZRE120	05/2007 - 06/2012	1
69140 - ACTUATOR ASSY, REAR DOOR LOCK, LH
69140-12070	ZRE120	05/2007 - 06/2012	1
69140-12040	ZRE120	07/2012 - 10/2012	1
69203A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69203-YK010	ZRE120	10/2012 - 12/2999	1
69203-02190	ZRE120	05/2007 - 10/2012	1
69204A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69204-YK010	ZRE120	10/2012 - 12/2999	1
69204-02190	ZRE120	05/2007 - 10/2012	1
69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69205-0D040A0	ZRE120 IVORY,TRIM0#	05/2007 - 10/2012	1
69205-0D040A0	ZRE120 IVORY,TRIM0#	10/2012 - 02/2017	1
69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69206-0D040A0	ZRE120 IVORY,TRIM0#	10/2012 - 02/2017	1
69206-0D040A0	ZRE120 IVORY,TRIM0#	05/2007 - 10/2012	1
69227M - COVER, REAR DOOR OUTSIDE HANDLE
69227-02160F0	ZRE120 CHAMPAGNE ME.,586	05/2007 - 05/2010	2
69227-02160A0	ZRE120 WHITE,056	05/2007 - 10/2012	2
69227-02160J3	ZRE120 BLUE ME.,8T4	05/2010 - 10/2012	2
69227-02160D0	ZRE120 RED M.M.,3P1	08/2011 - 10/2012	2
69227-02160C0	ZRE120 BLACK MC.,209	10/2012 - 02/2017	2
69227-02160C0	ZRE120 BLACK MC.,209	05/2007 - 10/2012	2
69227-02160A0	ZRE120 WHITE,056	10/2012 - 02/2017	2
69227-02160B0	ZRE120 SILVER ME.,1D0	05/2007 - 05/2010	2
69227-02160J3	ZRE120 BLUE ME.,8T4	10/2012 - 06/2015	2
69227-02160D0	ZRE120 RED M.M.,3P1	10/2012 - 02/2017	2
69227-02160B1	ZRE120 SILVER ME.,1F7	05/2010 - 10/2012	2
69227-02160B2	ZRE120 GRAY ME.,1G3	06/2015 - 02/2017	2
69227-02160B1	ZRE120 SILVER ME.,1F7	10/2012 - 02/2017	2
69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH
69211-02190C0	ZRE120 BLACK MC.,209	05/2007 - 10/2012	1
69211-02190J3	ZRE120 BLUE ME.,8T4	10/2012 - 06/2015	1
69211-02190A0	ZRE120 WHITE,056	05/2007 - 10/2012	1
69211-02190D0	ZRE120 RED M.M.,3P1	08/2011 - 10/2012	1
69211-02190J3	ZRE120 BLUE ME.,8T4	05/2010 - 10/2012	1
69211-02190F0	ZRE120 CHAMPAGNE ME.,586	05/2007 - 05/2010	1
69211-02190D0	ZRE120 RED M.M.,3P1	10/2012 - 02/2017	1
69211-02190A0	ZRE120 WHITE,056	10/2012 - 02/2017	1
69211-02190B1	ZRE120 SILVER ME.,1F7	10/2012 - 02/2017	1
69211-02190B1	ZRE120 SILVER ME.,1F7	05/2010 - 10/2012	1
69211-02190B0	ZRE120 SILVER ME.,1D0	05/2007 - 05/2010	1
69211-02190B2	ZRE120 GRAY ME.,1G3	06/2015 - 02/2017	1
69211-02190C0	ZRE120 BLACK MC.,209	10/2012 - 02/2017	1
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69211-02190F0	ZRE120 CHAMPAGNE ME.,586	05/2007 - 05/2010	1
69211-02190B0	ZRE120 SILVER ME.,1D0	05/2007 - 05/2010	1
69211-02190C0	ZRE120 BLACK MC.,209	05/2007 - 10/2012	1
69211-02190A0	ZRE120 WHITE,056	05/2007 - 10/2012	1
69211-02190J3	ZRE120 BLUE ME.,8T4	10/2012 - 06/2015	1
69211-02190D0	ZRE120 RED M.M.,3P1	08/2011 - 10/2012	1
69211-02190B1	ZRE120 SILVER ME.,1F7	05/2010 - 10/2012	1
69211-02190B2	ZRE120 GRAY ME.,1G3	06/2015 - 02/2017	1
69211-02190B1	ZRE120 SILVER ME.,1F7	10/2012 - 02/2017	1
69211-02190A0	ZRE120 WHITE,056	10/2012 - 02/2017	1
69211-02190J3	ZRE120 BLUE ME.,8T4	05/2010 - 10/2012	1
69211-02190C0	ZRE120 BLACK MC.,209	10/2012 - 02/2017	1
69211-02190D0	ZRE120 RED M.M.,3P1	10/2012 - 02/2017	1
69241G - PAD, REAR DOOR OUTSIDE HANDLE, FRONT
69241-02070	ZRE120	05/2007 - 10/2012	2
69241-02070	ZRE120	10/2012 - 12/2999	2
69242D - PAD, REAR DOOR OUTSIDE HANDLE, LH
69242-02070	ZRE120	05/2007 - 10/2012	2
69242-02070	ZRE120	10/2012 - 12/2999	2
69283A - PLUG, REAR DOOR INSIDE HANDLE BEZEL, RH
69283-12040A0	ZRE120 IVORY,TRIM0#	05/2007 - 10/2012	1
69284D - PLUG, REAR DOOR INSIDE HANDLE BEZEL, LH
69283-12040A0	ZRE120 IVORY,TRIM0#	05/2007 - 10/2012	1
69318D - SEAL, DOOR LOCK WIRING HARNESS
69318-51010	ZRE120	10/2012 - 12/2999	2
69330 - LOCK ASSY, REAR DOOR, RH
69050-02161	ZRE120	05/2007 - 04/2010	1
69050-YK010	ZRE120	10/2012 - 12/2999	1
69050-02310	ZRE120	04/2010 - 10/2012	1
69330 - LOCK ASSY, REAR DOOR, RH
69050-02161	ZRE120	05/2007 - 04/2010	1
69050-YK010	ZRE120	10/2012 - 12/2999	1
69050-02310	ZRE120	04/2010 - 10/2012	1
69340 - LOCK ASSY, REAR DOOR, LH
69060-02310	ZRE120	04/2010 - 10/2012	1
69060-02151	ZRE120	05/2007 - 04/2010	1
69060-YK010	ZRE120	10/2012 - 12/2999	1
69340 - LOCK ASSY, REAR DOOR, LH
69060-02310	ZRE120	04/2010 - 10/2012	1
69060-02151	ZRE120	05/2007 - 04/2010	1
69060-YK010	ZRE120	10/2012 - 12/2999	1
69410B - PLATE ASSY, REAR DOOR LOCK STRIKER
69410-0D020	ZRE120	05/2007 - 10/2012	2
69410-0D020	ZRE120	10/2012 - 12/2999	2
69730D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69730-YK010	ZRE120	10/2012 - 12/2999	1
69740D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69730-YK010	ZRE120	10/2012 - 12/2999	1
69749B - CLAMP, REAR DOOR LOCK LINK
69749-32040	ZRE120	05/2007 - 10/2012	2
69770B - CABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69770-YK010	ZRE120	10/2012 - 12/2999	1
69780B - CABLE ASSY, REAR DOOR INSIDE LOCKING, LH
69770-YK010	ZRE120	10/2012 - 12/2999	1
Common parts
90148-60022
90148-80027
90148-C0006
90159-40202
90159-50322
90159-60550

ZRE120L-GEMDKC (2007)

(0402- )
