ZRE120L-GEMDKC (2007)
Toyota Corolla (China)
ILLUST NO. 1 OF 2(0402- )
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-02370 |
ZRE120 |
1 | ||
| 67003-YK010 |
ZRE120 |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-YK010 |
ZRE120 |
1 | ||
| 67004-02370 |
ZRE120 |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-02100 |
ZRE120 |
1 | ||
| 67113-02100 |
ZRE120 |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-02100 |
ZRE120 |
1 | ||
| 67114-02100 |
ZRE120 |
1 | ||
| 67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH | ||||
| 67407-02080 |
ZRE120 |
1 | ||
| 67407-02080 |
ZRE120 |
1 | ||
| 67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH | ||||
| 67408-02080 |
ZRE120 |
1 | ||
| 67408-02080 |
ZRE120 |
1 | ||
| 67836 - COVER, REAR DOOR LOCK CHILD PROTECTION, RH | ||||
| 67836-02040 |
ZRE120 |
1 | ||
| 67836H - COVER, REAR DOOR LOCK CHILD PROTECTION, LH | ||||
| 67836-02040 |
ZRE120 |
1 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-02060 |
ZRE120 |
1 | ||
| 67841-YK010 |
ZRE120 |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67842-02040 |
ZRE120 |
1 | ||
| 67842-YK010 |
ZRE120 |
1 | ||
| 67857B - PROTECTOR, REAR DOOR PANEL, RH | ||||
| 67857-02030 |
ZRE120 |
1 | ||
| 67858B - PROTECTOR, REAR DOOR PANEL, LH | ||||
| 67858-02030 |
ZRE120 |
1 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
ZRE120 |
16 | ||
| 67867-12150 |
ZRE120 |
16 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
ZRE120 |
16 | ||
| 67867-12150 |
ZRE120 |
16 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-02120 |
ZRE120 |
1 | ||
| 67871-02120 |
ZRE120 |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-02120 |
ZRE120 |
1 | ||
| 67872-02120 |
ZRE120 |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68113-02181 |
ZRE120 *TT,T=3.1,GREEN |
1 | ||
| 68113-02181 |
ZRE120 *TT,T=3.1,GREEN |
1 | ||
| 68113-YK010 |
ZRE120 *TT,T=3.1,CLEAR |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68114-YK010 |
ZRE120 *TT,T=3.1,CLEAR |
1 | ||
| 68114-02171 |
ZRE120 *TT,T=3.1,GREEN |
1 | ||
| 68114-02171 |
ZRE120 *TT,T=3.1,GREEN |
1 | ||
| 68123B - GLASS, REAR DOOR QUARTER WINDOW, RH | ||||
| 68123-YK010 |
ZRE120 *TT,T=3.1,CLEAR |
1 | ||
| 68123-02151 |
ZRE120 *TT,T=3.1,GREEN |
1 | ||
| 68124B - GLASS, REAR DOOR QUARTER WINDOW, LH | ||||
| 68124-02151 |
ZRE120 *TT,T=3.1,GREEN |
1 | ||
| 68124-YK010 |
ZRE120 *TT,T=3.1,CLEAR |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-02230 |
ZRE120 |
1 | ||
| 68142-YK010 |
ZRE120 |
1 | ||
| 68142-02230 |
ZRE120 |
1 | ||
| 68145D - CUSHION, REAR DOOR WINDOW | ||||
| 69759-02090 |
ZRE120 |
4 | ||
| 69759-02090 |
ZRE120 |
4 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-YK010 |
ZRE120 |
1 | ||
| 68152-02230 |
ZRE120 |
1 | ||
| 68152-02230 |
ZRE120 |
1 | ||
| 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH | ||||
| 68188-02080 |
ZRE120 |
1 | ||
| 68188-02080 |
ZRE120 |
1 | ||
| 68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH | ||||
| 68189-02080 |
ZRE120 |
1 | ||
| 68189-02080 |
ZRE120 |
1 | ||
| 68630D - CHECK ASSY, REAR DOOR, RH | ||||
| 68630-02101 |
ZRE120 |
1 | ||
| 68630-02100 |
ZRE120 |
1 | ||
| 68630-02101 |
ZRE120 |
1 | ||
| 68640A - CHECK ASSY, REAR DOOR, LH | ||||
| 68640-02101 |
ZRE120 |
1 | ||
| 68640-02100 |
ZRE120 |
1 | ||
| 68640-02101 |
ZRE120 |
1 | ||
| Common parts | ||||
| 90105-C0244 | ||||
| 90109-C0028 | ||||
| 90151-50016 | ||||
| 90151-C0002 | ||||
| 90159-60550 | ||||
| 90168-60028 | ||||
| 90189-06018 | ||||
| 90541-09069 | ||||
| 90950-01841 | ||||
| 93540-56018 | ||||

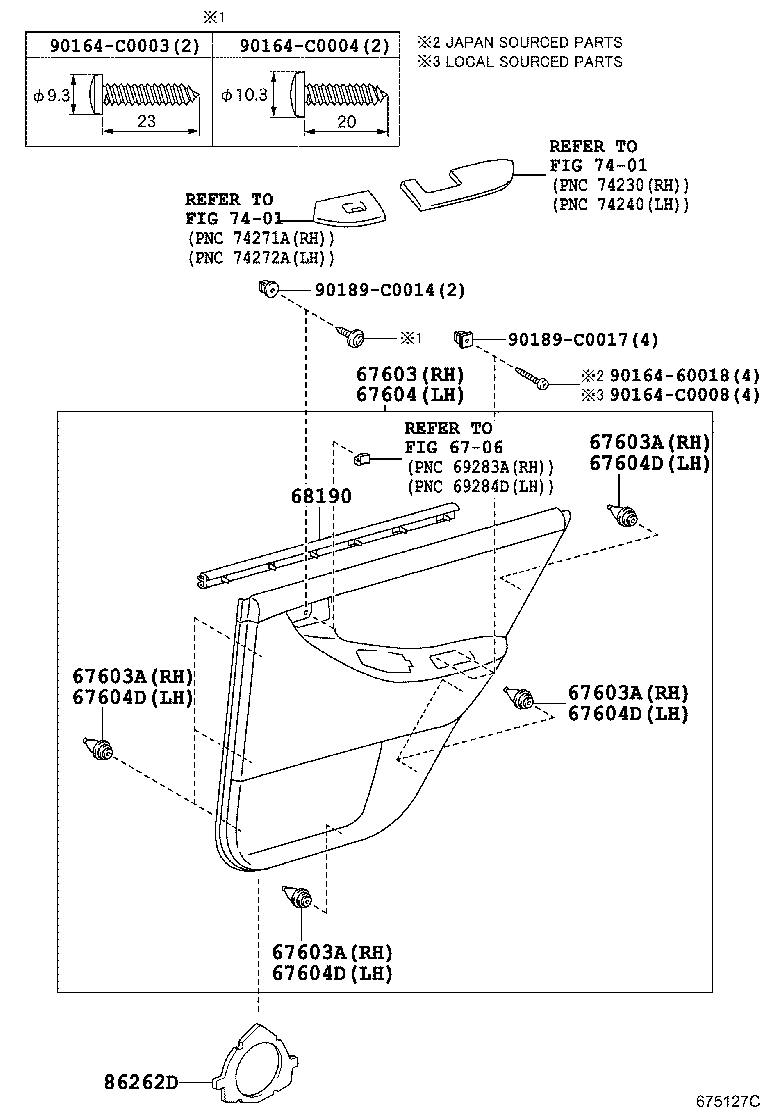

ILLUST NO. 2 OF 2(0705- )
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-02N00A3 |
ZRE120 IVORY,TRIM0# |
1 | ||
| 67630-02D50A0 |
ZRE120..5F PVC TYPE,IVORY,TRIM0# |
1 | ||
| 67630-02D50A1 |
ZRE120..5F PVC TYPE,IVORY,TRIM0# |
1 | ||
| 67630-YK020A0 |
ZRE120 SOFT LEATHER TYPE,IVORY,TRIM0# |
1 | ||
| 67630-YK010A3 |
ZRE120 FABRIC TYPE,IVORY,TRIM0# |
1 | ||
| 67630-YK030A0 |
ZRE120..5F IVORY,TRIM0# |
1 | ||
| 67630-02M30A0 |
ZRE120 SOFT LEATHER TYPE,IVORY,TRIM0# |
1 | ||
| 67630-02J10A2 |
ZRE120 IVORY,TRIM0# |
1 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 67771-12050 |
ZRE120 |
7 | ||
| 90467-10161 |
ZRE120 |
7 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 67771-12050 |
ZRE120 |
7 | ||
| 90467-10161 |
ZRE120 |
7 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 67771-12050 |
ZRE120 |
7 | ||
| 90467-10161 |
ZRE120 |
7 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 67771-12050 |
ZRE120 |
7 | ||
| 90467-10161 |
ZRE120 |
7 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-02D50A1 |
ZRE120..5F PVC TYPE,IVORY,TRIM0# |
1 | ||
| 67640-YK010A3 |
ZRE120 FABRIC TYPE,IVORY,TRIM0# |
1 | ||
| 67640-02J10A2 |
ZRE120 IVORY,TRIM0# |
1 | ||
| 67640-02D50A0 |
ZRE120..5F PVC TYPE,IVORY,TRIM0# |
1 | ||
| 67640-YK020A0 |
ZRE120 SOFT LEATHER TYPE,IVORY,TRIM0# |
1 | ||
| 67640-02F20A3 |
ZRE120 IVORY,TRIM0# |
1 | ||
| 67640-02M30A0 |
ZRE120 SOFT LEATHER TYPE,IVORY,TRIM0# |
1 | ||
| 67640-YK030A0 |
ZRE120..5F IVORY,TRIM0# |
1 | ||
| 67604D - RETAINER, REAR DOOR TRIM, LH | ||||
| 90467-10161 |
ZRE120 |
7 | ||
| 67771-12050 |
ZRE120 |
7 | ||
| 67604D - RETAINER, REAR DOOR TRIM, LH | ||||
| 90467-10161 |
ZRE120 |
7 | ||
| 67771-12050 |
ZRE120 |
7 | ||
| 67604D - RETAINER, REAR DOOR TRIM, LH | ||||
| 90467-10161 |
ZRE120 |
7 | ||
| 67771-12050 |
ZRE120 |
7 | ||
| 67604D - RETAINER, REAR DOOR TRIM, LH | ||||
| 90467-10161 |
ZRE120 |
7 | ||
| 67771-12050 |
ZRE120 |
7 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68173-02210 |
ZRE120 (L),RH |
1 | ||
| 68174-02180 |
ZRE120 (L),LH |
1 | ||
| 68174-02180 |
ZRE120 (L),LH |
1 | ||
| 68173-12290 |
ZRE120 (J),RH |
1 | ||
| 68173-02210 |
ZRE120 (L),RH |
1 | ||
| 68174-12150 |
ZRE120 (J),LH |
1 | ||
| 68174-12150 |
ZRE120 (J),LH |
1 | ||
| 68173-12290 |
ZRE120 (J),RH |
1 | ||
| 86262D - COVER, REAR DOOR SPEAKER | ||||
| 86262-02020 |
ZRE120 |
2 | ||
| 86262-02020 |
ZRE120 |
2 | ||
| Common parts | ||||
| 90164-60018 | ||||
| 90164-C0003 | ||||
| 90164-C0004 | ||||
| 90164-C0008 | ||||
| 90189-C0014 | ||||
| 90189-C0017 | ||||
| Linked diagrams | ||||
| 6706 | ||||
| 7401 | ||||
