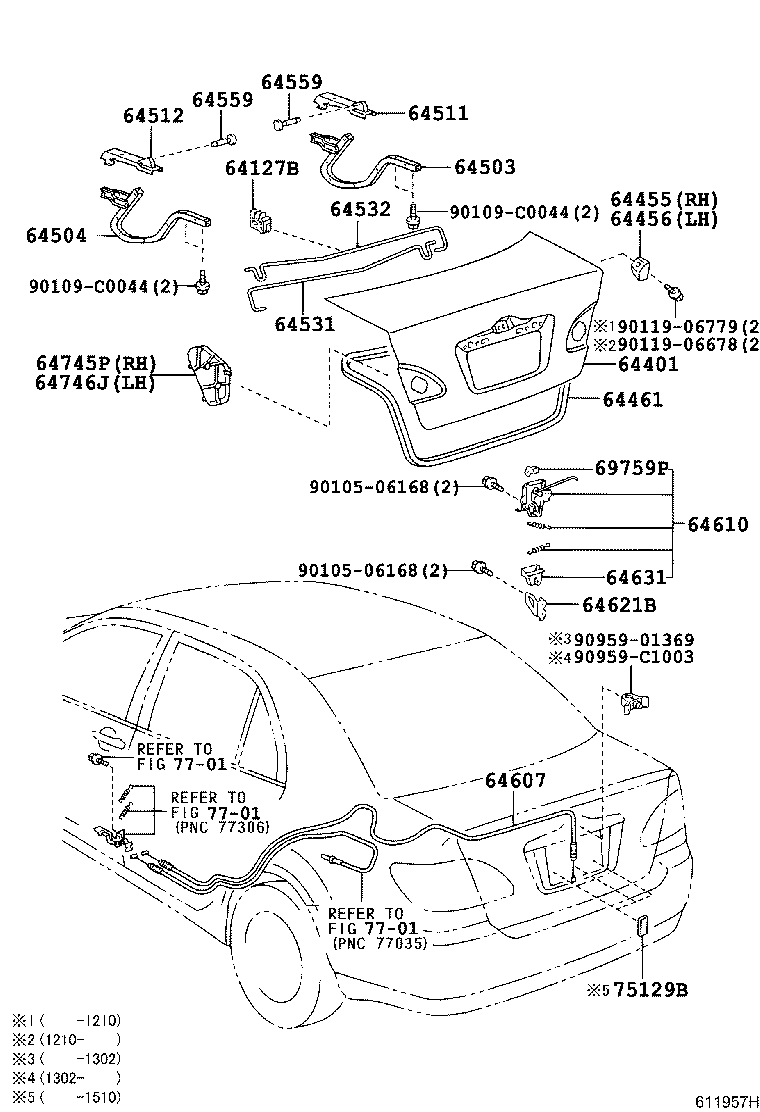

Toyota Corolla (china) ZRE120 LUGGAGE COMPARTMENT DOOR & LOCK

Part #	Description	Period	Qty
64127B - SUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR
64127-33041	ZRE120	10/2012 - 12/2999	1
64127-33041	ZRE120	05/2007 - 10/2012	1
64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
64401-02610	ZRE120	05/2010 - 10/2012	1
64401-02130	ZRE120	05/2007 - 05/2010	1
64401-YK020	ZRE120	10/2015 - 12/2999	1
64401-02610	ZRE120	10/2012 - 10/2015	1
64455 - CUSHION, LUGGAGE COMPARTMENT DOOR SIDE, RH
64455-YK010	ZRE120	10/2012 - 12/2999	1
64455-02030	ZRE120	05/2007 - 10/2012	1
64456 - CUSHION, LUGGAGE COMPARTMENT DOOR SIDE, LH
64456-YK010	ZRE120	10/2012 - 12/2999	1
64456-02030	ZRE120	05/2007 - 10/2012	1
64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64461-02100	ZRE120	05/2007 - 10/2012	1
64461-02100	ZRE120	10/2012 - 12/2999	1
64503 - ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH
64503-02150	ZRE120	10/2012 - 12/2999	1
64503-02150	ZRE120	11/2007 - 10/2012	1
64503-02060	ZRE120	05/2007 - 11/2007	1
64504 - ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH
64503-02060	ZRE120	05/2007 - 11/2007	1
64503-02150	ZRE120	10/2012 - 12/2999	1
64503-02150	ZRE120	11/2007 - 10/2012	1
64511 - SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, RH
64511-12270	ZRE120	05/2007 - 10/2012	1
64511-12270	ZRE120	10/2012 - 02/2017	1
64512 - SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, LH
64511-12270	ZRE120	10/2012 - 02/2017	1
64511-12270	ZRE120	05/2007 - 10/2012	1
64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH
64531-02270	ZRE120	05/2007 - 10/2012	1
64531-02270	ZRE120	10/2012 - 12/2999	1
64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH
64532-02260	ZRE120	10/2012 - 12/2999	1
64532-02260	ZRE120	05/2007 - 10/2012	1
64559 - PIN, LUGGAGE DOOR HINGE
64559-12040	ZRE120	05/2007 - 10/2012	2
64559-12040	ZRE120	10/2012 - 12/2999	2
64559 - PIN, LUGGAGE DOOR HINGE
64559-12040	ZRE120	05/2007 - 10/2012	2
64559-12040	ZRE120	10/2012 - 12/2999	2
64607 - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL
64607-02142	ZRE120	05/2007 - 10/2012	1
64607-02142	ZRE120	10/2012 - 12/2999	1
64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64610-12360	ZRE120	10/2012 - 12/2999	1
64610-12360	ZRE120	05/2007 - 10/2012	1
64621B - STRIKER, LUGGAGE COMPARTMENT DOOR LOCK
64621-12070	ZRE120	10/2012 - 12/2999	1
64621-12070	ZRE120	05/2007 - 10/2012	1
64631 - PROTECTOR, LUGGAGE DOOR LOCK
64631-12050	ZRE120	05/2007 - 10/2012	1
64631-12050	ZRE120	10/2012 - 12/2999	1
64745P - COVER, REAR COMBINATION LAMP SERVICE, RH
64745-YK010	ZRE120	10/2012 - 12/2999	1
64745-02050	ZRE120	05/2007 - 10/2012	1
64746J - COVER, REAR COMBINATION LAMP SERVICE, LH
64746-02050	ZRE120	05/2007 - 10/2012	1
64746-YK010	ZRE120	10/2012 - 12/2999	1
69759P - SNAP, DOOR LOCK CONTROL LINK
69759-20040	ZRE120	05/2007 - 10/2012	1
69759-20040	ZRE120	10/2012 - 12/2999	1
75129B - CUSHION, REAR LICENCE PLATE
75129-0D010	ZRE120	05/2007 - 10/2012	3
75129-0D010	ZRE120	10/2012 - 10/2015	3
Common parts
90105-06168
90109-C0044
90119-06678
90119-06779
90959-01369
90959-C1003
Linked diagrams
7701

ZRE120L-GEMDKC (2007)

(0402- )
