ZRE120L-GEMDKC (2007)
Toyota Corolla (China)

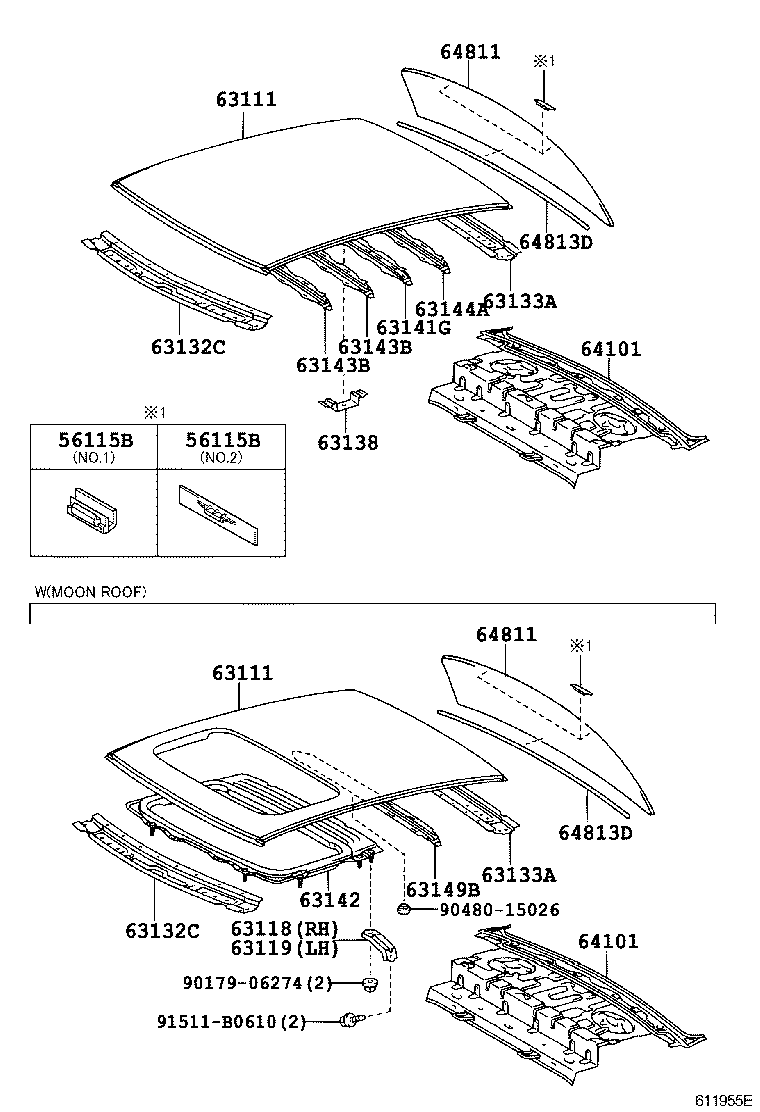

ILLUST NO. 1 OF 2(0402- )
ROOF PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 56115B - STOPPER, BACK WINDOW GLASS, NO.1 | ||||
| 56115-30100 |
ZRE120 NO.1 |
2 | ||
| 56116-22050 |
ZRE120 NO.2 |
2 | ||
| 56115-30100 |
ZRE120 NO.1 |
2 | ||
| 56116-22050 |
ZRE120 NO.2 |
2 | ||
| 56115B - STOPPER, BACK WINDOW GLASS, NO.1 | ||||
| 56115-30100 |
ZRE120 NO.1 |
2 | ||
| 56116-22050 |
ZRE120 NO.2 |
2 | ||
| 56115-30100 |
ZRE120 NO.1 |
2 | ||
| 56116-22050 |
ZRE120 NO.2 |
2 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-02200 |
ZRE120 |
1 | ||
| 63111-02200 |
ZRE120 |
1 | ||
| 63111-02210 |
ZRE120 W(MOON ROOF) |
1 | ||
| 63111-YK010 |
ZRE120 W(MOON ROOF) |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-02200 |
ZRE120 |
1 | ||
| 63111-02200 |
ZRE120 |
1 | ||
| 63111-02210 |
ZRE120 W(MOON ROOF) |
1 | ||
| 63111-YK010 |
ZRE120 W(MOON ROOF) |
1 | ||
| 63118 - SUPPORT, ROOF PANEL, RH | ||||
| 63118-12100 |
ZRE120 |
1 | ||
| 63118-12100 |
ZRE120 |
1 | ||
| 63119 - SUPPORT, ROOF PANEL, LH | ||||
| 63118-12100 |
ZRE120 |
1 | ||
| 63118-12100 |
ZRE120 |
1 | ||
| 63132C - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-12240 |
ZRE120 |
1 | ||
| 63132-12240 |
ZRE120 |
1 | ||
| 63132C - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-12240 |
ZRE120 |
1 | ||
| 63132-12240 |
ZRE120 |
1 | ||
| 63133A - FRAME, BACK WINDOW, UPPER | ||||
| 63133-12260 |
ZRE120 |
1 | ||
| 63133-12260 |
ZRE120 |
1 | ||
| 63133A - FRAME, BACK WINDOW, UPPER | ||||
| 63133-12260 |
ZRE120 |
1 | ||
| 63133-12260 |
ZRE120 |
1 | ||
| 63138 - BRACKET, DOME LAMP, NO.2 | ||||
| 63138-12011 |
ZRE120 |
2 | ||
| 63138-12011 |
ZRE120 |
2 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63141-12260 |
ZRE120 |
1 | ||
| 63141-YK010 |
ZRE120 |
1 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-12100 |
ZRE120 |
1 | ||
| 63142-YK010 |
ZRE120 |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63143-YK010 |
ZRE120 |
2 | ||
| 63143-12100 |
ZRE120 |
2 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63143-YK010 |
ZRE120 |
2 | ||
| 63143-12100 |
ZRE120 |
2 | ||
| 63144A - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-12080 |
ZRE120 |
1 | ||
| 63144-12080 |
ZRE120 |
1 | ||
| 63149B - REINFORCEMENT, ROOF PANEL, NO.1 REAR | ||||
| 63149-YK010 |
ZRE120 |
1 | ||
| 63149-12020 |
ZRE120 |
1 | ||
| 64101 - PANEL SUB-ASSY, UPPER BACK | ||||
| 64101-YK010 |
ZRE120 |
1 | ||
| 64101-02151 |
ZRE120 |
1 | ||
| 64101-02150 |
ZRE120 |
1 | ||
| 64101-YK011 |
ZRE120 |
1 | ||
| 64101 - PANEL SUB-ASSY, UPPER BACK | ||||
| 64101-YK010 |
ZRE120 |
1 | ||
| 64101-02151 |
ZRE120 |
1 | ||
| 64101-02150 |
ZRE120 |
1 | ||
| 64101-YK011 |
ZRE120 |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64811-YK010 |
ZRE120 *EHTT,T=3.1,CLEAR |
1 | ||
| 64811-02241 |
ZRE120 *EHTT,T=3.1,GREEN |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64811-YK010 |
ZRE120 *EHTT,T=3.1,CLEAR |
1 | ||
| 64811-02241 |
ZRE120 *EHTT,T=3.1,GREEN |
1 | ||
| 64813D - DAM, BACK WINDOW GLASS ADHESIVE | ||||
| 64813-02010 |
ZRE120 |
1 | ||
| 64813-02010 |
ZRE120 |
1 | ||
| 64813D - DAM, BACK WINDOW GLASS ADHESIVE | ||||
| 64813-02010 |
ZRE120 |
1 | ||
| 64813-02010 |
ZRE120 |
1 | ||
| Common parts | ||||
| 90179-06274 | ||||
| 90480-15026 | ||||
| 91511-B0610 | ||||

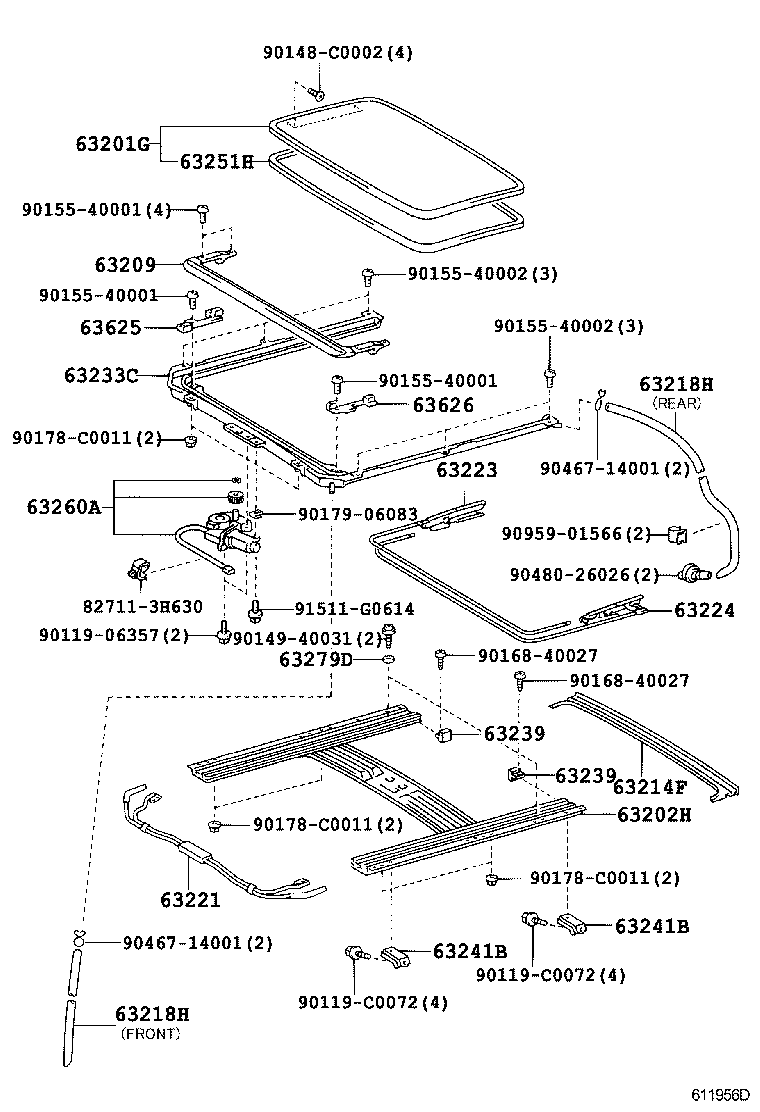

ILLUST NO. 2 OF 2(0402-1210)
SLIDING ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63201G - GLASS SUB-ASSY, SLIDING ROOF | ||||
| 63201-12262 |
ZRE120 *TT,T=4.0,GRAY |
1 | ||
| 63201-YK011 |
ZRE120 *TEM,T=4.0,DARK GRAY |
1 | ||
| 63202H - RAIL SUB-ASSY, SLIDE ROOF | ||||
| 63202-02030 |
ZRE120 |
1 | ||
| 63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR | ||||
| 63209-12170 |
ZRE120 |
1 | ||
| 63214F - CHANNEL, ROOF DRIP, REAR | ||||
| 63214-02030 |
ZRE120 |
1 | ||
| 63218H - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-12331 |
ZRE120 REAR |
2 | ||
| 63249-12320 |
ZRE120 FRONT |
2 | ||
| 63249-12331 |
ZRE120 REAR |
2 | ||
| 63249-YK010 |
ZRE120 FRONT |
2 | ||
| 63249-12320 |
ZRE120 FRONT |
2 | ||
| 63218H - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-12331 |
ZRE120 REAR |
2 | ||
| 63249-12320 |
ZRE120 FRONT |
2 | ||
| 63249-12331 |
ZRE120 REAR |
2 | ||
| 63249-YK010 |
ZRE120 FRONT |
2 | ||
| 63249-12320 |
ZRE120 FRONT |
2 | ||
| 63221 - CASING, SLIDING ROOF CABLE GUIDE | ||||
| 63221-12100 |
ZRE120 |
1 | ||
| 63223 - CABLE, SLIDING ROOF DRIVE, RH | ||||
| 63223-02031 |
ZRE120 |
1 | ||
| 63224 - CABLE, SLIDING ROOF DRIVE, LH | ||||
| 63224-02031 |
ZRE120 |
1 | ||
| 63233C - PANEL, SLIDING ROOF HOUSING | ||||
| 63233-02030 |
ZRE120 |
1 | ||
| 63239 - STOPPER, SLIDING ROOF PANEL | ||||
| 63239-12030 |
ZRE120 |
2 | ||
| 63239 - STOPPER, SLIDING ROOF PANEL | ||||
| 63239-12030 |
ZRE120 |
2 | ||
| 63241B - BRACKET, SLIDING ROOF HOUSING, NO.1 | ||||
| 63241-12110 |
ZRE120 |
4 | ||
| 63241B - BRACKET, SLIDING ROOF HOUSING, NO.1 | ||||
| 63241-12110 |
ZRE120 |
4 | ||
| 63251H - WEATHERSTRIP, SLIDING ROOF | ||||
| 63251-12161 |
ZRE120 |
1 | ||
| 63251-02050 |
ZRE120 |
1 | ||
| 63251-YK010 |
ZRE120 |
1 | ||
| 63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-12110 |
ZRE120 |
1 | ||
| 63260-YK900 |
ZRE120 |
1 | ||
| 63279D - STOPPER, SLIDING ROOF GUIDE RAIL | ||||
| 63279-12030 |
ZRE120 |
2 | ||
| 63625 - BLOCK, SLIDING ROOF GUIDE, RH | ||||
| 63625-12050 |
ZRE120 |
1 | ||
| 63626 - BLOCK, SLIDING ROOF GUIDE, LH | ||||
| 63626-12050 |
ZRE120 |
1 | ||
| Common parts | ||||
| 82711-3H630 | ||||
| 90119-06357 | ||||
| 90119-C0072 | ||||
| 90148-C0002 | ||||
| 90149-40031 | ||||
| 90155-40001 | ||||
| 90155-40002 | ||||
| 90168-40027 | ||||
| 90178-C0011 | ||||
| 90179-06083 | ||||
| 90467-14001 | ||||
| 90480-26026 | ||||
| 90959-01566 | ||||
| 91511-G0614 | ||||

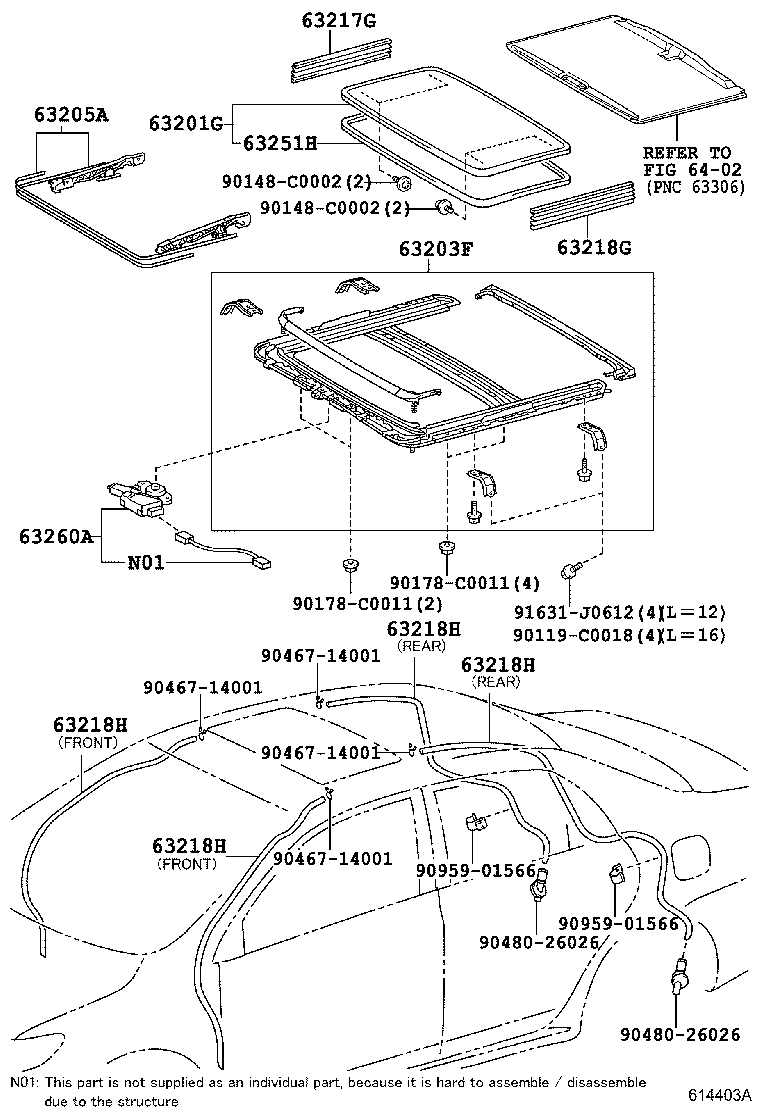

ILLUST NO. 2 OF 2(1210- )
SLIDING ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63201G - GLASS SUB-ASSY, SLIDING ROOF | ||||
| 63201-12262 |
ZRE120 *TT,T=4.0,GRAY |
1 | ||
| 63201-YK011 |
ZRE120 *TEM,T=4.0,DARK GRAY |
1 | ||
| 63203F - HOUSING SUB-ASSY, SLIDING ROOF | ||||
| 63203-YK010 |
ZRE120 |
1 | ||
| 63205A - CABLE SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63205-YK010 |
ZRE120 |
1 | ||
| 63217G - GARNISH, SLIDING ROOF SIDE, RH | ||||
| 63217-0R010 |
ZRE120 |
1 | ||
| 63217-02030 |
ZRE120 |
1 | ||
| 63217-06050 |
ZRE120 |
1 | ||
| 63218G - GARNISH, SLIDING ROOF SIDE, LH | ||||
| 63217-0R010 |
ZRE120 |
1 | ||
| 63217-02030 |
ZRE120 |
1 | ||
| 63217-06050 |
ZRE120 |
1 | ||
| 63218H - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-12331 |
ZRE120 REAR |
2 | ||
| 63249-12320 |
ZRE120 FRONT |
2 | ||
| 63249-12331 |
ZRE120 REAR |
2 | ||
| 63249-YK010 |
ZRE120 FRONT |
2 | ||
| 63249-12320 |
ZRE120 FRONT |
2 | ||
| 63218H - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-12331 |
ZRE120 REAR |
2 | ||
| 63249-12320 |
ZRE120 FRONT |
2 | ||
| 63249-12331 |
ZRE120 REAR |
2 | ||
| 63249-YK010 |
ZRE120 FRONT |
2 | ||
| 63249-12320 |
ZRE120 FRONT |
2 | ||
| 63218H - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-12331 |
ZRE120 REAR |
2 | ||
| 63249-12320 |
ZRE120 FRONT |
2 | ||
| 63249-12331 |
ZRE120 REAR |
2 | ||
| 63249-YK010 |
ZRE120 FRONT |
2 | ||
| 63249-12320 |
ZRE120 FRONT |
2 | ||
| 63218H - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-12331 |
ZRE120 REAR |
2 | ||
| 63249-12320 |
ZRE120 FRONT |
2 | ||
| 63249-12331 |
ZRE120 REAR |
2 | ||
| 63249-YK010 |
ZRE120 FRONT |
2 | ||
| 63249-12320 |
ZRE120 FRONT |
2 | ||
| 63251H - WEATHERSTRIP, SLIDING ROOF | ||||
| 63251-12161 |
ZRE120 |
1 | ||
| 63251-02050 |
ZRE120 |
1 | ||
| 63251-YK010 |
ZRE120 |
1 | ||
| 63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-12110 |
ZRE120 |
1 | ||
| 63260-YK900 |
ZRE120 |
1 | ||
| Common parts | ||||
| 90119-C0018 | ||||
| 90148-C0002 | ||||
| 90178-C0011 | ||||
| 90467-14001 | ||||
| 90480-26026 | ||||
| 90959-01566 | ||||
| 91631-J0612 | ||||
| Linked diagrams | ||||
| 6402 | ||||
