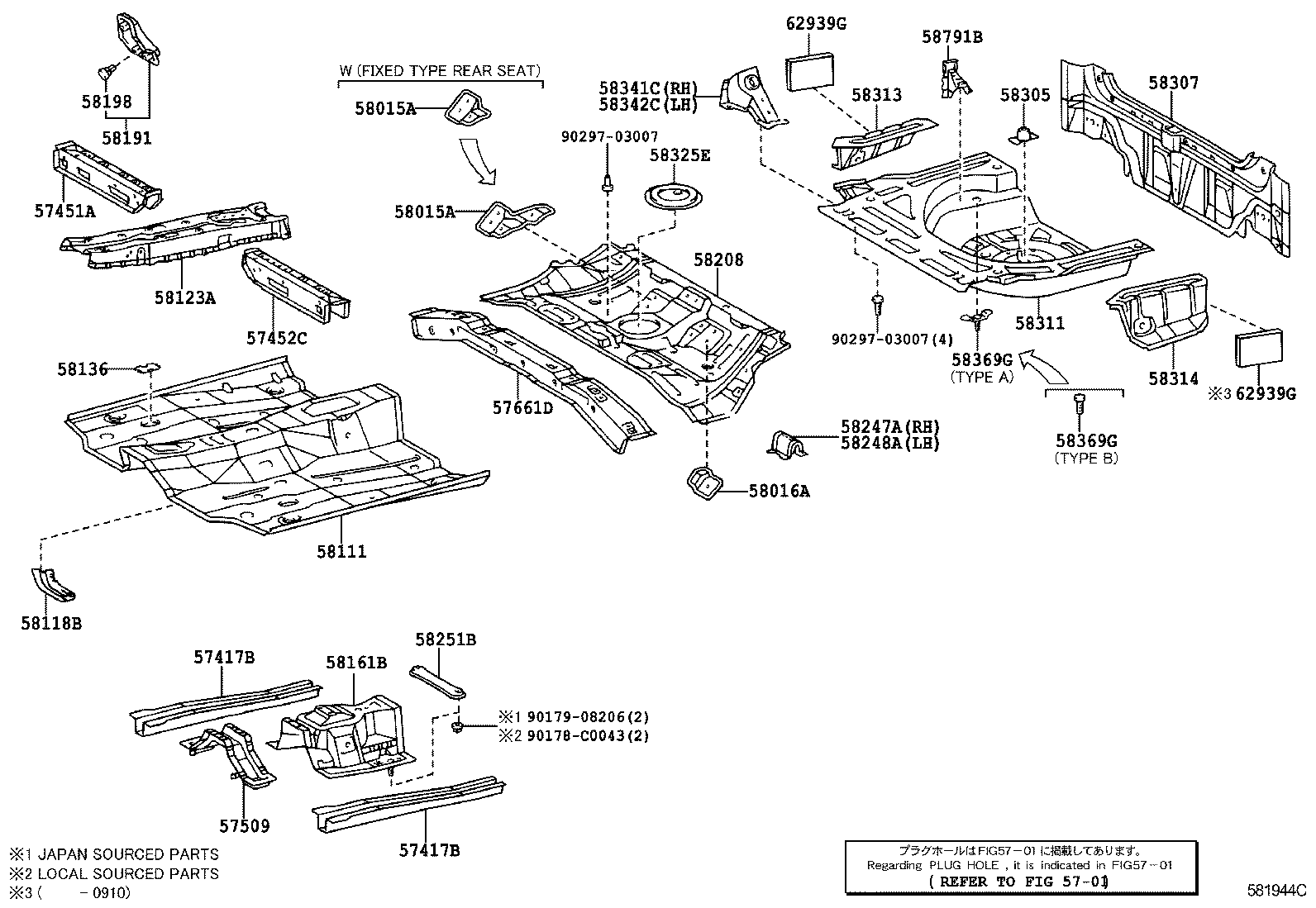

ZRE120L-GEMDKC (2007)
Toyota Corolla (China)
(0402-1210)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57417B - REINFORCEMENT, FRONT FLOOR UNDER | ||||
| 57505-02020 |
ZRE120 |
2 | ||
| 57505-02020 |
ZRE120 |
2 | ||
| 57417B - REINFORCEMENT, FRONT FLOOR UNDER | ||||
| 57505-02020 |
ZRE120 |
2 | ||
| 57505-02020 |
ZRE120 |
2 | ||
| 57451A - MEMBER, FRONT FLOOR CROSS, RH | ||||
| 57451-02130 |
ZRE120 |
1 | ||
| 57451-02130 |
ZRE120 |
1 | ||
| 57452C - MEMBER, FRONT FLOOR CROSS, LH | ||||
| 57452-02070 |
ZRE120 |
1 | ||
| 57452-02070 |
ZRE120 |
1 | ||
| 57509 - REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER | ||||
| 57509-12040 |
ZRE120 |
1 | ||
| 57509-YK010 |
ZRE120 |
1 | ||
| 57661D - MEMBER, REAR FLOOR CROSS, FRONT | ||||
| 57661-02100 |
ZRE120 |
1 | ||
| 57661-02100 |
ZRE120 |
1 | ||
| 58015A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH | ||||
| 58015-YK010 |
ZRE120 |
1 | ||
| 58015-12060 |
ZRE120 |
1 | ||
| 58015A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH | ||||
| 58015-YK010 |
ZRE120 |
1 | ||
| 58015-12060 |
ZRE120 |
1 | ||
| 58016A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH | ||||
| 58016-YK010 |
ZRE120 |
1 | ||
| 58016-32050 |
ZRE120 |
1 | ||
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-02100 |
ZRE120 |
1 | ||
| 58111-02100 |
ZRE120 |
1 | ||
| 58118B - REINFORCEMENT, FRONT FLOOR PANEL, NO.2 | ||||
| 58118-20011 |
ZRE120 |
1 | ||
| 58118-YK020 |
ZRE120 |
1 | ||
| 58123A - SUPPORT, SHIFT & SELECT LEVER | ||||
| 58013-02100 |
ZRE120 |
1 | ||
| 58013-02100 |
ZRE120 |
1 | ||
| 58013-YK010 |
ZRE120 |
1 | ||
| 58136 - COVER, FRONT FLOOR HOLE | ||||
| 58136-YK010 |
ZRE120 |
2 | ||
| 58136-33010 |
ZRE120 |
2 | ||
| 58161B - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN | ||||
| 57805-YK010 |
ZRE120 |
1 | ||
| 57805-12080 |
ZRE120 |
1 | ||
| 58191 - FOOTREST, FRONT FLOOR | ||||
| 58192-02090 |
ZRE120 |
1 | ||
| 58192-02090 |
ZRE120 |
1 | ||
| 58198 - CLIP, FOOTREST | ||||
| 90467-09220 |
ZRE120 |
2 | ||
| 90467-09220 |
ZRE120 |
2 | ||
| 58208 - PAN, CENTER FLOOR | ||||
| 58211-02240 |
ZRE120 |
1 | ||
| 58211-02240 |
ZRE120 |
1 | ||
| 58247A - REINFORCEMENT, REAR SEAT CUSHION HINGE, RH | ||||
| 58247-12070 |
ZRE120 (J) |
1 | ||
| 58247-02140 |
ZRE120 (L) |
1 | ||
| 58247-12070 |
ZRE120 |
1 | ||
| 58247-12070 |
ZRE120 |
1 | ||
| 58248A - REINFORCEMENT, REAR SEAT CUSHION HINGE, LH | ||||
| 58247-02140 |
ZRE120 (L) |
1 | ||
| 58247-12070 |
ZRE120 (J) |
1 | ||
| 58247-12070 |
ZRE120 |
1 | ||
| 58247-12070 |
ZRE120 |
1 | ||
| 58251B - BRACE, FLOOR PANEL, FRONT | ||||
| 58251-12030 |
ZRE120 |
1 | ||
| 58251-02050 |
ZRE120 (L) |
1 | ||
| 58251-12030 |
ZRE120 |
1 | ||
| 58305 - BRACKET SUB-ASSY, SPARE WHEEL CLAMP | ||||
| 58351-02030 |
ZRE120 |
1 | ||
| 58351-33010 |
ZRE120 |
1 | ||
| 58351-33010 |
ZRE120 (J) |
1 | ||
| 58351-02030 |
ZRE120 (L) |
1 | ||
| 58351-02030 |
ZRE120 (L) |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-02160 |
ZRE120 |
1 | ||
| 58307-02160 |
ZRE120 |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-02170 |
ZRE120 |
1 | ||
| 58311-02170 |
ZRE120 |
1 | ||
| 58313 - PANEL, REAR FLOOR SIDE, RH | ||||
| 58313-02080 |
ZRE120 |
1 | ||
| 58313-02080 |
ZRE120 |
1 | ||
| 58314 - PANEL, REAR FLOOR SIDE, LH | ||||
| 58314-02080 |
ZRE120 |
1 | ||
| 58314-02080 |
ZRE120 |
1 | ||
| 58325E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-YK010 |
ZRE120 |
1 | ||
| 58325-12110 |
ZRE120 |
1 | ||
| 58341C - BRACKET, REAR ABSORBER MOUNTING, NO.1 RH | ||||
| 58341-02080 |
ZRE120 |
1 | ||
| 58341-02080 |
ZRE120 (L) |
1 | ||
| 58341-02080 |
ZRE120 (L) |
1 | ||
| 58341-12020 |
ZRE120 (J) |
1 | ||
| 58341-12020 |
ZRE120 |
1 | ||
| 58342C - BRACKET, REAR ABSORBER MOUNTING, NO.1 LH | ||||
| 58342-02090 |
ZRE120 |
1 | ||
| 58342-02010 |
ZRE120 |
1 | ||
| 58369G - BRACKET, FUEL TUBE, NO.3 | ||||
| 58369-12020 |
ZRE120 (J),T/P A:REFER ILL. |
1 | ||
| 90115-06166 |
ZRE120 TYPE B:REFER ILLUST. |
1 | ||
| 58369-02010 |
ZRE120 (L),T/P A:REFER ILL. |
1 | ||
| 90115-06166 |
ZRE120 TYPE B:REFER ILLUST. |
1 | ||
| 58369-02010 |
ZRE120 TYPE A:REFER ILLUST. |
1 | ||
| 90115-C0014 |
ZRE120 TYPE B:REFER ILLUST. |
1 | ||
| 58369G - BRACKET, FUEL TUBE, NO.3 | ||||
| 58369-12020 |
ZRE120 (J),T/P A:REFER ILL. |
1 | ||
| 90115-06166 |
ZRE120 TYPE B:REFER ILLUST. |
1 | ||
| 58369-02010 |
ZRE120 (L),T/P A:REFER ILL. |
1 | ||
| 90115-06166 |
ZRE120 TYPE B:REFER ILLUST. |
1 | ||
| 58369-02010 |
ZRE120 TYPE A:REFER ILLUST. |
1 | ||
| 90115-C0014 |
ZRE120 TYPE B:REFER ILLUST. |
1 | ||
| 58791B - CARRIER, JACK | ||||
| 58791-12200 |
ZRE120 (J) |
1 | ||
| 58791-12200 |
ZRE120 |
1 | ||
| 58791-12200 |
ZRE120 |
1 | ||
| 58791-02080 |
ZRE120 (L) |
1 | ||
| 62939G - SILENCER, QUARTER VENT | ||||
| 62939-02030 |
ZRE120 |
2 | ||
| 62939G - SILENCER, QUARTER VENT | ||||
| 62939-02030 |
ZRE120 |
2 | ||
| Common parts | ||||
| 90178-C0043 | ||||
| 90179-08206 | ||||
| 90297-03007 | ||||
| Linked diagrams | ||||
| 5701 | ||||
(1210- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57417B - REINFORCEMENT, FRONT FLOOR UNDER | ||||
| 57505-02020 |
ZRE120 |
2 | ||
| 57505-02020 |
ZRE120 |
2 | ||
| 57417B - REINFORCEMENT, FRONT FLOOR UNDER | ||||
| 57505-02020 |
ZRE120 |
2 | ||
| 57505-02020 |
ZRE120 |
2 | ||
| 57451A - MEMBER, FRONT FLOOR CROSS, RH | ||||
| 57451-02130 |
ZRE120 |
1 | ||
| 57451-02130 |
ZRE120 |
1 | ||
| 57452C - MEMBER, FRONT FLOOR CROSS, LH | ||||
| 57452-02070 |
ZRE120 |
1 | ||
| 57452-02070 |
ZRE120 |
1 | ||
| 57509 - REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER | ||||
| 57509-12040 |
ZRE120 |
1 | ||
| 57509-YK010 |
ZRE120 |
1 | ||
| 57661D - MEMBER, REAR FLOOR CROSS, FRONT | ||||
| 57661-02100 |
ZRE120 |
1 | ||
| 57661-02100 |
ZRE120 |
1 | ||
| 58015A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH | ||||
| 58015-YK010 |
ZRE120 |
1 | ||
| 58015-12060 |
ZRE120 |
1 | ||
| 58016A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH | ||||
| 58016-YK010 |
ZRE120 |
1 | ||
| 58016-32050 |
ZRE120 |
1 | ||
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-02100 |
ZRE120 |
1 | ||
| 58111-02100 |
ZRE120 |
1 | ||
| 58118B - REINFORCEMENT, FRONT FLOOR PANEL, NO.2 | ||||
| 58118-20011 |
ZRE120 |
1 | ||
| 58118-YK020 |
ZRE120 |
1 | ||
| 58123A - SUPPORT, SHIFT & SELECT LEVER | ||||
| 58013-02100 |
ZRE120 |
1 | ||
| 58013-02100 |
ZRE120 |
1 | ||
| 58013-YK010 |
ZRE120 |
1 | ||
| 58136 - COVER, FRONT FLOOR HOLE | ||||
| 58136-YK010 |
ZRE120 |
2 | ||
| 58136-33010 |
ZRE120 |
2 | ||
| 58161B - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN | ||||
| 57805-YK010 |
ZRE120 |
1 | ||
| 57805-12080 |
ZRE120 |
1 | ||
| 58191 - FOOTREST, FRONT FLOOR | ||||
| 58192-02090 |
ZRE120 |
1 | ||
| 58192-02090 |
ZRE120 |
1 | ||
| 58198 - CLIP, FOOTREST | ||||
| 90467-09220 |
ZRE120 |
2 | ||
| 90467-09220 |
ZRE120 |
2 | ||
| 58208 - PAN, CENTER FLOOR | ||||
| 58211-02240 |
ZRE120 |
1 | ||
| 58211-02240 |
ZRE120 |
1 | ||
| 58247A - REINFORCEMENT, REAR SEAT CUSHION HINGE, RH | ||||
| 58247-12070 |
ZRE120 (J) |
1 | ||
| 58247-02140 |
ZRE120 (L) |
1 | ||
| 58247-12070 |
ZRE120 |
1 | ||
| 58247-12070 |
ZRE120 |
1 | ||
| 58248A - REINFORCEMENT, REAR SEAT CUSHION HINGE, LH | ||||
| 58247-02140 |
ZRE120 (L) |
1 | ||
| 58247-12070 |
ZRE120 (J) |
1 | ||
| 58247-12070 |
ZRE120 |
1 | ||
| 58247-12070 |
ZRE120 |
1 | ||
| 58251B - BRACE, FLOOR PANEL, FRONT | ||||
| 58251-12030 |
ZRE120 |
1 | ||
| 58251-02050 |
ZRE120 (L) |
1 | ||
| 58251-12030 |
ZRE120 |
1 | ||
| 58305 - BRACKET SUB-ASSY, SPARE WHEEL CLAMP | ||||
| 58351-02030 |
ZRE120 |
1 | ||
| 58351-33010 |
ZRE120 |
1 | ||
| 58351-33010 |
ZRE120 (J) |
1 | ||
| 58351-02030 |
ZRE120 (L) |
1 | ||
| 58351-02030 |
ZRE120 (L) |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-02160 |
ZRE120 |
1 | ||
| 58307-02160 |
ZRE120 |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-02170 |
ZRE120 |
1 | ||
| 58311-02170 |
ZRE120 |
1 | ||
| 58313 - PANEL, REAR FLOOR SIDE, RH | ||||
| 58313-02080 |
ZRE120 |
1 | ||
| 58313-02080 |
ZRE120 |
1 | ||
| 58314 - PANEL, REAR FLOOR SIDE, LH | ||||
| 58314-02080 |
ZRE120 |
1 | ||
| 58314-02080 |
ZRE120 |
1 | ||
| 58325E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-YK010 |
ZRE120 |
1 | ||
| 58325-12110 |
ZRE120 |
1 | ||
| 58341C - BRACKET, REAR ABSORBER MOUNTING, NO.1 RH | ||||
| 58341-02080 |
ZRE120 |
1 | ||
| 58341-02080 |
ZRE120 (L) |
1 | ||
| 58341-02080 |
ZRE120 (L) |
1 | ||
| 58341-12020 |
ZRE120 (J) |
1 | ||
| 58341-12020 |
ZRE120 |
1 | ||
| 58342C - BRACKET, REAR ABSORBER MOUNTING, NO.1 LH | ||||
| 58342-02090 |
ZRE120 |
1 | ||
| 58342-02010 |
ZRE120 |
1 | ||
| 58369G - BRACKET, FUEL TUBE, NO.3 | ||||
| 58369-12020 |
ZRE120 (J),T/P A:REFER ILL. |
1 | ||
| 90115-06166 |
ZRE120 TYPE B:REFER ILLUST. |
1 | ||
| 58369-02010 |
ZRE120 (L),T/P A:REFER ILL. |
1 | ||
| 90115-06166 |
ZRE120 TYPE B:REFER ILLUST. |
1 | ||
| 58369-02010 |
ZRE120 TYPE A:REFER ILLUST. |
1 | ||
| 90115-C0014 |
ZRE120 TYPE B:REFER ILLUST. |
1 | ||
| 58369G - BRACKET, FUEL TUBE, NO.3 | ||||
| 58369-12020 |
ZRE120 (J),T/P A:REFER ILL. |
1 | ||
| 90115-06166 |
ZRE120 TYPE B:REFER ILLUST. |
1 | ||
| 58369-02010 |
ZRE120 (L),T/P A:REFER ILL. |
1 | ||
| 90115-06166 |
ZRE120 TYPE B:REFER ILLUST. |
1 | ||
| 58369-02010 |
ZRE120 TYPE A:REFER ILLUST. |
1 | ||
| 90115-C0014 |
ZRE120 TYPE B:REFER ILLUST. |
1 | ||
| 58791B - CARRIER, JACK | ||||
| 58791-12200 |
ZRE120 (J) |
1 | ||
| 58791-12200 |
ZRE120 |
1 | ||
| 58791-12200 |
ZRE120 |
1 | ||
| 58791-02080 |
ZRE120 (L) |
1 | ||
| Common parts | ||||
| 90178-C0043 | ||||
| 90297-03007 | ||||
| Linked diagrams | ||||
| 5701 | ||||
