ZRE120L-GEMDKC (2007)
Toyota Corolla (China)

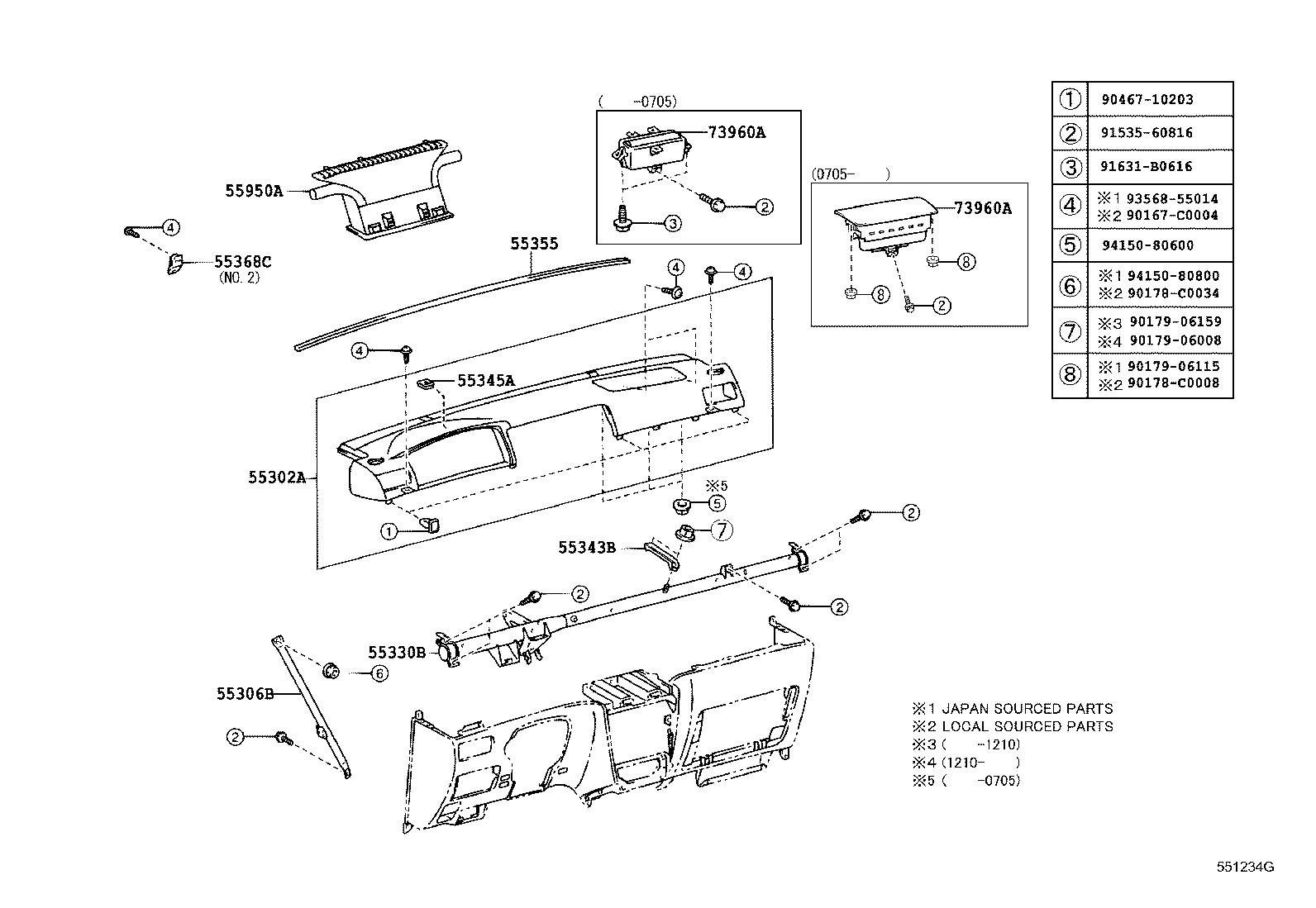

ILLUST NO. 1 OF 2(0402- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55302A - PANEL SUB-ASSY, INSTRUMENT, UPPER | ||||
| 55302-02270E0 |
ZRE120 SANDAL WOOD,TRIM0# |
1 | ||
| 55302-YK010B1 |
ZRE120 DK.GRAY,TRIM0# |
1 | ||
| 55302-YK020B0 |
ZRE120 DK.GRAY,TRIM0# |
1 | ||
| 55306B - BRACE SUB-ASSY, INSTRUMENT PANEL TO COWL | ||||
| 55306-12310 |
ZRE120 |
1 | ||
| 55306-02370 |
ZRE120 |
1 | ||
| 55306-02370 |
ZRE120 |
1 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-02471 |
ZRE120 |
1 | ||
| 55330-02471 |
ZRE120 |
1 | ||
| 55343B - BRACE, INSTRUMENT PANEL TO COWL, CENTER | ||||
| 55343-02100 |
ZRE120 |
1 | ||
| 55343-02100 |
ZRE120 |
1 | ||
| 55343-12060 |
ZRE120 |
1 | ||
| 55345A - CLIP, INSTRUMENT PANEL, NO.1 | ||||
| 55345-12060 |
ZRE120 |
1 | ||
| 55345-02030 |
ZRE120 |
1 | ||
| 55345-02030 |
ZRE120 |
1 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-02050 |
ZRE120 |
1 | ||
| 55355-02050 |
ZRE120 |
1 | ||
| 55355-YK010 |
ZRE120 |
1 | ||
| 55368C - BRACKET, METER MOUNTING | ||||
| 55368-12090 |
ZRE120 NO.2 |
1 | ||
| 55362-02030 |
ZRE120 NO.1 |
2 | ||
| 55368-12090 |
ZRE120 NO.2 |
1 | ||
| 55362-02030 |
ZRE120 |
2 | ||
| 55362-12050 |
ZRE120 NO.1 |
2 | ||
| 55950A - NOZZLE ASSY, DEFROSTER | ||||
| 55950-YK010 |
ZRE120 |
1 | ||
| 55950-02100 |
ZRE120 |
1 | ||
| 55950-02100 |
ZRE120 |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-YK020B0 |
ZRE120 DK.GRAY,TRIM0# |
1 | ||
| 73960-YK010B1 |
ZRE120 DK.GRAY,TRIM0# |
1 | ||
| 73960-02150E0 |
ZRE120 SANDAL WOOD,TRIM0# |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-YK020B0 |
ZRE120 DK.GRAY,TRIM0# |
1 | ||
| 73960-YK010B1 |
ZRE120 DK.GRAY,TRIM0# |
1 | ||
| 73960-02150E0 |
ZRE120 SANDAL WOOD,TRIM0# |
1 | ||
| Common parts | ||||
| 90167-C0004 | ||||
| 90178-C0008 | ||||
| 90178-C0034 | ||||
| 90179-06008 | ||||
| 90179-06115 | ||||
| 90179-06159 | ||||
| 90467-10203 | ||||
| 91535-60816 | ||||
| 91631-B0616 | ||||
| 93568-55014 | ||||
| 94150-80600 | ||||
| 94150-80800 | ||||

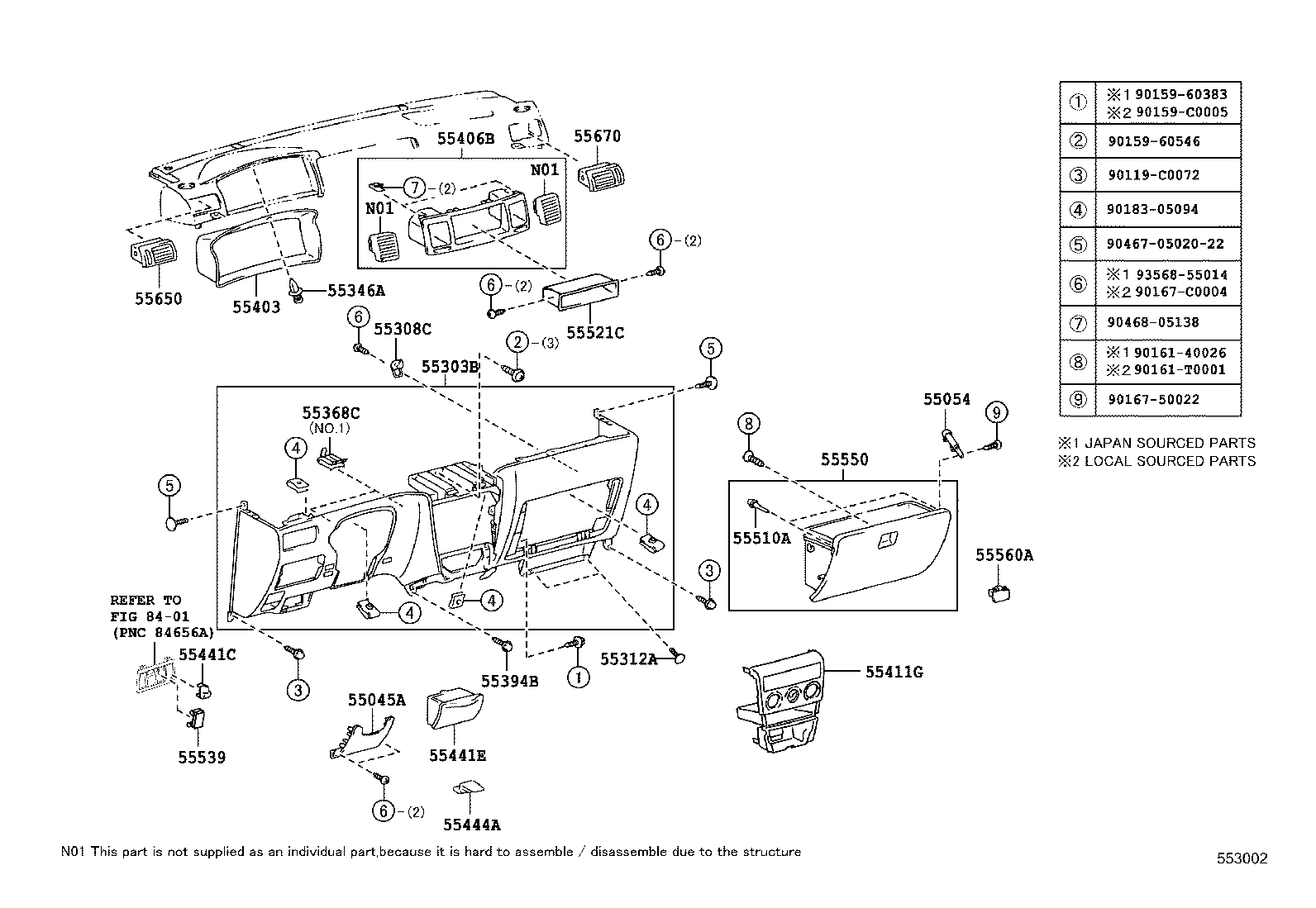

ILLUST NO. 2 OF 2(0402-1210)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55045A - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER RH | ||||
| 55045-02260A0 |
ZRE120 IVORY,TRIM0# |
1 | ||
| 55045-02260A0 |
ZRE120 IVORY,TRIM0# |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-12010 |
ZRE120 |
1 | ||
| 55054-12010 |
ZRE120 |
1 | ||
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-02270A0 |
ZRE120 IVORY,TRIM0# |
1 | ||
| 55303-02270A0 |
ZRE120 IVORY,TRIM0# |
1 | ||
| 55303-YK010A0 |
ZRE120 IVORY,TRIM0# |
1 | ||
| 55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55308-02060 |
ZRE120 |
1 | ||
| 55308-YK010 |
ZRE120 |
1 | ||
| 55308-12280 |
ZRE120 |
1 | ||
| 55308-12280 |
ZRE120 |
1 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 90467-06089C0 |
ZRE120 BLACK |
2 | ||
| 90467-06089C0 |
ZRE120 BLACK |
2 | ||
| 55346A - CLIP, INSTRUMENT PANEL, NO.2 | ||||
| 90467-06165C0 |
ZRE120 BLACK |
1 | ||
| 90467-06165C3 |
ZRE120 BLACK |
1 | ||
| 90467-06165C0 |
ZRE120 BLACK |
1 | ||
| 55368C - BRACKET, METER MOUNTING | ||||
| 55368-12090 |
ZRE120 NO.2 |
1 | ||
| 55362-02030 |
ZRE120 NO.1 |
2 | ||
| 55368-12090 |
ZRE120 NO.2 |
1 | ||
| 55362-02030 |
ZRE120 |
2 | ||
| 55362-12050 |
ZRE120 NO.1 |
2 | ||
| 55394B - BOLT, INSTRUMENT PANEL | ||||
| 55394-12010 |
ZRE120 OD=6 |
1 | ||
| 55394-12010 |
ZRE120 OD=6 |
1 | ||
| 55403 - HOOD SUB-ASSY, METER | ||||
| 55403-02150 |
ZRE120 |
1 | ||
| 55403-02150 |
ZRE120 |
1 | ||
| 55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER | ||||
| 55406-YK010B1 |
ZRE120 DK.GRAY,TRIM0# |
1 | ||
| 55406-YK011B1 |
ZRE120 DK.GRAY,TRIM0# |
1 | ||
| 55406-12460E0 |
ZRE120 SANDAL WOOD,TRIM0# |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55420-12360B0 |
ZRE120 SILVER,TRIM0# |
1 | ||
| 55420-12260C0 |
ZRE120..5F METALLIC BLACK,TRIM0# |
1 | ||
| 55420-YK010B1 |
ZRE120 21SV26,TRIM0# |
1 | ||
| 55420-YK020C0 |
ZRE120..5F METALLIC BLACK,TRIM0# |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55420-12360B0 |
ZRE120 SILVER,TRIM0# |
1 | ||
| 55420-12260C0 |
ZRE120..5F METALLIC BLACK,TRIM0# |
1 | ||
| 55420-YK010B1 |
ZRE120 21SV26,TRIM0# |
1 | ||
| 55420-YK020C0 |
ZRE120..5F METALLIC BLACK,TRIM0# |
1 | ||
| 55419A - CUSHION, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55419-32020 |
ZRE120 |
3 | ||
| 55419-32020 |
ZRE120 |
1 | ||
| 55419A - CUSHION, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55419-32020 |
ZRE120 |
3 | ||
| 55419-32020 |
ZRE120 |
1 | ||
| 55441C - BOX, INSTRUMENT PANEL COIN | ||||
| 55441-20140A0 |
ZRE120 IVORY,TRIM0# |
1 | ||
| 55441-20140A0 |
ZRE120 IVORY,TRIM0# |
1 | ||
| 55441E - BOX, INSTRUMENT PANEL | ||||
| 55441-02200A0 |
ZRE120 IVORY,TRIM0# |
1 | ||
| 55441-02200A0 |
ZRE120 IVORY,TRIM0# |
1 | ||
| 55444A - SPRING, INSTRUMENT PANEL BOX | ||||
| 55444-12080 |
ZRE120 |
1 | ||
| 55444-12080 |
ZRE120 |
1 | ||
| 55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR) | ||||
| 90541-04002 |
ZRE120 |
2 | ||
| 90541-04002 |
ZRE120 |
2 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-0A010 |
ZRE120..5F |
1 | ||
| 55521-0A010 |
ZRE120..5F |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-52060A0 |
ZRE120..5F IVORY,TRIM0# |
1 | ||
| 55539-02050A0 |
ZRE120..5F IVORY,TRIM0# |
1 | ||
| 55539-52060A0 |
ZRE120..5F IVORY,TRIM0# |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-02030E0 |
ZRE120 SANDAL WOOD,TRIM0# |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-02320A0 |
ZRE120 IVORY,TRIM0# |
1 | ||
| 55550-02320A0 |
ZRE120 IVORY,TRIM0# |
1 | ||
| 55550-YK010A0 |
ZRE120 IVORY,TRIM0# |
1 | ||
| 55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55560-12120A0 |
ZRE120 IVORY,TRIM0# |
1 | ||
| 55560-12120A0 |
ZRE120 IVORY,TRIM0# |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-12400E0 |
ZRE120 SANDAL WOOD,TRIM0# |
1 | ||
| 55650-12402E0 |
ZRE120 SANDAL WOOD,TRIM0# |
1 | ||
| 55650-12401E0 |
ZRE120 SANDAL WOOD,TRIM0# |
1 | ||
| 55650-YK010B1 |
ZRE120 DK.GRAY,TRIM0# |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-12431E0 |
ZRE120 SANDAL WOOD,TRIM0# |
1 | ||
| 55670-YK010B1 |
ZRE120 DK.GRAY,TRIM0# |
1 | ||
| 55670-12430E0 |
ZRE120 SANDAL WOOD,TRIM0# |
1 | ||
| 55670-12432E0 |
ZRE120 SANDAL WOOD,TRIM0# |
1 | ||
| 84763K - PLATE, SWITCH | ||||
| 84763-12130 |
ZRE120 |
1 | ||
| Common parts | ||||
| 90119-C0072 | ||||
| 90159-60383 | ||||
| 90159-60546 | ||||
| 90161-40026 | ||||
| 90161-T0001 | ||||
| 90167-50022 | ||||
| 90183-05094 | ||||
| 90183-05103 | ||||
| 90467-0502022 | ||||
| 90467-10203 | ||||
| 90468-05138 | ||||
| 91631-J0612 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8401 | ||||

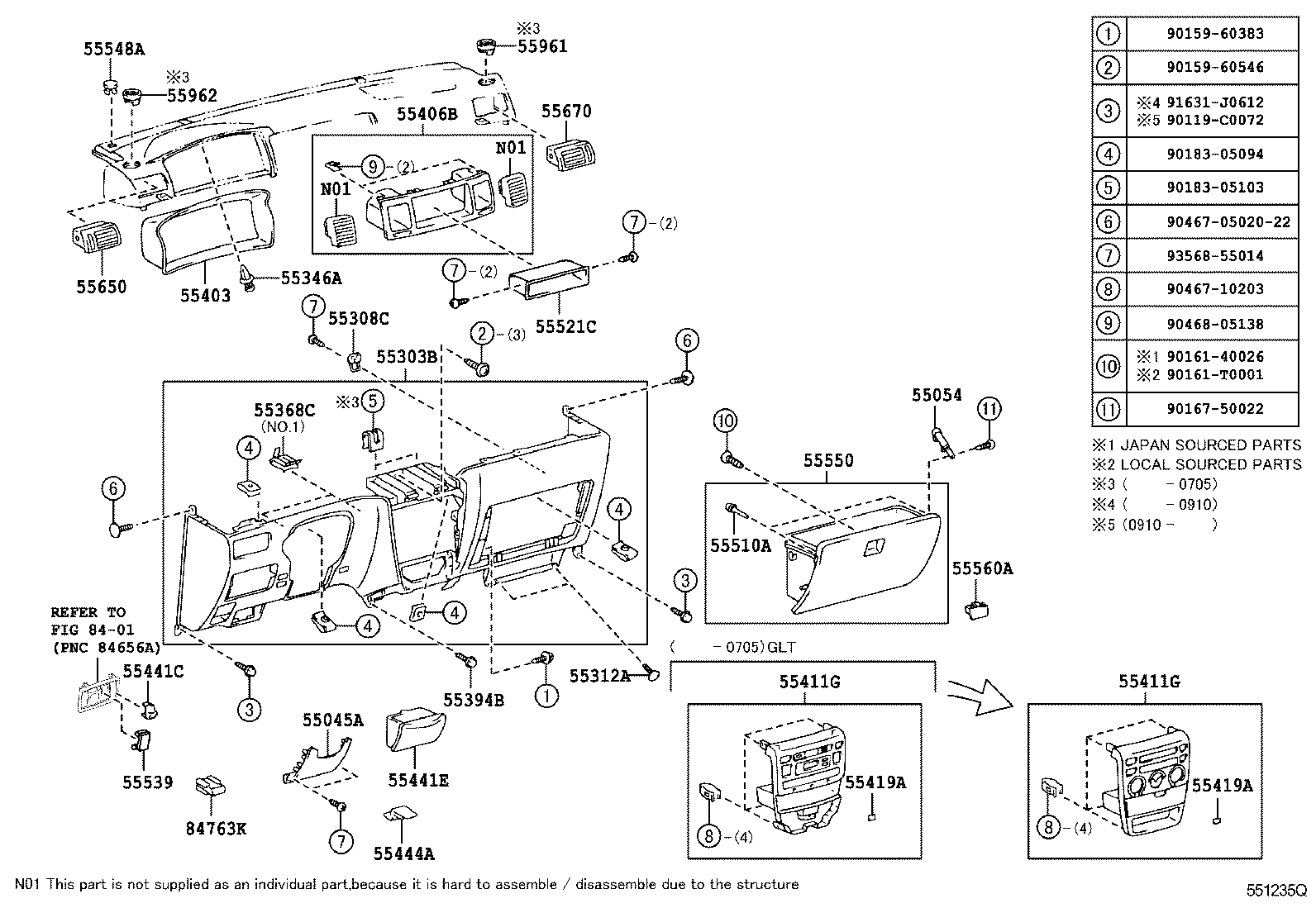

ILLUST NO. 2 OF 2(1210- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55045A - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER RH | ||||
| 55045-02260A0 |
ZRE120 IVORY,TRIM0# |
1 | ||
| 55045-02260A0 |
ZRE120 IVORY,TRIM0# |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-12010 |
ZRE120 |
1 | ||
| 55054-12010 |
ZRE120 |
1 | ||
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-02270A0 |
ZRE120 IVORY,TRIM0# |
1 | ||
| 55303-02270A0 |
ZRE120 IVORY,TRIM0# |
1 | ||
| 55303-YK010A0 |
ZRE120 IVORY,TRIM0# |
1 | ||
| 55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55308-02060 |
ZRE120 |
1 | ||
| 55308-YK010 |
ZRE120 |
1 | ||
| 55308-12280 |
ZRE120 |
1 | ||
| 55308-12280 |
ZRE120 |
1 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 90467-06089C0 |
ZRE120 BLACK |
2 | ||
| 90467-06089C0 |
ZRE120 BLACK |
2 | ||
| 55346A - CLIP, INSTRUMENT PANEL, NO.2 | ||||
| 90467-06165C0 |
ZRE120 BLACK |
1 | ||
| 90467-06165C3 |
ZRE120 BLACK |
1 | ||
| 90467-06165C0 |
ZRE120 BLACK |
1 | ||
| 55368C - BRACKET, METER MOUNTING | ||||
| 55368-12090 |
ZRE120 NO.2 |
1 | ||
| 55362-02030 |
ZRE120 NO.1 |
2 | ||
| 55368-12090 |
ZRE120 NO.2 |
1 | ||
| 55362-02030 |
ZRE120 |
2 | ||
| 55362-12050 |
ZRE120 NO.1 |
2 | ||
| 55394B - BOLT, INSTRUMENT PANEL | ||||
| 55394-12010 |
ZRE120 OD=6 |
1 | ||
| 55394-12010 |
ZRE120 OD=6 |
1 | ||
| 55403 - HOOD SUB-ASSY, METER | ||||
| 55403-02150 |
ZRE120 |
1 | ||
| 55403-02150 |
ZRE120 |
1 | ||
| 55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER | ||||
| 55406-YK010B1 |
ZRE120 DK.GRAY,TRIM0# |
1 | ||
| 55406-YK011B1 |
ZRE120 DK.GRAY,TRIM0# |
1 | ||
| 55406-12460E0 |
ZRE120 SANDAL WOOD,TRIM0# |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55420-12360B0 |
ZRE120 SILVER,TRIM0# |
1 | ||
| 55420-12260C0 |
ZRE120..5F METALLIC BLACK,TRIM0# |
1 | ||
| 55420-YK010B1 |
ZRE120 21SV26,TRIM0# |
1 | ||
| 55420-YK020C0 |
ZRE120..5F METALLIC BLACK,TRIM0# |
1 | ||
| 55441C - BOX, INSTRUMENT PANEL COIN | ||||
| 55441-20140A0 |
ZRE120 IVORY,TRIM0# |
1 | ||
| 55441-20140A0 |
ZRE120 IVORY,TRIM0# |
1 | ||
| 55441E - BOX, INSTRUMENT PANEL | ||||
| 55441-02200A0 |
ZRE120 IVORY,TRIM0# |
1 | ||
| 55441-02200A0 |
ZRE120 IVORY,TRIM0# |
1 | ||
| 55444A - SPRING, INSTRUMENT PANEL BOX | ||||
| 55444-12080 |
ZRE120 |
1 | ||
| 55444-12080 |
ZRE120 |
1 | ||
| 55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR) | ||||
| 90541-04002 |
ZRE120 |
2 | ||
| 90541-04002 |
ZRE120 |
2 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-0A010 |
ZRE120..5F |
1 | ||
| 55521-0A010 |
ZRE120..5F |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-52060A0 |
ZRE120..5F IVORY,TRIM0# |
1 | ||
| 55539-02050A0 |
ZRE120..5F IVORY,TRIM0# |
1 | ||
| 55539-52060A0 |
ZRE120..5F IVORY,TRIM0# |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-02320A0 |
ZRE120 IVORY,TRIM0# |
1 | ||
| 55550-02320A0 |
ZRE120 IVORY,TRIM0# |
1 | ||
| 55550-YK010A0 |
ZRE120 IVORY,TRIM0# |
1 | ||
| 55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55560-12120A0 |
ZRE120 IVORY,TRIM0# |
1 | ||
| 55560-12120A0 |
ZRE120 IVORY,TRIM0# |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-12400E0 |
ZRE120 SANDAL WOOD,TRIM0# |
1 | ||
| 55650-12402E0 |
ZRE120 SANDAL WOOD,TRIM0# |
1 | ||
| 55650-12401E0 |
ZRE120 SANDAL WOOD,TRIM0# |
1 | ||
| 55650-YK010B1 |
ZRE120 DK.GRAY,TRIM0# |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-12431E0 |
ZRE120 SANDAL WOOD,TRIM0# |
1 | ||
| 55670-YK010B1 |
ZRE120 DK.GRAY,TRIM0# |
1 | ||
| 55670-12430E0 |
ZRE120 SANDAL WOOD,TRIM0# |
1 | ||
| 55670-12432E0 |
ZRE120 SANDAL WOOD,TRIM0# |
1 | ||
| Common parts | ||||
| 90119-C0072 | ||||
| 90159-60383 | ||||
| 90159-60546 | ||||
| 90159-C0005 | ||||
| 90161-40026 | ||||
| 90161-T0001 | ||||
| 90167-50022 | ||||
| 90167-C0004 | ||||
| 90183-05094 | ||||
| 90467-0502022 | ||||
| 90468-05138 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
