ZRE120L-GEMDKC (2007)
Toyota Corolla (China)
(0402- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51681B - PLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, RH | ||||
| 51681-02070 |
ZRE120 (L) |
1 | ||
| 51681-32050 |
ZRE120 (J) |
1 | ||
| 51681-32050 |
ZRE120 JAPAN SOURCED PARTS |
1 | ||
| 51681-32050 |
ZRE120 |
1 | ||
| 51681-02070 |
ZRE120 LOCAL SOURCED PARTS |
1 | ||
| 51682D - PLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, LH | ||||
| 51682-02070 |
ZRE120 LOCAL SOURCED PARTS |
1 | ||
| 51682-32040 |
ZRE120 (J) |
1 | ||
| 51682-02070 |
ZRE120 (L) |
1 | ||
| 51682-32040 |
ZRE120 |
1 | ||
| 51682-32040 |
ZRE120 JAPAN SOURCED PARTS |
1 | ||
| 53651 - BRACE, REAR FLOOR SIDE MEMBER | ||||
| 53651-32010 |
ZRE120 |
2 | ||
| 53651-32010 |
ZRE120 |
2 | ||
| 57101 - MEMBER SUB-ASSY, FRONT SIDE, RH | ||||
| 57101-YK010 |
ZRE120 |
1 | ||
| 57101-02330 |
ZRE120 |
1 | ||
| 57101-02330 |
ZRE120 |
1 | ||
| 57102 - MEMBER SUB-ASSY, FRONT SIDE, LH | ||||
| 57102-02490 |
ZRE120 |
1 | ||
| 57102-02490 |
ZRE120 |
1 | ||
| 57105 - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRO | ||||
| 57105-12140 |
ZRE120 |
1 | ||
| 57105-12140 |
ZRE120 |
1 | ||
| 57106A - PLATE SUB-ASSY, FRONT SIDE MEMBER, LH | ||||
| 57106-12130 |
ZRE120 |
1 | ||
| 57106-12130 |
ZRE120 |
1 | ||
| 57111 - MEMBER, FRONT SIDE, RH | ||||
| 57111-02140 |
ZRE120 |
1 | ||
| 57111-02140 |
ZRE120 |
1 | ||
| 57112 - MEMBER, FRONT SIDE, LH | ||||
| 57112-02140 |
ZRE120 |
1 | ||
| 57112-02140 |
ZRE120 |
1 | ||
| 57113 - EXTENSION, FRONT SIDE MEMBER, RH | ||||
| 57113-12190 |
ZRE120 |
1 | ||
| 57113-02140 |
ZRE120 |
1 | ||
| 57113-YK010 |
ZRE120 |
1 | ||
| 57114 - EXTENSION, FRONT SIDE MEMBER, LH | ||||
| 57114-02160 |
ZRE120 |
1 | ||
| 57114-12160 |
ZRE120 |
1 | ||
| 57114-YK010 |
ZRE120 |
1 | ||
| 57115A - PLATE, FRONT SIDE MEMBER, OUTER RH | ||||
| 57115-02070 |
ZRE120 |
1 | ||
| 57115-02070 |
ZRE120 |
1 | ||
| 57116A - PLATE, FRONT SIDE MEMBER, OUTER LH | ||||
| 57116-02070 |
ZRE120 |
1 | ||
| 57116-02070 |
ZRE120 |
1 | ||
| 57117 - PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT RH | ||||
| 57117-02070 |
ZRE120 LOCAL SOURCED PARTS |
1 | ||
| 57117-12130 |
ZRE120 JAPAN SOURCED PARTS |
1 | ||
| 57117-12130 |
ZRE120 (J) |
1 | ||
| 57117-02070 |
ZRE120 (L) |
1 | ||
| 57117-12130 |
ZRE120 |
1 | ||
| 57118 - PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT LH | ||||
| 57118-12130 |
ZRE120 |
1 | ||
| 57118-12130 |
ZRE120 JAPAN SOURCED PARTS |
1 | ||
| 57118-12130 |
ZRE120 (J) |
1 | ||
| 57118-02040 |
ZRE120 LOCAL SOURCED PARTS |
1 | ||
| 57118-02040 |
ZRE120 (L) |
1 | ||
| 57141A - SUPPORT, FRONT BUMPER ARM, RH | ||||
| 57141-12060 |
ZRE120 |
1 | ||
| 57141-12060 |
ZRE120 |
1 | ||
| 57142A - SUPPORT, FRONT BUMPER ARM, LH | ||||
| 57142-12070 |
ZRE120 |
1 | ||
| 57142-12070 |
ZRE120 |
1 | ||
| 57146A - REINFORCEMENT, FRONT SIDE MEMBER, REAR LH | ||||
| 57146-12020 |
ZRE120 |
1 | ||
| 57146-02100 |
ZRE120 (L) |
1 | ||
| 57146-12020 |
ZRE120 (J) |
1 | ||
| 57146-02100 |
ZRE120 LOCAL SOURCED PARTS |
1 | ||
| 57146-12020 |
ZRE120 JAPAN SOURCED PARTS |
1 | ||
| 57153 - REINFORCEMENT, FRONT SIDE MEMBER, NO.2 RH | ||||
| 57016-12080 |
ZRE120 |
1 | ||
| 57016-YK010 |
ZRE120 |
1 | ||
| 57016-12080 |
ZRE120 |
1 | ||
| 57154 - REINFORCEMENT, FRONT SIDE MEMBER, NO.2 LH | ||||
| 57017-12060 |
ZRE120 |
1 | ||
| 57017-12060 |
ZRE120 |
1 | ||
| 57197 - BOX, TORQUE, FRONT RH | ||||
| 57197-02070 |
ZRE120 |
1 | ||
| 57197-02070 |
ZRE120 |
1 | ||
| 57198 - BOX, TORQUE, FRONT LH | ||||
| 57198-02070 |
ZRE120 |
1 | ||
| 57198-02070 |
ZRE120 |
1 | ||
| 57271 - EXTENSION, STEERING GEAR BOX SUPPORT MEMBER, RH | ||||
| 57271-02050 |
ZRE120 |
1 | ||
| 57271-02050 |
ZRE120 |
1 | ||
| 57272 - EXTENSION, STEERING GEAR BOX SUPORT MEMBER, LH | ||||
| 57272-02050 |
ZRE120 |
1 | ||
| 57272-02050 |
ZRE120 |
1 | ||
| 57411A - MEMBER, FLOOR SIDE, INNER RH | ||||
| 57401-02130 |
ZRE120 |
1 | ||
| 57401-02130 |
ZRE120 |
1 | ||
| 57412A - MEMBER, FLOOR SIDE, INNER LH | ||||
| 57402-02130 |
ZRE120 |
1 | ||
| 57402-02130 |
ZRE120 |
1 | ||
| 57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 57601-02230 |
ZRE120 |
1 | ||
| 57601-YK010 |
ZRE120 |
1 | ||
| 57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 57602-02230 |
ZRE120 |
1 | ||
| 57602-YK010 |
ZRE120 |
1 | ||
| 57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1 | ||||
| 57605-02070 |
ZRE120 |
1 | ||
| 57605-02070 |
ZRE120 |
1 | ||
| 57606D - MEMBER SUB-ASSY, REAR ABSORBER MOUNTING | ||||
| 57606-02120 |
ZRE120 |
1 | ||
| 57606-02120 |
ZRE120 |
1 | ||
| 57615A - MEMBER, REAR FLOOR SIDE, REAR RH | ||||
| 57615-02917 |
ZRE120 |
1 | ||
| 57615-02917 |
ZRE120 |
1 | ||
| 57616A - MEMBER, REAR FLOOR SIDE, REAR LH | ||||
| 57616-02915 |
ZRE120 |
1 | ||
| 57616-02915 |
ZRE120 |
1 | ||
| Common parts | ||||
| 90115-06219 | ||||
| 91641-K0816 | ||||

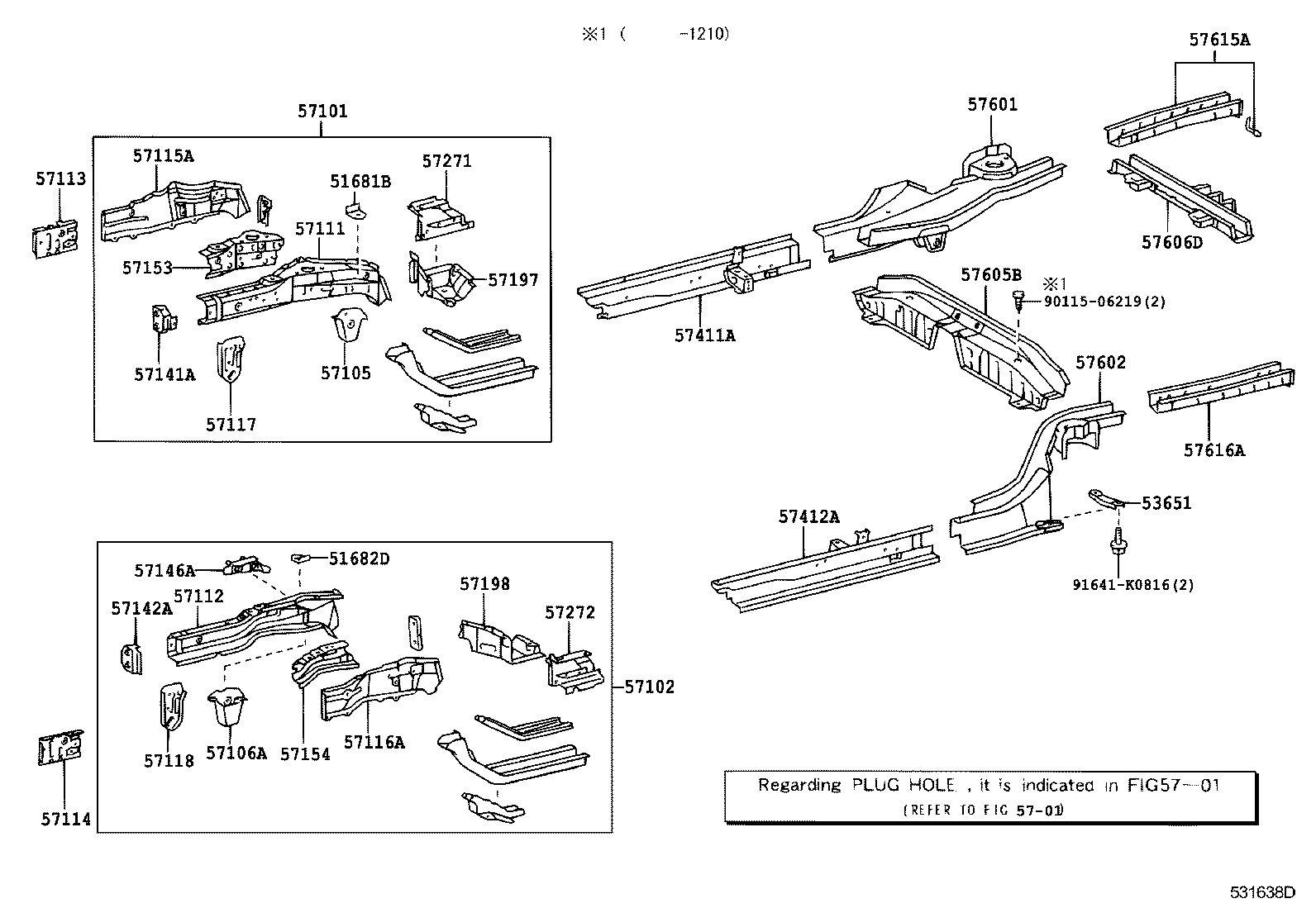

| Linked diagrams | ||||
| 5701 | ||||
