ZRE120L-GEMDKC (2007)
Toyota Corolla (China)
Production
May 2007
-
Feb 2017
Engine
1ZRFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0402- )

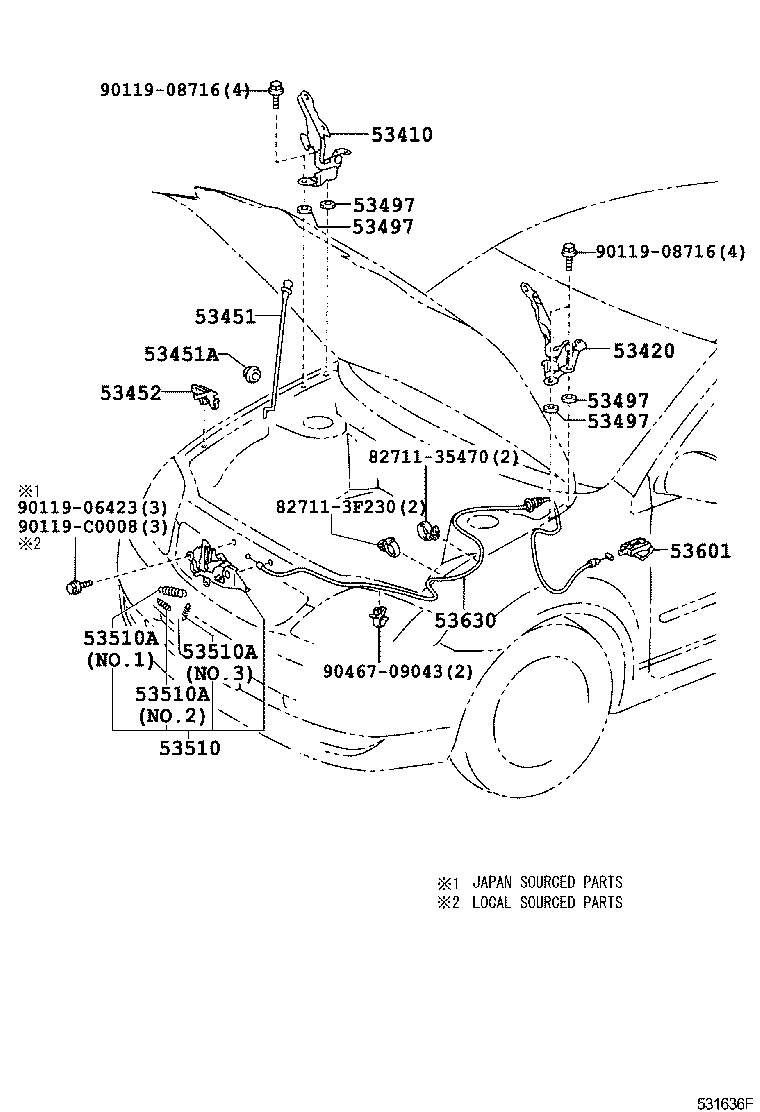

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53410 - HINGE ASSY, HOOD, RH | ||||
| 53410-12410 |
ZRE120 |
1 | ||
| 53410-12410 |
ZRE120 |
1 | ||
| 53420 - HINGE ASSY, HOOD, LH | ||||
| 53420-12330 |
ZRE120 |
1 | ||
| 53420-12330 |
ZRE120 |
1 | ||
| 53451 - ROD, HOOD SUPPORT | ||||
| 53440-12040 |
ZRE120 |
1 | ||
| 53440-12040 |
ZRE120 |
1 | ||
| 53451A - GROMMET(FOR HOOD SUPPORT ROD) | ||||
| 90480-15034 |
ZRE120 |
1 | ||
| 90480-15034 |
ZRE120 |
1 | ||
| 53452 - HOLDER, HOOD STAY | ||||
| 53452-YK010 |
ZRE120 |
1 | ||
| 53452-02060 |
ZRE120 |
1 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-42010 |
ZRE120 T=0.5 |
4 | ||
| 53497-20070 |
ZRE120 T=2.0 |
4 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-42010 |
ZRE120 T=0.5 |
4 | ||
| 53497-20070 |
ZRE120 T=2.0 |
4 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-42010 |
ZRE120 T=0.5 |
4 | ||
| 53497-20070 |
ZRE120 T=2.0 |
4 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-42010 |
ZRE120 T=0.5 |
4 | ||
| 53497-20070 |
ZRE120 T=2.0 |
4 | ||
| 53510 - LOCK ASSY, HOOD | ||||
| 53510-02450 |
ZRE120 |
1 | ||
| 53510-YK010 |
ZRE120 |
1 | ||
| 53510-12820 |
ZRE120 |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-09055 |
ZRE120 WD=0.9,CW=21,NO.2 |
1 | ||
| 90506-12063 |
ZRE120 WD=1.2,CW=8.5,NO.3 |
1 | ||
| 90506-18067 |
ZRE120 WD=1.8,CW=13,NO.1 |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-09055 |
ZRE120 WD=0.9,CW=21,NO.2 |
1 | ||
| 90506-12063 |
ZRE120 WD=1.2,CW=8.5,NO.3 |
1 | ||
| 90506-18067 |
ZRE120 WD=1.8,CW=13,NO.1 |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-09055 |
ZRE120 WD=0.9,CW=21,NO.2 |
1 | ||
| 90506-12063 |
ZRE120 WD=1.2,CW=8.5,NO.3 |
1 | ||
| 90506-18067 |
ZRE120 WD=1.8,CW=13,NO.1 |
1 | ||
| 53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL | ||||
| 53601-0D010A0 |
ZRE120 IVORY,TRIM0# |
1 | ||
| 53601-0D010A0 |
ZRE120 IVORY,TRIM0# |
1 | ||
| 53630 - CABLE ASSY, HOOD LOCK CONTROL | ||||
| 53630-02122 |
ZRE120 |
1 | ||
| 53630-02122 |
ZRE120 |
1 | ||
| Common parts | ||||
| 82711-35470 | ||||
| 82711-3F230 | ||||
| 90119-06423 | ||||
| 90119-08716 | ||||
| 90119-C0008 | ||||
| 90467-09043 | ||||
