ZRE120L-GEMDKC (2007)

Toyota Corolla (China)

Production May 2007 - Feb 2017
Engine 1ZRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0402-1005)

Click highlighted areas on diagram

diagram 5102 5102 52021 52115A 52116A 52145C 52146B 52611 5302 5302 9015950311 9015960431 9017810002 9018909002 91511B0818 91511B0818
Part # Description Qty Price
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-02110

ZRE120

 1
52021-YK010

ZRE120

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-02090

ZRE120

 1
52115-YK010

ZRE120

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-YK010

ZRE120

 1
52116-02090

ZRE120

 1
52145C - BRACKET, FRONT BUMPER SIDE MOUNTING, RH
52145-YK010

ZRE120

 1
52145-02060

ZRE120

 1
52146B - BRACKET, FRONT BUMPER SIDE MOUNTING, LH
52146-02050

ZRE120

 1
52146-02050

ZRE120

 1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-YK020

ZRE120

 1
52611-YK010

ZRE120

 1
52611-02180

ZRE120

 1
Common parts
90159-50311
90159-60431
90178-10002
90189-09002
91511-B0818
Linked diagrams
5102
5302

ILLUST NO. 1 OF 2(1005-1210)

Click highlighted areas on diagram

diagram 5102 5102 52021 52115A 52116A 52145C 52146B 52611 5302 5302 5302 5302 9015950311 9015950311 9015960431 9015960431 9017810002 9017810002 9018909002 9018909002 91511B0818 91511B0818
Part # Description Qty Price
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-02110

ZRE120

 1
52021-YK010

ZRE120

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-02090

ZRE120

 1
52115-YK010

ZRE120

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-YK010

ZRE120

 1
52116-02090

ZRE120

 1
52145C - BRACKET, FRONT BUMPER SIDE MOUNTING, RH
52145-YK010

ZRE120

 1
52145-02060

ZRE120

 1
52146B - BRACKET, FRONT BUMPER SIDE MOUNTING, LH
52146-02050

ZRE120

 1
52146-02050

ZRE120

 1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-YK020

ZRE120

 1
52611-YK010

ZRE120

 1
52611-02180

ZRE120

 1
Common parts
90159-50311
90159-60431
90178-10002
90189-09002
91511-B0818
Linked diagrams
5102
5302

ILLUST NO. 1 OF 2(1210- )

Click highlighted areas on diagram

diagram 5102 5102 52021 52115A 52116A 52145C 52146B 52611 5302 5302 5302 5302 9015950311 9015950311 9015960431 9017810002 9017810002 9018909002 91511B0818 91511B0818
Part # Description Qty Price
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-02110

ZRE120

 1
52021-YK010

ZRE120

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-02090

ZRE120

 1
52115-YK010

ZRE120

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-YK010

ZRE120

 1
52116-02090

ZRE120

 1
52145C - BRACKET, FRONT BUMPER SIDE MOUNTING, RH
52145-YK010

ZRE120

 1
52145-02060

ZRE120

 1
52146B - BRACKET, FRONT BUMPER SIDE MOUNTING, LH
52146-02050

ZRE120

 1
52146-02050

ZRE120

 1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-YK020

ZRE120

 1
52611-YK010

ZRE120

 1
52611-02180

ZRE120

 1
Common parts
90159-50311
90159-60431
90178-10002
90189-09002
91511-B0818
Linked diagrams
5102
5302

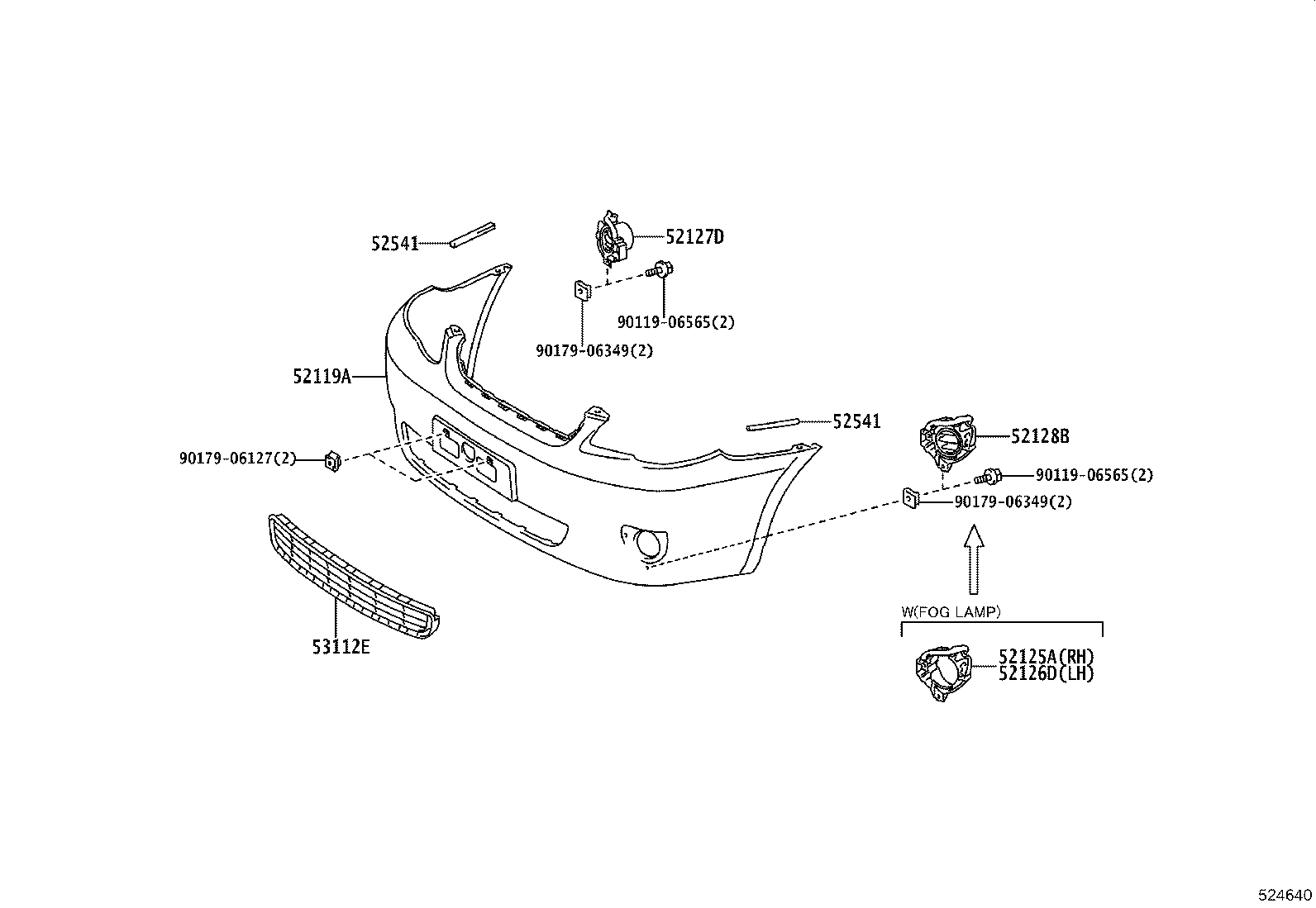

ILLUST NO. 2 OF 2(0402-1005)

Click highlighted areas on diagram

diagram 52119A 52127D 52128B 52541 52541 5301 5301 5301 8102 8102 9017906127
Part # Description Qty Price
52119A - COVER, FRONT BUMPER
52119-YK900

ZRE120

PAINT REQ.

 1
52119-YK901

ZRE120

PAINT REQ.

 1
52119-02930

ZRE120

PAINT REQ.

 1
52127D - COVER, FRONT BUMPER HOLE, RH
52127-02250

ZRE120..5F

 1
52127-YK010

ZRE120..5F

 1
52127-YK020

ZRE120..5F

 1
52128B - COVER, FRONT BUMPER HOLE, LH
52128-YK010

ZRE120..5F

 1
52128-02280

ZRE120..5F

 1
52128-YK020

ZRE120..5F

 1
52541 - PROTECTOR, FRONT BUMPER
52541-02010

ZRE120

 2
52541-02010

ZRE120

 2
52541 - PROTECTOR, FRONT BUMPER
52541-02010

ZRE120

 2
52541-02010

ZRE120

 2
Common parts
90179-06127
Linked diagrams
5301
8102

ILLUST NO. 2 OF 2(1005-1210)

Click highlighted areas on diagram

diagram 52119A 52125A 52126D 52127D 52128B 52541 52541 53112E 9011906565 9011906565 9017906127 9017906349 9017906349
Part # Description Qty Price
52119A - COVER, FRONT BUMPER
52119-YK900

ZRE120

PAINT REQ.

 1
52119-YK901

ZRE120

PAINT REQ.

 1
52119-02930

ZRE120

PAINT REQ.

 1
52125A - BRACKET, FOG LAMP MOUNTING, RH
52125-YK010

ZRE120

 1
52126D - BRACKET, FOG LAMP MOUNTING, LH
52126-YK010

ZRE120

 1
52127D - COVER, FRONT BUMPER HOLE, RH
52127-02250

ZRE120..5F

 1
52127-YK010

ZRE120..5F

 1
52127-YK020

ZRE120..5F

 1
52128B - COVER, FRONT BUMPER HOLE, LH
52128-YK010

ZRE120..5F

 1
52128-02280

ZRE120..5F

 1
52128-YK020

ZRE120..5F

 1
52541 - PROTECTOR, FRONT BUMPER
52541-02010

ZRE120

 2
52541-02010

ZRE120

 2
52541 - PROTECTOR, FRONT BUMPER
52541-02010

ZRE120

 2
52541-02010

ZRE120

 2
53112E - GRILLE, RADIATOR, LOWER NO.1
53112-YK020

ZRE120

NO PAINT REQ.

 1
53112-YK010

ZRE120

NO PAINT REQ.

 1
53112-YK021

ZRE120

NO PAINT REQ.

 1
Common parts
90119-06565
90179-06127
90179-06349

ILLUST NO. 2 OF 2(1210- )

Click highlighted areas on diagram

diagram 52030 52040 52119A 52127D 52128B 52541 53112E 9017906127 9017906127 93567A5014
Part # Description Qty Price
52030 - COVER ASSY, FRONT BUMPER HOLE, RH
52030-YK010

ZRE120

PLATED

 1
52040 - COVER ASSY, FRONT BUMPER HOLE, LH
52040-YK010

ZRE120

PLATED

 1
52119A - COVER, FRONT BUMPER
52119-YK900

ZRE120

PAINT REQ.

 1
52119-YK901

ZRE120

PAINT REQ.

 1
52119-02930

ZRE120

PAINT REQ.

 1
52127D - COVER, FRONT BUMPER HOLE, RH
52127-02250

ZRE120..5F

 1
52127-YK010

ZRE120..5F

 1
52127-YK020

ZRE120..5F

 1
52128B - COVER, FRONT BUMPER HOLE, LH
52128-YK010

ZRE120..5F

 1
52128-02280

ZRE120..5F

 1
52128-YK020

ZRE120..5F

 1
52541 - PROTECTOR, FRONT BUMPER
52541-02010

ZRE120

 2
52541-02010

ZRE120

 2
53112E - GRILLE, RADIATOR, LOWER NO.1
53112-YK020

ZRE120

NO PAINT REQ.

 1
53112-YK010

ZRE120

NO PAINT REQ.

 1
53112-YK021

ZRE120

NO PAINT REQ.

 1
Common parts
90179-06127
93567-A5014
