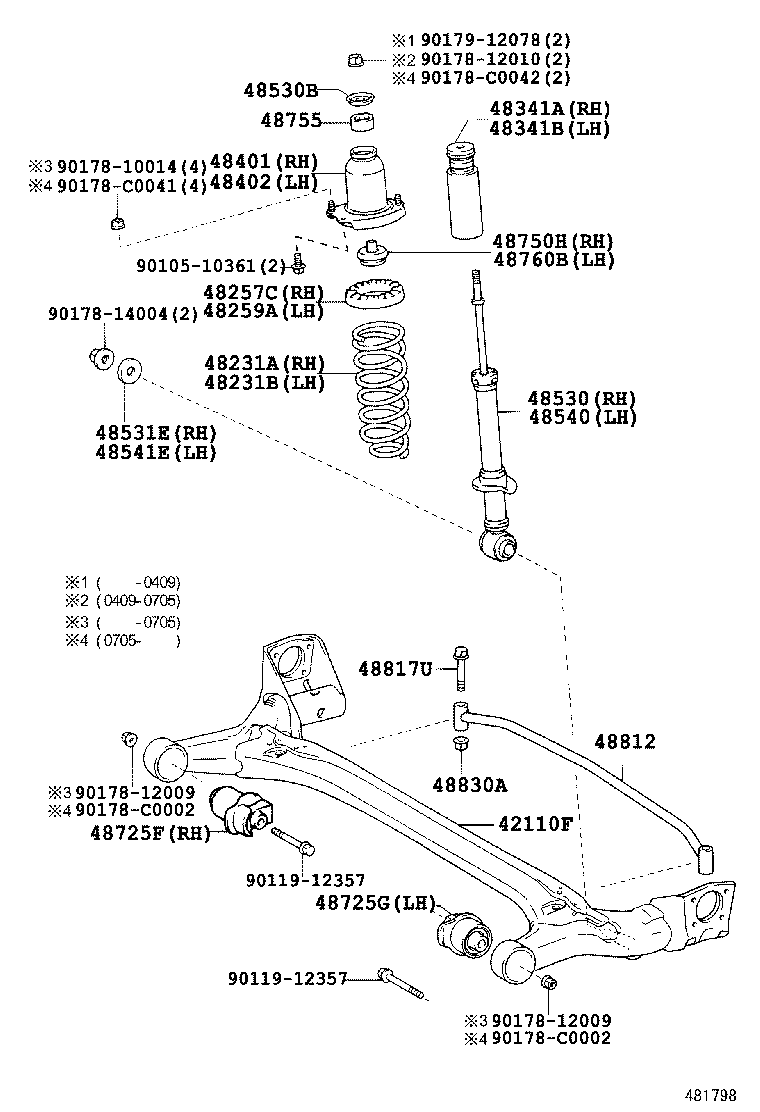

Toyota Corolla (china) ZRE120 REAR SPRING & SHOCK ABSORBER

Part #	Description	Period	Qty
42110F - BEAM ASSY, REAR AXLE
42101-12130	ZRE120 (J)	05/2007 - 09/2007	1
42101-02280	ZRE120	09/2007 - 10/2012	1
42101-02280	ZRE120	10/2012 - 12/2999	1
48231A - SPRING, COIL, REAR RH
48231-02521	ZRE120	10/2012 - 12/2999	1
48231-02520	ZRE120	05/2007 - 01/2012	1
48231-02521	ZRE120	02/2012 - 10/2012	1
48231B - SPRING, COIL, REAR LH
48231-02520	ZRE120	05/2007 - 01/2012	1
48231-02521	ZRE120	10/2012 - 12/2999	1
48231-02521	ZRE120	02/2012 - 10/2012	1
48257C - INSULATOR, REAR COIL SPRING, UPPER RH
48257-02060	ZRE120	10/2012 - 12/2999	1
48257-02060	ZRE120	05/2007 - 10/2012	1
48259A - INSULATOR, REAR COIL SPRING, UPPER LH
48257-02060	ZRE120	05/2007 - 10/2012	1
48257-02060	ZRE120	10/2012 - 12/2999	1
48341A - BUMPER, REAR SPRING, NO.1 RH
48341-47010	ZRE120	05/2007 - 10/2012	1
48341-47010	ZRE120	10/2012 - 12/2999	1
48341B - BUMPER, REAR SPRING, NO.1 LH
48341-47010	ZRE120	10/2012 - 12/2999	1
48341-47010	ZRE120	05/2007 - 10/2012	1
48401 - BRACKET SUB-ASSY, REAR SPRING, FRONT RH
48401-02030	ZRE120	05/2007 - 10/2012	1
48401-02030	ZRE120	10/2012 - 12/2999	1
48402 - BRACKET SUB-ASSY, REAR SPRING, FRONT LH
48403-02030	ZRE120	10/2012 - 12/2999	1
48403-02030	ZRE120	05/2007 - 10/2012	1
48530 - ABSORBER ASSY, SHOCK, REAR RH
48530-02393	ZRE120 MARK 48530-02393	01/2011 - 10/2012	1
48530-02391	ZRE120 MARK 48530-02391	12/2007 - 04/2008	1
48530-02392	ZRE120 MARK 48530-02392	05/2008 - 12/2010	1
48530-02393	ZRE120 MARK 48530-02393	10/2012 - 12/2999	1
48530-02390	ZRE120 MARK 48530-02390	05/2007 - 11/2007	1
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-03021	ZRE120	10/2012 - 12/2999	2
90948-03021	ZRE120	05/2007 - 10/2012	2
48531E - RETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER RH)
90560-14028	ZRE120	10/2012 - 12/2999	1
90560-14028	ZRE120	05/2007 - 10/2012	1
48540 - ABSORBER ASSY, SHOCK, REAR LH
48530-02392	ZRE120 MARK 48530-02392	05/2008 - 12/2010	1
48530-02393	ZRE120 MARK 48530-02393	01/2011 - 10/2012	1
48530-02391	ZRE120 MARK 48530-02391	12/2007 - 04/2008	1
48530-02393	ZRE120 MARK 48530-02393	10/2012 - 12/2999	1
48530-02390	ZRE120 MARK 48530-02390	05/2007 - 11/2007	1
48541E - RETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER LH)
90560-14028	ZRE120	05/2007 - 10/2012	1
90560-14028	ZRE120	10/2012 - 12/2999	1
48725F - BUSH, REAR AXLE CARRIER, RH
48725-02320	ZRE120 (L)	09/2007 - 10/2012	1
48725-12570	ZRE120 (J)	05/2007 - 09/2007	1
48725-02320	ZRE120	10/2012 - 12/2999	1
48725G - BUSH, REAR AXLE CARRIER, LH
48725-02320	ZRE120 (L)	09/2007 - 10/2012	1
48725-02320	ZRE120	10/2012 - 12/2999	1
48725-12570	ZRE120 (J)	05/2007 - 09/2007	1
48750H - SUPPORT ASSY, REAR SUSPENSION, RH
48750-02070	ZRE120	05/2007 - 10/2012	1
48750-02070	ZRE120	10/2012 - 12/2999	1
48755 - SUPPORT, REAR SUSPENSION
48755-02070	ZRE120	10/2012 - 12/2999	2
48755-02070	ZRE120	05/2007 - 10/2012	2
48760B - SUPPORT ASSY REAR SUSPENSION, LH
48750-02070	ZRE120	05/2007 - 10/2012	1
48750-02070	ZRE120	10/2012 - 12/2999	1
48812 - BAR, STABILIZER, REAR
48812-02212	ZRE120	11/2011 - 10/2012	1
48812-02211	ZRE120	05/2007 - 10/2011	1
48812-02212	ZRE120	10/2012 - 12/2999	1
48817U - BOLT(FOR REAR STABILIZER)
90105-C0101	ZRE120	05/2007 - 10/2012	2
90105-C0101	ZRE120	10/2012 - 12/2999	2
48830A - NUT(FOR REAR STABILIZER LINK)
90178-C0029	ZRE120	10/2012 - 12/2999	2
90178-C0029	ZRE120	05/2007 - 10/2012	2
Common parts
90105-10361
90119-12357
90178-10014
90178-12009
90178-12010
90178-14004
90178-C0002
90178-C0041
90178-C0042
90179-12078

ZRE120L-GEMDKC (2007)

(0402- )
