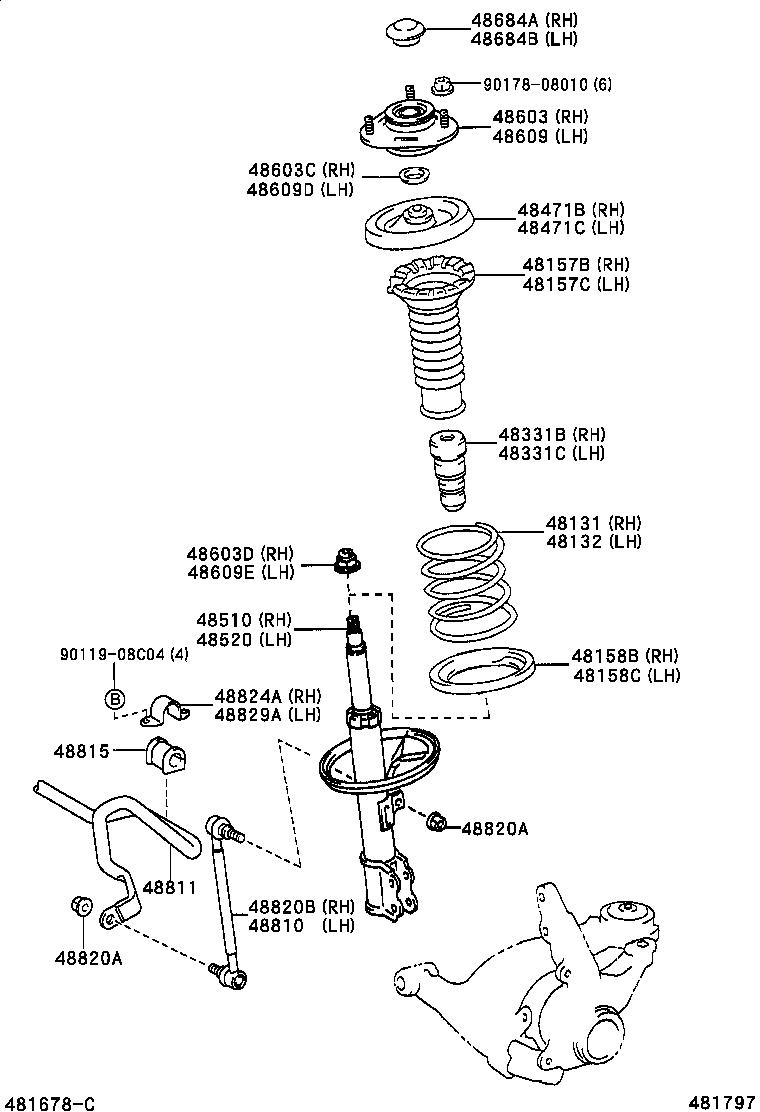

Toyota Corolla (china) ZRE120 FRONT SPRING & SHOCK ABSORBER

Part #	Description	Period	Qty
48131 - SPRING, FRONT COIL, RH
48131-02890	ZRE120..5F	05/2007 - 10/2012	1
48131-02890	ZRE120..5F	10/2012 - 08/2013	1
48131-02891	ZRE120..5F	09/2013 - 04/2015	1
48131-02891	ZRE120..5F	11/2016 - 12/2999	1
48131-02W10	ZRE120..5F	04/2015 - 11/2016	1
48132 - SPRING, FRONT COIL, LH
48131-02890	ZRE120..5F	05/2007 - 10/2012	1
48131-02890	ZRE120..5F	10/2012 - 08/2013	1
48131-02W10	ZRE120..5F	04/2015 - 11/2016	1
48131-02891	ZRE120..5F	11/2016 - 12/2999	1
48131-02891	ZRE120..5F	09/2013 - 04/2015	1
48157B - INSULATOR, FRONT COIL SPRING, UPPER RH
48157-02091	ZRE120	08/2008 - 10/2012	1
48157-02090	ZRE120	05/2007 - 07/2008	1
48157-02091	ZRE120	11/2016 - 12/2999	1
48157-02250	ZRE120	04/2015 - 11/2016	1
48157-02091	ZRE120	10/2012 - 04/2015	1
48157C - INSULATOR, FRONT COIL SPRING, UPPER LH
48157-02091	ZRE120	10/2012 - 04/2015	1
48157-02250	ZRE120	04/2015 - 11/2016	1
48157-02091	ZRE120	08/2008 - 10/2012	1
48157-02090	ZRE120	05/2007 - 07/2008	1
48157-02091	ZRE120	11/2016 - 12/2999	1
48158B - INSULATOR, FRONT COIL SPRING, LOWER RH
48158-02240	ZRE120	04/2015 - 11/2016	1
48158-02081	ZRE120	08/2008 - 10/2012	1
48158-02081	ZRE120	10/2012 - 04/2015	1
48158-02081	ZRE120	11/2016 - 12/2999	1
48158-02080	ZRE120	05/2007 - 07/2008	1
48158C - INSULATOR, FRONT COIL SPRING, LOWER LH
48158-02081	ZRE120	10/2012 - 04/2015	1
48158-02240	ZRE120	04/2015 - 11/2016	1
48158-02081	ZRE120	08/2008 - 10/2012	1
48158-02080	ZRE120	05/2007 - 07/2008	1
48158-02081	ZRE120	11/2016 - 12/2999	1
48331B - BUMPER, FRONT SPRING, RH
48331-12210	ZRE120	10/2012 - 12/2999	1
48331-12210	ZRE120	05/2007 - 10/2012	1
48331C - BUMPER, FRONT SPRING, LH
48331-12210	ZRE120	05/2007 - 10/2012	1
48331-12210	ZRE120	10/2012 - 12/2999	1
48471B - SEAT, FRONT COIL SPRING, UPPER RH
48044-12100	ZRE120	10/2012 - 12/2999	1
48044-12100	ZRE120	05/2007 - 10/2012	1
48471C - SEAT, FRONT COIL SPRING, UPPER LH
48044-12100	ZRE120	10/2012 - 12/2999	1
48044-12100	ZRE120	05/2007 - 10/2012	1
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48510-02362	ZRE120 MARK 48510-02362	05/2008 - 12/2010	1
48510-02361	ZRE120 MARK 48510-02361	12/2007 - 04/2008	1
48510-02E60	ZRE120 MARK 48510-02E60	04/2015 - 11/2016	1
48510-02363	ZRE120 MARK 48510-02363	10/2012 - 04/2015	1
48510-02360	ZRE120 MARK 48510-02360	05/2007 - 11/2007	1
48510-02363	ZRE120 MARK 48510-02363	01/2011 - 10/2012	1
48510-02363	ZRE120 MARK 48510-02363	11/2016 - 12/2999	1
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48520-02363	ZRE120 MARK 48520-02363	11/2016 - 12/2999	1
48520-02361	ZRE120 MARK 48520-02361	12/2007 - 04/2008	1
48520-02362	ZRE120 MARK 48520-02362	05/2008 - 12/2010	1
48520-02E60	ZRE120 MARK 48520-02E60	04/2015 - 11/2016	1
48520-02360	ZRE120 MARK 48520-02360	05/2007 - 11/2007	1
48520-02363	ZRE120 MARK 48520-02363	01/2011 - 10/2012	1
48520-02363	ZRE120 MARK 48520-02363	10/2012 - 04/2015	1
48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48609-02150	ZRE120	10/2012 - 12/2999	1
48609-02150	ZRE120	05/2007 - 10/2012	1
48603C - SEAL, DUST(FOR FRONT SUSPENSION SUPPORT RH)
90303-22002	ZRE120	05/2007 - 10/2012	1
90303-22002	ZRE120	10/2012 - 12/2999	1
48603D - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
90179-14015	ZRE120	05/2007 - 10/2012	1
90179-14015	ZRE120	10/2012 - 12/2999	1
48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48609-02150	ZRE120	05/2007 - 10/2012	1
48609-02150	ZRE120	10/2012 - 12/2999	1
48609D - SEAL, DUST(FOR FRONT SUSPENSION SUPPORT LH)
90303-22002	ZRE120	10/2012 - 12/2999	1
90303-22002	ZRE120	05/2007 - 10/2012	1
48609E - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
90179-14015	ZRE120	10/2012 - 12/2999	1
90179-14015	ZRE120	05/2007 - 10/2012	1
48684A - COVER, FRONT SUSPENSION SUPPORT DUST, RH
48684-52010	ZRE120	05/2007 - 10/2012	1
48684-52010	ZRE120	10/2012 - 12/2999	1
48684B - COVER, FRONT SUSPENSION SUPPORT DUST, LH
48684-52010	ZRE120	10/2012 - 12/2999	1
48684-52010	ZRE120	05/2007 - 10/2012	1
48810 - LINK ASSY, FRONT STABILIZER, LH
48820-02060	ZRE120 (L)	05/2007 - 10/2012	1
48820-47010	ZRE120 (J)	05/2007 - 10/2012	1
48820-02060	ZRE120	10/2012 - 12/2999	1
48811 - BAR, STABILIZER, FRONT
48811-02171	ZRE120	05/2007 - 10/2012	1
48811-02171	ZRE120	10/2012 - 12/2999	1
48815 - BUSH, FRONT STABILIZER BAR, NO.1
48815-02130	ZRE120	05/2007 - 10/2012	2
48815-02130	ZRE120	10/2012 - 12/2999	2
48820A - NUT(FOR FRONT STABILIZER LINK)
90178-C0027	ZRE120	05/2007 - 10/2012	4
90178-C0027	ZRE120	10/2012 - 12/2999	4
48820A - NUT(FOR FRONT STABILIZER LINK)
90178-C0027	ZRE120	05/2007 - 10/2012	4
90178-C0027	ZRE120	10/2012 - 12/2999	4
48820B - LINK ASSY, FRONT STABILIZER, RH
48820-02060	ZRE120	10/2012 - 12/2999	1
48820-02060	ZRE120 (L)	05/2007 - 10/2012	1
48820-47010	ZRE120 (J)	05/2007 - 10/2012	1
48824A - BRACKET, FRONT STABILIZER, NO.1 RH
48824-26210	ZRE120	10/2012 - 12/2999	1
48824-26210	ZRE120	05/2007 - 10/2012	1
48829A - BRACKET, FRONT STABILIZER, NO.1 LH
48824-26210	ZRE120	05/2007 - 10/2012	1
48824-26210	ZRE120	10/2012 - 12/2999	1
Common parts
90119-08C04
90178-08010

ZRE120L-GEMDKC (2007)

(0402- )
