ZRE120L-GEMDKC (2007)
Toyota Corolla (China)
Production
May 2007
-
Feb 2017
Engine
1ZRFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0402- )

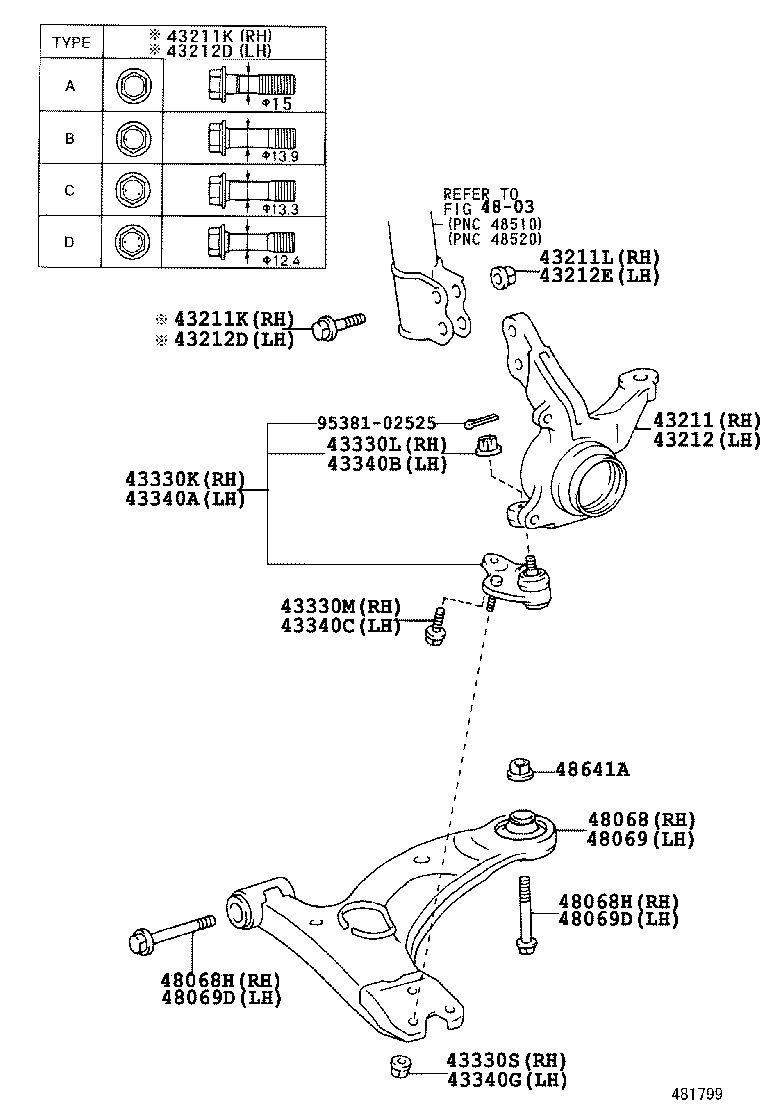

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43211 - KNUCKLE, STEERING, RH | ||||
| 43211-02140 |
ZRE120 |
1 | ||
| 43211-02140 |
ZRE120 |
1 | ||
| 43211K - BOLT (FOR STEERING KNUCKLE RH) | ||||
| 90105-15004 |
ZRE120 OD=13.9 |
1 | ||
| 90105-15001 |
ZRE120 OD=15.0 |
2 | ||
| 90105-15006 |
ZRE120 OD=12.4 |
1 | ||
| 90105-15006 |
ZRE120 OD=12.4 |
1 | ||
| 90105-15004 |
ZRE120 OD=13.9 |
1 | ||
| 90105-15005 |
ZRE120 OD=13.3 |
1 | ||
| 90105-15001 |
ZRE120 OD=15.0 |
2 | ||
| 90105-15005 |
ZRE120 OD=13.3 |
1 | ||
| 43211L - NUT (FOR STEERING KNUCKLE RH) | ||||
| 90179-15006 |
ZRE120 |
2 | ||
| 90179-15006 |
ZRE120 |
2 | ||
| 43212 - KNUCKLE, STEERING, LH | ||||
| 43212-02140 |
ZRE120 |
1 | ||
| 43212-02140 |
ZRE120 |
1 | ||
| 43212D - BOLT (FOR STEERING KNUCKLE LH) | ||||
| 90105-15006 |
ZRE120 OD=12.4 |
1 | ||
| 90105-15005 |
ZRE120 OD=13.3 |
1 | ||
| 90105-15001 |
ZRE120 OD=15.0 |
2 | ||
| 90105-15004 |
ZRE120 OD=13.9 |
1 | ||
| 90105-15006 |
ZRE120 OD=12.4 |
1 | ||
| 90105-15004 |
ZRE120 OD=13.9 |
1 | ||
| 90105-15001 |
ZRE120 OD=15.0 |
2 | ||
| 90105-15005 |
ZRE120 OD=13.3 |
1 | ||
| 43212E - NUT (FOR STEERING KNUCKLE LH) | ||||
| 90179-15006 |
ZRE120 |
2 | ||
| 90179-15006 |
ZRE120 |
2 | ||
| 43330K - JOINT ASSY, LOWER BALL, FRONT RH | ||||
| 43330-09640 |
ZRE120 |
1 | ||
| 43330-09640 |
ZRE120 |
1 | ||
| 43330L - NUT, CASTLE (FOR FRONT LOWER BALL JOINT RH) | ||||
| 90171-14003 |
ZRE120 |
1 | ||
| 90171-14003 |
ZRE120 |
1 | ||
| 43330M - BOLT (FOR FRONT LOWER BALL JOINT RH) | ||||
| 90105-12156 |
ZRE120 |
1 | ||
| 90105-12156 |
ZRE120 |
1 | ||
| 43330S - NUT (FOR FRONT LOWER BALL JOINT RH) | ||||
| 90178-C0044 |
ZRE120 |
2 | ||
| 90178-C0044 |
ZRE120 |
2 | ||
| 43340A - JOINT ASSY, LOWER BALL, FRONT LH | ||||
| 43330-09640 |
ZRE120 |
1 | ||
| 43330-09640 |
ZRE120 |
1 | ||
| 43340B - NUT, CASTLE (FOR FRONT LOWER BALL JOINT LH) | ||||
| 90171-14003 |
ZRE120 |
1 | ||
| 90171-14003 |
ZRE120 |
1 | ||
| 43340C - BOLT (FOR FRONT LOWER BALL JOINT LH) | ||||
| 90105-12156 |
ZRE120 |
1 | ||
| 90105-12156 |
ZRE120 |
1 | ||
| 43340G - NUT (FOR FRONT LOWER BALL JOINT LH) | ||||
| 90178-C0044 |
ZRE120 |
2 | ||
| 90178-C0044 |
ZRE120 |
2 | ||
| 48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH | ||||
| 48068-02230 |
ZRE120 |
1 | ||
| 48068-02230 |
ZRE120 |
1 | ||
| 48068H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH) | ||||
| 90119-C0137 |
ZRE120 |
2 | ||
| 90119-C0137 |
ZRE120 |
2 | ||
| 48068H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH) | ||||
| 90119-C0137 |
ZRE120 |
2 | ||
| 90119-C0137 |
ZRE120 |
2 | ||
| 48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH | ||||
| 48069-02230 |
ZRE120 |
1 | ||
| 48069-02230 |
ZRE120 |
1 | ||
| 48069D - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH) | ||||
| 90119-C0137 |
ZRE120 |
2 | ||
| 90119-C0137 |
ZRE120 |
2 | ||
| 48069D - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH) | ||||
| 90119-C0137 |
ZRE120 |
2 | ||
| 90119-C0137 |
ZRE120 |
2 | ||
| 48641A - NUT(FOR SUSPENSION LOWER ARM SHAFT) | ||||
| 90178-C0030 |
ZRE120 |
2 | ||
| 90178-C0030 |
ZRE120 |
2 | ||
| Common parts | ||||
| 95381-02525 | ||||
| Linked diagrams | ||||
| 4803 | ||||
