Toyota Corolla (china) ZRE120 CLUTCH PEDAL & FLEXIBLE HOSE

ZRE120L-GEMDKC (2007)

Toyota Corolla (China)

Production May 2007 - Feb 2017

Engine 1ZRFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

Click highlighted areas on diagram

Part #	Description	Period	Qty
31301 - PEDAL SUB-ASSY, CLUTCH
31301-12470	ZRE120..5F	05/2007 - 10/2012	1
31301-12470	ZRE120..5F	10/2012 - 12/2999	1
31301A - SPRING(FOR CLUTCH PEDAL)
90507-14050	ZRE120..5F	05/2007 - 10/2012	1
90507-14050	ZRE120..5F	10/2012 - 12/2999	1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036	ZRE120..5F	10/2012 - 12/2999	1
90541-06036	ZRE120..5F	05/2007 - 10/2012	1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015	ZRE120..5F	05/2007 - 10/2012	2
90386-13015	ZRE120..5F	10/2012 - 12/2999	2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015	ZRE120..5F	05/2007 - 10/2012	2
90386-13015	ZRE120..5F	10/2012 - 12/2999	2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10369	ZRE120..5F	05/2007 - 11/2010	1
31301J - NUT(FOR CLUTCH PEDAL STOPPER)
94120-41000	ZRE120..5F	05/2007 - 11/2010	1
31321 - PAD, CLUTCH PEDAL
31321-52010	ZRE120..5F	05/2007 - 10/2012	1
31321-52010	ZRE120..5F	10/2012 - 12/2999	1
31324 - SHAFT, CLUTCH PEDAL
90109-10167	ZRE120..5F	05/2007 - 11/2010	1
90109-10174	ZRE120..5F	10/2012 - 12/2999	1
90109-10174	ZRE120..5F	11/2010 - 10/2012	1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90249-08243	ZRE120..5F L=30	10/2012 - 12/2999	1
90249-08243	ZRE120..5F L=30	05/2007 - 10/2012	1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002	ZRE120..5F	05/2007 - 10/2012	1
90386-08002	ZRE120..5F	10/2012 - 12/2999	1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-12220	ZRE120..5F	05/2007 - 07/2011	1
Common parts
90119-C0202
90179-10088
90468-16142
91621-J0814

Click highlighted areas on diagram

Part #	Description	Period	Qty

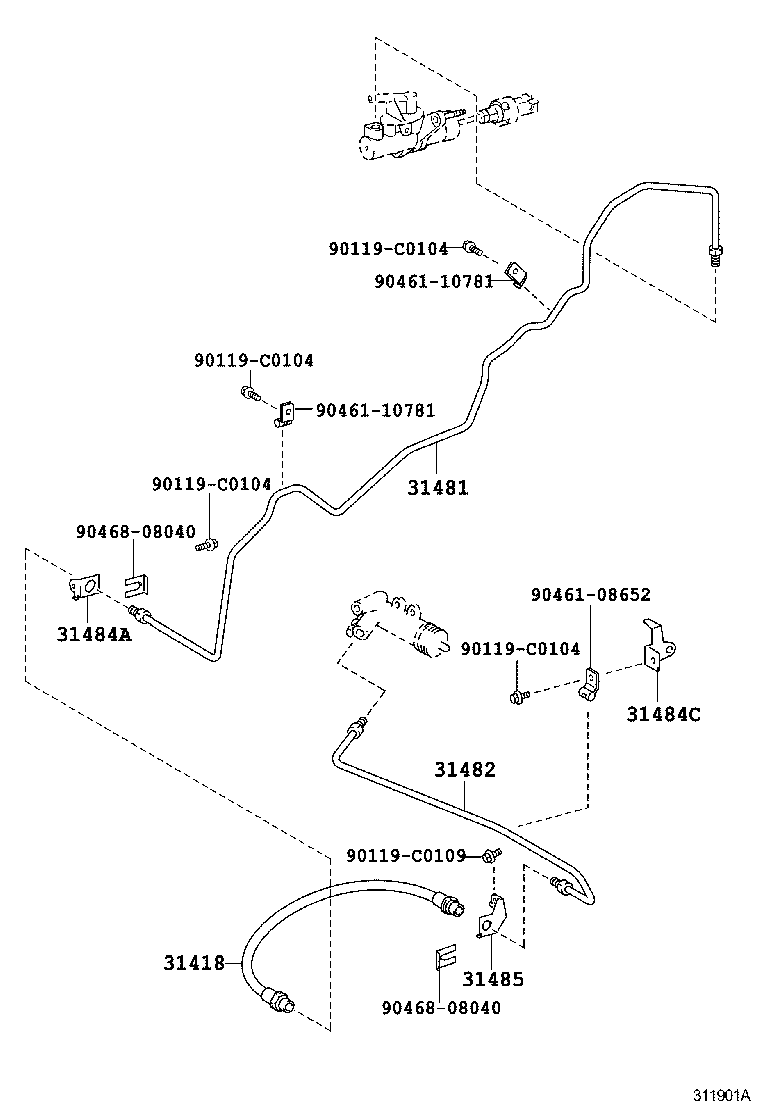

31418 - HOSE, CLUTCH
90947-C2019	ZRE120..5F	05/2007 - 10/2012	1
90947-C2019	ZRE120..5F	10/2012 - 12/2999	1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-02290	ZRE120..5F	10/2012 - 12/2999	1
31481-02290	ZRE120..5F	05/2007 - 10/2012	1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-02280	ZRE120..5F	10/2012 - 12/2999	1
31482-02280	ZRE120..5F	05/2007 - 10/2012	1
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-12380	ZRE120..5F	05/2007 - 03/2010	1
31484-02220	ZRE120..5F	10/2012 - 12/2999	1
31484-02220	ZRE120..5F	04/2010 - 10/2012	1
31484C - BRACKET, CLUTCH TUBE, NO.1
31484-52150	ZRE120..5F	05/2007 - 10/2012	1
31484-52150	ZRE120..5F	10/2012 - 02/2017	1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31484-02230	ZRE120..5F	04/2010 - 10/2012	1
31484-02230	ZRE120..5F	10/2012 - 12/2999	1
31484-12540	ZRE120..5F	05/2007 - 03/2010	1
Common parts
90119-C0104
90119-C0109
90461-08652
90461-10781
90468-08040
