ZRE120L-GEMDKC (2007)
Toyota Corolla (China)
(0705-1301)
12V 1.6KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28021 - CLUTCH SUB-ASSY, STARTER CENTER BEARING | ||||
| 28021-21060 |
1ZRFE..ZRE120 |
1 | ||
| 28021-37050 |
1ZRFE..ZRE120 |
1 | ||
| 28021-37050 |
1ZRFE..ZRE120 |
1 | ||

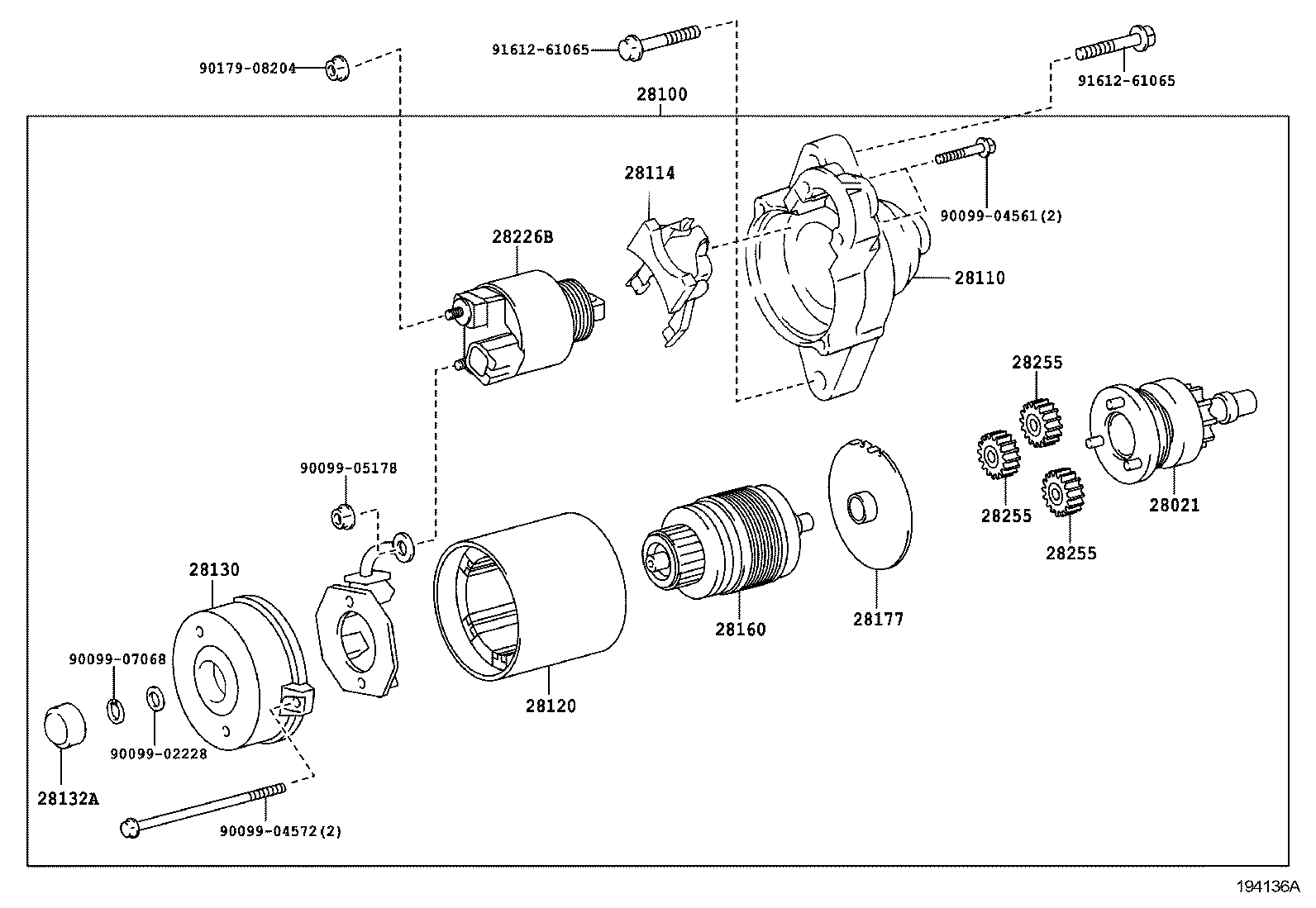

| 28100 - STARTER ASSY | ||||
| 28100-0T300 |
1ZRFE..ZRE120 12V 1.6KW |
1 | ||
| 28100-0T020 |
1ZRFE..ZRE120 12V 1.6KW |
1 | ||
| 28100-0T020 |
1ZRFE..ZRE120 12V 1.6KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-0T020 |
1ZRFE..ZRE120 |
1 | ||
| 28110-37040 |
1ZRFE..ZRE120 |
1 | ||
| 28113 - LEVER, STARTER PINION DRIVE | ||||
| 28113-0T020 |
1ZRFE..ZRE120 |
1 | ||
| 28117A - SEAL, RUBBER | ||||
| 28117-0T020 |
1ZRFE..ZRE120 |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-37050 |
1ZRFE..ZRE120 |
1 | ||
| 28120-37050 |
1ZRFE..ZRE120 |
1 | ||
| 28120-28060 |
1ZRFE..ZRE120 |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-37120 |
1ZRFE..ZRE120 |
1 | ||
| 28130-0T020 |
1ZRFE..ZRE120 |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-37050 |
1ZRFE..ZRE120 |
1 | ||
| 28140-0T020 |
1ZRFE..ZRE120 |
1 | ||
| 28140-0T020 |
1ZRFE..ZRE120 |
1 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-0T020 |
1ZRFE..ZRE120 |
1 | ||
| 28150-0T020 |
1ZRFE..ZRE120 |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-37050 |
1ZRFE..ZRE120 |
1 | ||
| 28160-0T020 |
1ZRFE..ZRE120 |
1 | ||
| 28160-21060 |
1ZRFE..ZRE120 |
1 | ||
| 28160-0T020 |
1ZRFE..ZRE120 |
1 | ||
| 28177 - PLATE(FOR STARTER ARMATURE) | ||||
| 28177-28040 |
1ZRFE..ZRE120 |
1 | ||
| 28177-0T020 |
1ZRFE..ZRE120 |
1 | ||
| 28199A - PROTECTOR, DUST STARTER | ||||
| 28199-37050 |
1ZRFE..ZRE120 |
1 | ||
| 28255 - GEAR, PLANET | ||||
| 28255-37050 |
1ZRFE..ZRE120 |
3 | ||
| 28255-28040 |
1ZRFE..ZRE120 |
3 | ||
| Common parts | ||||
| 90068-01017 | ||||
| 90099-00323 | ||||
| 90099-04617 | ||||
| 90099-05178 | ||||
| 90099-05289 | ||||
| 90179-08204 | ||||
| 91612-61065 | ||||
(1301- )
12V 1.6KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28021 - CLUTCH SUB-ASSY, STARTER CENTER BEARING | ||||
| 28021-21060 |
1ZRFE..ZRE120 |
1 | ||
| 28021-37050 |
1ZRFE..ZRE120 |
1 | ||
| 28021-37050 |
1ZRFE..ZRE120 |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-0T300 |
1ZRFE..ZRE120 12V 1.6KW |
1 | ||
| 28100-0T020 |
1ZRFE..ZRE120 12V 1.6KW |
1 | ||
| 28100-0T020 |
1ZRFE..ZRE120 12V 1.6KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-0T020 |
1ZRFE..ZRE120 |
1 | ||
| 28110-37040 |
1ZRFE..ZRE120 |
1 | ||
| 28114 - PIN, STARTER DRIVE LEVER SET | ||||
| 28114-21060 |
1ZRFE..ZRE120 |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-37050 |
1ZRFE..ZRE120 |
1 | ||
| 28120-37050 |
1ZRFE..ZRE120 |
1 | ||
| 28120-28060 |
1ZRFE..ZRE120 |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-37120 |
1ZRFE..ZRE120 |
1 | ||
| 28130-0T020 |
1ZRFE..ZRE120 |
1 | ||
| 28132A - COVER, STARTER COMMUTATOR END FRAME | ||||
| 28132-28040 |
1ZRFE..ZRE120 |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-37050 |
1ZRFE..ZRE120 |
1 | ||
| 28160-0T020 |
1ZRFE..ZRE120 |
1 | ||
| 28160-21060 |
1ZRFE..ZRE120 |
1 | ||
| 28160-0T020 |
1ZRFE..ZRE120 |
1 | ||
| 28177 - PLATE(FOR STARTER ARMATURE) | ||||
| 28177-28040 |
1ZRFE..ZRE120 |
1 | ||
| 28177-0T020 |
1ZRFE..ZRE120 |
1 | ||
| 28226B - STARTER KIT, REPAIR SERVICE | ||||
| 28226-37120 |
1ZRFE..ZRE120 |
1 | ||
| 28255 - GEAR, PLANET | ||||
| 28255-37050 |
1ZRFE..ZRE120 |
3 | ||
| 28255-28040 |
1ZRFE..ZRE120 |
3 | ||
| 28255 - GEAR, PLANET | ||||
| 28255-37050 |
1ZRFE..ZRE120 |
3 | ||
| 28255-28040 |
1ZRFE..ZRE120 |
3 | ||
| 28255 - GEAR, PLANET | ||||
| 28255-37050 |
1ZRFE..ZRE120 |
3 | ||
| 28255-28040 |
1ZRFE..ZRE120 |
3 | ||
| Common parts | ||||
| 90099-02228 | ||||
| 90099-04561 | ||||
| 90099-04572 | ||||
| 90099-05178 | ||||
| 90099-07068 | ||||
| 90179-08204 | ||||
| 91612-61065 | ||||
