ZRE120L-GEMDKC (2007)
Toyota Corolla (China)
Production
May 2007
-
Feb 2017
Engine
1ZRFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0705- )

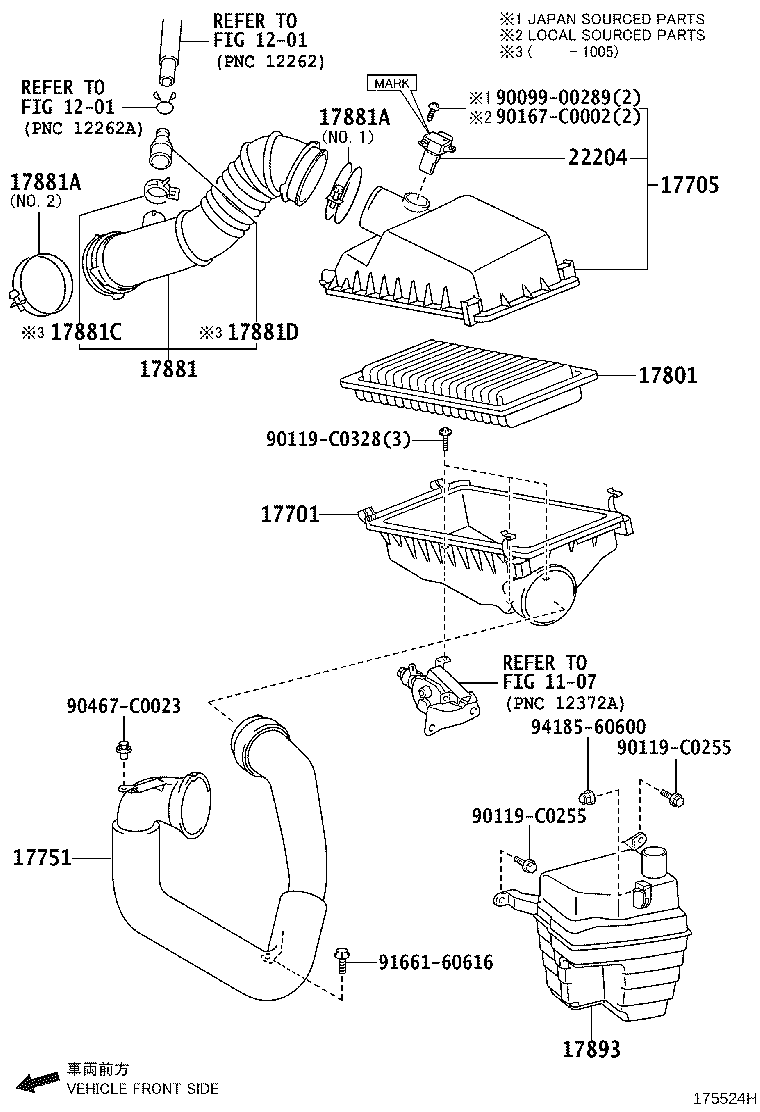

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17701 - CASE SUB-ASSY, AIR CLEANER | ||||
| 17701-0D071 |
1ZRFE..ZRE120 |
1 | ||
| 17701-0D071 |
1ZRFE..ZRE120 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-0T121 |
1ZRFE..ZRE120 |
1 | ||
| 17705-0T121 |
1ZRFE..ZRE120 |
1 | ||
| 17705-0T020 |
1ZRFE..ZRE120 |
1 | ||
| 17705-0T120 |
1ZRFE..ZRE120 |
1 | ||
| 17751 - INLET, AIR CLEANER, NO.1 | ||||
| 17751-22090 |
1ZRFE..ZRE120 |
1 | ||
| 17751-0T110 |
1ZRFE..ZRE120 |
1 | ||
| 17751-0T110 |
1ZRFE..ZRE120 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-0D050 |
1ZRFE..ZRE120 |
1 | ||
| 17801-0D050 |
1ZRFE..ZRE120 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17880-0T150 |
1ZRFE..ZRE120 |
1 | ||
| 17880-0T020 |
1ZRFE..ZRE120 |
1 | ||
| 17880-0T150 |
1ZRFE..ZRE120 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10800 |
1ZRFE..ZRE120 NO.1 |
1 | ||
| 96111-10780 |
1ZRFE..ZRE120 NO.2 |
1 | ||
| 96111-10730 |
1ZRFE..ZRE120 NO.1 |
1 | ||
| 96111-10730 |
1ZRFE..ZRE120 NO.1 |
1 | ||
| 96111-10780 |
1ZRFE..ZRE120 NO.2 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10800 |
1ZRFE..ZRE120 NO.1 |
1 | ||
| 96111-10780 |
1ZRFE..ZRE120 NO.2 |
1 | ||
| 96111-10730 |
1ZRFE..ZRE120 NO.1 |
1 | ||
| 96111-10730 |
1ZRFE..ZRE120 NO.1 |
1 | ||
| 96111-10780 |
1ZRFE..ZRE120 NO.2 |
1 | ||
| 17881C - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90467-38003 |
1ZRFE..ZRE120 |
1 | ||
| 17881D - TUBE, UNION(FOG AIR CLEANER HOSE) | ||||
| 90904-06008 |
1ZRFE..ZRE120 |
1 | ||
| 17893 - RESONATOR, INTAKE AIR | ||||
| 17893-0T030 |
1ZRFE..ZRE120 |
1 | ||
| 17893-0T030 |
1ZRFE..ZRE120 |
1 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-28010 |
1ZRFE..ZRE120 MARK 22204-28010 |
1 | ||
| 22204-0T010 |
1ZRFE..ZRE120 |
1 | ||
| 22204-0T040 |
1ZRFE..ZRE120 |
1 | ||
| 22204-28010 |
1ZRFE..ZRE120 MARK 22204-28010 |
1 | ||
| Common parts | ||||
| 90099-00289 | ||||
| 90119-C0255 | ||||
| 90119-C0328 | ||||
| 90167-C0002 | ||||
| 90467-C0023 | ||||
| 91661-60616 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 1107 | ||||
| 1201 | ||||
