ZRE120L-GEMDKC (2007)

Toyota Corolla (China)

Production May 2007 - Feb 2017
Engine 1ZRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0705- )

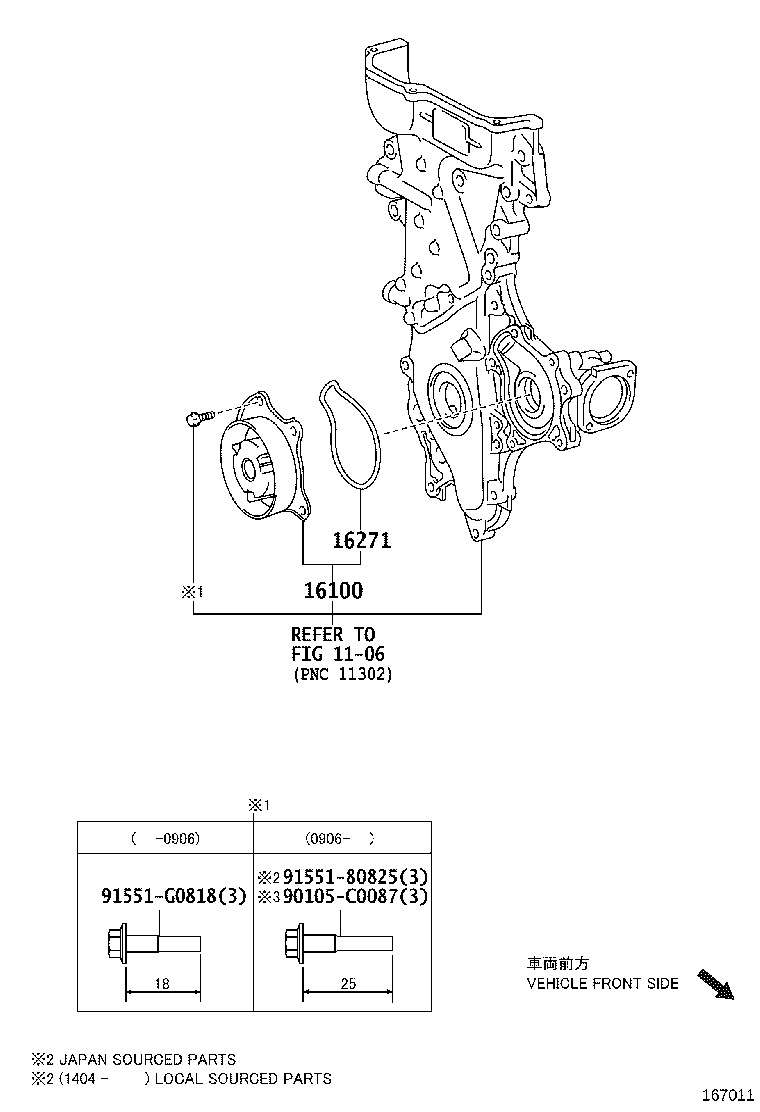

Click highlighted areas on diagram

diagram 1106 16100 16271 90105C0087 9155180825 91551G0818
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-39465

1ZRFE..ZRE120

(J)

 1
16100-39466

1ZRFE..ZRE120

(J)

 1
16100-09550

1ZRFE..ZRE120

(L)

 1
16100-09550

1ZRFE..ZRE120

(L)

 1
16271 - GASKET, WATER PUMP
16271-37010

1ZRFE..ZRE120

 1
16271-37010

1ZRFE..ZRE120

 1
Common parts
90105-C0087
91551-80825
91551-G0818
Linked diagrams
1106
