ZRE120L-GEMDKC (2007)
Toyota Corolla (China)

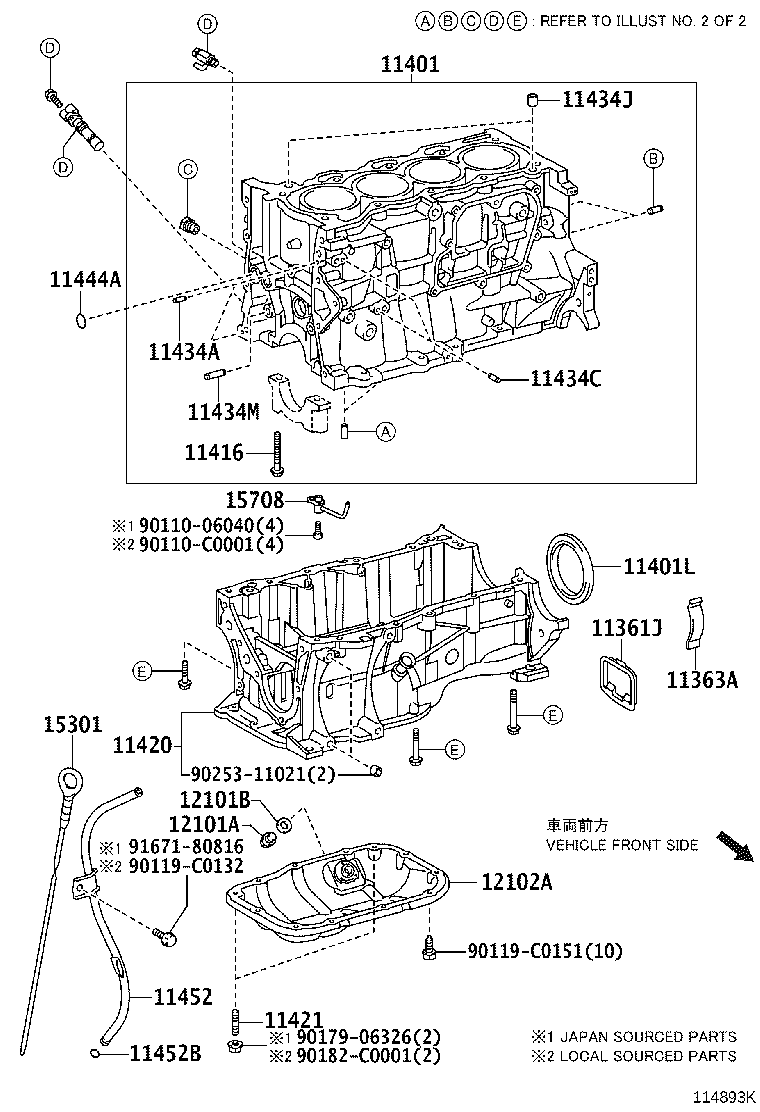

ILLUST NO. 1 OF 2(0705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11361J - COVER, FLYWHEEL HOUSING UNDER | ||||
| 11361-21011 |
1ZRFE..ZRE120 |
1 | ||
| 11361-21011 |
1ZRFE..ZRE120 |
1 | ||
| 11361-21011 |
1ZRFE..ZRE120 (J) |
1 | ||
| 11361-0T020 |
1ZRFE..ZRE120 (L) |
1 | ||
| 11363A - COVER, FLYWHEEL HOUSING SIDE | ||||
| 11363-21010 |
1ZRFE..ZRE120 |
1 | ||
| 11363-0T020 |
1ZRFE..ZRE120 (L) |
1 | ||
| 11363-21010 |
1ZRFE..ZRE120 |
1 | ||
| 11363-21010 |
1ZRFE..ZRE120 (J) |
1 | ||
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11410-39015 |
1ZRFE..ZRE120 (J) |
1 | ||
| 11410-09280 |
1ZRFE..ZRE120 (L) |
1 | ||
| 11410-39047 |
1ZRFE..ZRE120 (J) |
1 | ||
| 11410-09330 |
1ZRFE..ZRE120 (L) |
1 | ||
| 11410-09500 |
1ZRFE..ZRE120 (L) |
1 | ||
| 11410-09480 |
1ZRFE..ZRE120 (L) |
1 | ||
| 11410-39235 |
1ZRFE..ZRE120 (J) |
1 | ||
| 11410-09501 |
1ZRFE..ZRE120 (L) |
1 | ||
| 11410-09480 |
1ZRFE..ZRE120 (L) |
1 | ||
| 11410-39047 |
1ZRFE..ZRE120 (J) |
1 | ||
| 11410-39045 |
1ZRFE..ZRE120 (J) |
1 | ||
| 11401L - SEAL, ENGINE REAR OIL | ||||
| 90311-C0029 |
1ZRFE..ZRE120 (L) |
1 | ||
| 90311-C0029 |
1ZRFE..ZRE120 (L) |
1 | ||
| 90311-C0007 |
1ZRFE..ZRE120 (L),NOK |
1 | ||
| 90311-76002 |
1ZRFE..ZRE120 (J) |
1 | ||
| 90311-C0007 |
1ZRFE..ZRE120 (L),NOK |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90910-02163 |
1ZRFE..ZRE120 |
10 | ||
| 90910-02163 |
1ZRFE..ZRE120 |
10 | ||
| 11420 - CRANKCASE ASSY, STIFFENING | ||||
| 11420-0T020 |
1ZRFE..ZRE120 (L) |
1 | ||
| 11420-37010 |
1ZRFE..ZRE120 (J) |
1 | ||
| 11420-0T020 |
1ZRFE..ZRE120 (L) |
1 | ||
| 11421 - BOLT, STUD(FOR OIL PAN) | ||||
| 90126-06028 |
1ZRFE..ZRE120 |
2 | ||
| 90126-06028 |
1ZRFE..ZRE120 |
2 | ||
| 90126-C0001 |
1ZRFE..ZRE120 |
2 | ||
| 90126-06015 |
1ZRFE..ZRE120 |
2 | ||
| 11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET) | ||||
| 90250-04097 |
1ZRFE..ZRE120 L=12,OD=4.0,(J) |
2 | ||
| 90250-C0009 |
1ZRFE..ZRE120 L=12,OD=4.0,(L) |
2 | ||
| 90250-C0009 |
1ZRFE..ZRE120 L=12,OD=4.0,(L) |
2 | ||
| 90250-04097 |
1ZRFE..ZRE120 L=12,OD=4.0 |
2 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90250-C0009 |
1ZRFE..ZRE120 L=12,OD=4.0,(L) |
2 | ||
| 90250-04097 |
1ZRFE..ZRE120 L=12,OD=4.0 |
2 | ||
| 90250-04097 |
1ZRFE..ZRE120 L=12,OD=4.0,(J) |
2 | ||
| 90250-C0009 |
1ZRFE..ZRE120 L=12,OD=4.0,(L) |
2 | ||
| 11434J - PIN, RING (FOR CYLINDER HEAD SET) | ||||
| 90253-C0003 |
1ZRFE..ZRE120 (L) |
2 | ||
| 90253-13001 |
1ZRFE..ZRE120 (J) |
2 | ||
| 90253-C0003 |
1ZRFE..ZRE120 (L) |
2 | ||
| 90253-13001 |
1ZRFE..ZRE120 |
2 | ||
| 11434M - PIN, STRAIGHT(FOR CHAIN TENSIONER) | ||||
| 90250-10030 |
1ZRFE..ZRE120 |
1 | ||
| 90250-C0006 |
1ZRFE..ZRE120 (L) |
1 | ||
| 90250-C0006 |
1ZRFE..ZRE120 (L) |
1 | ||
| 90250-10030 |
1ZRFE..ZRE120 (J) |
1 | ||
| 11444A - RING, O | ||||
| 96723-24020 |
1ZRFE..ZRE120 (J) |
1 | ||
| 90301-C0033 |
1ZRFE..ZRE120 (L) |
1 | ||
| 90301-C0033 |
1ZRFE..ZRE120 (L) |
1 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11452-37010 |
1ZRFE..ZRE120 |
1 | ||
| 11452-0T020 |
1ZRFE..ZRE120 |
1 | ||
| 11452-37011 |
1ZRFE..ZRE120 |
1 | ||
| 11452-37011 |
1ZRFE..ZRE120 |
1 | ||
| 11452B - RING, O(FOR OIL LEVEL GAGE GUIDE) | ||||
| 96721-19010 |
1ZRFE..ZRE120 (J) |
1 | ||
| 90301-C0007 |
1ZRFE..ZRE120 (L) |
1 | ||
| 90301-C0007 |
1ZRFE..ZRE120 (L) |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-12012 |
1ZRFE..ZRE120 |
1 | ||
| 90341-12012 |
1ZRFE..ZRE120 |
1 | ||
| 90341-C0013 |
1ZRFE..ZRE120 |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-12031 |
1ZRFE..ZRE120 |
1 | ||
| 90430-12031 |
1ZRFE..ZRE120 (J) |
1 | ||
| 90430-C0005 |
1ZRFE..ZRE120 (L) |
1 | ||
| 90430-C0005 |
1ZRFE..ZRE120 (L) |
1 | ||
| 12102A - PAN SUB-ASSY, OIL, NO.2 | ||||
| 12102-37010 |
1ZRFE..ZRE120 |
1 | ||
| 12102-0T010 |
1ZRFE..ZRE120 |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-37010 |
1ZRFE..ZRE120 |
1 | ||
| 15301-0T030 |
1ZRFE..ZRE120 |
1 | ||
| 15301-0T030 |
1ZRFE..ZRE120 |
1 | ||
| 15708 - NOZZLE SUB-ASSY, OIL, NO.1 | ||||
| 15708-37010 |
1ZRFE..ZRE120 |
4 | ||
| 15708-37011 |
1ZRFE..ZRE120 |
4 | ||
| 15708-37011 |
1ZRFE..ZRE120 |
4 | ||
| 15708-37012 |
1ZRFE..ZRE120 |
4 | ||
| Common parts | ||||
| 90110-06040 | ||||
| 90110-C0001 | ||||
| 90119-C0132 | ||||
| 90119-C0151 | ||||
| 90179-06326 | ||||
| 90182-C0001 | ||||
| 90253-11021 | ||||
| 91671-80816 | ||||
ILLUST NO. 2 OF 2(0705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11401G - SENSOR, CRANK POSITION | ||||
| 90919-05070 |
1ZRFE..ZRE120 |
1 | ||
| 90919-05070 |
1ZRFE..ZRE120 |
1 | ||
| 11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK) | ||||
| 90910-09129 |
1ZRFE..ZRE120 |
1 | ||
| 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) | ||||
| 90910-09087 |
1ZRFE..ZRE120 |
1 | ||
| 11432A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90345-52001 |
1ZRFE..ZRE120 NO.2 |
1 | ||
| 90345-53006 |
1ZRFE..ZRE120 NO.1 |
1 | ||
| 90345-52001 |
1ZRFE..ZRE120 NO.2 |
1 | ||
| 90345-53006 |
1ZRFE..ZRE120 NO.1 |
1 | ||
| 11432A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90345-52001 |
1ZRFE..ZRE120 NO.2 |
1 | ||
| 90345-53006 |
1ZRFE..ZRE120 NO.1 |
1 | ||
| 90345-52001 |
1ZRFE..ZRE120 NO.2 |
1 | ||
| 90345-53006 |
1ZRFE..ZRE120 NO.1 |
1 | ||
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90250-10113 |
1ZRFE..ZRE120 L=22,OD=10 |
2 | ||
| 90250-10113 |
1ZRFE..ZRE120 L=22,OD=10 |
2 | ||
| 11434Y - PIN, STRAIGHT(FOR OIL PAN) | ||||
| 90250-C0011 |
1ZRFE..ZRE120 (L),L=18 |
2 | ||
| 90250-08074 |
1ZRFE..ZRE120 L=15 |
2 | ||
| 90250-08120 |
1ZRFE..ZRE120 (J),L=18 |
2 | ||
| 90250-C0011 |
1ZRFE..ZRE120 (L),L=18 |
2 | ||
| Common parts | ||||
| 90105-C0081 | ||||
| 90105-C0119 | ||||
| 90105-C0121 | ||||
| 90119-08B47 | ||||
| 91551-80616 | ||||
| 91551-F0835 | ||||
| 91551-F0870 | ||||
