NRE181L-GEXNZC (2016)

Toyota Corolla (China)

Production Oct 2016 - Mar 2017
Engine 9NRFTS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1610- )NRE181..CVT

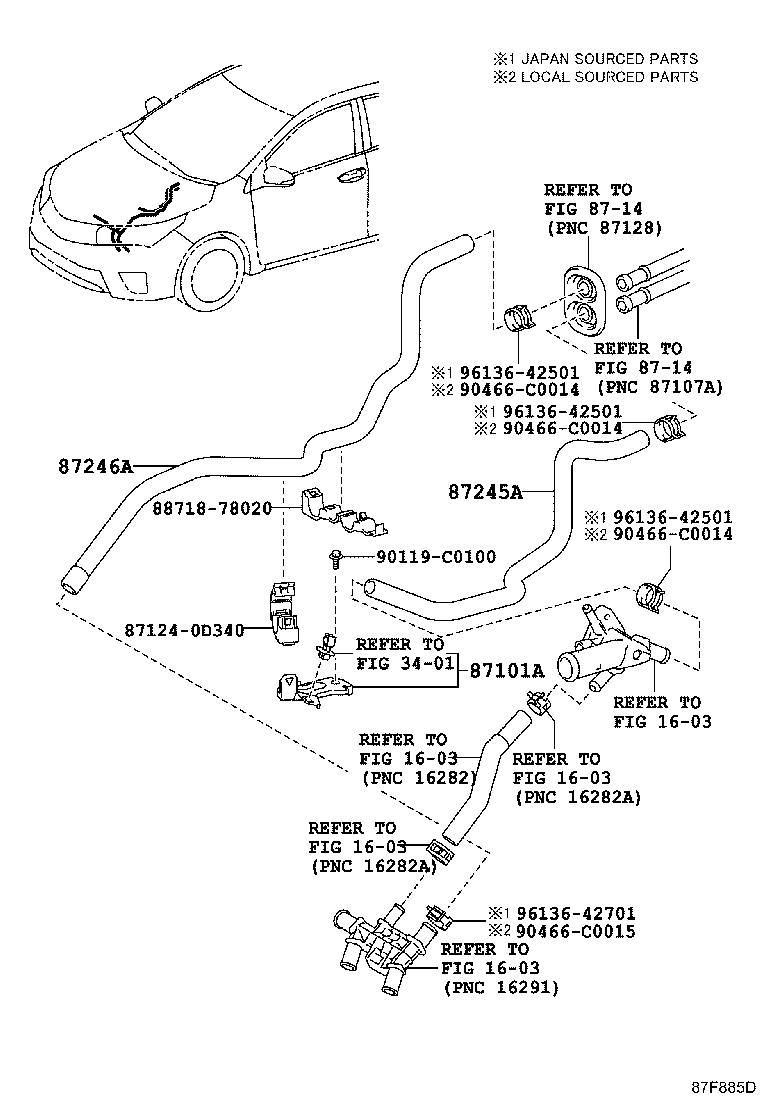

Click highlighted areas on diagram

diagram 1603 1603 1603 1603 1603 3401 87101A 871240D340 8714 8714 87245A 87246A 8871878020 90119C0100 90466C0014 90466C0014 90466C0014 90466C0015 9613642501 9613642501 9613642501 9613642701
Part # Description Qty Price
87101A - BRACKET SUB-ASSY, HEATER NO.1
87101-02140

NRE181..CVT

 1
87245A - HOSE, HEATER WATER, INLET A
87245-02G40

NRE181

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-02Q40

NRE181..CVT

 1
Common parts
87124-0D340
88718-78020
90119-C0100
90466-C0014
90466-C0015
96136-42501
96136-42701
Linked diagrams
1603
3401
8714
