NRE181L-GEXNZC (2016)

Toyota Corolla (China)

Production Oct 2016 - Mar 2017
Engine 9NRFTS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1610- )9NRFTS..CVT

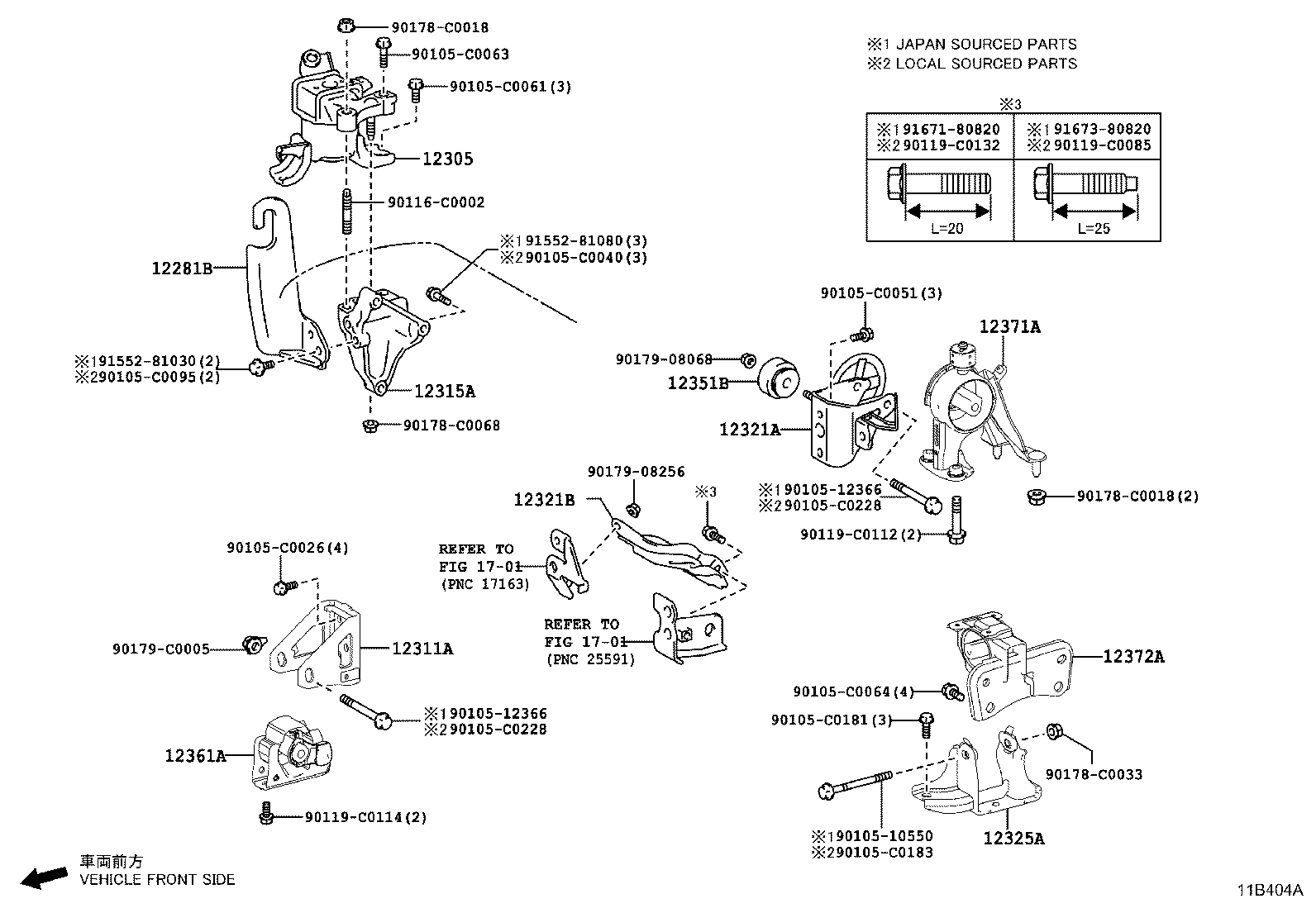

Click highlighted areas on diagram

diagram 12281B 12305 12311A 12315A 12321A 12321B 12325A 12351B 12361A 12371A 12372A 1701 1701 9010510550 9010512366 9010512366 90105C0026 90105C0040 90105C0051 90105C0061 90105C0063 90105C0064 90105C0095 90105C0181 90105C0183 90105C0228 90105C0228 90116C0002 90119C0085 90119C0112 90119C0114 90119C0132 90178C0018 90178C0018 90178C0033 90178C0068 9017908068 9017908256 90179C0005 9155281030 9155281080 9167180820 9167380820
Part # Description Qty Price
12281B - HANGER, ENGINE, NO.1
12281-0Y090

9NRFTS..NRE181

 1
12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12305-0Y200

9NRFTS..NRE181

 1
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-0T470

9NRFTS..NRE181

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-0Y080

9NRFTS..NRE181

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-0T210

9NRFTS..NRE181..CVT

 1
12321B - INSULATOR SUB-ASSY, DRIVE SHAFT HEAT
43409-02090

9NRFTS..NRE181

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-0T190

9NRFTS..NRE181..CVT

 1
12351B - DAMPER, ENGINE MOUNTING
12351-0T020

9NRFTS..NRE181..CVT

 1
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-0T330

9NRFTS..NRE181..CVT

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-0Y020

9NRFTS..NRE181..CVT

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-0T480

9NRFTS..NRE181..CVT

 1
Common parts
90105-10550
90105-12366
90105-C0026
90105-C0040
90105-C0051
90105-C0061
90105-C0063
90105-C0064
90105-C0095
90105-C0181
90105-C0183
90105-C0228
90116-C0002
90119-C0085
90119-C0112
90119-C0114
90119-C0132
90178-C0018
90178-C0033
90178-C0068
90179-08068
90179-08256
90179-C0005
91552-81030
91552-81080
91671-80820
91673-80820
Linked diagrams
1701
