NRE181L-GEXGZC (2016)
Toyota Corolla (China)

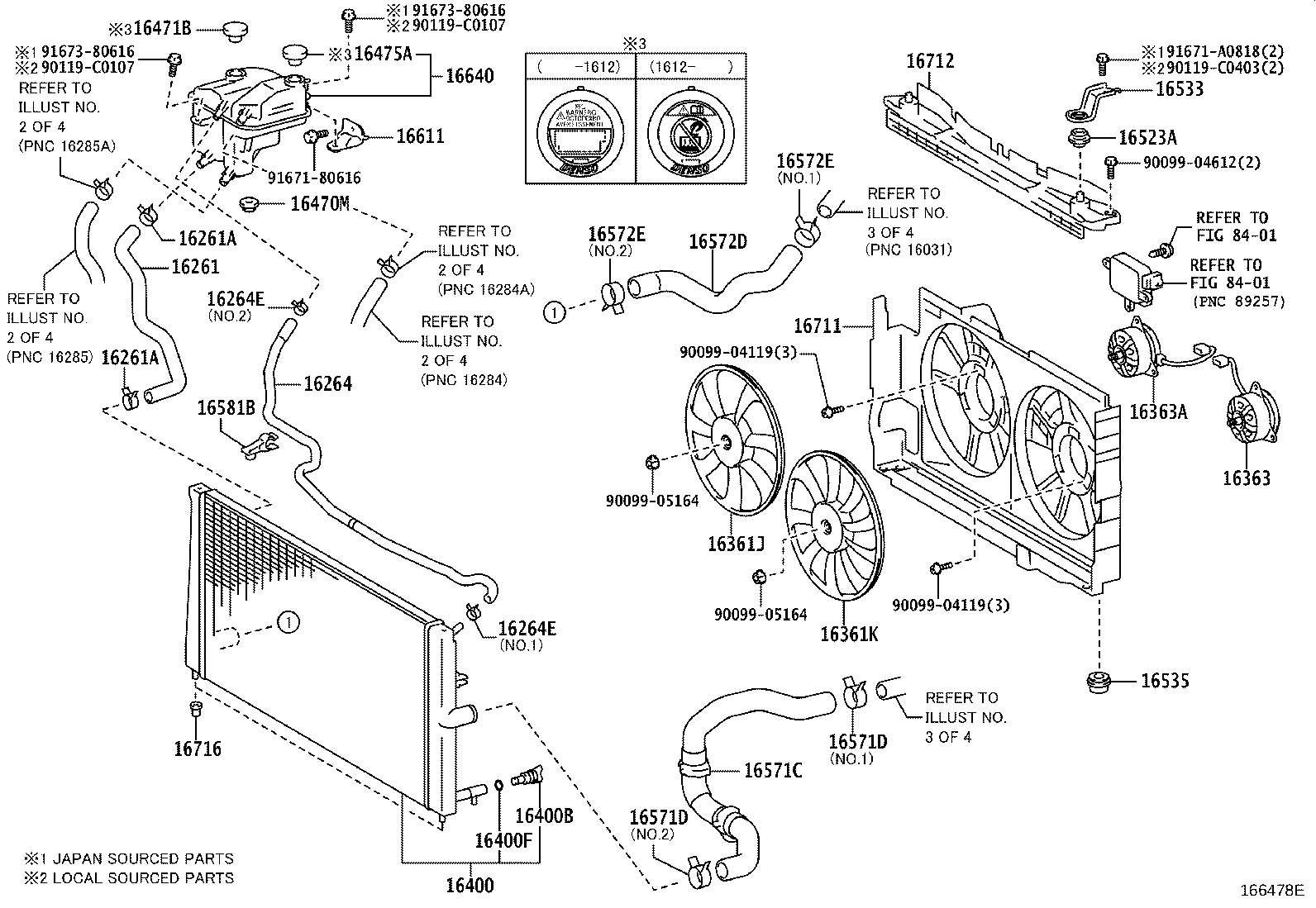

ILLUST NO. 1 OF 4(1610- )9NRFTS
RADIATOR SIDE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-0Y150 |
9NRFTS..NRE181 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90466-C0014 |
9NRFTS..NRE181 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90466-C0014 |
9NRFTS..NRE181 |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-0Y170 |
9NRFTS..NRE181 |
1 | ||
| 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90466-C0013 |
9NRFTS..NRE181 NO.2:REFER ILLUST. |
1 | ||
| 90466-C0039 |
9NRFTS..NRE181 NO.1:REFER ILLUST. |
1 | ||
| 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90466-C0013 |
9NRFTS..NRE181 NO.2:REFER ILLUST. |
1 | ||
| 90466-C0039 |
9NRFTS..NRE181 NO.1:REFER ILLUST. |
1 | ||
| 16361J - FAN, RH | ||||
| 16361-0Y270 |
9NRFTS..NRE181 |
1 | ||
| 16361K - FAN, LH | ||||
| 16361-0Y260 |
9NRFTS..NRE181 |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-0Y060 |
9NRFTS..NRE181 |
1 | ||
| 16363A - MOTOR, COOLING FAN, NO.2 | ||||
| 16363-0Y080 |
9NRFTS..NRE181 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-0Y270 |
9NRFTS..NRE181 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-0H290 |
9NRFTS..NRE181 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-0P460 |
9NRFTS..NRE181 |
1 | ||
| 16470M - GROMMET | ||||
| 90480-18010 |
9NRFTS..NRE181 (J) |
1 | ||
| 90480-C0007 |
9NRFTS..NRE181 (L) |
1 | ||
| 16471B - CAP, RESERVE TANK | ||||
| 16475-37011 |
9NRFTS..NRE181 |
1 | ||
| 16475-28140 |
9NRFTS..NRE181 |
1 | ||
| 16475A - CAP, RESERVE TANK | ||||
| 16475-28140 |
9NRFTS..NRE181 |
1 | ||
| 16475-37011 |
9NRFTS..NRE181 |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-0T080 |
9NRFTS..NRE181 |
2 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16534-0T020 |
9NRFTS..NRE181 |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-0Y020 |
9NRFTS..NRE181 |
2 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-0Y260 |
9NRFTS..NRE181 |
1 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-0Y220 |
9NRFTS..NRE181 |
1 | ||
| 16581B - CLAMP, HOSE(FOR RADIATOR HOSE) | ||||
| 16581-0T060 |
9NRFTS..NRE181 |
1 | ||
| 16611 - BRACKET, RADIATOR RESERVE TANK | ||||
| 16611-0Y020 |
9NRFTS..NRE181 |
1 | ||
| 16640 - TANK ASSY, INTERCOOLER RESERVE | ||||
| 16640-0Y030 |
9NRFTS..NRE181 |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-0Y240 |
9NRFTS..NRE181 |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-0Y030 |
9NRFTS..NRE181 |
1 | ||
| 16716 - CUSHION, FAN SHROUD | ||||
| 16716-37010 |
9NRFTS..NRE181 |
6 | ||
| Common parts | ||||
| 90099-04119 | ||||
| 90099-04612 | ||||
| 90099-05164 | ||||
| 90119-C0107 | ||||
| 90119-C0403 | ||||
| 91671-80616 | ||||
| 91671-A0818 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 8401 | ||||

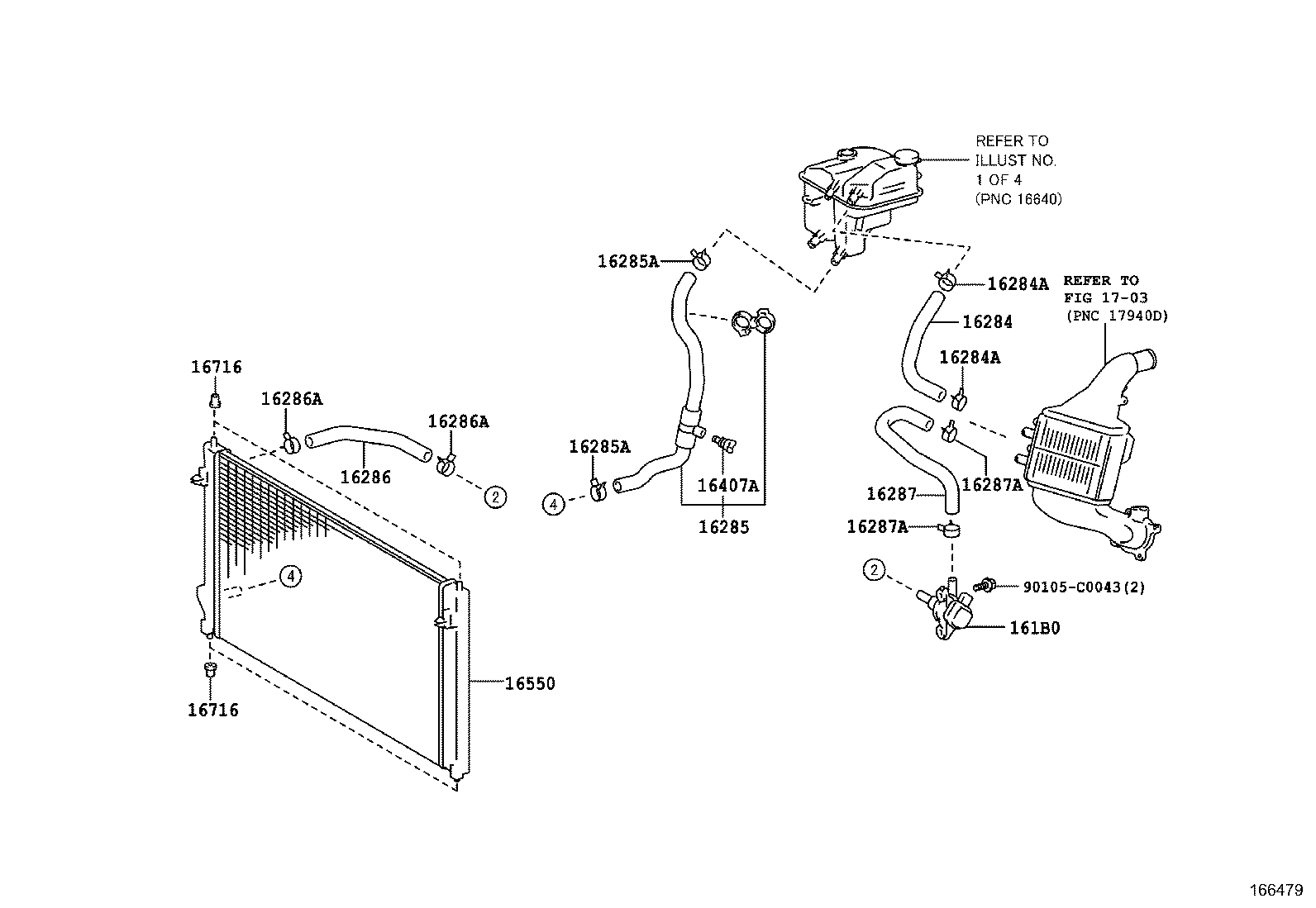

ILLUST NO. 2 OF 4(1610- )9NRFTS
INTERCOOLER COOLING RADIATOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 161B0 - PUMP ASSY, ELECTRIC WATER | ||||
| 161B0-0Y010 |
9NRFTS..NRE181 (L) |
1 | ||
| 161B0-47010 |
9NRFTS..NRE181 (J) |
1 | ||
| 16284 - HOSE, TURBO WATER, NO.1 | ||||
| 16284-0Y020 |
9NRFTS..NRE181 |
1 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 90466-C0014 |
9NRFTS..NRE181 |
2 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 90466-C0014 |
9NRFTS..NRE181 |
2 | ||
| 16285 - HOSE, TURBO WATER, NO.2 | ||||
| 16285-0Y060 |
9NRFTS..NRE181 |
1 | ||
| 16285A - CLIP(FOR TURBO WATER HOSE NO.2) | ||||
| 90466-C0014 |
9NRFTS..NRE181 |
2 | ||
| 16285A - CLIP(FOR TURBO WATER HOSE NO.2) | ||||
| 90466-C0014 |
9NRFTS..NRE181 |
2 | ||
| 16286 - HOSE, TURBO WATER, NO.3 | ||||
| 16286-0Y060 |
9NRFTS..NRE181 |
1 | ||
| 16286A - CLIP(FOR TURBO WATER HOSE NO.3) | ||||
| 90466-C0014 |
9NRFTS..NRE181 |
2 | ||
| 16286A - CLIP(FOR TURBO WATER HOSE NO.3) | ||||
| 90466-C0014 |
9NRFTS..NRE181 |
2 | ||
| 16287 - HOSE, TURBO WATER, NO.4 | ||||
| 16287-0Y020 |
9NRFTS..NRE181 |
1 | ||
| 16287A - CLIP(FOR TURBO WATER HOSE NO.4) | ||||
| 90466-C0014 |
9NRFTS..NRE181 |
2 | ||
| 16287A - CLIP(FOR TURBO WATER HOSE NO.4) | ||||
| 90466-C0014 |
9NRFTS..NRE181 |
2 | ||
| 16407A - COCK SUB-ASSY, RADIATOR DRAIN | ||||
| 16407-64010 |
9NRFTS..NRE181 |
1 | ||
| 16550 - RADIATOR ASSY, INTERCOOLER COOLING | ||||
| 16550-0Y060 |
9NRFTS..NRE181 |
1 | ||
| 16716 - CUSHION, FAN SHROUD | ||||
| 16716-37010 |
9NRFTS..NRE181 |
6 | ||
| 16716 - CUSHION, FAN SHROUD | ||||
| 16716-37010 |
9NRFTS..NRE181 |
6 | ||
| Common parts | ||||
| 90105-C0043 | ||||
| Linked diagrams | ||||
| 1703 | ||||

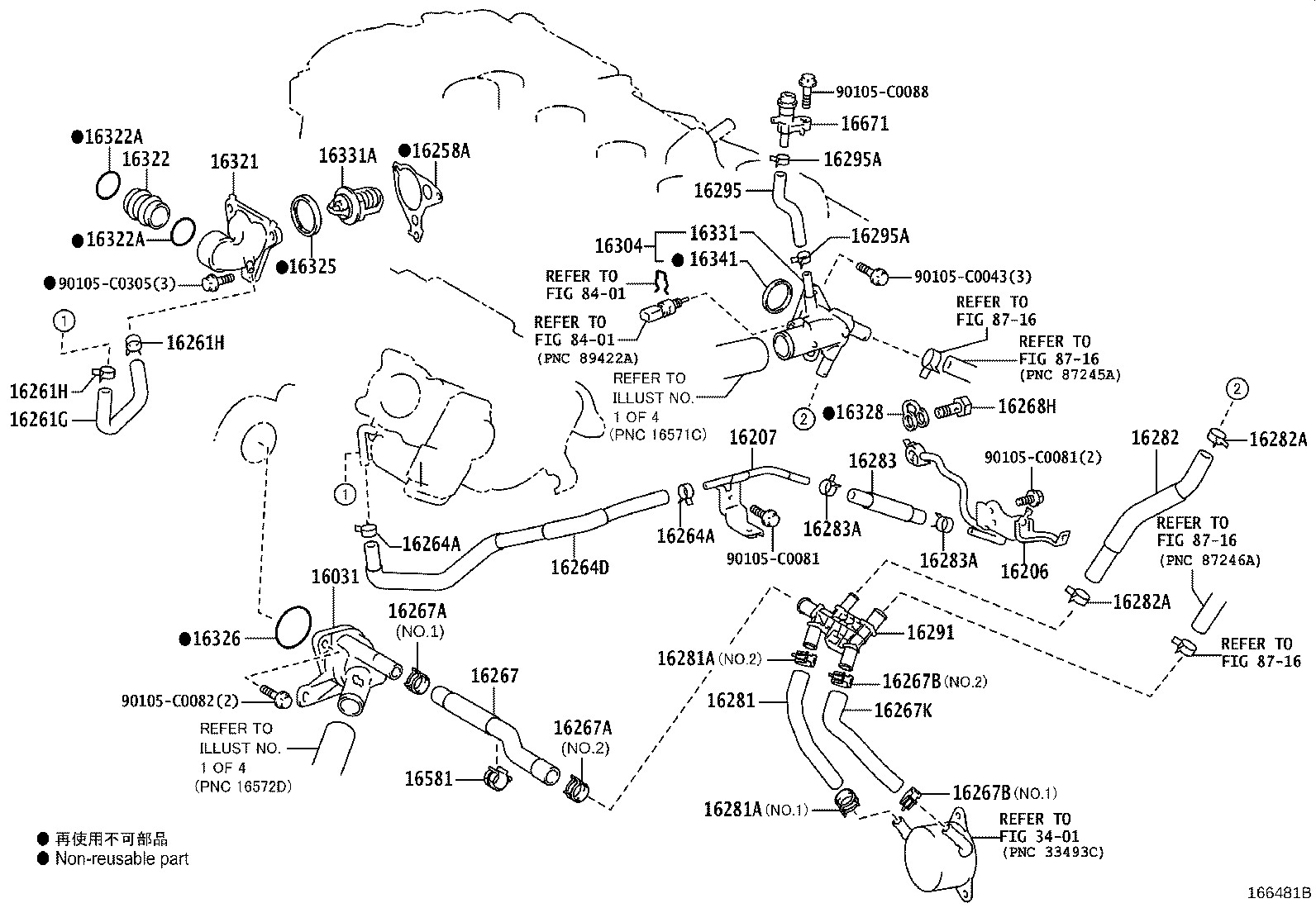

ILLUST NO. 3 OF 4(1610-1703)9NRFTS..CVT
ENGINE SIDE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16031 - WATER INLET SUB-ASSY, W/THERMOSTAT | ||||
| 16031-0Y020 |
9NRFTS..NRE181 |
1 | ||
| 16206 - PIPE SUB-ASSY, WATER BY-PASS | ||||
| 16206-0Y010 |
9NRFTS..NRE181 |
1 | ||
| 16207 - PIPE SUB-ASSY, WATER BY-PASS, NO.2 | ||||
| 16207-0Y010 |
9NRFTS..NRE181 |
1 | ||
| 16258A - GASKET(FOR HEATER RETURN) | ||||
| 16258-0Y020 |
9NRFTS..NRE181 |
1 | ||
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-0Y130 |
9NRFTS..NRE181 |
1 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90466-C0044 |
9NRFTS..NRE181 |
2 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90466-C0044 |
9NRFTS..NRE181 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90466-C0044 |
9NRFTS..NRE181 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90466-C0044 |
9NRFTS..NRE181 |
2 | ||
| 16264D - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-0Y150 |
9NRFTS..NRE181 |
1 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-0Y110 |
9NRFTS..NRE181..CVT |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90466-C0015 |
9NRFTS..NRE181..CVT NO.2:REFER ILLUST. |
1 | ||
| 90466-C0014 |
9NRFTS..NRE181..CVT NO.1:REFER ILLUST. |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90466-C0015 |
9NRFTS..NRE181..CVT NO.2:REFER ILLUST. |
1 | ||
| 90466-C0014 |
9NRFTS..NRE181..CVT NO.1:REFER ILLUST. |
1 | ||
| 16267B - CLIP(FOR WATER BY-PASS HOSE) | ||||
| 90466-C0014 |
9NRFTS..NRE181..CVT NO.2:REFER ILLUST. |
1 | ||
| 90466-C0031 |
9NRFTS..NRE181..CVT NO.1:REFER ILLUST. |
1 | ||
| 16267B - CLIP(FOR WATER BY-PASS HOSE) | ||||
| 90466-C0014 |
9NRFTS..NRE181..CVT NO.2:REFER ILLUST. |
1 | ||
| 90466-C0031 |
9NRFTS..NRE181..CVT NO.1:REFER ILLUST. |
1 | ||
| 16267K - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-0Y150 |
9NRFTS..NRE181..CVT |
1 | ||
| 16268H - BOLT, UNION(FOR WATER BY-PASS PIPE) | ||||
| 90401-14003 |
9NRFTS..NRE181 |
1 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-0Y120 |
9NRFTS..NRE181..CVT |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 90466-C0031 |
9NRFTS..NRE181..CVT NO.1:REFER ILLUST. |
1 | ||
| 90466-C0014 |
9NRFTS..NRE181..CVT NO.2:REFER ILLUST. |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 90466-C0031 |
9NRFTS..NRE181..CVT NO.1:REFER ILLUST. |
1 | ||
| 90466-C0014 |
9NRFTS..NRE181..CVT NO.2:REFER ILLUST. |
1 | ||
| 16282 - HOSE, WATER BY-PASS, NO.5 | ||||
| 16282-0Y010 |
9NRFTS..NRE181..CVT |
1 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90466-C0004 |
9NRFTS..NRE181..CVT |
2 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90466-C0004 |
9NRFTS..NRE181..CVT |
2 | ||
| 16283 - HOSE, WATER BY-PASS, NO.6 | ||||
| 16283-0Y010 |
9NRFTS..NRE181 |
1 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 90466-C0044 |
9NRFTS..NRE181 |
2 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 90466-C0044 |
9NRFTS..NRE181 |
2 | ||
| 16291 - JOINT, WATER HOSE | ||||
| 87251-02020 |
9NRFTS..NRE181..CVT |
1 | ||
| 16295 - HOSE, WATER BY-PASS, NO.7 | ||||
| 16295-0Y010 |
9NRFTS..NRE181 |
1 | ||
| 16295A - CLIP(FOR WATER BY-PASS HOSE NO.7) | ||||
| 90466-C0003 |
9NRFTS..NRE181 |
2 | ||
| 16295A - CLIP(FOR WATER BY-PASS HOSE NO.7) | ||||
| 90466-C0003 |
9NRFTS..NRE181 |
2 | ||
| 16304 - OUTLET SUB-ASSY, WATER | ||||
| 16304-0Y020 |
9NRFTS..NRE181 |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-0Y030 |
9NRFTS..NRE181 |
1 | ||
| 16322 - PIPE, WATER INLET | ||||
| 16322-0Y010 |
9NRFTS..NRE181 |
1 | ||
| 16322A - RING, O(FOR WATER INLET) | ||||
| 90301-C0079 |
9NRFTS..NRE181 |
2 | ||
| 16322A - RING, O(FOR WATER INLET) | ||||
| 90301-C0079 |
9NRFTS..NRE181 |
2 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-0Y010 |
9NRFTS..NRE181 |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16326-0Y020 |
9NRFTS..NRE181 |
1 | ||
| 16328 - GASKET, WATER INLET PIPE | ||||
| 16328-0Y010 |
9NRFTS..NRE181 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-0Y020 |
9NRFTS..NRE181 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-C3009 |
9NRFTS..NRE181 *WAX 78-91 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-0Y010 |
9NRFTS..NRE181 |
1 | ||
| 16581 - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 16581-47080 |
9NRFTS..NRE181 |
1 | ||
| 16671 - VALVE, WATER | ||||
| 16671-0Y010 |
9NRFTS..NRE181 |
1 | ||
| Common parts | ||||
| 90105-C0043 | ||||
| 90105-C0081 | ||||
| 90105-C0082 | ||||
| 90105-C0088 | ||||
| 90105-C0305 | ||||
| Linked diagrams | ||||
| 3401 | ||||
| 8401 | ||||
| 8716 | ||||

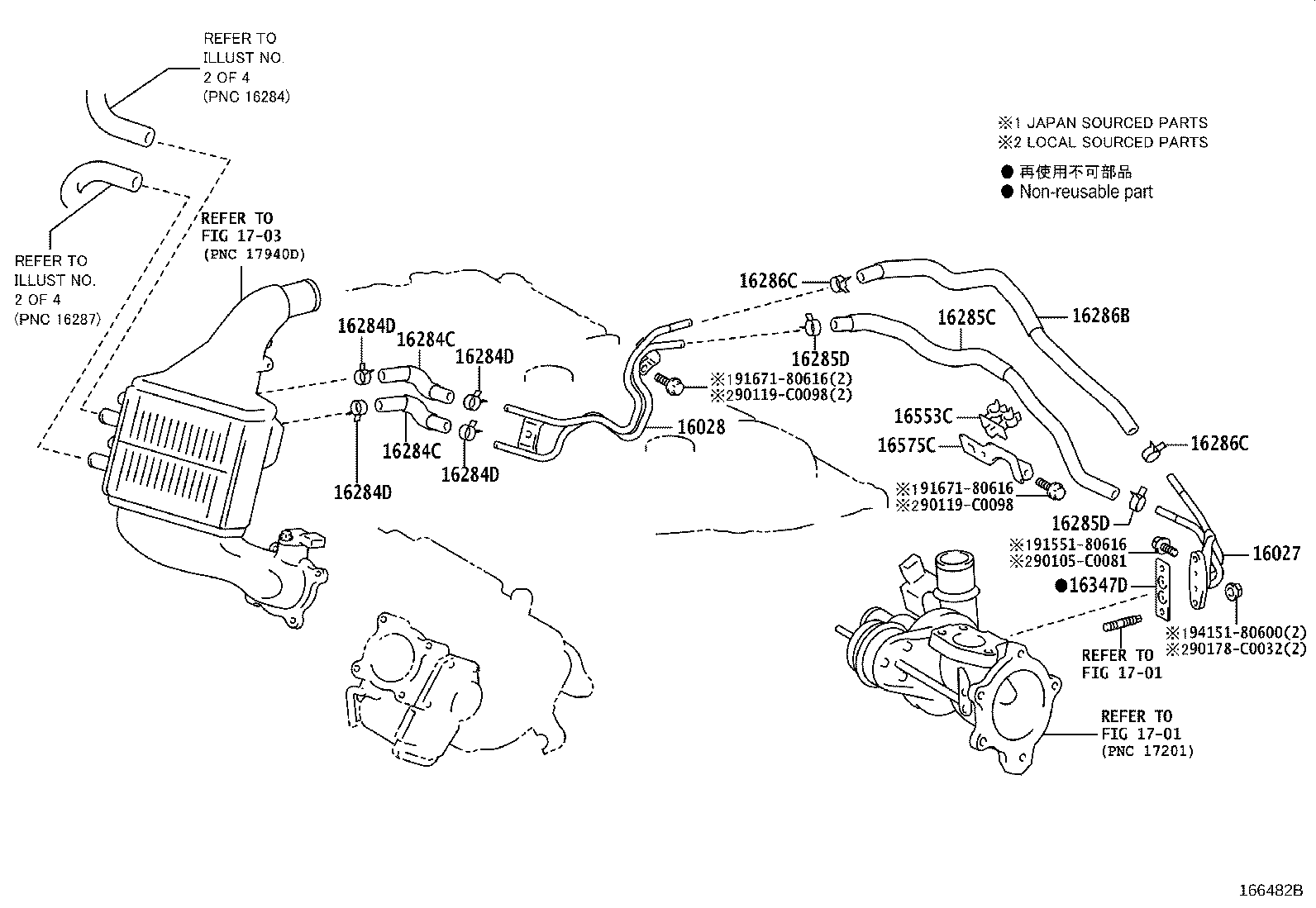

ILLUST NO. 4 OF 4(1610- )9NRFTS
INTERCOOLER SIDE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16027 - PIPE SUB-ASSY, TURBO WATER, NO.1 | ||||
| 16027-0Y010 |
9NRFTS..NRE181 |
1 | ||
| 16028 - PIPE SUB-ASSY, TURBO WATER, NO.2 | ||||
| 16028-0Y010 |
9NRFTS..NRE181 |
1 | ||
| 16284C - HOSE, INTERCOOLER WATER, NO.1 | ||||
| 16284-0Y040 |
9NRFTS..NRE181 |
2 | ||
| 16284C - HOSE, INTERCOOLER WATER, NO.1 | ||||
| 16284-0Y040 |
9NRFTS..NRE181 |
2 | ||
| 16284D - CLIP(FOR INTERCOOLER WATER HOSE NO.1) | ||||
| 90466-C0044 |
9NRFTS..NRE181 |
4 | ||
| 16284D - CLIP(FOR INTERCOOLER WATER HOSE NO.1) | ||||
| 90466-C0044 |
9NRFTS..NRE181 |
4 | ||
| 16284D - CLIP(FOR INTERCOOLER WATER HOSE NO.1) | ||||
| 90466-C0044 |
9NRFTS..NRE181 |
4 | ||
| 16284D - CLIP(FOR INTERCOOLER WATER HOSE NO.1) | ||||
| 90466-C0044 |
9NRFTS..NRE181 |
4 | ||
| 16285C - HOSE, INTERCOOLER WATER, NO.2 | ||||
| 16285-0Y040 |
9NRFTS..NRE181 |
1 | ||
| 16285D - CLIP(FOR INTERCOOLER WATER HOSE NO.2) | ||||
| 90466-C0044 |
9NRFTS..NRE181 |
2 | ||
| 16285D - CLIP(FOR INTERCOOLER WATER HOSE NO.2) | ||||
| 90466-C0044 |
9NRFTS..NRE181 |
2 | ||
| 16286B - HOSE, INTERCOOLER WATER, NO.3 | ||||
| 16286-0Y040 |
9NRFTS..NRE181 |
1 | ||
| 16286C - CLIP(FOR INTERCOOLER WATER HOSE NO.3) | ||||
| 90466-C0044 |
9NRFTS..NRE181 |
2 | ||
| 16286C - CLIP(FOR INTERCOOLER WATER HOSE NO.3) | ||||
| 90466-C0044 |
9NRFTS..NRE181 |
2 | ||
| 16347D - GASKET, WATER BY-PASS | ||||
| 16347-0Y010 |
9NRFTS..NRE181 |
1 | ||
| 16553C - CLAMP, HOSE | ||||
| 16581-0Y050 |
9NRFTS..NRE181 |
1 | ||
| 16575C - BRACKET, WATER HOSE CLAMP, NO.1 | ||||
| 16575-0Y020 |
9NRFTS..NRE181 |
1 | ||
| Common parts | ||||
| 90105-C0081 | ||||
| 90119-C0098 | ||||
| 90178-C0032 | ||||
| 91551-80616 | ||||
| 91671-80616 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1701 | ||||
| 1703 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
