NRE181L-GEXGZC (2017)

Toyota Corolla (China)

Production Apr 2017 - Jul 2019
Engine 9NRFTS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1406- )

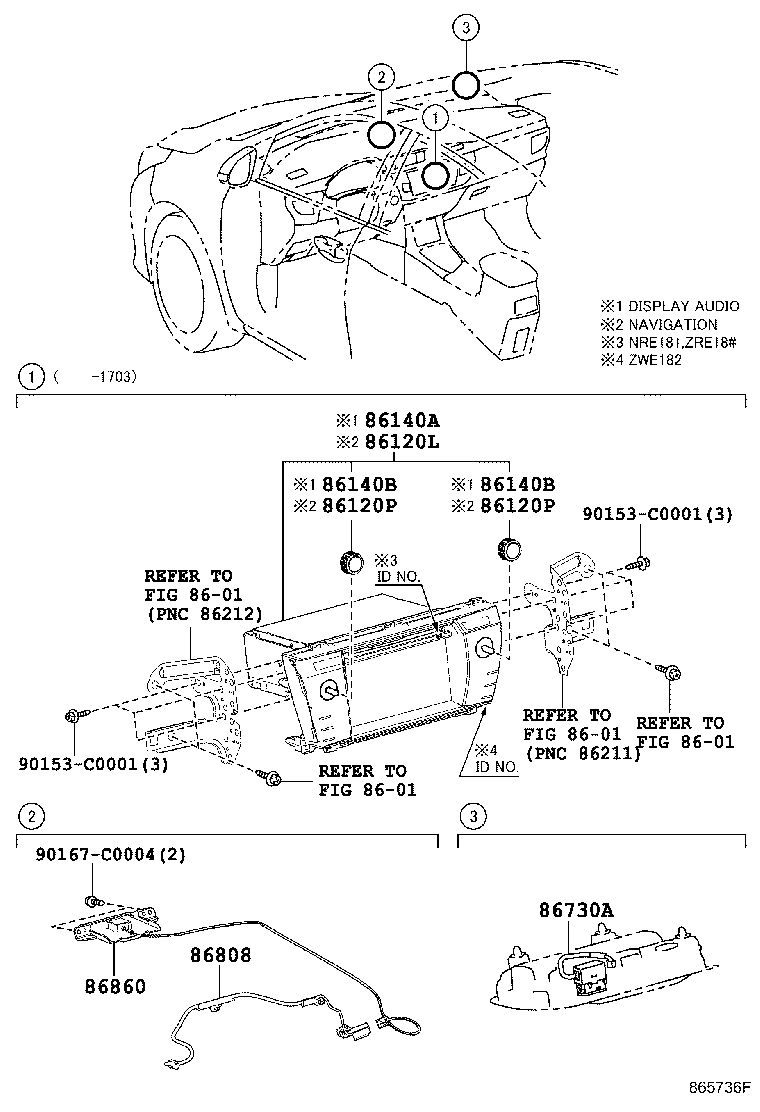

Click highlighted areas on diagram

diagram 8601 8601 8601 8601 86120L 86120P 86120P 86140A 86140B 86140B 86730A 86808 86860 90153C0001 90153C0001 90167C0004
Part # Description Qty Price
86140A - RECEIVER ASSY, RADIO & DISPLAY
86140-02200

NRE181,ZRE18#..GLXI

FUJITSU TEN,ID100304

 1
86140B - KNOB, RADIO & DISPLAY RECEIVER SWITCH
90011-25240

NRE181,ZRE18#,ZWE182..GLXI

 2
86140B - KNOB, RADIO & DISPLAY RECEIVER SWITCH
90011-25240

NRE181,ZRE18#,ZWE182..GLXI

 2
86730A - MICROPHONE ASSY, TELEPHONE
86730-06020

NRE181,ZRE18#,ZWE182..GLXI,PREM

 1
86730-06020

NRE181..GLI,GLXI;ZWE182..GLXI,PREM

AUDIO-*DA(ACCESSORY) & *BT & 6SPEAKER

 1
Common parts
90153-C0001
90167-C0004
Linked diagrams
8601
