NRE181L-GEXGZC (2017)
Toyota Corolla (China)

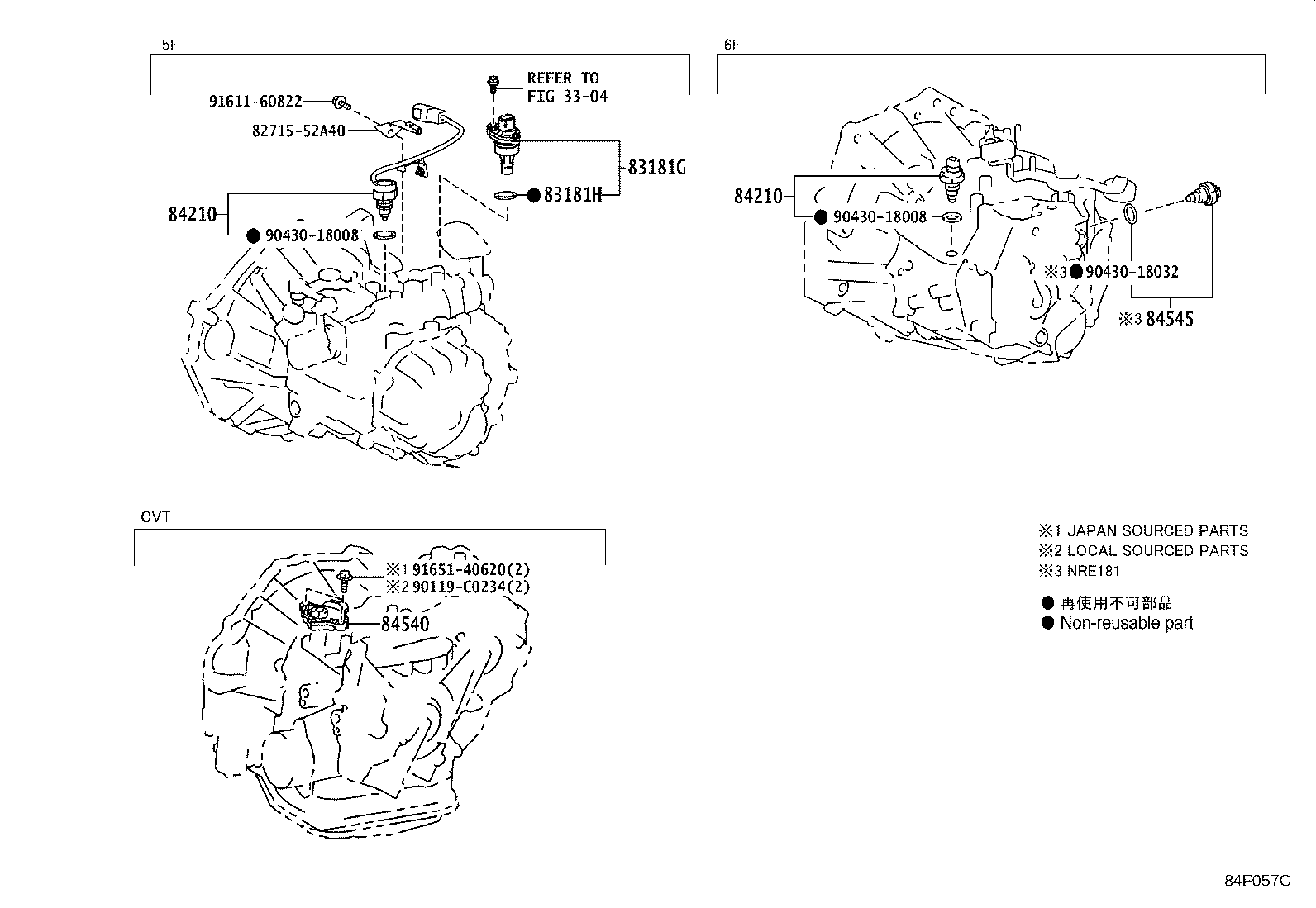

ILLUST NO. 2 OF 9(1406- )NRE181,ZRE18#
TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-02020 |
NRE181..CVT TMCAP:REFER 34-01 |
1 | ||
| 84540-52070 |
NRE181..CVT TMH:REFER 34-01 |
1 | ||
| 84540-02020 |
NRE181..CVT TMCAP:REFER 34-01 |
1 | ||
| 84540-52070 |
NRE181..CVT TMH:REFER 34-01 |
1 | ||
| Common parts | ||||
| 82715-52A40 | ||||
| 90119-C0234 | ||||
| 90430-18008 | ||||
| 90430-18032 | ||||
| 91611-60822 | ||||
| 91651-40620 | ||||
| Linked diagrams | ||||
| 3304 | ||||

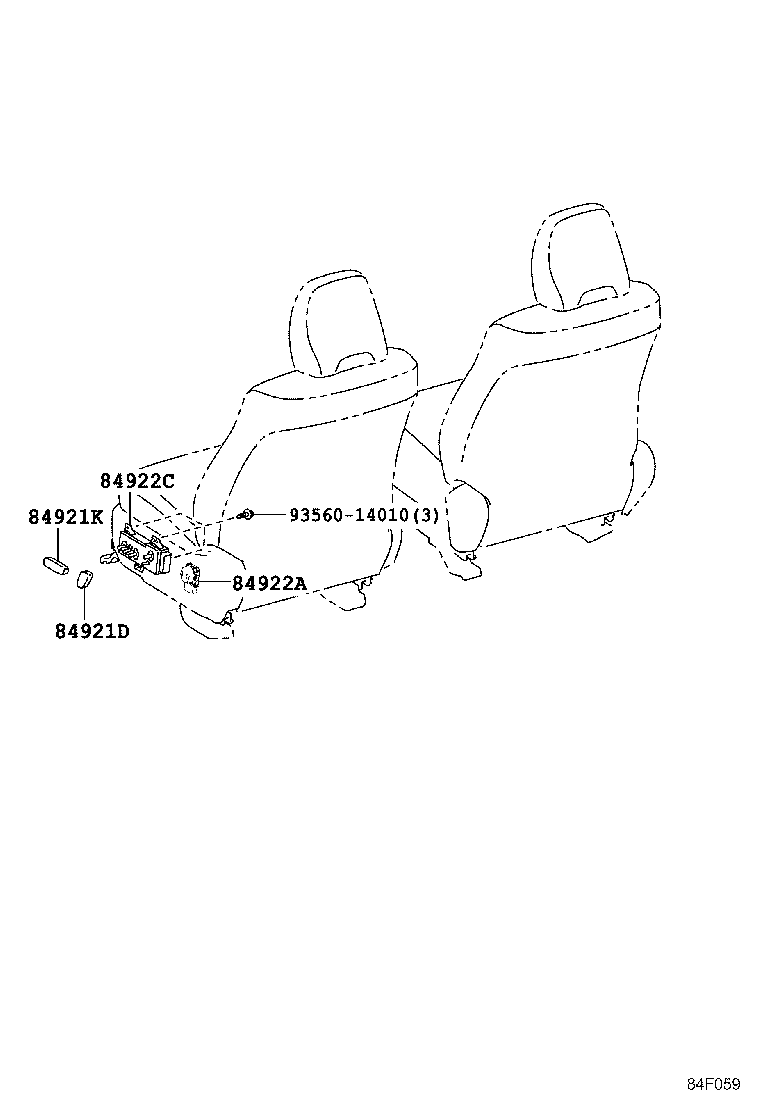

ILLUST NO. 8 OF 9(1406- )
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 93560-14010 | ||||
ILLUST NO. 7 OF 9(1406- )
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-02020 |
NRE181..GL,GLI |
1 | ||
| 84052-02020 |
NRE181..CVT..(GL,GLI) VFM PACKAGE(*CRC & *SES) |
1 | ||
| 84052-02020 |
NRE181..GL,GLI |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-02C00 |
NRE181,ZRE18#,ZWE182..GLXI,PREM |
1 | ||
| 84140-02C10 |
NRE181..GL |
1 | ||
| 84140-02C00 |
NRE181,ZWE182..GLXI,PREM |
1 | ||
| 84140-02C10 |
NRE181..GL |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-02660C0 |
NRE181,ZRE181..GLXI BLACK,TRIM0#,2# |
1 | ||
| 84250-02B40C0 |
NRE181..GLI,GLXI AUDIO-*DA(ACCESSORY) & *BT & 6SPEAKER,BLACK,TRIM0#,2# |
1 | ||
| 84250-02650C0 |
NRE181..GLXI BLACK,TRIM0#,2# |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84308-02020 |
NRE181..CVT..GL VFM PACKAGE(*CRC & *SES) |
1 | ||
| 84308-02020 |
ZWE182;NRE181,ZRE182..GLXI,PREM |
1 | ||
| 84308-02020 |
ZWE182;NRE181..GLXI |
1 | ||
| 84308-02070 |
NRE181..GL,GLI |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84308-02020 |
NRE181..CVT..GL VFM PACKAGE(*CRC & *SES) |
1 | ||
| 84308-02020 |
ZWE182;NRE181,ZRE182..GLXI,PREM |
1 | ||
| 84308-02020 |
ZWE182;NRE181..GLXI |
1 | ||
| 84308-02070 |
NRE181..GL,GLI |
1 | ||
| 84307 - CABLE SUB-ASSY, SPIRAL W/SENSOR | ||||
| 84307-02240 |
NRE181..GL,GLI |
1 | ||
| 84307-02300 |
NRE181..CVT..GL VFM PACKAGE(*CRC & *SES) |
1 | ||
| 84307-02300 |
ZWE182;NRE181..GLXI |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-02050 |
NRE181..GL,GLI |
1 | ||
| 84450-02050 |
NRE181..CVT..(GL,GLI) VFM PACKAGE(*CRC & *SES) |
1 | ||
| 84450-02050 |
NRE181..GL,GLI |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-02860 |
NRE181,ZWE182..GL,GLI,GLXI |
1 | ||
| 84652-02860 |
NRE181,ZRE18#;ZWE182..GLI,GLXI |
1 | ||
| 85432 - SOLENOID, KEY INTER LOCK | ||||
| 85432-02020 |
NRE181..CVT..(GL,GLI) |
1 | ||
| 85432-02020 |
NRE181..CVT..(GL,GLI) |
1 | ||
| 85432-02020 |
NRE181..CVT..(GL,GLI) VFM PACKAGE(*CRC & *SES) |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 8924B-0N010 |
NRE181,ZWE182 |
1 | ||
| Common parts | ||||
| 90159-C0010 | ||||
| 90168-40113 | ||||
| 90168-C0001 | ||||
| Linked diagrams | ||||
| 4501 | ||||
ILLUST NO. 9 OF 9(1406- )
DOOR,ROOF,FLOOR & LUGGAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-02160 |
NRE181 |
1 | ||
| 83320-02160 |
NRE181,ZRE18# |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-02160 |
NRE181 |
1 | ||
| 83320-02160 |
NRE181,ZRE18# |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-0R010 |
ZRE182..CVT;NRE181,ZWE182 |
2 | ||
| 84231-0R010 |
NRE181,ZWE182 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-0R010 |
ZRE182..CVT;NRE181,ZWE182 |
2 | ||
| 84231-0R010 |
NRE181,ZWE182 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-0R010 |
NRE181,ZWE182 |
2 | ||
| 84231-0R010 |
ZRE182..CVT;NRE181,ZWE182 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-0R010 |
NRE181,ZWE182 |
2 | ||
| 84231-0R010 |
ZRE182..CVT;NRE181,ZWE182 |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-0D080 |
NRE181,ZRE18#,ZWE182 |
1 | ||
| 84810-0D080 |
NRE181,ZWE182 |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-0D080 |
NRE181,ZWE182 |
2 | ||
| 84810-0D080 |
NRE181,ZRE18#,ZWE182 |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-0D080 |
NRE181,ZWE182 |
2 | ||
| 84810-0D080 |
NRE181,ZRE18#,ZWE182 |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-0R050 |
NRE181..GLI,GLXI;ZWE182..GLXI,PREM |
1 | ||
| 84820-02380 |
ZWE182..GLI;NRE181,ZRE181..GL |
1 | ||
| 84820-0R050 |
ZWE182..GLXI,PREM;NRE181,ZRE18#..GLI,GLXI,PREM |
1 | ||
| 84820-02380 |
NRE181..GL;ZWE182..GLI |
1 | ||
| Common parts | ||||
| 90164-C0009 | ||||
| 90166-C0004 | ||||
| 90166-C0005 | ||||
ILLUST NO. 5 OF 9(1406- )NRE181,ZRE18#
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
NRE181,ZWE182 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08306 |
ZRE182..CVT;NRE181,ZWE182 30A,TERM.:FEMALE,PNK |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
NRE181,ZWE182 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08306 |
ZRE182..CVT;NRE181,ZWE182 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09022 |
ZRE182..CVT;NRE181,ZWE182 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09020 |
ZRE182..CVT;NRE181,ZWE182 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09019 |
ZRE182..CVT;NRE181,ZWE182 5A,MINI FUSE,TAN |
1 | ||
| 90982-09024 |
ZRE182..CVT;NRE181,ZWE182 25A,MINI FUSE |
1 | ||
| 90982-09023 |
ZRE182..CVT;NRE181,ZWE182 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09019 |
NRE181,ZWE182 5A,MINI FUSE,TAN |
1 | ||
| 90982-09021 |
ZRE182..CVT;NRE181,ZWE182 10A,MINI FUSE,RED |
1 | ||
| 90982-09022 |
NRE181,ZWE182 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09021 |
NRE181,ZWE182 10A,MINI FUSE,RED |
1 | ||
| 90982-09020 |
NRE181,ZWE182 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09024 |
NRE181,ZWE182 25A,MINI FUSE |
1 | ||
| 90982-09023 |
NRE181,ZWE182 20A,MINI FUSE,YELLOW |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09022 |
ZRE182..CVT;NRE181,ZWE182 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09020 |
ZRE182..CVT;NRE181,ZWE182 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09019 |
ZRE182..CVT;NRE181,ZWE182 5A,MINI FUSE,TAN |
1 | ||
| 90982-09024 |
ZRE182..CVT;NRE181,ZWE182 25A,MINI FUSE |
1 | ||
| 90982-09023 |
ZRE182..CVT;NRE181,ZWE182 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09019 |
NRE181,ZWE182 5A,MINI FUSE,TAN |
1 | ||
| 90982-09021 |
ZRE182..CVT;NRE181,ZWE182 10A,MINI FUSE,RED |
1 | ||
| 90982-09022 |
NRE181,ZWE182 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09021 |
NRE181,ZWE182 10A,MINI FUSE,RED |
1 | ||
| 90982-09020 |
NRE181,ZWE182 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09024 |
NRE181,ZWE182 25A,MINI FUSE |
1 | ||
| 90982-09023 |
NRE181,ZWE182 20A,MINI FUSE,YELLOW |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-02170 |
ZRE182..CVT;NRE181,ZWE182 |
1 | ||
| 82673-02170 |
NRE181,ZWE182 |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-02180 |
NRE181,ZWE182 |
1 | ||
| 82673-02180 |
ZRE182..CVT;NRE181,ZWE182 |
1 | ||
| 82673C - BRACKET, JUNCTION BLOCK | ||||
| 82673-02190 |
NRE181,ZWE182 |
1 | ||
| 82673-02190 |
ZRE182..CVT;NRE181,ZWE182 |
1 | ||
| 82730A - BLOCK ASSY, DRIVER SIDE JUNCTION | ||||
| 82730-02Z71 |
ZWE182..GLXI;NRE181..GLI,GLXI |
1 | ||
| 82730-02Z81 |
NRE181..GL;ZWE182..GLI |
1 | ||
| 82755 - BLOCK, CENTER RELAY | ||||
| 82755-02060 |
NRE181,ZWE182 |
1 | ||
| 82755-02060 |
ZRE182..CVT;NRE181,ZWE182 |
1 | ||
| 84270Q - RELAY, LAMP CUT | ||||
| 90987-T2005 |
NRE181,ZRE18#,ZWE182 |
1 | ||
| 90987-T2005 |
NRE181,ZWE182 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-09240 |
ZWE182;NRE181..GLXI |
1 | ||
| 84340-09140 |
NRE181,ZRE181..GL,GLI |
1 | ||
| 84340-09141 |
NRE181..GL,GLI |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-0R010 |
ZRE182..CVT;NRE181,ZWE182 |
1 | ||
| 84345-0R010 |
NRE181,ZWE182 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-02050 |
ZRE182..CVT;NRE181,ZWE182 (L) |
1 | ||
| 84550-33010 |
ZRE182..CVT;NRE181,ZWE182 (J) |
1 | ||
| 84550-33010 |
NRE181,ZWE182 (J) |
1 | ||
| 84550-02050 |
NRE181,ZWE182 (L) |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-T2005 |
ZRE182..CVT;NRE181,ZWE182 |
1 | ||
| 90987-T2005 |
NRE181,ZWE182 |
1 | ||
| 87299 - RELAY, HEATER | ||||
| 90987-T2004 |
ZWE182;NRE181..GL,GLI |
1 | ||
| 90987-T2004 |
ZWE182;NRE181..GL,GLI |
1 | ||
| 89120A - SENSOR, AUTOMATIC LIGHT CONTROL | ||||
| 89121-0F030 |
NRE181,ZWE182..GLXI,PREM |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89220-02400 |
NRE181..GLI,GLXI |
1 | ||
| 89220-02420 |
NRE181..GL |
1 | ||
| 89220-02400 |
NRE181,ZRE181..GLI,GLXI |
1 | ||
| 89220-02420 |
NRE181..GL |
1 | ||
| 89220-02M70 |
NRE181..CVT..GL VFM PACKAGE(*CRC & *SES) |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-02C30 |
NRE181 |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-02C30 |
NRE181 |
1 | ||
| 89730A - RELAY(FOR SECURITY WARNING) | ||||
| 90987-T2005 |
NRE181,ZRE18#,ZWE182..GLI,GLXI,PREM |
1 | ||
| 90987-T2005 |
NRE181,ZWE182..GLI,GLXI,PREM |
1 | ||
| Common parts | ||||
| 90119-C0093 | ||||
| 90119-C0098 | ||||
| 90159-C0002 | ||||
| 90159-C0008 | ||||
| 90159-C0016 | ||||
| 90178-C0032 | ||||
| 90183-06019 | ||||
| 91671-80616 | ||||
| 94120-41000 | ||||

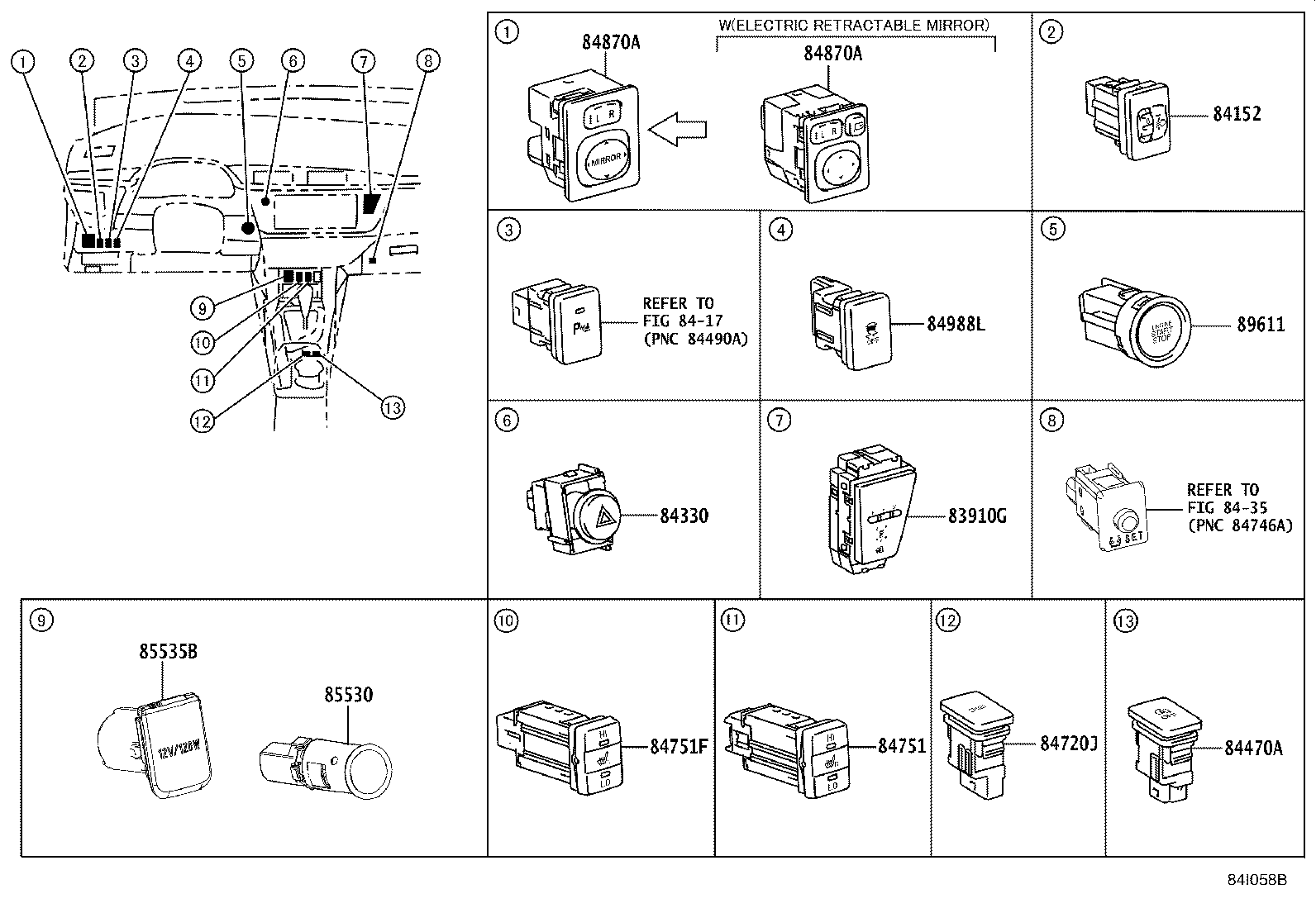

ILLUST NO. 6 OF 9(1704- )NRE181,ZRE182
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83910G - CLOCK ASSY | ||||
| 83910-02180 |
NRE181,ZRE18#,ZWE182 |
1 | ||
| 83910-02290 |
NRE181..GL |
1 | ||
| 83910-02310 |
NRE181..GLI,GLXI |
1 | ||
| 83910-02300 |
NRE181..GLI,GLXI AUDIO-*DA(ACCESSORY) & *BT & 6SPEAKER |
1 | ||
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-02101 |
NRE181 |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-02380 |
NRE181,ZWE182 |
1 | ||
| 84470A - SWITCH ASSY, ECORUN CANCEL | ||||
| 84470-02020 |
NRE181 |
1 | ||
| 84720J - SWITCH ASSY, PATTERN SELECT | ||||
| 84720-02041 |
NRE181..CVT |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-02220 |
ZWE182..GLI;NRE181,ZRE181 |
1 | ||
| 84870-02220 |
NRE181;ZWE182..GLI |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-02220 |
ZWE182..GLI;NRE181,ZRE181 |
1 | ||
| 84870-02220 |
NRE181;ZWE182..GLI |
1 | ||
| 84988L - SWITCH, VSC OFF | ||||
| 84988-0R091 |
NRE181,ZWE182 |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-0N010 |
NRE181,ZWE182 |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-02110 |
NRE181 |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-0R012 |
NRE181..CVT..(GL,GLI) VFM PACKAGE(*CRC & *SES) |
1 | ||
| 89611-0R012 |
NRE181..GLXI |
1 | ||
| Linked diagrams | ||||
| 8417 | ||||
| 8435 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
