NRE181L-GEXGZC (2017)

Toyota Corolla (China)

Production Apr 2017 - Jul 2019
Engine 9NRFTS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 4(1406- )NRE181,ZRE18#

Click highlighted areas on diagram

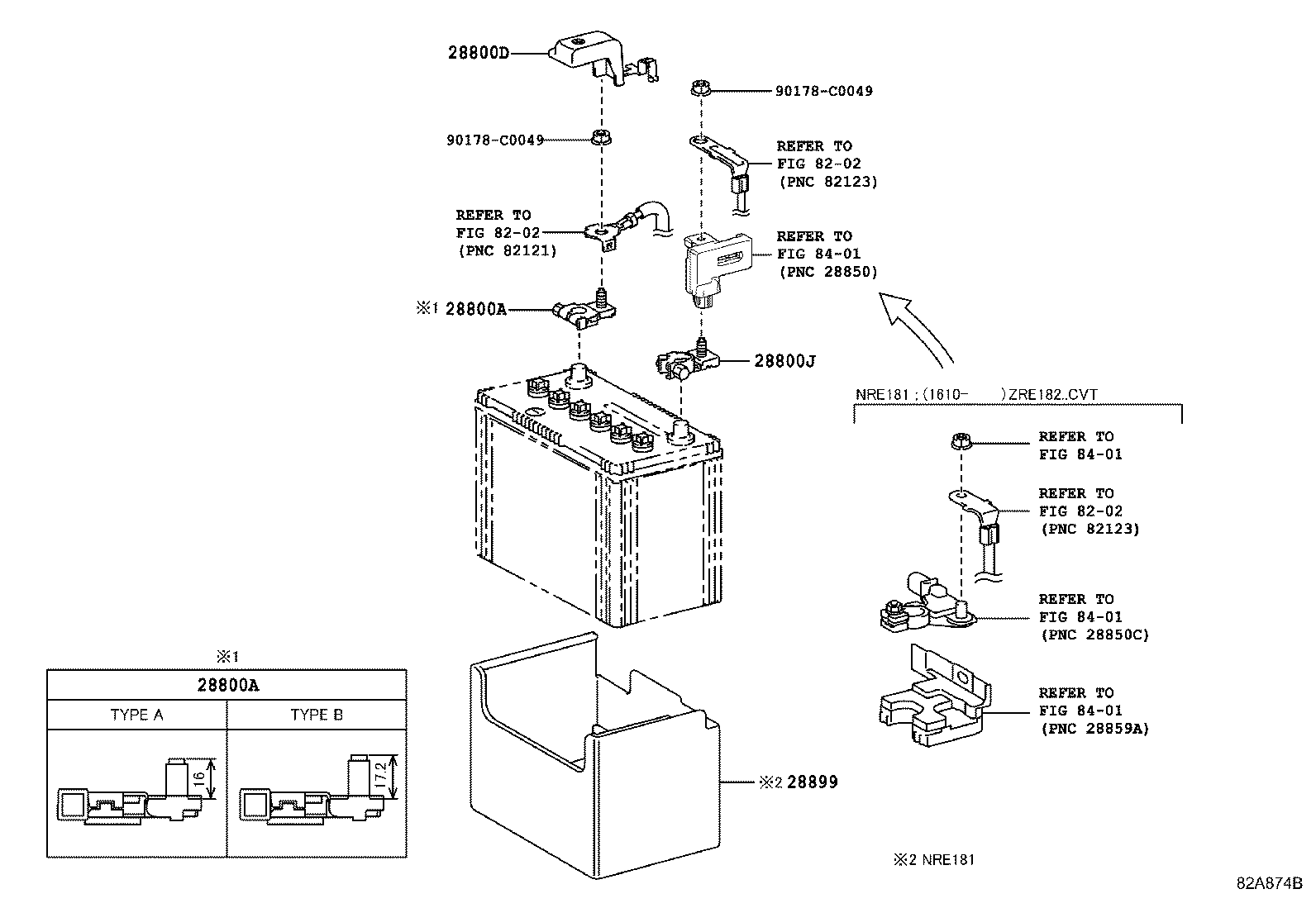

diagram 28800A 28800A 28800D 28800J 28899 8202 8202 8202 8401 8401 8401 8401 90178C0049 90178C0049
Part # Description Qty Price
28800A - TERMINAL, BATTERY POSITIVE
90982-05054

9NRFTS..NRE181

TYPE A:REFER ILLUST.

 1
90982-05054

9NRFTS,1ZRFE,2ZRFE..NRE181,ZRE18#

TYPE A:REFER ILLUST.

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05054

9NRFTS..NRE181

TYPE A:REFER ILLUST.

 1
90982-05054

9NRFTS,1ZRFE,2ZRFE..NRE181,ZRE18#

TYPE A:REFER ILLUST.

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-12490

9NRFTS..NRE181

 1
82821-12490

9NRFTS,1ZRFE,2ZRFE..NRE181,ZRE18#

 1
28899 - INSULATOR, BATTERY
28899-0Y050

9NRFTS..NRE181

 1
Common parts
90178-C0049
Linked diagrams
8202
8401
