NRE181L-GEXGZC (2017)
Toyota Corolla (China)

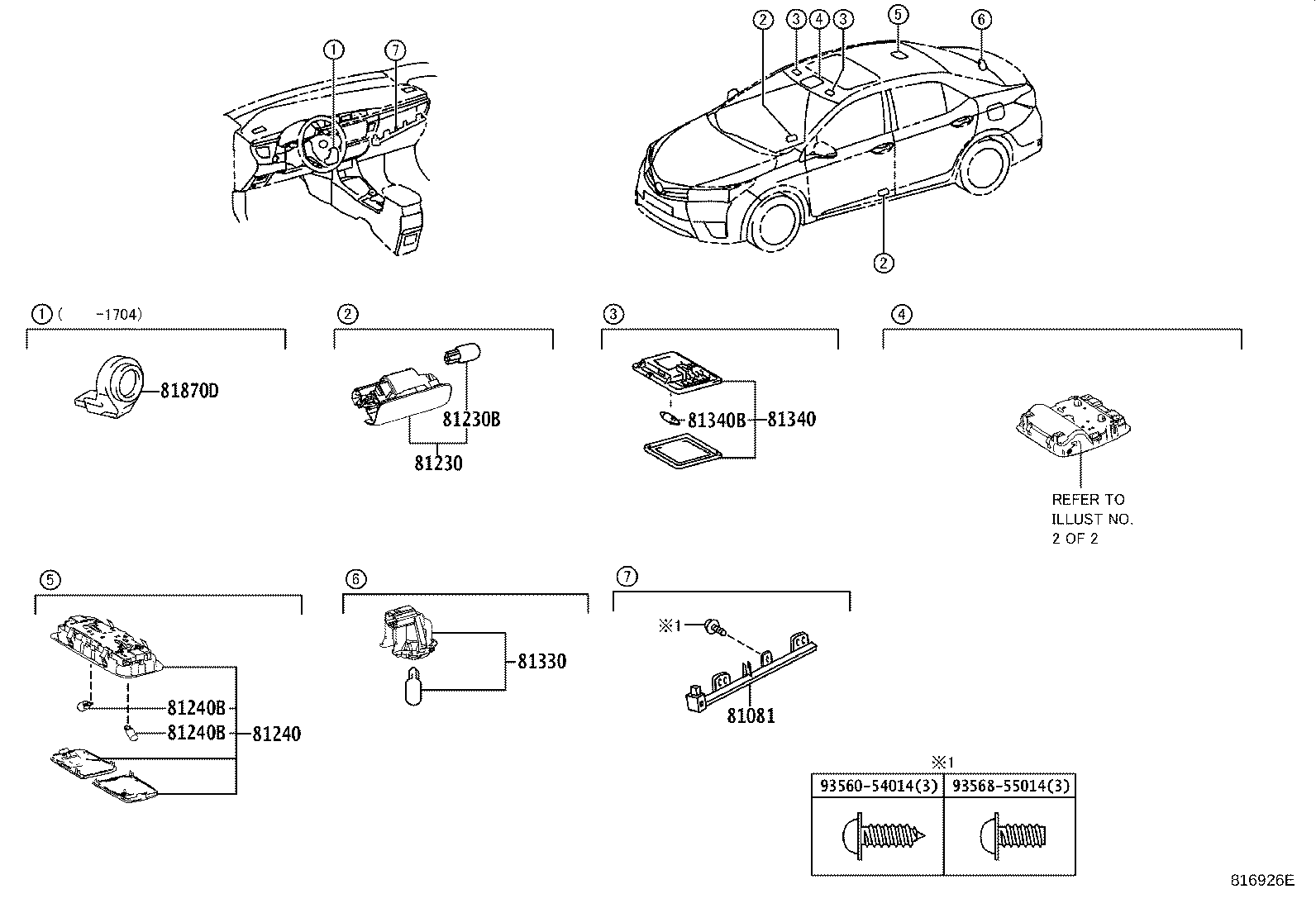

ILLUST NO. 1 OF 2(1406- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81081 - LAMP SUB-ASSY, INTERIOR ILLUMINATION | ||||
| 81081-02030 |
ZWE182;NRE181..GLXI |
1 | ||
| 81230 - LAMP ASSY, COURTESY | ||||
| 81230-30200 |
NRE181,ZWE182..GLXI,PREM |
2 | ||
| 81230-30200 |
NRE181,ZRE18#,ZWE182..GLXI,PREM |
2 | ||
| 81230B - BULB(FOR COURTESY LAMP) | ||||
| 90981-12010 |
NRE181,ZRE18#,ZWE182..GLXI,PREM 12V 5W |
2 | ||
| 90981-12010 |
NRE181,ZWE182..GLXI,PREM 12V 5W |
2 | ||
| 81240 - LAMP ASSY, ROOM, NO.1 | ||||
| 81360-02010B0 |
NRE181,ZRE18#,ZWE182 LT.GRAY,TRIM2# |
1 | ||
| 81360-02010A0 |
NRE181,ZRE18#,ZWE182 IVORY,TRIM0# |
1 | ||
| 81360-02010A1 |
NRE181,ZWE182 FLAXEN,TRIM0# |
1 | ||
| 81360-02010B0 |
NRE181,ZWE182 LT.GRAY,TRIM2# |
1 | ||
| 81240B - BULB, ROOM LAMP, NO.1 | ||||
| 90981-11062 |
NRE181,ZWE182 12V 8W |
2 | ||
| 90981-11062 |
NRE181,ZRE18#,ZWE182 12V 8W |
2 | ||
| 81240B - BULB, ROOM LAMP, NO.1 | ||||
| 90981-11062 |
NRE181,ZWE182 12V 8W |
2 | ||
| 90981-11062 |
NRE181,ZRE18#,ZWE182 12V 8W |
2 | ||
| 81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1 | ||||
| 81330-0D040 |
NRE181,ZWE182 |
1 | ||
| 81330-0D040 |
NRE181,ZRE18#,ZWE182 |
1 | ||
| 81870D - LAMP ASSY, KEY CYLINDER | ||||
| 81870-02010 |
NRE181,ZRE181..GL |
1 | ||
| Common parts | ||||
| 93560-54014 | ||||
| 93568-55014 | ||||

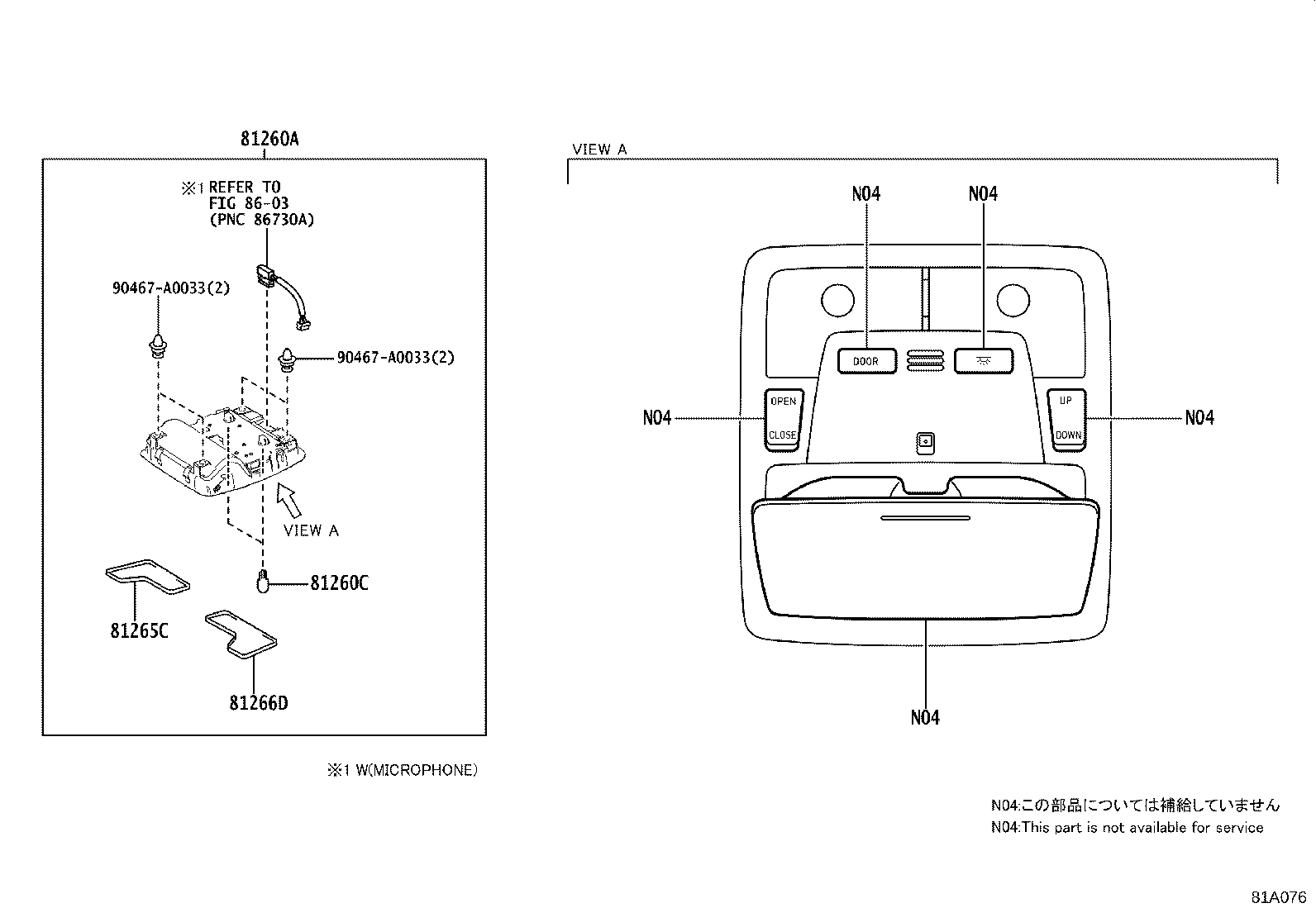

ILLUST NO. 2 OF 2(1406- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81260A - LAMP ASSY, MAP | ||||
| 81260-02730A0 |
NRE181,ZRE18#..GLXI,PREM IVORY,TRIM0# |
1 | ||
| 81260-02730B0 |
NRE181,ZRE18#..GLXI,PREM LT.GRAY,TRIM2# |
1 | ||
| 81260-02710A0 |
NRE181,ZRE181..GL IVORY,TRIM0# |
1 | ||
| 81260-02720B0 |
NRE181..GLI,GLXI LT.GRAY,TRIM2# |
1 | ||
| 81260-02710B0 |
NRE181..GL LT.GRAY,TRIM2# |
1 | ||
| 81260-02720A1 |
NRE181..GLI,GLXI FLAXEN,TRIM0# |
1 | ||
| 81260-02710A1 |
NRE181..GL FLAXEN,TRIM0# |
1 | ||
| 81260-02730B0 |
NRE181..GLI,GLXI AUDIO-*DA(ACCESSORY) & *BT & 6SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 81260-02730A1 |
NRE181..GLI,GLXI AUDIO-*DA(ACCESSORY) & *BT & 6SPEAKER,FLAXEN,TRIM0# |
1 | ||
| 81260-02721A1 |
NRE181..GLI,GLXI FLAXEN,TRIM0# |
1 | ||
| 81260-02711A1 |
NRE181..GL FLAXEN,TRIM0# |
1 | ||
| 81260-02731A1 |
NRE181..GLI,GLXI AUDIO-*DA(ACCESSORY) & *BT & 6SPEAKER,FLAXEN,TRIM0# |
1 | ||
| 81260-02731B0 |
NRE181..GLI,GLXI AUDIO-*DA(ACCESSORY) & *BT & 6SPEAKER,LT.GRAY,TRIM2# |
1 | ||
| 81260-02711B0 |
NRE181..GL LT.GRAY,TRIM2# |
1 | ||
| 81260-02721B0 |
NRE181..GLI,GLXI LT.GRAY,TRIM2# |
1 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 99132-12050 |
NRE181,ZWE182 12V 5W |
2 | ||
| 99132-12050 |
NRE181,ZRE18#,ZWE182 12V 5W |
2 | ||
| 81265C - LENS, MAP LAMP, NO.1 | ||||
| 81265-02720 |
NRE181..GLI,GLXI |
1 | ||
| 81265-02720 |
NRE181,ZRE18#..GLI,GLXI,PREM |
1 | ||
| 81265-02710 |
NRE181..GL |
1 | ||
| 81265-02710 |
NRE181,ZRE181..GL |
1 | ||
| 81266D - LENS, MAP LAMP, NO.2 | ||||
| 81266-02710 |
NRE181..GL |
1 | ||
| 81266-02720 |
NRE181..GLI,GLXI |
1 | ||
| 81266-02720 |
NRE181,ZRE18#..GLI,GLXI,PREM |
1 | ||
| 81266-02710 |
NRE181,ZRE181..GL |
1 | ||
| Common parts | ||||
| 90467-A0033 | ||||
| Linked diagrams | ||||
| 8603 | ||||
