NRE181L-GEXGZC (2017)

Toyota Corolla (China)

Production Apr 2017 - Jul 2019
Engine 9NRFTS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1704- )NRE181,ZRE182

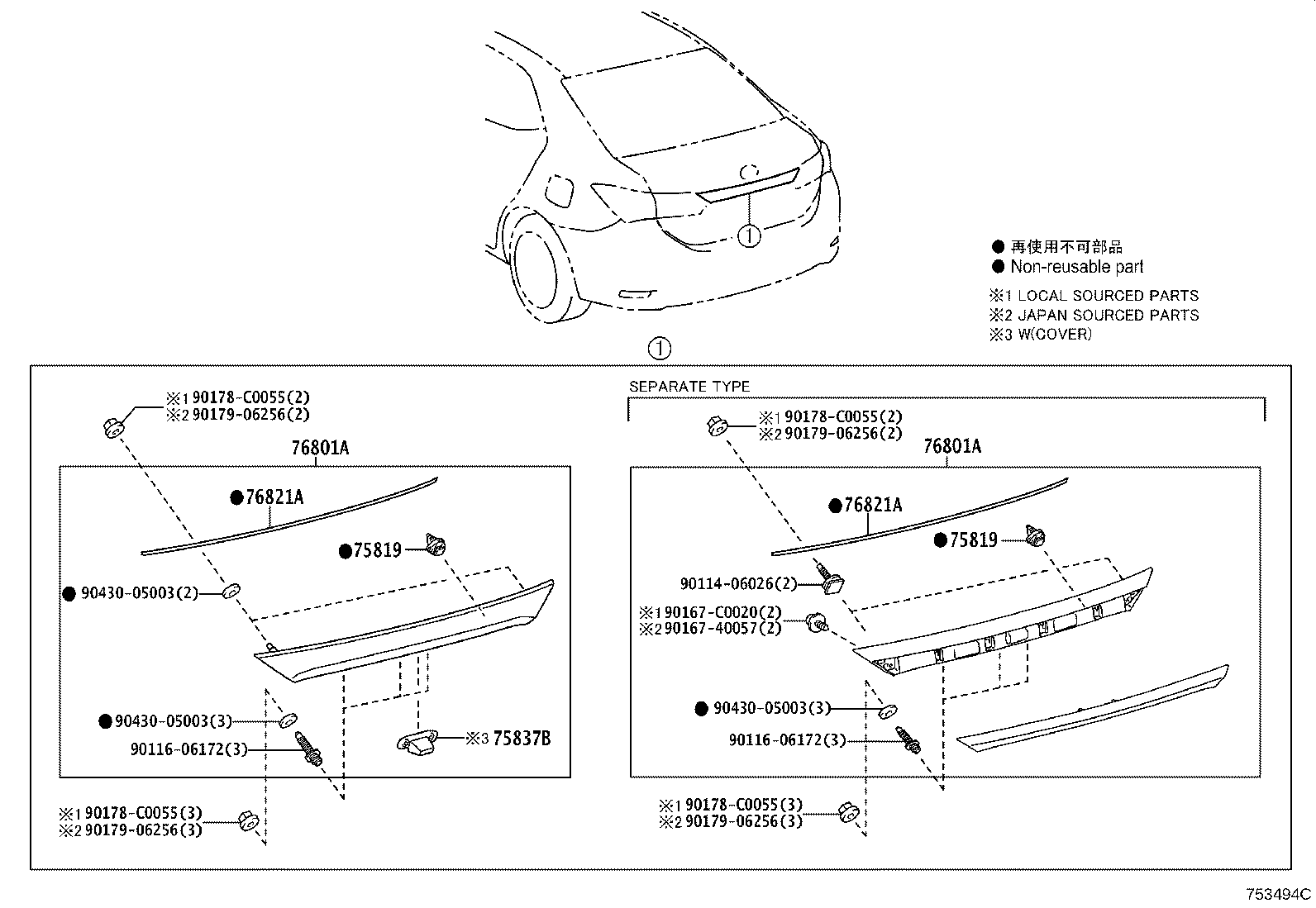

Click highlighted areas on diagram

diagram 75819 75819 75837B 76801A 76801A 76821A 76821A 9011406026 9011606172 9011606172 9016740057 90167C0020 90178C0055 90178C0055 90178C0055 90178C0055 9017906256 9017906256 9017906256 9017906256 9043005003 9043005003 9043005003
Part # Description Qty Price
75819 - CLIP, LUGGAGE COMPARTMENT DOOR MOULDING
75819-33010

NRE181,ZRE18#,ZWE182

 1
75819-33010

NRE181,ZWE182

 1
75819 - CLIP, LUGGAGE COMPARTMENT DOOR MOULDING
75819-33010

NRE181,ZRE18#,ZWE182

 1
75819-33010

NRE181,ZWE182

 1
76801A - GARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE
76801-02E80

NRE181,ZRE18#..GLXI,PREM

PLATED

 1
76801-02E70

NRE181,ZRE181..GL,GLI

PLATED

 1
76801-02J20E1

NRE181..GLXI

AUDIO-*DA(ACCESSORY) & *BT & 6SPEAKER,DK.BROWN M.M.,4X5

 1
76801-02J20F0

NRE181..GLXI

AUDIO-*DA(ACCESSORY) & *BT & 6SPEAKER,LT.YELLOW M.M.,5B2

 1
76801-02J30E1

NRE181..GLXI

DK.BROWN M.M.,4X5

 1
76801-02J30F0

NRE181..GLXI

LT.YELLOW M.M.,5B2

 1
76801-02J20A1

NRE181..GLXI

AUDIO-*DA(ACCESSORY) & *BT & 6SPEAKER,WHITE PEARL CS.,070

 1
76801-02J20B0

NRE181..GLXI

AUDIO-*DA(ACCESSORY) & *BT & 6SPEAKER,SILVER ME.,1F7

 1
76801-02J20A0

NRE181..GLXI

AUDIO-*DA(ACCESSORY) & *BT & 6SPEAKER,SUPER WHITE 2,040

 1
76801-02J30C0

NRE181..GLXI

BLACK MC.,209

 1
76801-02J30A0

NRE181..GLXI

SUPER WHITE 2,040

 1
76801-02J30B0

NRE181..GLXI

SILVER ME.,1F7

 1
76801-02M80

NRE181..CVT..GL

PLATED,VFM PACKAGE(*CRC & *SES)

 1
76801-02J30A1

NRE181..GLXI

WHITE PEARL CS.,070

 1
76801-02J20E0

NRE181..GLXI

AUDIO-*DA(ACCESSORY) & *BT & 6SPEAKER,AVANT-GARDE BRONZE ME.,4V8

 1
76801-02J20D0

NRE181..GLXI

AUDIO-*DA(ACCESSORY) & *BT & 6SPEAKER,RED M.M.,3R3

 1
76801-02J30E0

NRE181..GLXI

AVANT-GARDE BRONZE ME.,4V8

 1
76801-02J30D0

NRE181..GLXI

RED M.M.,3R3

 1
76801-02E70

NRE181..GL,GLI

PLATED

 1
76801-02J20C0

NRE181..GLXI

AUDIO-*DA(ACCESSORY) & *BT & 6SPEAKER,BLACK MC.,209

 1
76801A - GARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE
76801-02E80

NRE181,ZRE18#..GLXI,PREM

PLATED

 1
76801-02E70

NRE181,ZRE181..GL,GLI

PLATED

 1
76801-02J20E1

NRE181..GLXI

AUDIO-*DA(ACCESSORY) & *BT & 6SPEAKER,DK.BROWN M.M.,4X5

 1
76801-02J20F0

NRE181..GLXI

AUDIO-*DA(ACCESSORY) & *BT & 6SPEAKER,LT.YELLOW M.M.,5B2

 1
76801-02J30E1

NRE181..GLXI

DK.BROWN M.M.,4X5

 1
76801-02J30F0

NRE181..GLXI

LT.YELLOW M.M.,5B2

 1
76801-02J20A1

NRE181..GLXI

AUDIO-*DA(ACCESSORY) & *BT & 6SPEAKER,WHITE PEARL CS.,070

 1
76801-02J20B0

NRE181..GLXI

AUDIO-*DA(ACCESSORY) & *BT & 6SPEAKER,SILVER ME.,1F7

 1
76801-02J20A0

NRE181..GLXI

AUDIO-*DA(ACCESSORY) & *BT & 6SPEAKER,SUPER WHITE 2,040

 1
76801-02J30C0

NRE181..GLXI

BLACK MC.,209

 1
76801-02J30A0

NRE181..GLXI

SUPER WHITE 2,040

 1
76801-02J30B0

NRE181..GLXI

SILVER ME.,1F7

 1
76801-02M80

NRE181..CVT..GL

PLATED,VFM PACKAGE(*CRC & *SES)

 1
76801-02J30A1

NRE181..GLXI

WHITE PEARL CS.,070

 1
76801-02J20E0

NRE181..GLXI

AUDIO-*DA(ACCESSORY) & *BT & 6SPEAKER,AVANT-GARDE BRONZE ME.,4V8

 1
76801-02J20D0

NRE181..GLXI

AUDIO-*DA(ACCESSORY) & *BT & 6SPEAKER,RED M.M.,3R3

 1
76801-02J30E0

NRE181..GLXI

AVANT-GARDE BRONZE ME.,4V8

 1
76801-02J30D0

NRE181..GLXI

RED M.M.,3R3

 1
76801-02E70

NRE181..GL,GLI

PLATED

 1
76801-02J20C0

NRE181..GLXI

AUDIO-*DA(ACCESSORY) & *BT & 6SPEAKER,BLACK MC.,209

 1
76821A - PROTECTOR, LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH
76825-02310

NRE181..GLXI

 1
76825-02220

NRE181,ZRE18#

 1
76825-02220

NRE181..GL,GLI

 1
76821A - PROTECTOR, LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH
76825-02310

NRE181..GLXI

 1
76825-02220

NRE181,ZRE18#

 1
76825-02220

NRE181..GL,GLI

 1
Common parts
90114-06026
90116-06172
90167-40057
90167-C0020
90178-C0055
90179-06256
90430-05003
