NRE181L-GEXGZC (2017)
Toyota Corolla (China)

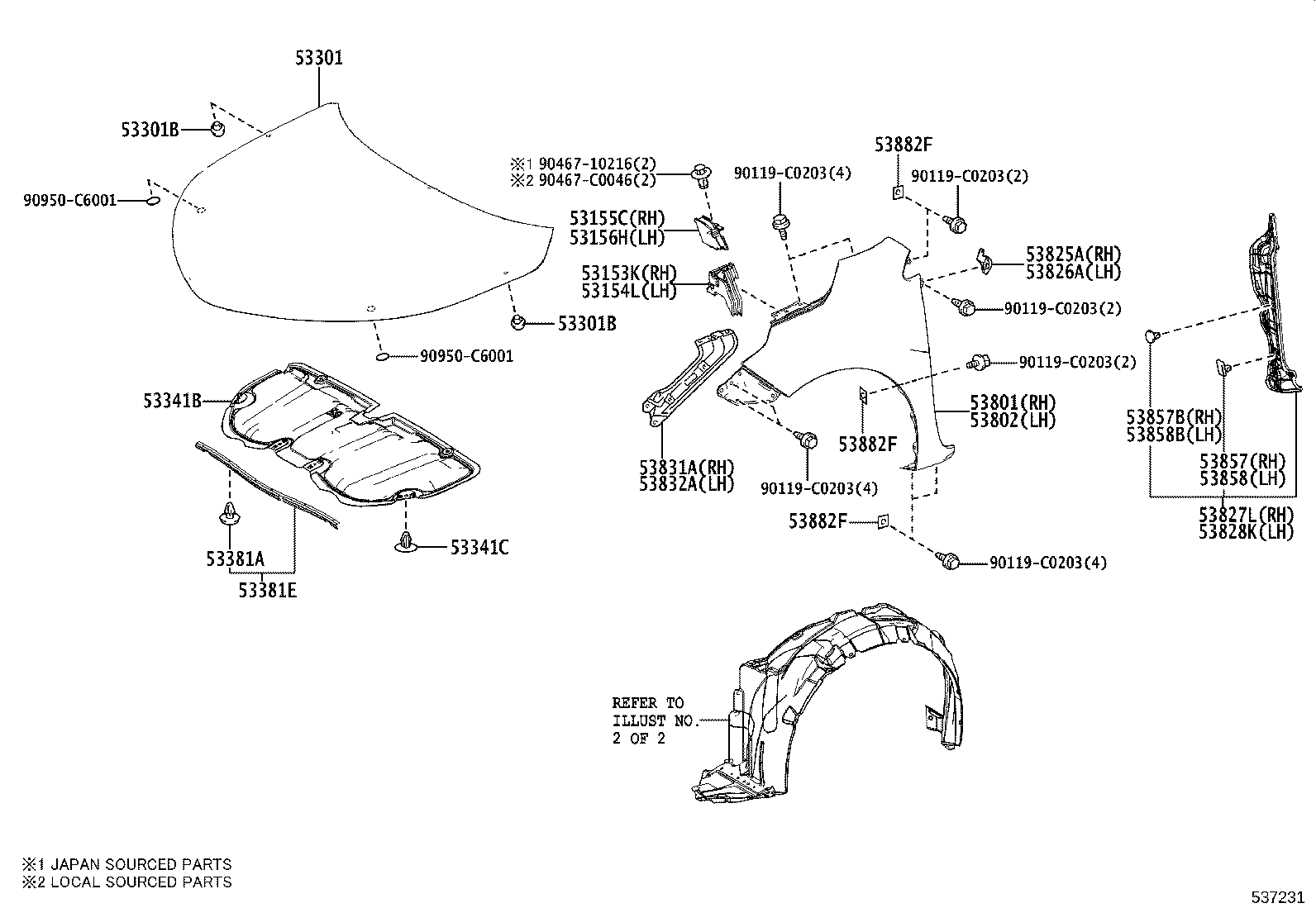

ILLUST NO. 1 OF 2(1406- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53153K - GUIDE, RADIATOR GRILLE SIDE AIR, RH | ||||
| 53153-02070 |
NRE181,ZWE182 |
1 | ||
| 53153-02070 |
NRE181,ZRE18#,ZWE182 |
1 | ||
| 53154L - GUIDE, RADIATOR GRILLE SIDE AIR, LH | ||||
| 53154-02070 |
NRE181,ZRE18#,ZWE182 |
1 | ||
| 53154-02070 |
NRE181,ZWE182 |
1 | ||
| 53155C - SEAL, RADIATOR GRILLE, NO.1 | ||||
| 53155-02090 |
NRE181,ZWE182 |
1 | ||
| 53155-02090 |
NRE181,ZRE18#,ZWE182 |
1 | ||
| 53156H - SEAL, RADIATOR GRILLE, NO.2 | ||||
| 53156-02080 |
NRE181,ZWE182 |
1 | ||
| 53156-02080 |
NRE181,ZRE18#,ZWE182 |
1 | ||
| 53301 - HOOD SUB-ASSY | ||||
| 53301-02340 |
NRE181,ZWE182 |
1 | ||
| 53301-02340 |
NRE181,ZRE18#,ZWE182 |
1 | ||
| 53301B - CUSHION, HOOD BUMPER | ||||
| 90541-09117 |
NRE181,ZWE182 |
2 | ||
| 90541-09117 |
NRE181,ZRE18#,ZWE182 |
2 | ||
| 53301B - CUSHION, HOOD BUMPER | ||||
| 90541-09117 |
NRE181,ZWE182 |
2 | ||
| 90541-09117 |
NRE181,ZRE18#,ZWE182 |
2 | ||
| 53341B - INSULATOR, HOOD | ||||
| 53341-02350 |
NRE181,ZRE18#,ZWE182 |
1 | ||
| 53341-02350 |
NRE181,ZWE182 |
1 | ||
| 53341C - CLIP(FOR HOOD INSULATOR) | ||||
| 90467-09050 |
NRE181,ZRE18#,ZWE182 (J) |
6 | ||
| 90467-C0025 |
NRE181,ZWE182 (L) |
6 | ||
| 90467-C0025 |
NRE181,ZRE18#,ZWE182 (L) |
6 | ||
| 90467-09050 |
NRE181,ZWE182 (J) |
6 | ||
| 53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL) | ||||
| 90467-08011 |
NRE181,ZRE18#,ZWE182 |
6 | ||
| 90467-08011 |
NRE181,ZWE182 |
6 | ||
| 53381E - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-02160 |
NRE181,ZWE182 |
1 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53811-02420 |
NRE181,ZRE18#,ZWE182 |
1 | ||
| 53811-02420 |
NRE181,ZWE182 |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53812-02420 |
NRE181,ZRE18#,ZWE182 |
1 | ||
| 53812-02420 |
NRE181,ZWE182 |
1 | ||
| 53825A - PROTECTOR, FRONT FENDER, UPPER RH | ||||
| 53825-02130 |
NRE181,ZWE182 |
1 | ||
| 53825-02130 |
NRE181,ZRE18#,ZWE182 |
1 | ||
| 53826A - PROTECTOR, FRONT FENDER, UPPER LH | ||||
| 53826-02130 |
NRE181,ZRE18#,ZWE182 |
1 | ||
| 53826-02130 |
NRE181,ZWE182 |
1 | ||
| 53827L - PROTECTOR, FRONT FENDER SIDE PANEL, RH | ||||
| 53827-02140 |
NRE181,ZRE18#,ZWE182 |
1 | ||
| 53827-02140 |
NRE181,ZWE182 |
1 | ||
| 53828K - PROTECTOR, FRONT FENDER SIDE PANEL, LH | ||||
| 53828-02140 |
NRE181,ZWE182 |
1 | ||
| 53828-02140 |
NRE181,ZRE18#,ZWE182 |
1 | ||
| 53831A - PANEL, FRONT FENDER SIDE, UPPER RH | ||||
| 53831-02140 |
NRE181,ZWE182 |
1 | ||
| 53831-02140 |
NRE181,ZRE18#,ZWE182 |
1 | ||
| 53832A - PANEL, FRONT FENDER SIDE, UPPER LH | ||||
| 53832-02120 |
NRE181,ZWE182 |
1 | ||
| 53832-02120 |
NRE181,ZRE18#,ZWE182 |
1 | ||
| 53857 - RETAINER, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53857-12010 |
NRE181,ZRE18#,ZWE182 |
1 | ||
| 53857-12010 |
NRE181,ZWE182 |
1 | ||
| 53857B - RETAINER, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53857-47011 |
NRE181,ZWE182 |
1 | ||
| 53857-47011 |
NRE181,ZRE18#,ZWE182 |
1 | ||
| 53857-0R010 |
NRE181,ZWE182 (L) |
1 | ||
| 53857-47011 |
NRE181,ZWE182 (J) |
1 | ||
| 53858 - RETAINER, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53857-12010 |
NRE181,ZRE18#,ZWE182 |
1 | ||
| 53857-12010 |
NRE181,ZWE182 |
1 | ||
| 53858B - RETAINER, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53857-0R010 |
NRE181,ZWE182 (L) |
1 | ||
| 53857-47011 |
NRE181,ZRE18#,ZWE182 |
1 | ||
| 53857-47011 |
NRE181,ZWE182 (J) |
1 | ||
| 53857-47011 |
NRE181,ZWE182 |
1 | ||
| 53882F - SEAL, FRONT FENDER | ||||
| 53882-33060 |
NRE181,ZWE182 (J) |
8 | ||
| 53882-33060 |
NRE181,ZRE18#,ZWE182 |
8 | ||
| 53882-33060 |
NRE181,ZWE182 |
8 | ||
| 53882-0D020 |
NRE181,ZWE182 (L) |
8 | ||
| 53882F - SEAL, FRONT FENDER | ||||
| 53882-33060 |
NRE181,ZWE182 (J) |
8 | ||
| 53882-33060 |
NRE181,ZRE18#,ZWE182 |
8 | ||
| 53882-33060 |
NRE181,ZWE182 |
8 | ||
| 53882-0D020 |
NRE181,ZWE182 (L) |
8 | ||
| 53882F - SEAL, FRONT FENDER | ||||
| 53882-33060 |
NRE181,ZWE182 (J) |
8 | ||
| 53882-33060 |
NRE181,ZRE18#,ZWE182 |
8 | ||
| 53882-33060 |
NRE181,ZWE182 |
8 | ||
| 53882-0D020 |
NRE181,ZWE182 (L) |
8 | ||
| Common parts | ||||
| 90119-C0203 | ||||
| 90467-10216 | ||||
| 90467-C0046 | ||||
| 90950-C6001 | ||||
ILLUST NO. 2 OF 2(1406- )
FENDER LINER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47749D - CLIP, PIN HOLD | ||||
| 47749-58010 |
NRE181,ZRE18#,ZWE182 (J) |
2 | ||
| 47749-02030 |
NRE181,ZRE18#,ZWE182 (L) |
2 | ||
| 47749-02030 |
NRE181 |
2 | ||
| 53851D - PAD, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53851-02200 |
NRE181,ZWE182 |
1 | ||
| 53851-02200 |
NRE181,ZRE18#,ZWE182 |
1 | ||
| 53852B - PAD, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53852-02180 |
NRE181,ZRE18#,ZWE182 |
1 | ||
| 53852-02180 |
NRE181,ZWE182 |
1 | ||
| 53875A - LINER, FRONT FENDER, RH | ||||
| 53875-02701 |
NRE181,ZWE182 MARK=53875-02701 |
1 | ||
| 53875-02580 |
NRE181,ZRE18#,ZWE182 MARK=53875-02580 |
1 | ||
| 53875-02580 |
NRE181,ZWE182 MARK=53875-02580 |
1 | ||
| 53876A - LINER, FRONT FENDER, LH | ||||
| 53876-02600 |
NRE181,ZRE18# MARK=53876-02600 |
1 | ||
| 53876-02600 |
NRE181 MARK=53876-02600 |
1 | ||
| 53876-02741 |
NRE181 MARK=53876-02741 |
1 | ||
| Common parts | ||||
| 90159-C0012 | ||||
| 90159-C0028 | ||||
| 90189-06013 | ||||
| 90467-07220 | ||||
| Linked diagrams | ||||
| 5201 | ||||
