NRE181L-GEXGZC (2017)
Toyota Corolla (China)
Production
Apr 2017
-
Jul 2019
Engine
9NRFTS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1406- )

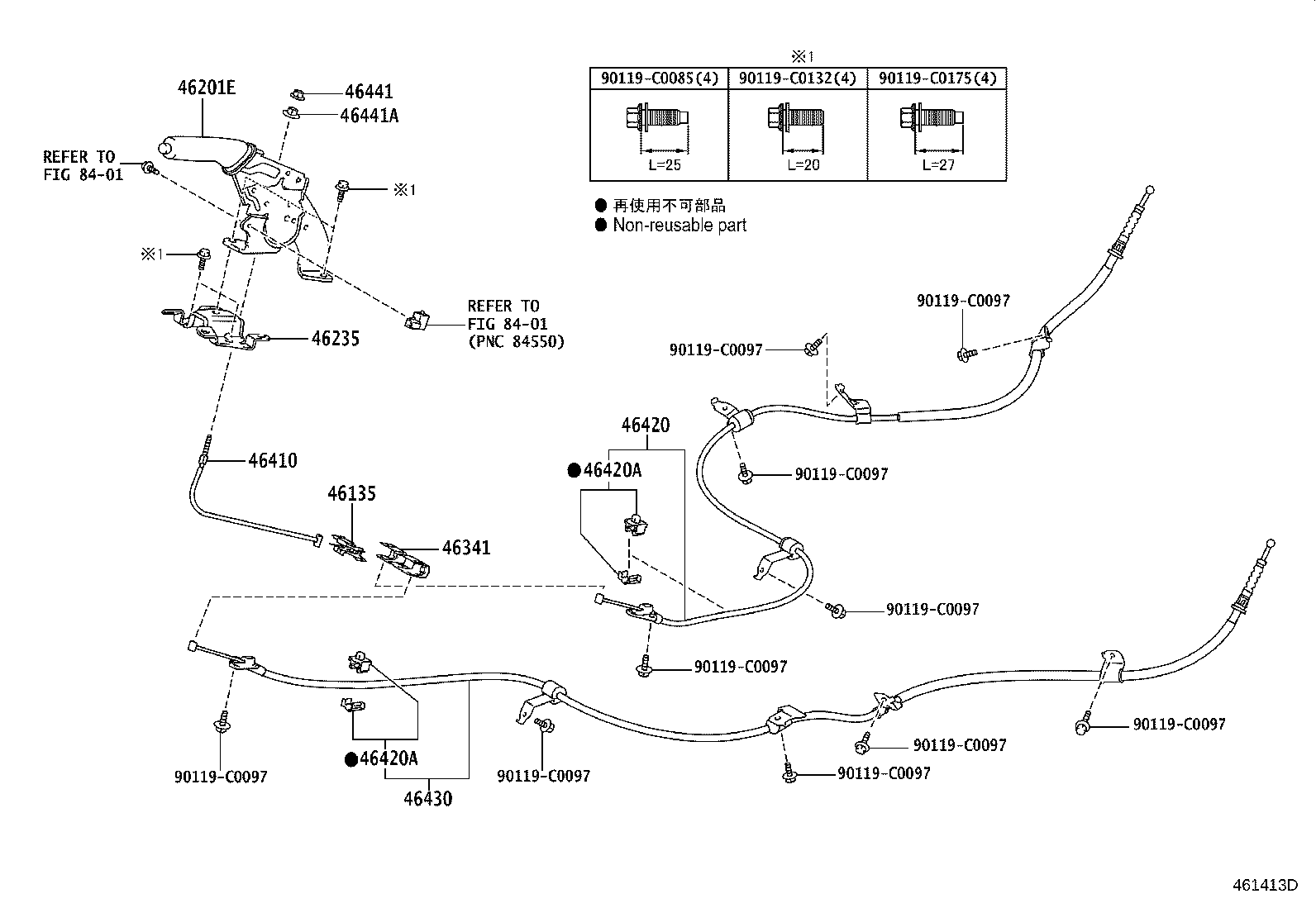

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46135 - STOPPER, PARKING BRAKE CABLE END | ||||
| 46135-02080 |
NRE181,ZRE18#,ZWE182 |
1 | ||
| 46135-02080 |
NRE181,ZWE182 |
1 | ||
| 46201E - LEVER SUB-ASSY, PARKING BRAKE | ||||
| 46201-02500C0 |
NRE181,ZWE182 BLACK,TRIM0#,2# |
1 | ||
| 46201-02500C0 |
NRE181,ZRE18#,ZWE182 BLACK,TRIM0#,2# |
1 | ||
| 46235 - BRACKET, PARKING BRAKE LEVER SUPPORT | ||||
| 46235-02010 |
NRE181,ZRE18#,ZWE182 |
1 | ||
| 46235-02010 |
NRE181,ZWE182 |
1 | ||
| 46341 - EQUALIZER, PARKING BRAKE | ||||
| 46341-02060 |
NRE181,ZRE18#,ZWE182 |
1 | ||
| 46341-02060 |
NRE181,ZWE182 |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-02080 |
NRE181,ZRE18#,ZWE182 |
1 | ||
| 46410-02080 |
NRE181,ZWE182 |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-02380 |
NRE181,ZWE182 |
1 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 46402-12030 |
NRE181,ZRE18#,ZWE182 |
2 | ||
| 46402-12030 |
NRE181,ZWE182 |
2 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 46402-12030 |
NRE181,ZRE18#,ZWE182 |
2 | ||
| 46402-12030 |
NRE181,ZWE182 |
2 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-02370 |
NRE181,ZRE18#,ZWE182 |
1 | ||
| 46430-02370 |
NRE181,ZWE182 |
1 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 90178-C0032 |
NRE181,ZRE18#,ZWE182 |
1 | ||
| 90178-C0032 |
NRE181,ZWE182 |
1 | ||
| 46441A - NUT, WIRE ADJUSTING, NO.2 | ||||
| 46441-12010 |
NRE181,ZWE182 |
1 | ||
| 46441-12010 |
NRE181,ZRE18#,ZWE182 |
1 | ||
| Common parts | ||||
| 90119-C0085 | ||||
| 90119-C0097 | ||||
| 90119-C0132 | ||||
| 90119-C0175 | ||||
| Linked diagrams | ||||
| 8401 | ||||
