NRE181L-GEXGZC (2017)
Toyota Corolla (China)

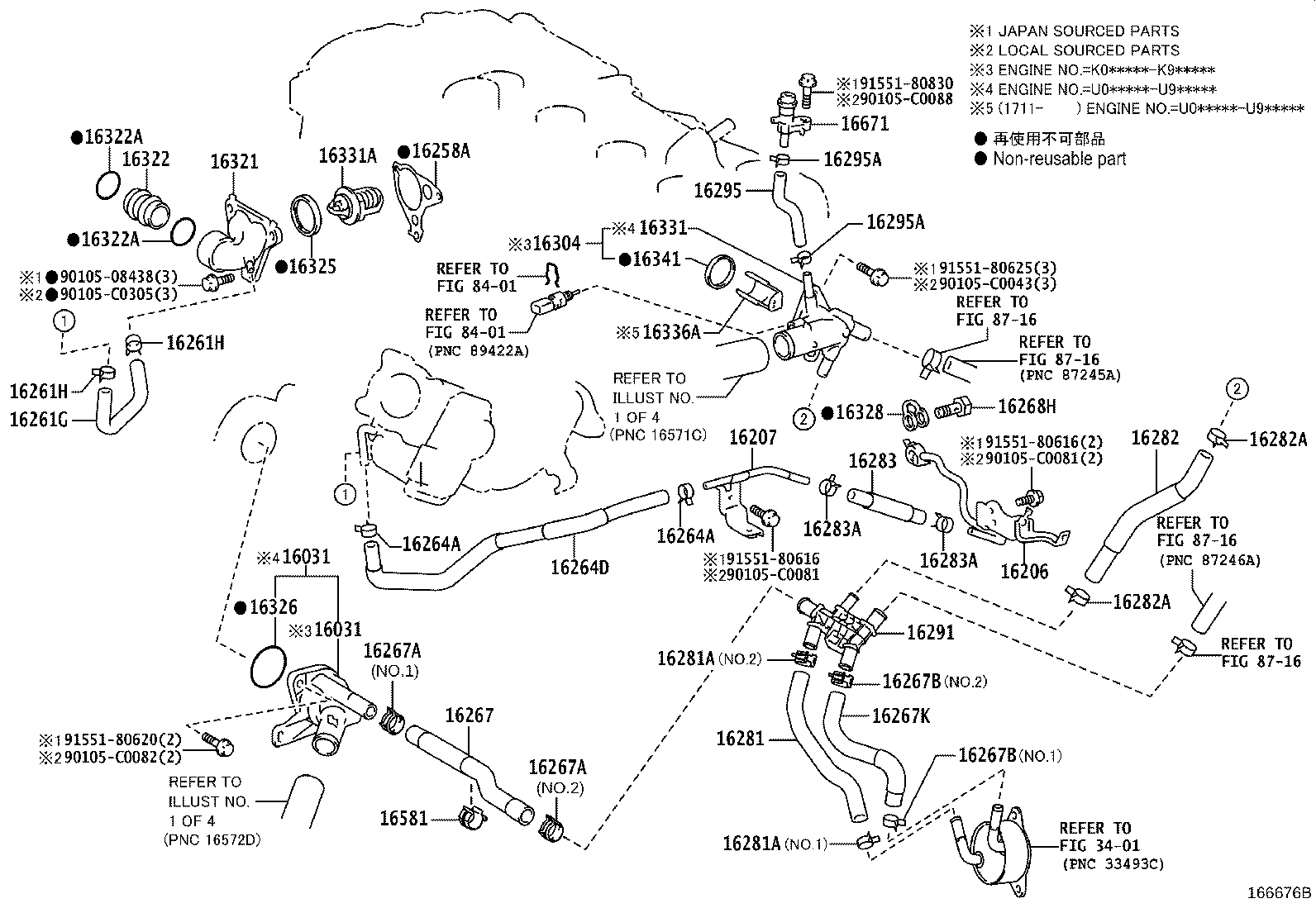

ILLUST NO. 3 OF 4(1704- )9NRFTS..CVT
ENGINE SIDE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16031 - WATER INLET SUB-ASSY, W/THERMOSTAT | ||||
| 16031-0Y020 |
9NRFTS..NRE181 *475 |
1 | ||
| 16031-47030 |
9NRFTS..NRE181 *474 |
1 | ||
| 16031 - WATER INLET SUB-ASSY, W/THERMOSTAT | ||||
| 16031-0Y020 |
9NRFTS..NRE181 *475 |
1 | ||
| 16031-47030 |
9NRFTS..NRE181 *474 |
1 | ||
| 16206 - PIPE SUB-ASSY, WATER BY-PASS | ||||
| 16206-0Y010 |
9NRFTS..NRE181 *475 |
1 | ||
| 16206-47010 |
9NRFTS..NRE181 *474 |
1 | ||
| 16207 - PIPE SUB-ASSY, WATER BY-PASS, NO.2 | ||||
| 16207-0Y010 |
9NRFTS..NRE181 *475 |
1 | ||
| 16207-47010 |
9NRFTS..NRE181 *474 |
1 | ||
| 16258A - GASKET(FOR HEATER RETURN) | ||||
| 16258-0Y020 |
9NRFTS..NRE181 *475 |
1 | ||
| 16258-47010 |
9NRFTS..NRE181 *474 |
1 | ||
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-0Y130 |
9NRFTS..NRE181 *475 |
1 | ||
| 16261-47140 |
9NRFTS..NRE181 *474 |
1 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 96136-41501 |
9NRFTS..NRE181 *474 |
2 | ||
| 90466-C0044 |
9NRFTS..NRE181 *475 |
2 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 96136-41501 |
9NRFTS..NRE181 *474 |
2 | ||
| 90466-C0044 |
9NRFTS..NRE181 *475 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90466-C0044 |
9NRFTS..NRE181 *475 |
2 | ||
| 96136-41501 |
9NRFTS..NRE181 *474 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90466-C0044 |
9NRFTS..NRE181 *475 |
2 | ||
| 96136-41501 |
9NRFTS..NRE181 *474 |
2 | ||
| 16264D - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-0Y150 |
9NRFTS..NRE181 *475 |
1 | ||
| 16264-47060 |
9NRFTS..NRE181 *474 |
1 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-0Y110 |
9NRFTS..NRE181..CVT |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90466-C0015 |
9NRFTS..NRE181..CVT NO.2:REFER ILLUST. |
1 | ||
| 90466-C0014 |
9NRFTS..NRE181..CVT NO.1:REFER ILLUST. |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90466-C0015 |
9NRFTS..NRE181..CVT NO.2:REFER ILLUST. |
1 | ||
| 90466-C0014 |
9NRFTS..NRE181..CVT NO.1:REFER ILLUST. |
1 | ||
| 16267B - CLIP(FOR WATER BY-PASS HOSE) | ||||
| 90466-C0031 |
9NRFTS..NRE181..CVT NO.1:REFER ILLUST. |
1 | ||
| 90466-C0014 |
9NRFTS..NRE181..CVT NO.2:REFER ILLUST. |
1 | ||
| 16267B - CLIP(FOR WATER BY-PASS HOSE) | ||||
| 90466-C0031 |
9NRFTS..NRE181..CVT NO.1:REFER ILLUST. |
1 | ||
| 90466-C0014 |
9NRFTS..NRE181..CVT NO.2:REFER ILLUST. |
1 | ||
| 16267K - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-0Y150 |
9NRFTS..NRE181..CVT |
1 | ||
| 16268H - BOLT, UNION(FOR WATER BY-PASS PIPE) | ||||
| 90401-14003 |
9NRFTS..NRE181 *474,*475 |
1 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-0Y120 |
9NRFTS..NRE181..CVT |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 90466-C0014 |
9NRFTS..NRE181..CVT NO.2:REFER ILLUST. |
1 | ||
| 90466-C0031 |
9NRFTS..NRE181..CVT NO.1:REFER ILLUST. |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 90466-C0014 |
9NRFTS..NRE181..CVT NO.2:REFER ILLUST. |
1 | ||
| 90466-C0031 |
9NRFTS..NRE181..CVT NO.1:REFER ILLUST. |
1 | ||
| 16282 - HOSE, WATER BY-PASS, NO.5 | ||||
| 16282-0Y010 |
9NRFTS..NRE181..CVT |
1 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90466-C0004 |
9NRFTS..NRE181..CVT |
2 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90466-C0004 |
9NRFTS..NRE181..CVT |
2 | ||
| 16283 - HOSE, WATER BY-PASS, NO.6 | ||||
| 16283-47040 |
9NRFTS..NRE181 *474 |
1 | ||
| 16283-0Y010 |
9NRFTS..NRE181 *475 |
1 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 90466-C0044 |
9NRFTS..NRE181 *475 |
2 | ||
| 96136-41501 |
9NRFTS..NRE181 *474 |
2 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 90466-C0044 |
9NRFTS..NRE181 *475 |
2 | ||
| 96136-41501 |
9NRFTS..NRE181 *474 |
2 | ||
| 16291 - JOINT, WATER HOSE | ||||
| 87251-02020 |
9NRFTS..NRE181..CVT |
1 | ||
| 16295 - HOSE, WATER BY-PASS, NO.7 | ||||
| 16295-47030 |
9NRFTS..NRE181 *474 |
1 | ||
| 16295-0Y010 |
9NRFTS..NRE181 *475 |
1 | ||
| 16295A - CLIP(FOR WATER BY-PASS HOSE NO.7) | ||||
| 90466-C0003 |
9NRFTS..NRE181 *475 |
2 | ||
| 90467-15022 |
9NRFTS..NRE181 *474 |
2 | ||
| 16295A - CLIP(FOR WATER BY-PASS HOSE NO.7) | ||||
| 90466-C0003 |
9NRFTS..NRE181 *475 |
2 | ||
| 90467-15022 |
9NRFTS..NRE181 *474 |
2 | ||
| 16304 - OUTLET SUB-ASSY, WATER | ||||
| 16304-0Y021 |
9NRFTS..NRE181 *475 |
1 | ||
| 16304-0Y020 |
9NRFTS..NRE181 *475 |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-47040 |
9NRFTS..NRE181 *474 |
1 | ||
| 16321-0Y030 |
9NRFTS..NRE181 *475 |
1 | ||
| 16322 - PIPE, WATER INLET | ||||
| 16322-0Y010 |
9NRFTS..NRE181 *475 |
1 | ||
| 16322-47010 |
9NRFTS..NRE181 *474 |
1 | ||
| 16322A - RING, O(FOR WATER INLET) | ||||
| 96761-35031 |
9NRFTS..NRE181 *474 |
2 | ||
| 90301-C0079 |
9NRFTS..NRE181 *475 |
2 | ||
| 16322A - RING, O(FOR WATER INLET) | ||||
| 96761-35031 |
9NRFTS..NRE181 *474 |
2 | ||
| 90301-C0079 |
9NRFTS..NRE181 *475 |
2 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-36040 |
9NRFTS..NRE181 *474 |
1 | ||
| 16325-0Y010 |
9NRFTS..NRE181 *475 |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16326-47020 |
9NRFTS..NRE181 *474 |
1 | ||
| 16326-0Y020 |
9NRFTS..NRE181 *475 |
1 | ||
| 16328 - GASKET, WATER INLET PIPE | ||||
| 16328-47010 |
9NRFTS..NRE181 *474 |
1 | ||
| 16328-0Y010 |
9NRFTS..NRE181 *475 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-47050 |
9NRFTS..NRE181 *474 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03154 |
9NRFTS..NRE181 *WAX 78-91,*474 |
1 | ||
| 90916-C3009 |
9NRFTS..NRE181 *WAX 78-91,*475 |
1 | ||
| 16336A - INSERT, WATER OUTLET | ||||
| 16336-47010 |
9NRFTS..NRE181 *474 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-0Y010 |
9NRFTS..NRE181 *475 |
1 | ||
| 16341-47030 |
9NRFTS..NRE181 *474 |
1 | ||
| 16581 - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 16581-47080 |
9NRFTS..NRE181 |
1 | ||
| 16671 - VALVE, WATER | ||||
| 16671-47010 |
9NRFTS..NRE181 *474 |
1 | ||
| 16671-0Y010 |
9NRFTS..NRE181 *475 |
1 | ||
| Common parts | ||||
| 90105-08438 | ||||
| 90105-C0043 | ||||
| 90105-C0081 | ||||
| 90105-C0082 | ||||
| 90105-C0088 | ||||
| 90105-C0305 | ||||
| 91551-80616 | ||||
| 91551-80620 | ||||
| 91551-80625 | ||||
| 91551-80830 | ||||
| Linked diagrams | ||||
| 3401 | ||||
| 8401 | ||||
| 8716 | ||||
