NRE181L-GEFNZC (2016)

Toyota Corolla (China)

Production Oct 2016 - Mar 2017
Engine 9NRFTS
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1610- )9NRFTS

Click highlighted areas on diagram

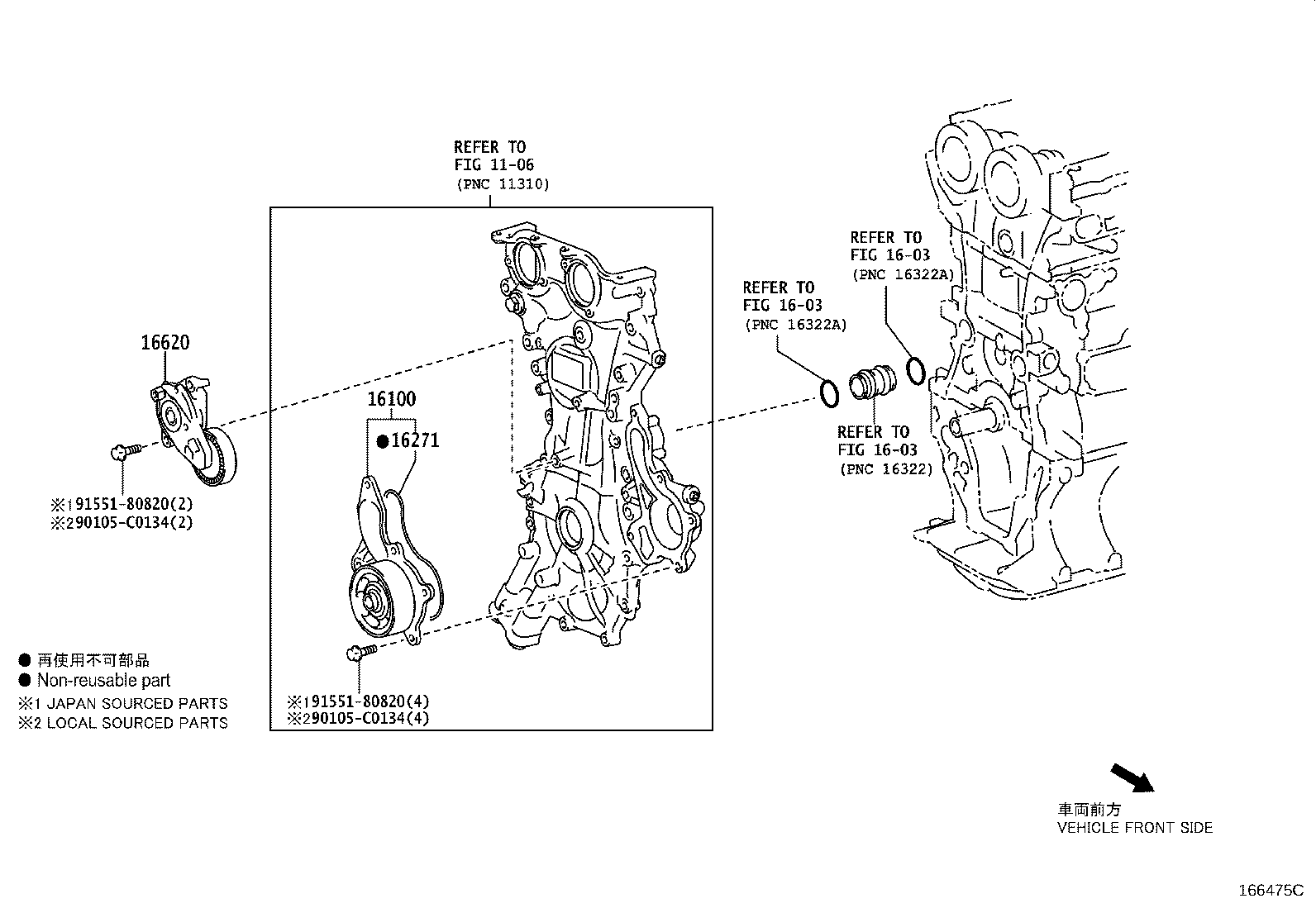

diagram 1106 1603 1603 1603 16100 16271 16620 90105C0134 90105C0134 9155180820 9155180820
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-09760

9NRFTS..NRE181

 1
16271 - GASKET, WATER PUMP
16271-0Y050

9NRFTS..NRE181

 1
16620 - TENSIONER ASSY, V-RIBBED BELT
16620-0Y030

9NRFTS..NRE181

 1
Common parts
90105-C0134
91551-80820
Linked diagrams
1106
1603
