NRE181L-GEFNZC (2017)

Toyota Corolla (China)

Production Apr 2017 - Jul 2019
Engine 9NRFTS
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1406- )6F

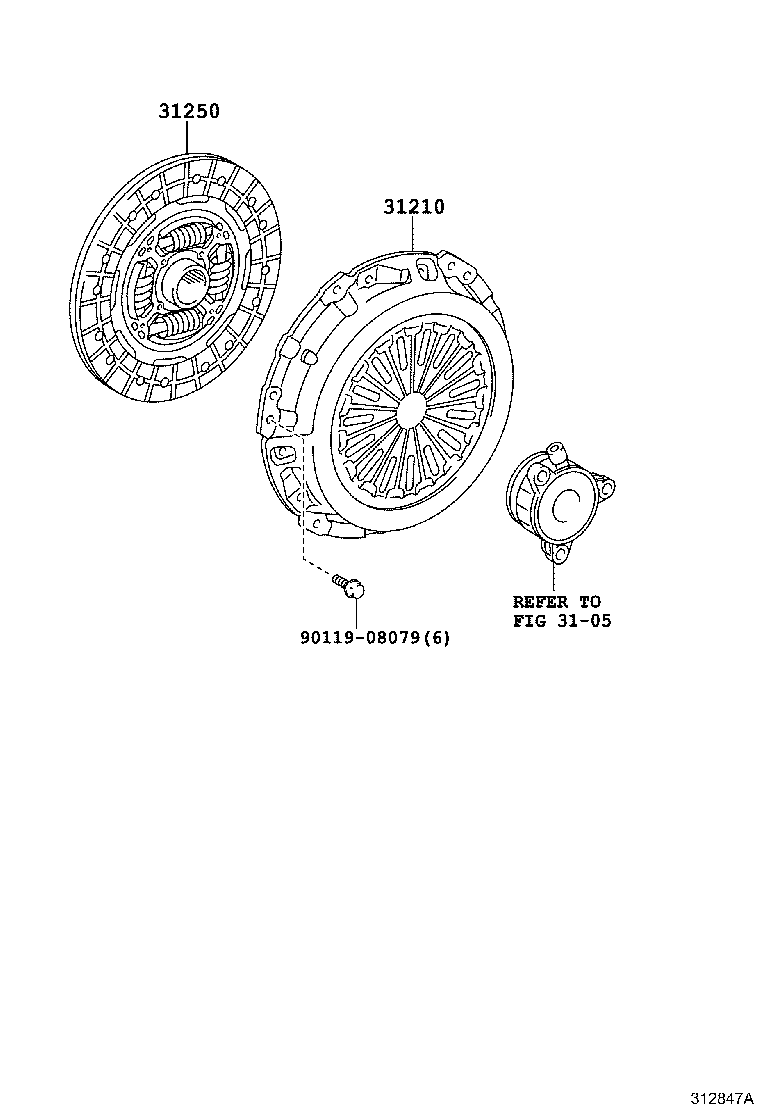

Click highlighted areas on diagram

diagram 3105 31210 31250 9011908079
Part # Description Qty Price
31210 - COVER ASSY, CLUTCH
31210-02290

NRE181..6F

 1
31250 - DISC ASSY, CLUTCH
31250-02270

NRE181..6F

 1
Common parts
90119-08079
Linked diagrams
3105
