NRE181L-GEFGZC (2016)
Toyota Corolla (China)
ILLUST NO. 6 OF 9(1406-1703)NRE181,ZRE182 ; (1406- )ZRE181
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83910G - CLOCK ASSY | ||||
| 83910-02180 |
NRE181,ZRE18#,ZWE182 |
1 | ||
| 83950M - LAMP ASSY, TELLTALE | ||||
| 83950-02380 |
ZWE182;NRE181,ZRE18#..GLXI,PREM |
1 | ||
| 84470A - SWITCH ASSY, ECORUN CANCEL | ||||
| 84470-02020 |
NRE181,ZRE182 |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-02220 |
ZWE182..GLI;NRE181,ZRE181 |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-02220 |
ZWE182..GLI;NRE181,ZRE181 |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-02070 |
NRE181,ZRE18# |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-02030 |
NRE181,ZRE18# |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-02100 |
NRE181,ZRE18# |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-02050 |
NRE181,ZRE18# |
1 | ||
| Linked diagrams | ||||
| 8417 | ||||

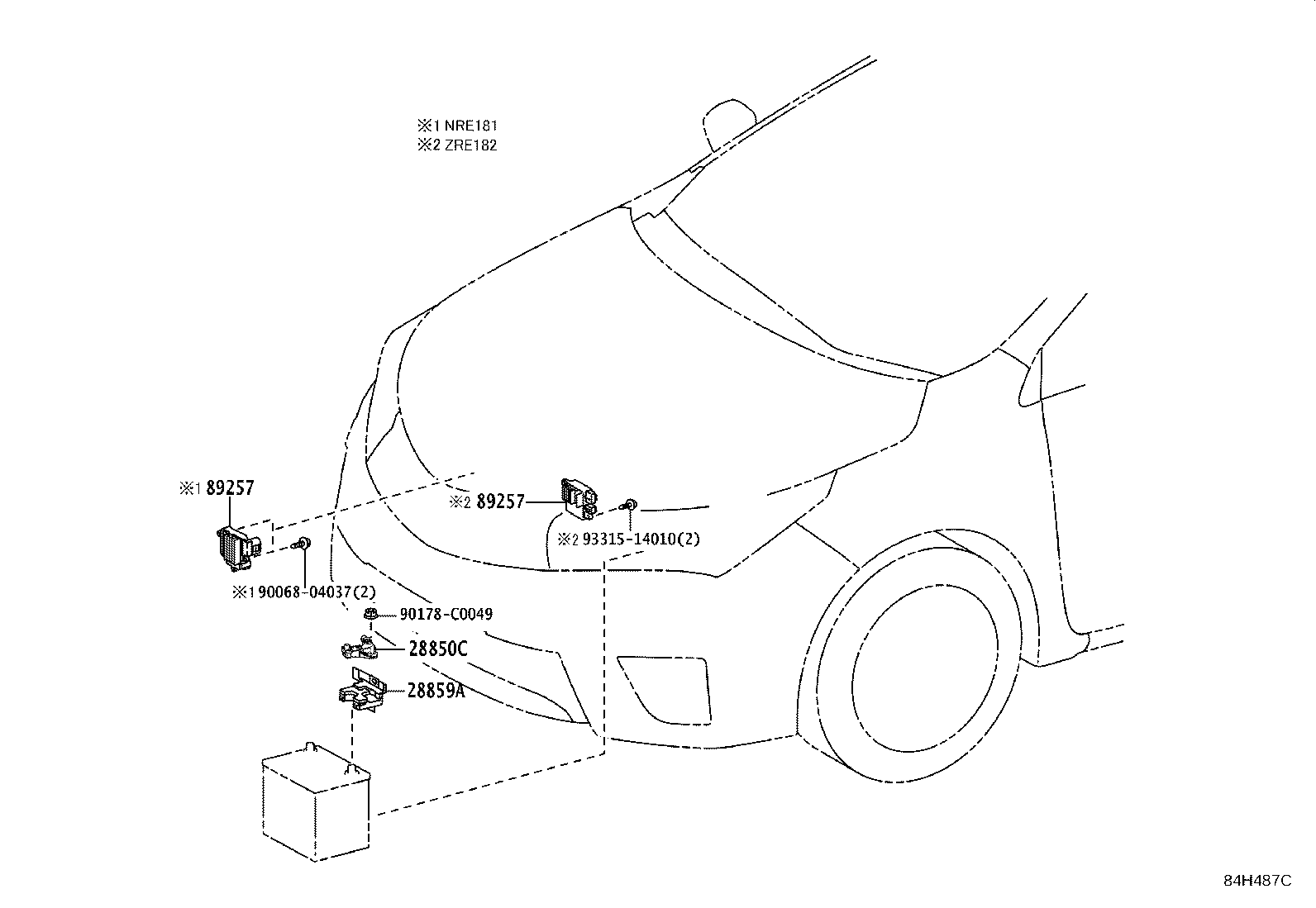

ILLUST NO. 3 OF 9(1610- )NRE181,ZRE182
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28850C - SENSOR ASSY, BATTERY STATE | ||||
| 28850-0V020 |
9NRFTS,2ZRFE..NRE181,ZRE182 |
1 | ||
| 28859A - HOLDER, BATTERY CURRENT SENSOR | ||||
| 28859-0Y030 |
9NRFTS,2ZRFE..NRE181,ZRE182 |
1 | ||
| 89257 - COMPUTER, COOLING FAN | ||||
| 89257-30080 |
NRE181 |
1 | ||
| 89257 - COMPUTER, COOLING FAN | ||||
| 89257-30080 |
NRE181 |
1 | ||
| Common parts | ||||
| 90068-04037 | ||||
| 90178-C0049 | ||||
| 93315-14010 | ||||

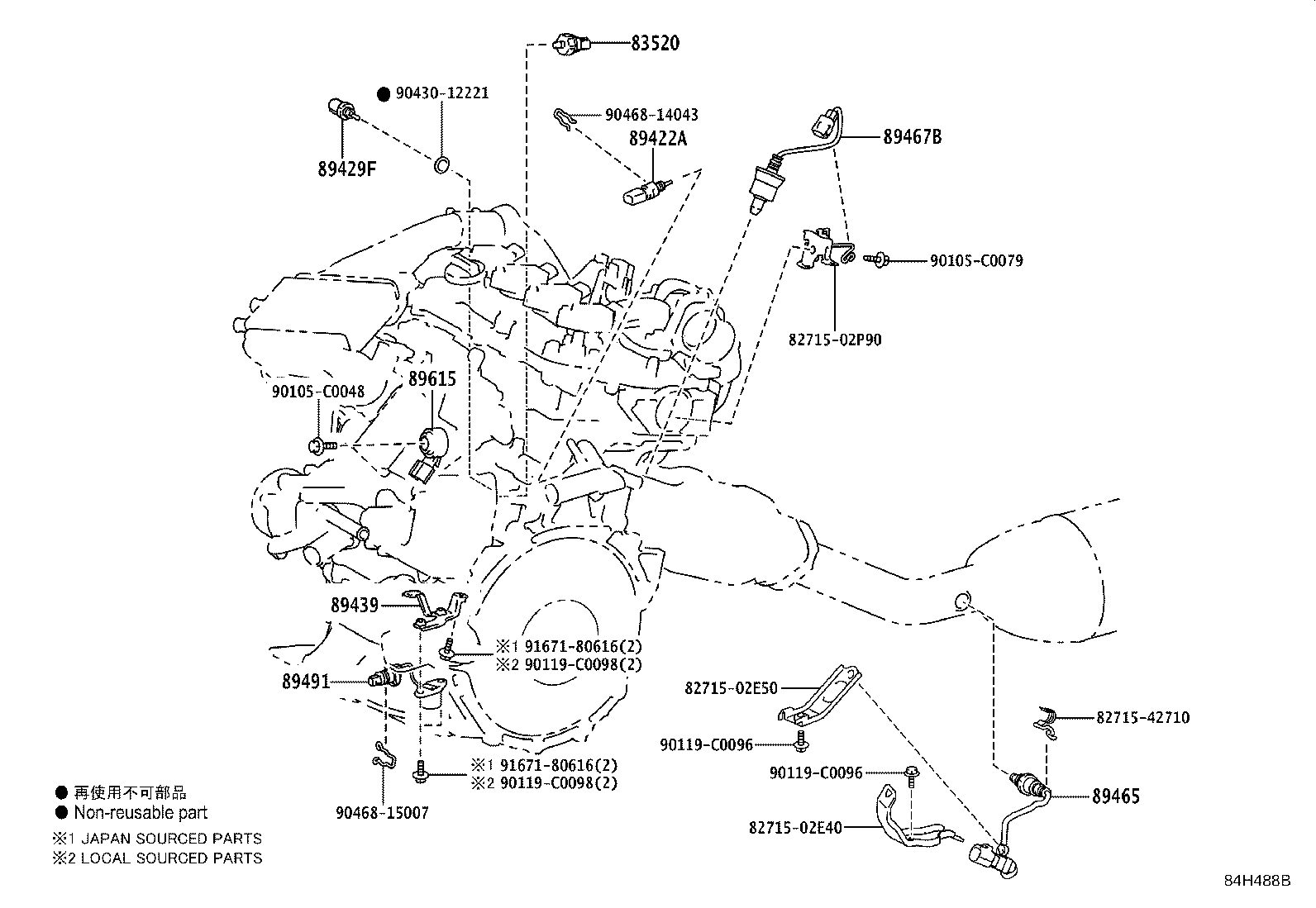

ILLUST NO. 1 OF 9(1610- )NRE181
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83520 - GAGE ASSY,OIL PRESSURE SENDER | ||||
| 83520-02010 |
NRE181 |
1 | ||
| 89422A - SENSOR, WATER TEMPERATURE | ||||
| 89422-47010 |
NRE181 |
1 | ||
| 89429F - SENSOR, TEMPERATURE | ||||
| 89429-02010 |
NRE181 |
1 | ||
| 89439 - BRACKET, SENSOR | ||||
| 15367-0Y010 |
NRE181 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-02410 |
NRE181 |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-02120 |
NRE181 |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-12040 |
NRE181 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-02040 |
NRE181 |
1 | ||
| Common parts | ||||
| 82715-02E40 | ||||
| 82715-02E50 | ||||
| 82715-02P90 | ||||
| 82715-42710 | ||||
| 90105-C0048 | ||||
| 90105-C0079 | ||||
| 90119-C0096 | ||||
| 90119-C0098 | ||||
| 90430-12221 | ||||
| 90468-14043 | ||||
| 90468-15007 | ||||
| 91671-80616 | ||||

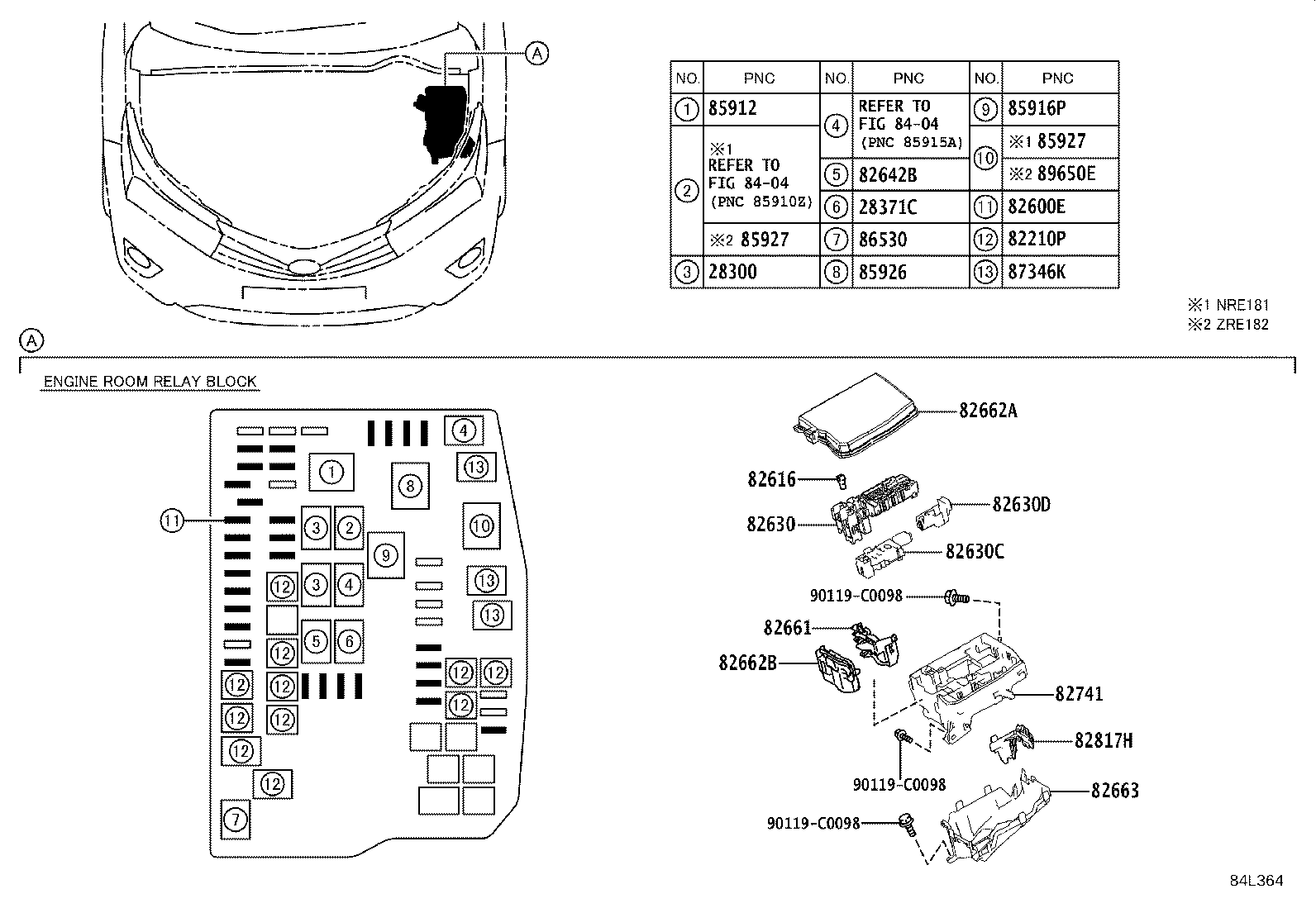

ILLUST NO. 4 OF 9(1610- )NRE181,ZRE182
ENGINE ROOM RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371C - RELAY, IGNITION, NO.2 | ||||
| 90987-T2005 |
9NRFTS..NRE181;2ZRFE..ZRE182..CVT |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08274 |
NRE181,ZRE18# 120A,TERM.:MALE,WHT |
1 | ||
| 90982-08296 |
NRE181,ZRE18#,ZWE182 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08304 |
NRE181,ZRE181 60A,TERM.:FEMALE,YEL |
1 | ||
| 90982-08295 |
NRE181,ZRE18#,ZWE182 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08294 |
NRE181,ZRE18#,ZWE182 40A,TERM.:FEMALE,GRN |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09022 |
NRE181,ZRE18#,ZWE182 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09020 |
NRE181,ZRE18#,ZWE182 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09025 |
NRE181,ZRE18#,ZWE182 30A,MINI FUSE,GRN |
1 | ||
| 90982-09019 |
NRE181,ZRE182,ZWE182 5A,MINI FUSE,TAN |
1 | ||
| 90982-09024 |
NRE181,ZRE18#,ZWE182 25A,MINI FUSE |
1 | ||
| 90982-09023 |
NRE181,ZRE18#,ZWE182 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09021 |
NRE181,ZRE18#,ZWE182 10A,MINI FUSE,RED |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
NRE181,ZRE18#,ZWE182 |
1 | ||
| 82630 - HOLDER ASSY, FUSE | ||||
| 82631-02080 |
NRE181,ZRE18# |
1 | ||
| 82630C - HOLDER ASSY, FUSE | ||||
| 82631-12100 |
NRE181,ZRE182 |
1 | ||
| 82630D - HOLDER, FUSE | ||||
| 82631-02100 |
NRE181,ZRE18# |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-02070 |
NRE181,ZRE18# |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-02880 |
NRE181 |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-02A10 |
NRE181,ZRE18# |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-02100 |
NRE181,ZRE18# |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-02100 |
NRE181,ZRE18# |
1 | ||
| 82817H - PROTECTOR, WIRING HARNESS | ||||
| 82817-02J30 |
NRE181,ZRE18# |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-T4002 |
NRE181,ZRE18#,ZWE182 |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-T2004 |
ZRE182..CVT;NRE181,ZWE182 |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 90987-T2004 |
ZRE182..CVT;NRE181,ZWE182 |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-T2004 |
NRE181 |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-T2004 |
NRE181 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-T2005 |
ZRE182..CVT;NRE181,ZWE182 |
1 | ||
| 87346K - RELAY, PTC HEATER | ||||
| 90987-T2005 |
NRE181;ZRE182..CVT |
3 | ||
| Common parts | ||||
| 90119-C0098 | ||||
| Linked diagrams | ||||
| 8404 | ||||
