NRE181L-GEFGZC (2016)

Toyota Corolla (China)

Production Oct 2016 - Mar 2017
Engine 9NRFTS
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1610- )9NRFTS

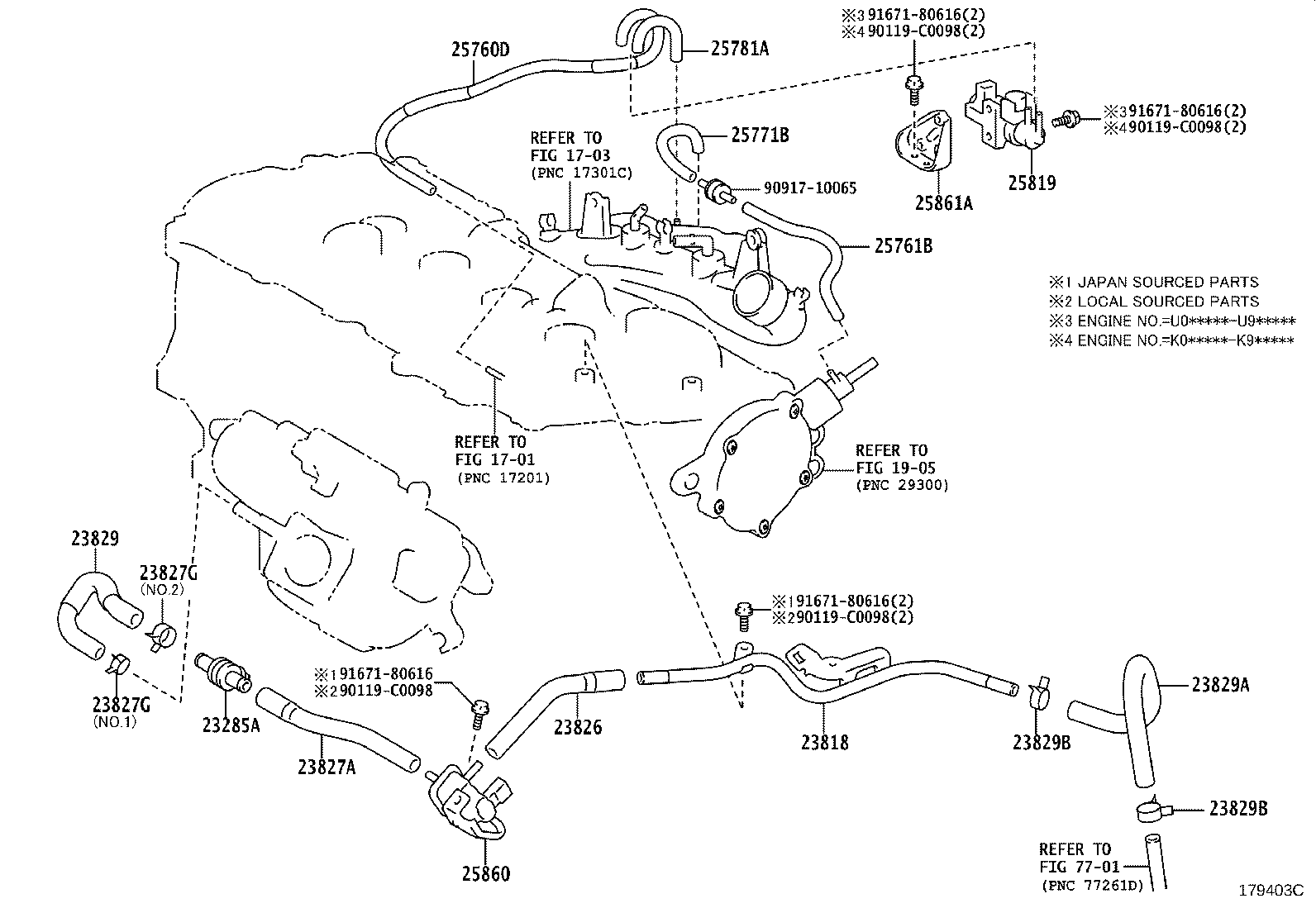

Click highlighted areas on diagram

diagram 1701 1703 1905 23285A 23818 23826 23827A 23827G 23827G 23829 23829A 23829B 23829B 25760D 25761B 25771B 25781A 25819 25860 25861A 7701 90119C0098 90119C0098 90119C0098 90119C0098 9091710065 9167180616 9167180616 9167180616 9167180616
Part # Description Qty Price
23285A - VALVE, CHECK, NO.1
25748-0Y010

9NRFTS..NRE181

 1
23818 - PIPE, FUEL VAPOR FEED
23818-0Y010

9NRFTS..NRE181

 1
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-0Y190

9NRFTS..NRE181

 1
23827A - HOSE, FUEL VAPOR FEED, NO.2
23827-0Y190

9NRFTS..NRE181

 1
23827G - CLIP(FOR FUEL VAPOR FEED HOSE, NO.3)
90466-C0039

9NRFTS..NRE181

NO.1:REFER ILLUST.

 1
90466-C0031

9NRFTS..NRE181

NO.2:REFER ILLUST.

 1
23827G - CLIP(FOR FUEL VAPOR FEED HOSE, NO.3)
90466-C0039

9NRFTS..NRE181

NO.1:REFER ILLUST.

 1
90466-C0031

9NRFTS..NRE181

NO.2:REFER ILLUST.

 1
23829 - HOSE, FUEL VAPOR FEED, NO.3
23829-0Y010

9NRFTS..NRE181

 1
23829A - HOSE, FUEL VAPOR FEED
23826-0Y200

9NRFTS..NRE181

 1
23829B - CLIP(FOR FUEL VAPOR FEED HOSE)
96136-41901

9NRFTS..NRE181

(J)

 2
90466-C0039

9NRFTS..NRE181

(L)

 2
23829B - CLIP(FOR FUEL VAPOR FEED HOSE)
96136-41901

9NRFTS..NRE181

(J)

 2
90466-C0039

9NRFTS..NRE181

(L)

 2
25760D - HOSE ASSY, VACUUM TRANSMITTING, NO.4
25791-0Y010

9NRFTS..NRE181

 1
25761B - HOSE, VACCUM TRANSMITTING, NO.1
25761-0Y010

9NRFTS..NRE181

 1
25771B - HOSE, VACCUM TRANSMITTING, NO.2
25771-0Y010

9NRFTS..NRE181

 1
25781A - HOSE, VACUUM TRANSMITTING, NO.3
25781-0Y010

9NRFTS..NRE181

 1
25819 - VALVE ASSY, VACUUM REGULATING
25819-0W010

9NRFTS..NRE181

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-0Y100

9NRFTS..NRE181

 1
25861A - BRACKET, VACUUM SWITCHING VALVE, NO.2
25862-0Y010

9NRFTS..NRE181

 1
Common parts
90119-C0098
90917-10065
91671-80616
