NRE181L-GEFGZC (2016)

Toyota Corolla (China)

Production Oct 2016 - Mar 2017
Engine 9NRFTS
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

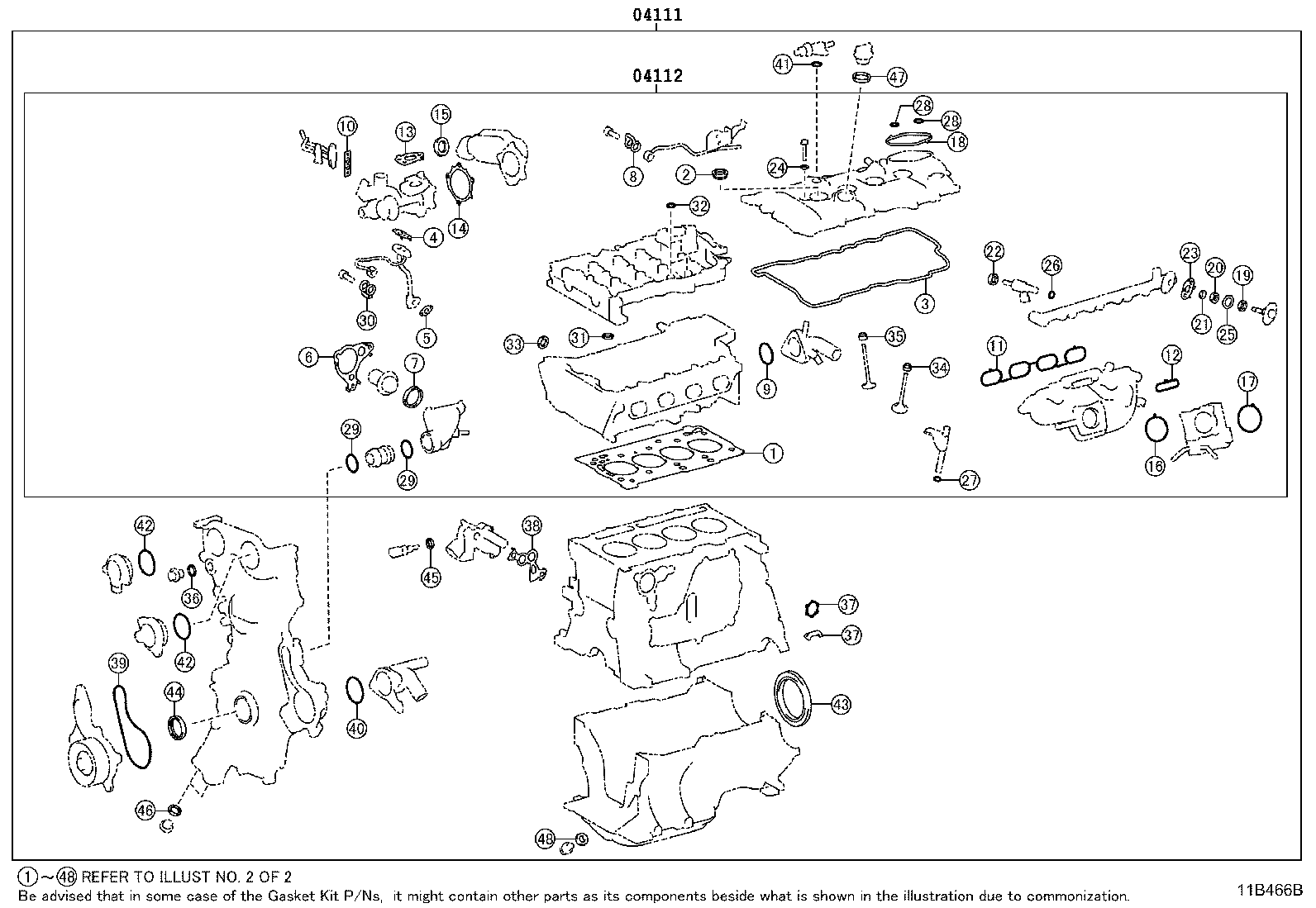

ILLUST NO. 1 OF 2(1610- )9NRFTS

Click highlighted areas on diagram

ENGINE NO.=K0*****-K9*****

diagram 04111 04112
Part # Description Qty Price
04111 - GASKET KIT, ENGINE OVERHAUL
04111-0Y120

9NRFTS..NRE181

 1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-0Y120

9NRFTS..NRE181

 1

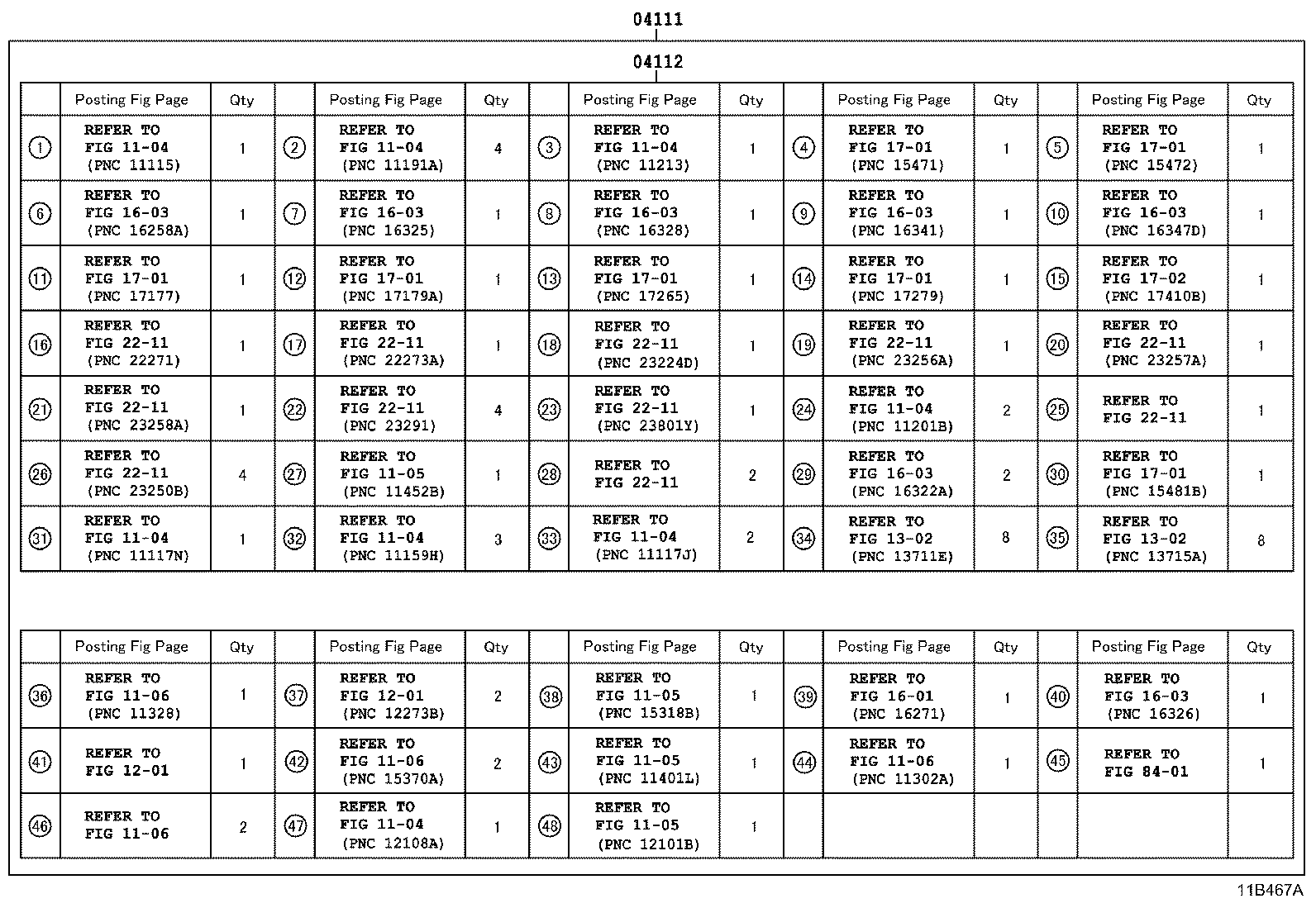

ILLUST NO. 2 OF 2(1610- )9NRFTS

Click highlighted areas on diagram

ENGINE NO.=K0*****-K9*****

diagram 04111 04112 1104 1104 1104 1104 1104 1104 1104 1104 1105 1105 1105 1105 1106 1106 1106 1106 1201 1201 1302 1302 1601 1603 1603 1603 1603 1603 1603 1603 1701 1701 1701 1701 1701 1701 1701 1702 2211 2211 2211 2211 2211 2211 2211 2211 2211 2211 2211 8401
Part # Description Qty Price
04111 - GASKET KIT, ENGINE OVERHAUL
04111-0Y120

9NRFTS..NRE181

 1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-0Y120

9NRFTS..NRE181

 1
Linked diagrams
1104
1105
1106
1201
1302
1601
1603
1701
1702
2211
8401
