ZZE122R-GEPNKX (2003)

Toyota Corolla (Asia/India)

Production Jan 2003 - Aug 2008
Engine 1ZZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(0103- )

Click highlighted areas on diagram

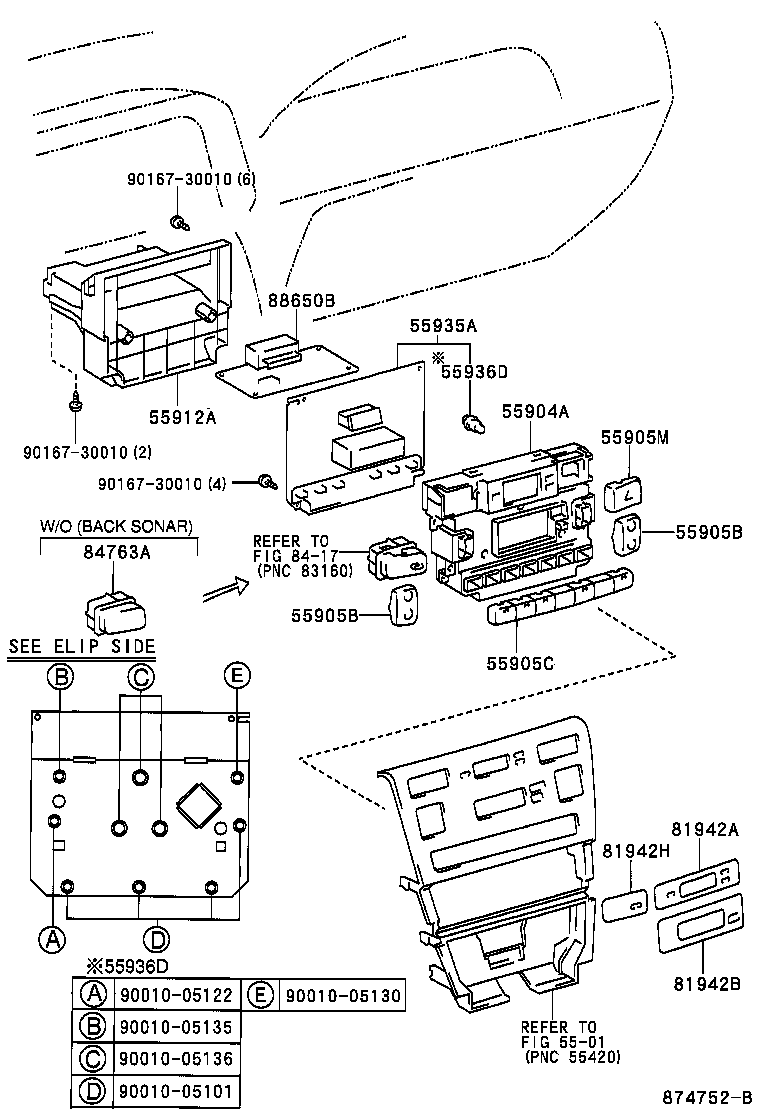

CONTROL PANEL--AUTO AIR CONDITIONER

diagram 5501 55904A 55905B 55905B 55905C 55905M 55912A 55935A 55936D 81942A 81942B 81942H 8417 84763A 88650B 9016730010 9016730010 9016730010
Part # Description Qty Price
55904A - HOUSING SUB-ASSY, HEATER CONTROL
55904-12010

ZZE122..(18E,18G)..IND

 1
55905B - KNOB, HEATER CONTROL, NO.2
55905-12680

ZZE122..(18E,18G)..IND

TEMP

 1
55905-12670

ZZE122..(18E,18G)..IND

BLOWER

 1
55905B - KNOB, HEATER CONTROL, NO.2
55905-12680

ZZE122..(18E,18G)..IND

TEMP

 1
55905-12670

ZZE122..(18E,18G)..IND

BLOWER

 1
55905C - KNOB, HEATER CONTROL, NO.3
55905-12690

ZZE122..(18E,18G)..IND

 1
55905M - KNOB SUB-ASSY, CONTROL
55905-12660

ZZE122..(18E,18G)..IND

 1
55912A - HOUSING, HEATER CONTROL
55912-12070

ZZE122..(18E,18G)..IND

 1
55935A - CIRCUIT, CENTER CLUSTER MODULE
55935-12040

ZZE122..(18E,18G)..IND

 1
55935-12040

ZZE122..(18E,18G)..IND

 1
55936D - BLUB, CENTER CLUSTER MODULE SWITCH
90010-05130

ZZE122..(18E,18G)..IND

14V 1.4W,TYPE E:REFER TO ILLUSTRATION

 1
90010-05136

ZZE121..ATM..MA;ZZE122..(18E,18G)..(IND,MA)

14V 1.12W,W(CAP),TYPE C:REFER TO ILLUSTRATION

 3
90010-05101

ZZE121..ATM..MA;ZZE122..(18E,18G)..(IND,MA)

14V1.12W,W/GREEN CAP,TYPE D:REFER TO ILLUSTRATION

 4
90010-05130

ZZE122..(18E,18G)..IND

14V 1.4W,TYPE E:REFER TO ILLUSTRATION

 1
90010-05122

ZZE121..ATM..MA;ZZE122..(18E,18G)..(IND,MA)

14V 1.4W,W(CAP),TYPE A:REFER TO ILLUSTRATION

 1
90010-05135

ZZE121..ATM..MA;ZZE122..(18E,18G)..(IND,MA)

14V 0.91W,TYPE B:REFER TO ILLUSTRATION

 1
81942A - SHEET, HEATER CONTROL NAME, NO.1
81942-12640

ZZE122..(18E,18G)..IND

 1
81942B - SHEET, HEATER CONTROL NAME, NO.2
81942-12650

ZZE122..(18E,18G)..IND

 1
84763A - PLATE, SWITCH
84763-12140

ZZE122..(18E,18G)..IND

 1
88650B - AMPLIFIER ASSY, AIRCONDITIONER
88650-13040

ZZE122..(18E,18G)..IND

 1
88650-13040

ZZE122..(18E,18G)..IND

 1
Common parts
90167-30010
Linked diagrams
5501
8417

ILLUST NO. 1 OF 3(0103- )

Click highlighted areas on diagram

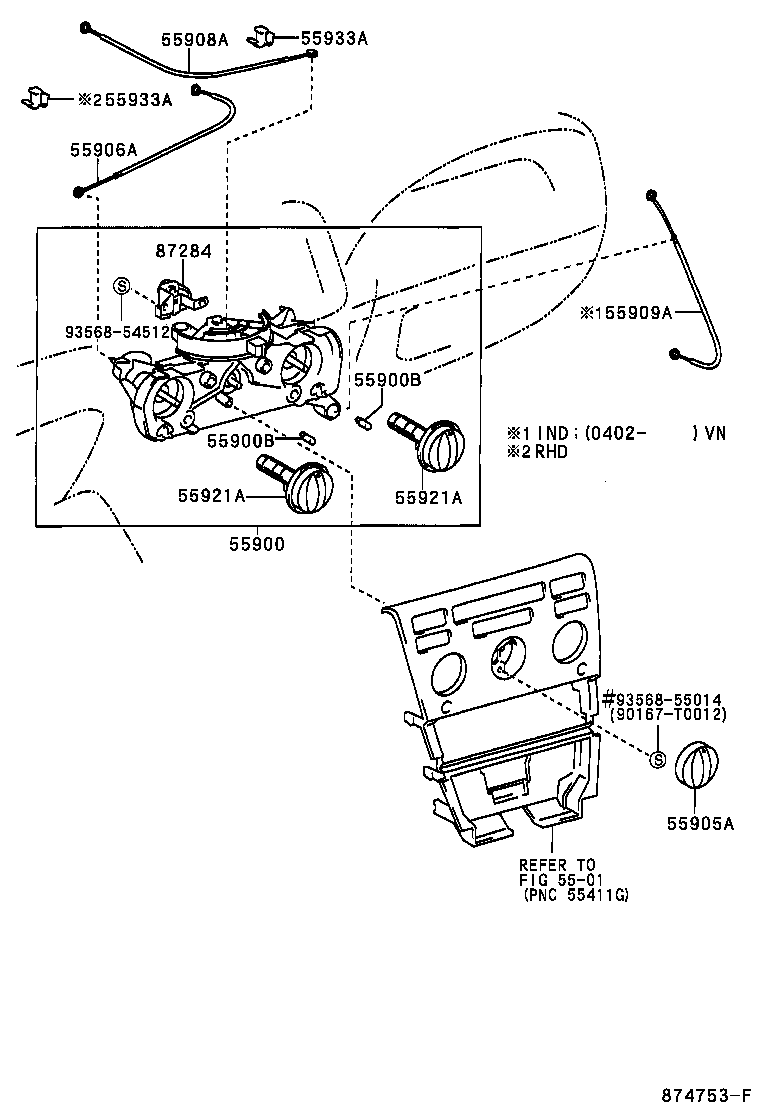

CONTROL PANEL--DIAL TYPE

diagram 5501 55900 55900B 55900B 55905A 55906A 55908A 55909A 55921A 55921A 55933A 55933A 87284 90167T0012 9356854512 9356855014
Part # Description Qty Price
Common parts
90167-T0012
93568-54512
93568-55014
Linked diagrams
5501

ILLUST NO. 1 OF 3(0103- )

Click highlighted areas on diagram

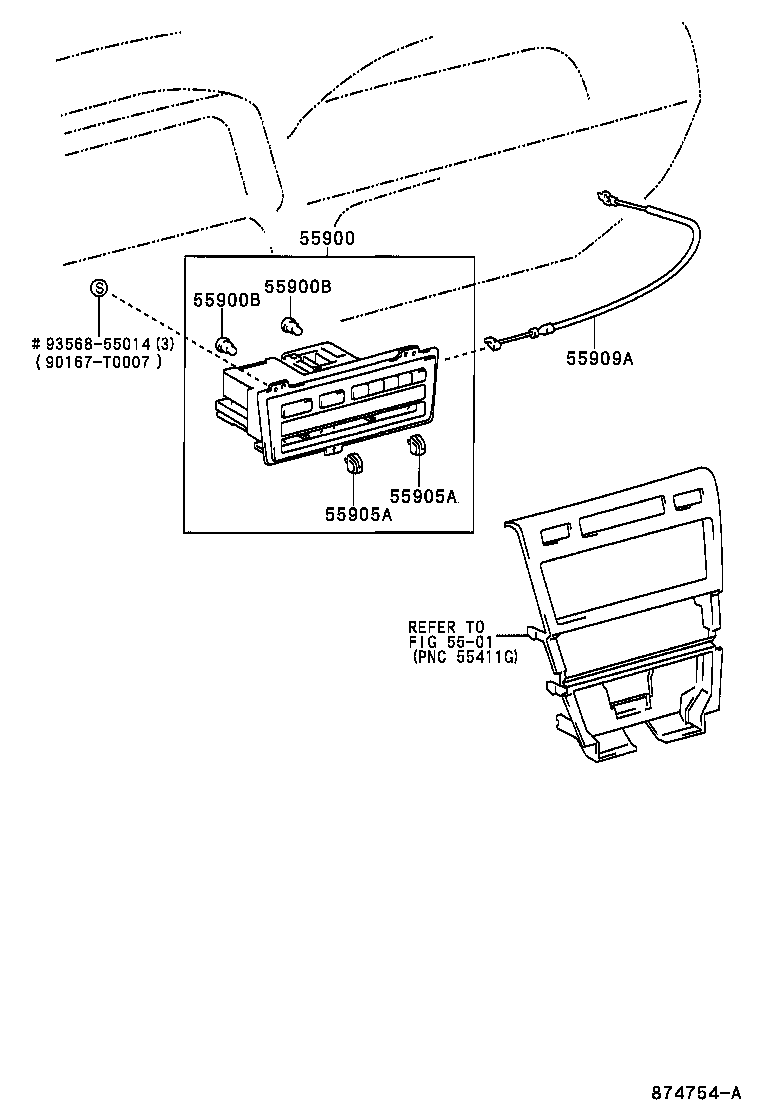

CONTROL PANEL--LEVER TYPE

diagram 5501 55900 55900B 55900B 55905A 55905A 55909A 90167T0007 9356855014
Part # Description Qty Price
Common parts
90167-T0007
93568-55014
Linked diagrams
5501

ILLUST NO. 3 OF 3(0103- )

Click highlighted areas on diagram

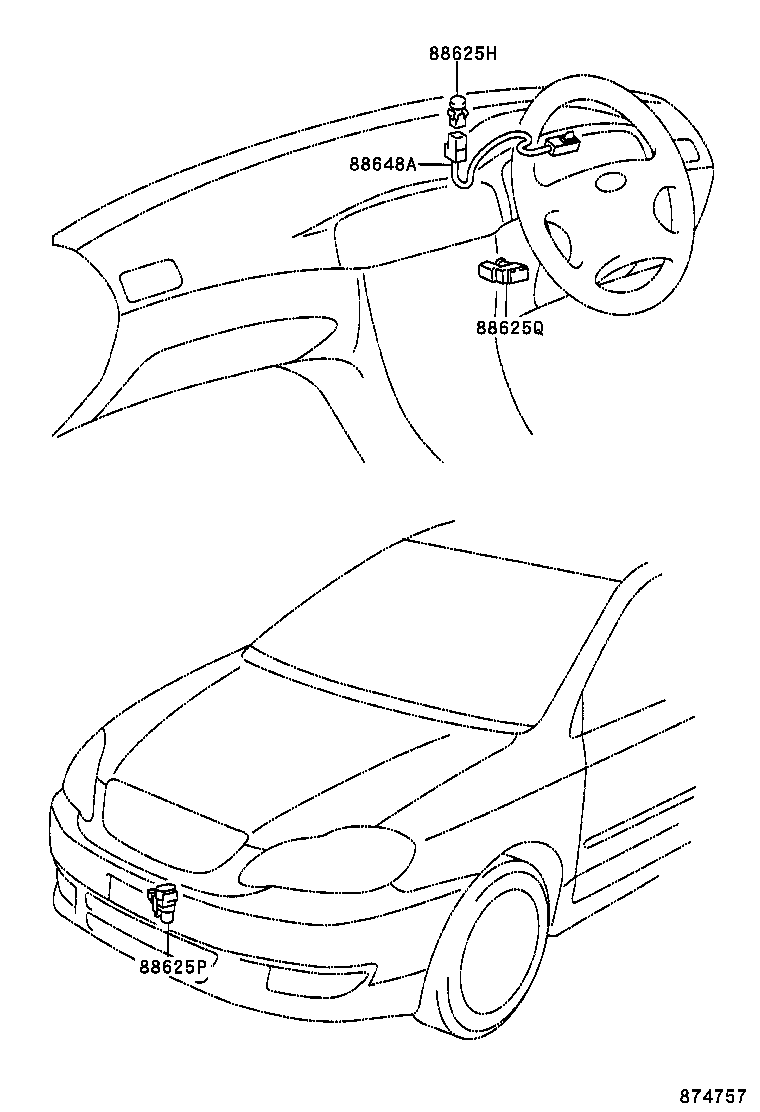

SENSOR

diagram 88625H 88625P 88625Q 88648A
Part # Description Qty Price
88625H - THERMISTOR, COOLER (SOLAR SENSOR)
88625-47031

ZZE121..ATM..MA;ZZE122..(18E,18G)..(IND,MA)

 1
88625-47031

ZZE122..(18E,18G)..IND

 1
88625P - THERMISTOR, COOLER (AMBIENT TEMP. SENSOR)
88790-22131

ZZE121..ATM..MA;ZZE122..(18E,18G)..(IND,MA)

 1
88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR)
88625-47021

ZZE121..ATM..MA;ZZE122..(18E,18G)..(IND,MA)

 1
88625-47021

ZZE122..(18E,18G)..IND

 1
88648A - WIRING, COOLER
88648-02200

ZZE122..(18E,18G)..IND

 1
88648-02200

ZZE122..(18E,18G)..IND

 1
