ZZE122R-GEPNKX (2003)

Toyota Corolla (Asia/India)

Production Jan 2003 - Aug 2008
Engine 1ZZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

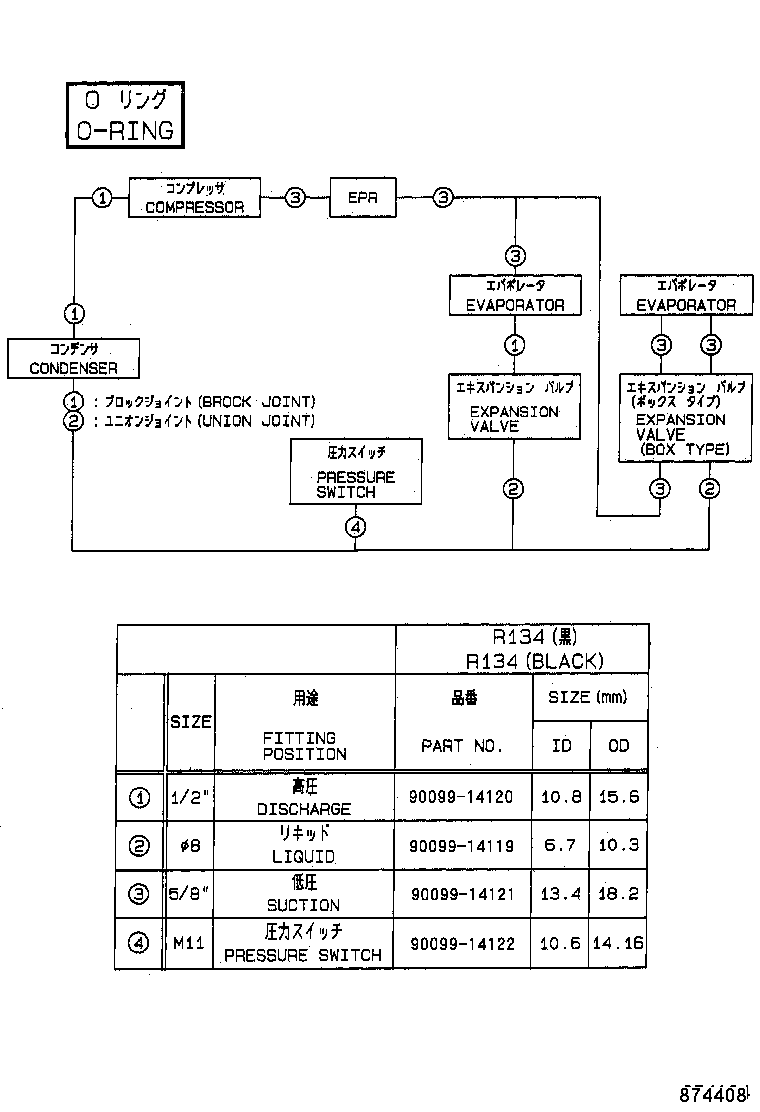

ILLUST NO. 2 OF 2(0103- )

Click highlighted areas on diagram

O-RING

diagram 9009914119 9009914120 9009914121 9009914122
Part # Description Qty Price
Common parts
90099-14119
90099-14120
90099-14121
90099-14122

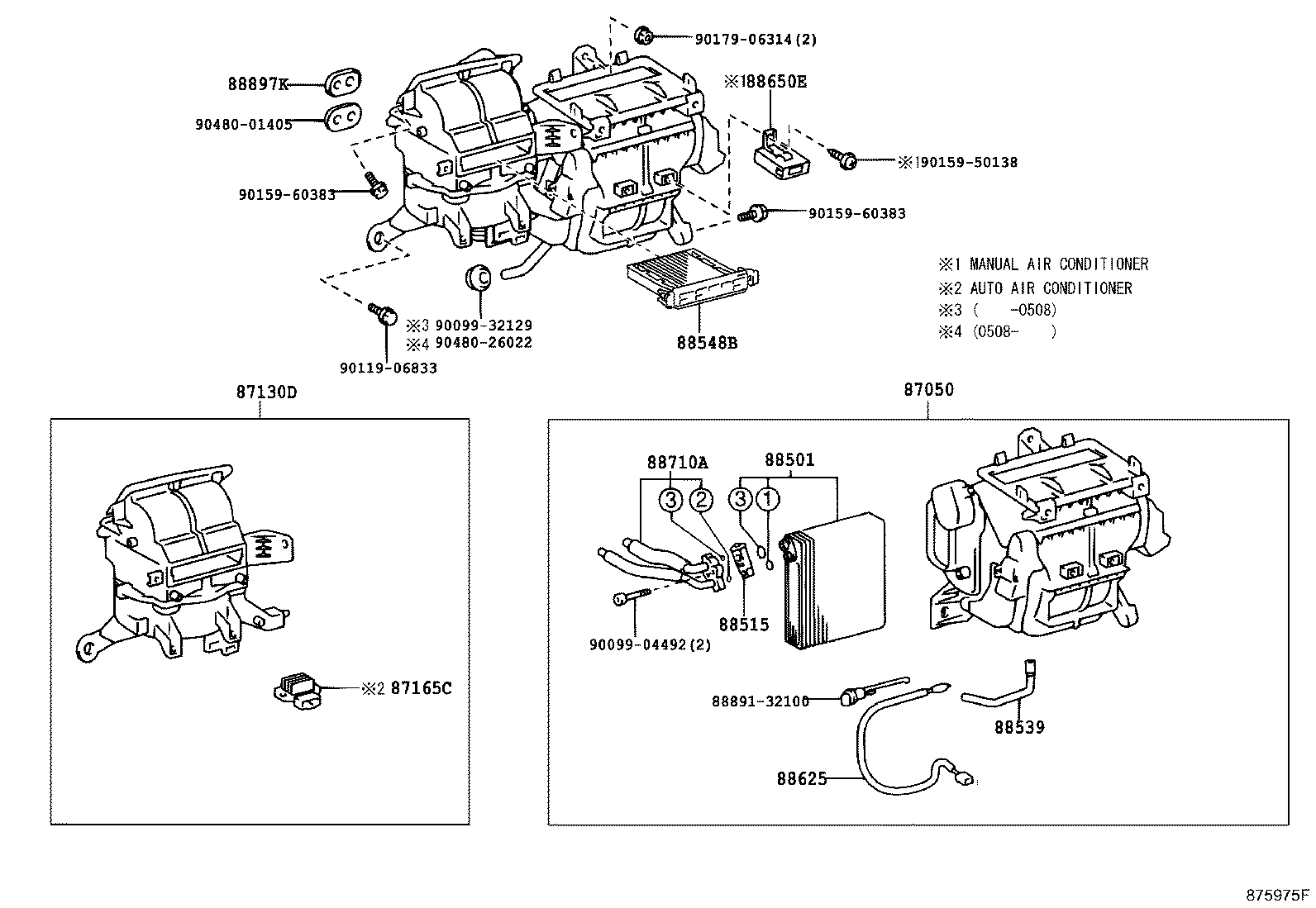

ILLUST NO. 1 OF 2(0301- )IND

Click highlighted areas on diagram

diagram 87050 87130D 87165C 88501 88515 88539 88548B 88625 88650E 88710A 8889132100 88897K 9009904492 9009932129 9011906833 9015950138 9015960383 9015960383 9017906314 9048001405 9048026022
Part # Description Qty Price
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-02370

ZZE122..(18E,18G)..IND

 1
87050-02370

ZZE122..(18E,18G)..IND

 1
87130D - BLOWER ASSY
87130-12450

ZZE122..(18E,18G)..IND

 1
87165C - CONTROL, BLOWER MOTOR
87165-13010

ZZE122..(18E,18G)..(IDN,IND,MA,PHL,TAIW,TH)

 1
87165-41010

ZZE122..(18E,18G)..(IND,MA,PHL)

 1
87165-13010

ZZE121..ATM..MA;ZZE122..(18E,18G)..(IND,MA)

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-12440

ZZE122..IND

 1
88501-12440

ZZE122..IND

 1
88515 - VALVE, COOLER EXPANSION
88515-48040

ZZE122..IND;ZZE121..16E..TAIW

 1
88515-28160

ZZE122..IND

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-12170

ZZE122..IND

 1
88539-12170

ZZE122..IND

 1
88548B - CASE, AIR FILTER
88508-52040

ZZE122..IND

 1
88625 - THERMISTOR, COOLER, NO.1
88625-60140

ZZE122;ZZE121..MA,TAIW,TH;ZZE121..(16E,16G)..PHL

 1
88625-60140

ZZE122..IND,MA;ZZE121..ATM..MA

 1
88710A - TUBE ASSY, AIR CONDITIONER
88710-12540

ZZE122..IND

 1
88710-12540

ZZE122..IND

 1
88897K - GROMMET, (FOR COOLER PIPE)
90480-01434

ZZE121..ATM..MA;ZZE122..IND,MA,VN

 1
90480-01434

NZE120,ZZE122;ZZE121..MA,TAIW,TH;ZZE121..(16E,16G)..PHL

 1
Common parts
88891-32100
90099-04492
90099-32129
90119-06833
90159-50138
90159-60383
90179-06314
90480-01405
90480-26022
