ZZE122R-GEPNKX (2003)

Toyota Corolla (Asia/India)

Production Jan 2003 - Aug 2008
Engine 1ZZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0301- )IND

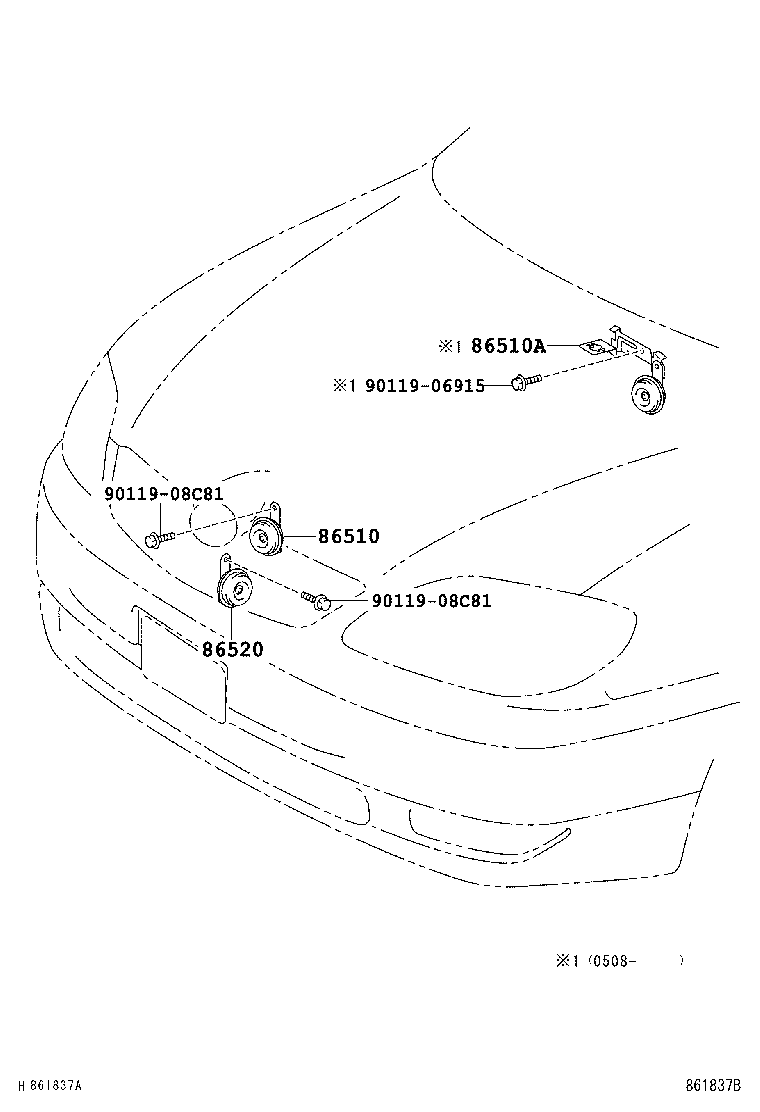

Click highlighted areas on diagram

diagram 86510 86510A 86520 9011906915 9011908C81 9011908C81
Part # Description Qty Price
86510 - HORN ASSY, HIGH PITCHED
86510-02010

ZZE122..IND

 1
86510-02010

ZZE122..IND

 1
86510A - HORN ASSY, SECURITY
86560-12050

ZZE122..IND

 1
86560-12020

ZZE122..IND

 1
86560-12021

ZZE122..IND

 1
86520 - HORN ASSY, LOW PITCHED
86520-02080

ZZE122..IND

 1
86520-02080

ZZE122..IND

 1
Common parts
90119-06915
90119-08C81
