ZZE122R-GEPNKX (2003)

Toyota Corolla (Asia/India)

Production Jan 2003 - Aug 2008
Engine 1ZZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

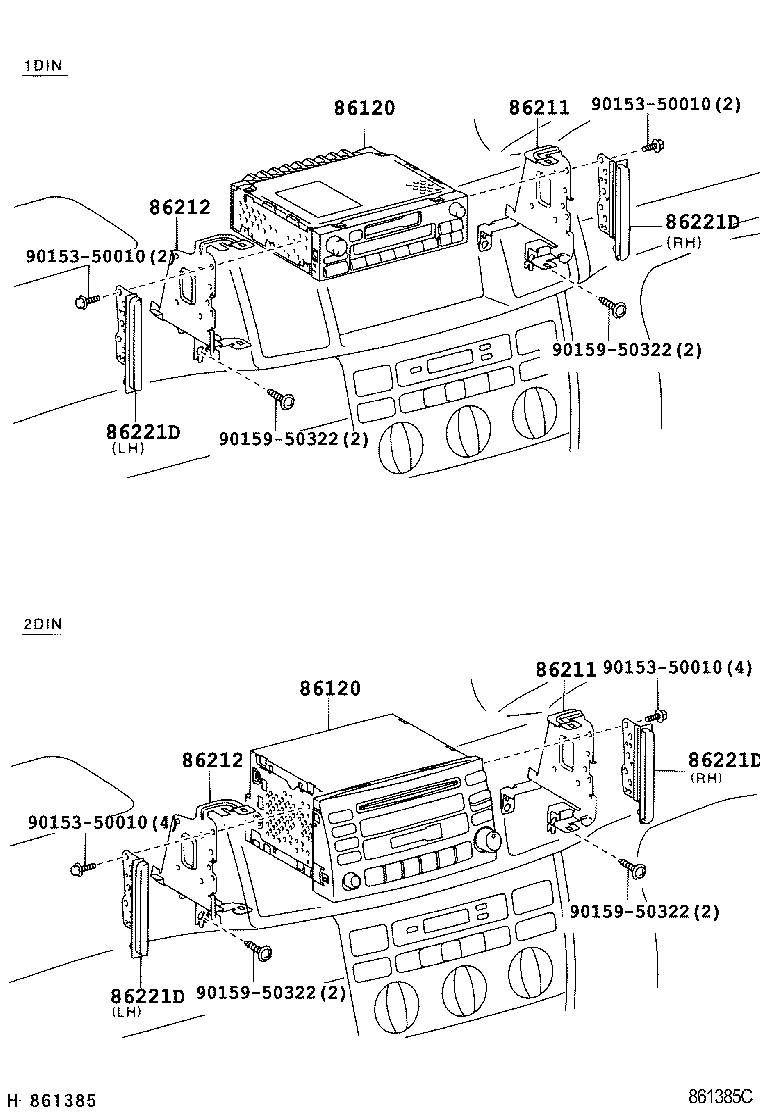

ILLUST NO. 1 OF 3(0103- )

Click highlighted areas on diagram

diagram 86120 86120 86211 86211 86212 86212 86221D 86221D 86221D 86221D 9015350010 9015350010 9015350010 9015350010 9015950322 9015950322 9015950322 9015950322
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-02370

ZZE122..(18E,18G)..IND

MATSUSHITA,TYPE A:REFER TO ILLUSTRATION

 1
86120-02490

ZZE122..(18E,18G)..IND

PANASONIC,ID=57867,TYPE F:REFER TO ILLUSTRATION

 1
86120 - RECEIVER ASSY, RADIO
86120-02370

ZZE122..(18E,18G)..IND

MATSUSHITA,TYPE A:REFER TO ILLUSTRATION

 1
86120-02490

ZZE122..(18E,18G)..IND

PANASONIC,ID=57867,TYPE F:REFER TO ILLUSTRATION

 1
86211 - BRACKET, RADIO, NO.1
86211-12370

ZZE121..ATM..MA;ZZE122..IND,MA,VN

 1
86211-12370

ZZE122..(18E,18G)..IND

 1
86211 - BRACKET, RADIO, NO.1
86211-12370

ZZE121..ATM..MA;ZZE122..IND,MA,VN

 1
86211-12370

ZZE122..(18E,18G)..IND

 1
86212 - BRACKET, RADIO, NO.2
86212-12350

ZZE122..(18E,18G)..IND

 1
86212-12350

ZZE121..ATM..MA;ZZE122..IND,MA,VN

 1
86212 - BRACKET, RADIO, NO.2
86212-12350

ZZE122..(18E,18G)..IND

 1
86212-12350

ZZE121..ATM..MA;ZZE122..IND,MA,VN

 1
Common parts
90153-50010
90159-50322

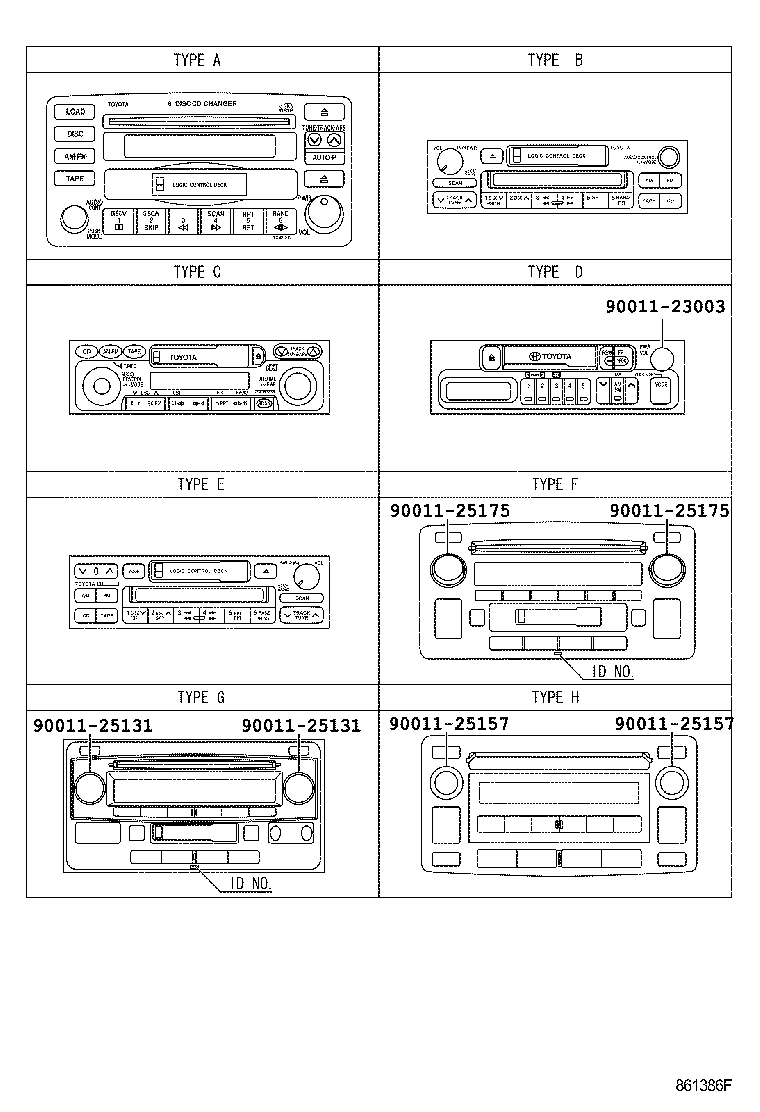

ILLUST NO. 2 OF 3(0103- )

Click highlighted areas on diagram

diagram 9001123003 9001125131 9001125131 9001125157 9001125157 9001125175 9001125175
Part # Description Qty Price
Common parts
90011-23003
90011-25131
90011-25157
90011-25175

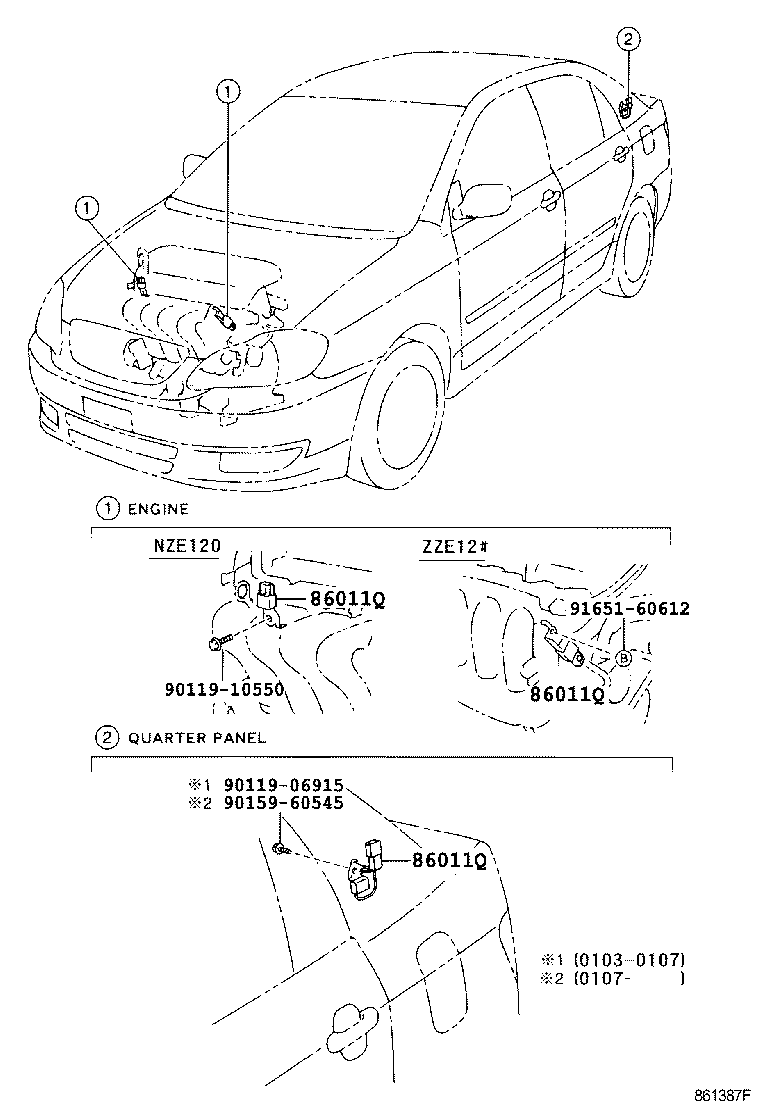

ILLUST NO. 3 OF 3(0103- )

Click highlighted areas on diagram

CONDENSER

diagram 86011Q 86011Q 86011Q 9011906915 9011910550 9015960545 9165160612
Part # Description Qty Price
86011Q - CONDENSER, RADIO SETTING
90980-04154

ZZE121..ATM..MA;ZZE122..IND,MA,VN

ENGINE

 1
90980-04162

ZZE121..ATM..MA;ZZE122..IND,MA,VN

QUARTER PANEL

 1
90980-04154

ZZE122..IND

ENGINE

 1
86011Q - CONDENSER, RADIO SETTING
90980-04154

ZZE121..ATM..MA;ZZE122..IND,MA,VN

ENGINE

 1
90980-04162

ZZE121..ATM..MA;ZZE122..IND,MA,VN

QUARTER PANEL

 1
90980-04154

ZZE122..IND

ENGINE

 1
86011Q - CONDENSER, RADIO SETTING
90980-04154

ZZE121..ATM..MA;ZZE122..IND,MA,VN

ENGINE

 1
90980-04162

ZZE121..ATM..MA;ZZE122..IND,MA,VN

QUARTER PANEL

 1
90980-04154

ZZE122..IND

ENGINE

 1
Common parts
90119-06915
90119-10550
90159-60545
91651-60612
