ZZE122R-GEPNKX (2003)

Toyota Corolla (Asia/India)

Production Jan 2003 - Aug 2008
Engine 1ZZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0103- )ATM

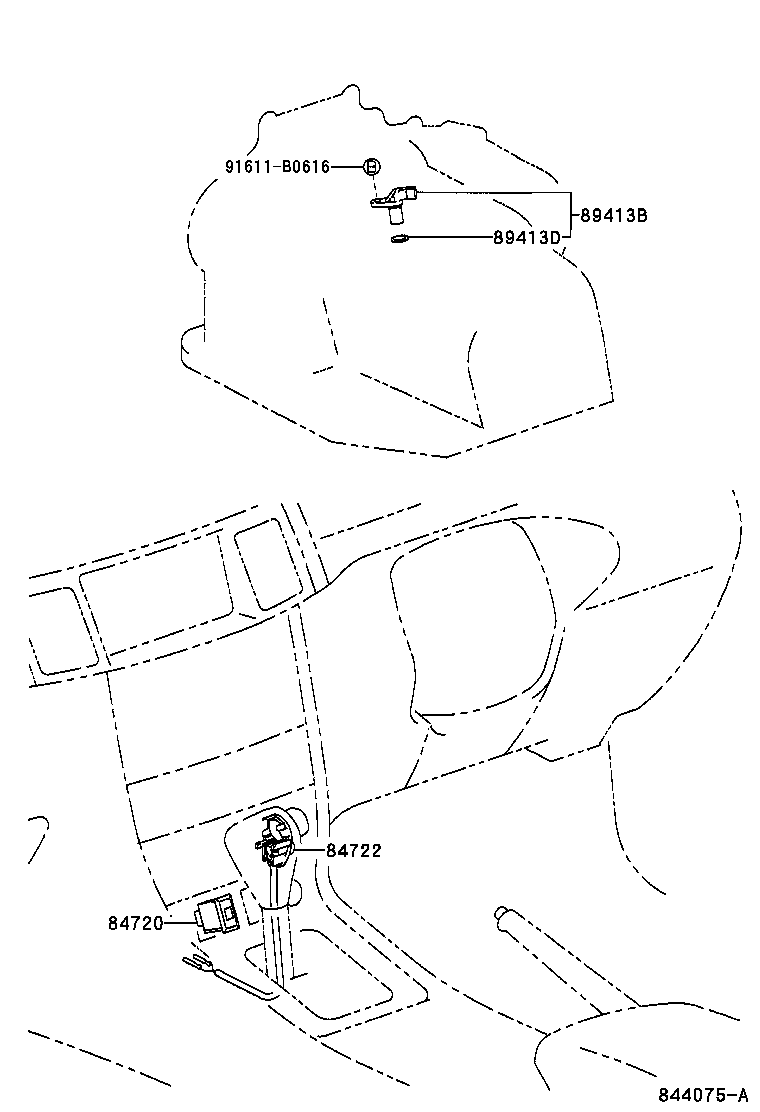

Click highlighted areas on diagram

diagram 84720 84722 89413B 89413D 91611B0616
Part # Description Qty Price
84722 - SWITCH, TRANSMISSION CONTROL
84722-12110E0

ZZE122..18G..IND

SANDAL WOOD,TRIM0#

 1
89413B - SENSOR, TRANSMISSION REVOLUTION
89413-32010

ZZE122..ATM..(IND,MA,PHL,TAIW,TH)

 1
89413-32010

ZZE122..18G..(IND,MA)

 1
89413D - RING, O(FOR TRANSMISSION REVOLUTION SENSOR)
90301-11008

ZZE122..ATM..(IND,MA,PHL,TAIW,TH)

 1
90301-11008

ZZE122..18G..(IND,MA)

 1
Common parts
91611-B0616
