ZZE122R-GEPNKX (2003)
Toyota Corolla (Asia/India)

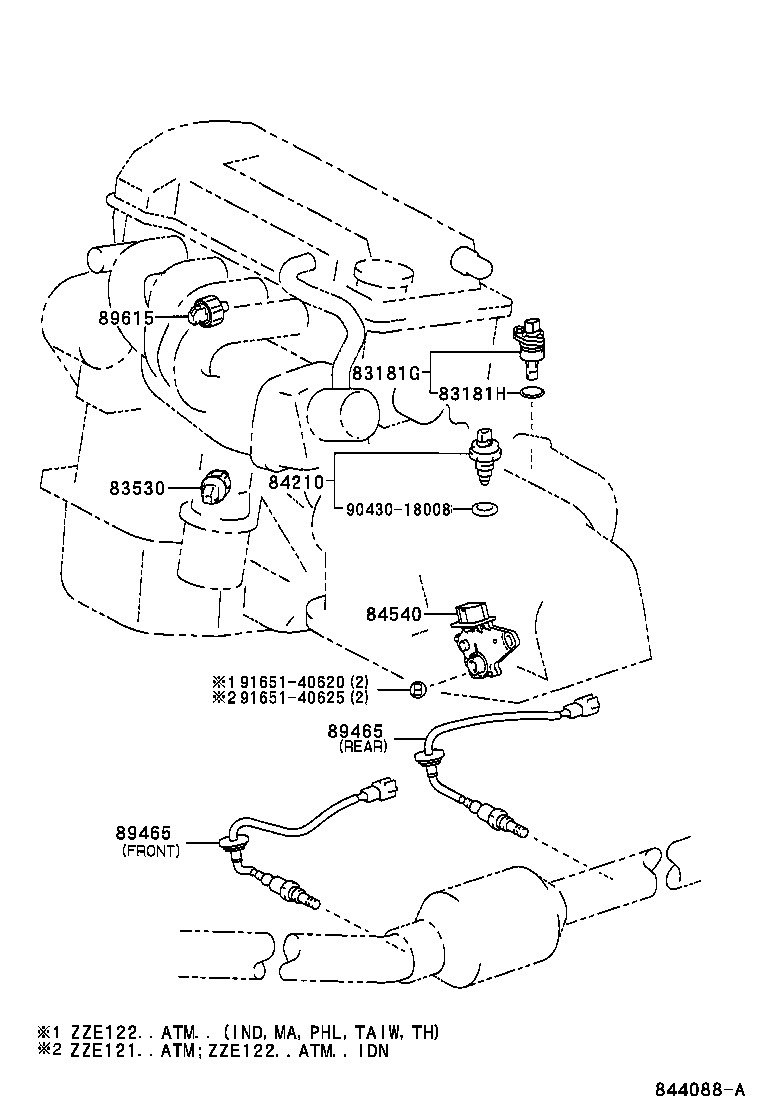

ILLUST NO. 1 OF 6(0103- )ZZE12#
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83181G - SENSOR, SPEEDOMETER | ||||
| 83181-12040 |
ZZE122..18G..IND |
1 | ||
| 83181H - RING, O (FOR SPEEDOMETER SENSOR) | ||||
| 96711-24018 |
ZZE122..18G..IND |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28020 |
NZE120,ZZE12# DENSO |
1 | ||
| 83530-60020 |
NZE120,ZZE12# YAZAKI |
1 | ||
| 83530-28020 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN DENSO |
1 | ||
| 83530-60020 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN YAZAKI |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-52050 |
ZZE122..ATM..(IND,MA,PHL,TAIW,TH) P/N LABEL=8454052050 |
1 | ||
| 84540-52010 |
ZZE122..18G..(IND,MA) P/N LABEL=8454052010 |
1 | ||
| 84540-52050 |
ZZE122..18G..(IND,MA) P/N LABEL=8454052050 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-12700 |
ZZE122..IND REAR |
1 | ||
| 89465-12620 |
ZZE122..IND,MA,PHL,TAIW,TH FRONT |
1 | ||
| 89465-12700 |
ZZE122..IND (J),REAR |
1 | ||
| 89465-12620 |
ZZE122..IND,MA,VN (J),FRONT |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-12700 |
ZZE122..IND REAR |
1 | ||
| 89465-12620 |
ZZE122..IND,MA,PHL,TAIW,TH FRONT |
1 | ||
| 89465-12700 |
ZZE122..IND (J),REAR |
1 | ||
| 89465-12620 |
ZZE122..IND,MA,VN (J),FRONT |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-12120 |
ZZE122;ZZE121..MA,PHL,TH;ZZE121..16J..TAIW |
1 | ||
| 89615-12120 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN |
1 | ||
| Common parts | ||||
| 90430-18008 | ||||
| 91651-40620 | ||||
| 91651-40625 | ||||

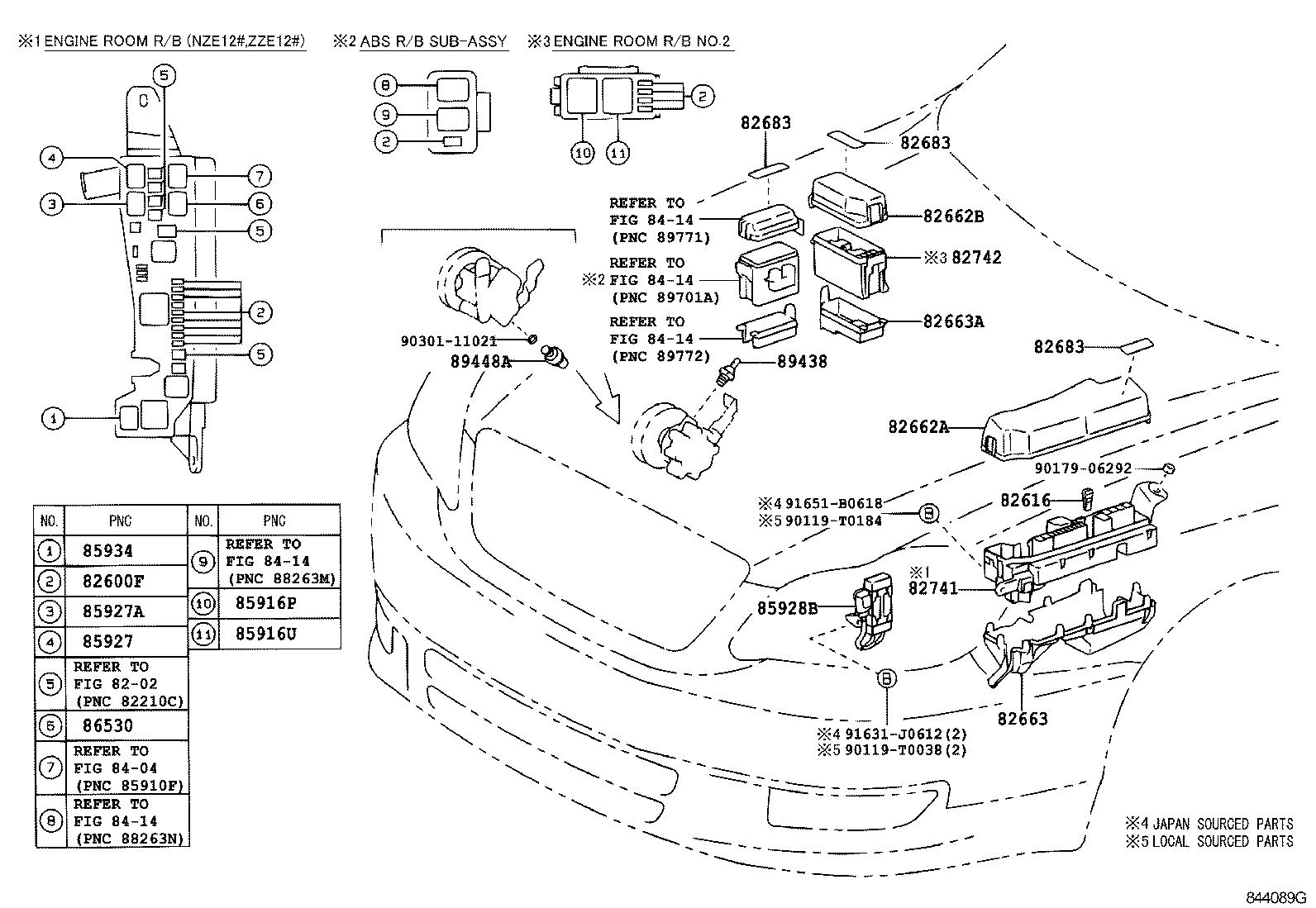

ILLUST NO. 2 OF 6(0103- )
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09008 |
ZZE122..IND 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09009 |
ZZE122..IND 10A,MINI FUSE,RED |
1 | ||
| 90982-09012 |
ZZE122..IND 25A,MINI FUSE |
1 | ||
| 90982-09013 |
ZZE122..IND 30A,MINI FUSE,GRN |
1 | ||
| 90982-09007 |
ZZE122..IND 5A,MINI FUSE,TAN |
1 | ||
| 90982-09008 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09010 |
ZZE122..IND 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09009 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN 10A,MINI FUSE,RED |
1 | ||
| 90982-09013 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN 30A,MINI FUSE,GRN |
1 | ||
| 90982-09010 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09012 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN 25A,MINI FUSE |
1 | ||
| 90982-09007 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN 5A,MINI FUSE,TAN |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-20010 |
ZZE122..IND |
1 | ||
| 82616-20010 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-12130 |
ZZE122..IND |
1 | ||
| 82662-12090 |
ZZE122..IND |
1 | ||
| 82662-12131 |
ZZE122..IND |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-12020 |
ZZE122..(18E,18G)..IND |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-12010 |
ZZE122..IND |
1 | ||
| 82663-12010 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-12040 |
ZZE122..(18E,18G)..IND |
1 | ||
| 82663-12040 |
ZZE122..IND,MA,VN |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-12020 |
ZZE122..IND |
1 | ||
| 82741-12020 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82741-12050 |
ZZE122..IND,MA,VN |
1 | ||
| 82741-12050 |
ZZE122..(18E,18G)..IND |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02025 |
ZZE122..(18E,18G)..IND |
1 | ||
| 90987-02025 |
ZZE122..IND,VN |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90080-87008 |
NZE120,ZZE122;ZZE121..MA,PHL,TH;ZZE121..16J..TAIW P/N LABEL=9008087008 |
1 | ||
| 90987-02012 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN P/N LABEL=9098702012 |
1 | ||
| 90080-87008 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN P/N LABEL=9008087008 |
1 | ||
| 90080-87010 |
NZE120,ZZE122;ZZE121..MA,PHL,TH;ZZE121..16J..TAIW P/N LABEL=9008087010 |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90080-87009 |
NZE120,ZZE122;ZZE121..MA,PHL,TH;ZZE121..16J..TAIW P/N LABEL=9008087009 |
1 | ||
| 90987-04004 |
NZE120,ZZE122;ZZE121..MA,PHL,TH;ZZE121..16J..TAIW P/N LABEL=9098704004 |
1 | ||
| 90080-87009 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN P/N LABEL=9008087009 |
1 | ||
| 90987-04004 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN P/N LABEL=9098704004 |
1 | ||
| 85928B - RESISTOR, COOLING FAN | ||||
| 85928-12010 |
NZE120,ZZE122;ZZE121..MA,PHL,TH;ZZE121..16J..TAIW |
1 | ||
| 85928-12010 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN |
1 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90987-02028 |
ZZE122..IND,VN |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90080-87008 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN |
1 | ||
| 89438 - SWITCH, POWER STEERING OIL PRESSURE | ||||
| 89438-33010 |
ZZE121..PHL;ZZE12#..(16J,18E,18G,18J)..(IDN,IND,TAIW,VN) |
1 | ||
| 89438-33010 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN |
1 | ||
| Common parts | ||||
| 90119-T0038 | ||||
| 90119-T0184 | ||||
| 90179-06292 | ||||
| 90301-11021 | ||||
| 91631-J0612 | ||||
| 91651-B0618 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8404 | ||||
| 8414 | ||||

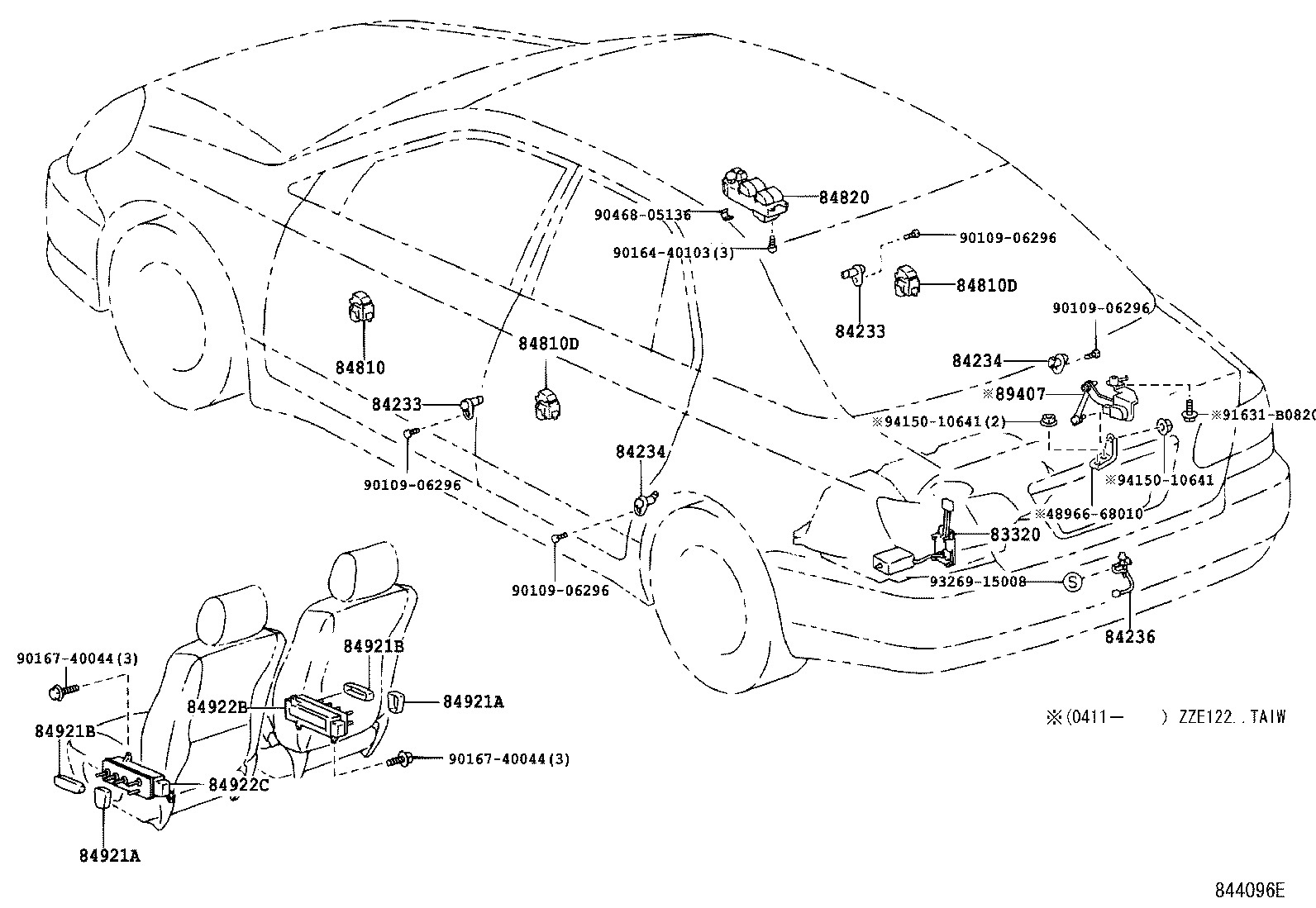

ILLUST NO. 6 OF 6(0103- )
DOOR,ROOF,FLOOR & LUGGAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-12640 |
ZZE122..IND |
1 | ||
| 83320-02060 |
ZZE122..IND |
1 | ||
| 83320-02060 |
ZZE122..IND |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-02070 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-02070 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-02090 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-02090 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN |
2 | ||
| 84236 - SWITCH ASSY, COURTESY LAMP(FOR LUGGAGE COMPARTMENT ROOM | ||||
| 84231-12130 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-02030 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-02030 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-02030 |
ZZE121..ATM..MA;ZZE122..IND,MA,VN |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-02050 |
ZZE122..IND,MA;ZZE121..ATM..MA |
1 | ||
| Common parts | ||||
| 48966-68010 | ||||
| 90109-06296 | ||||
| 90164-40103 | ||||
| 90167-40044 | ||||
| 90468-05136 | ||||
| 91631-B0820 | ||||
| 93269-15008 | ||||
| 94150-10641 | ||||
